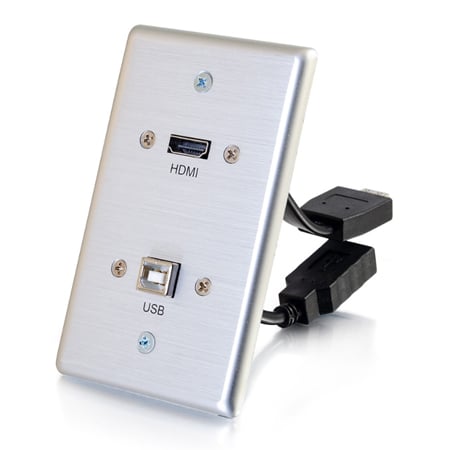

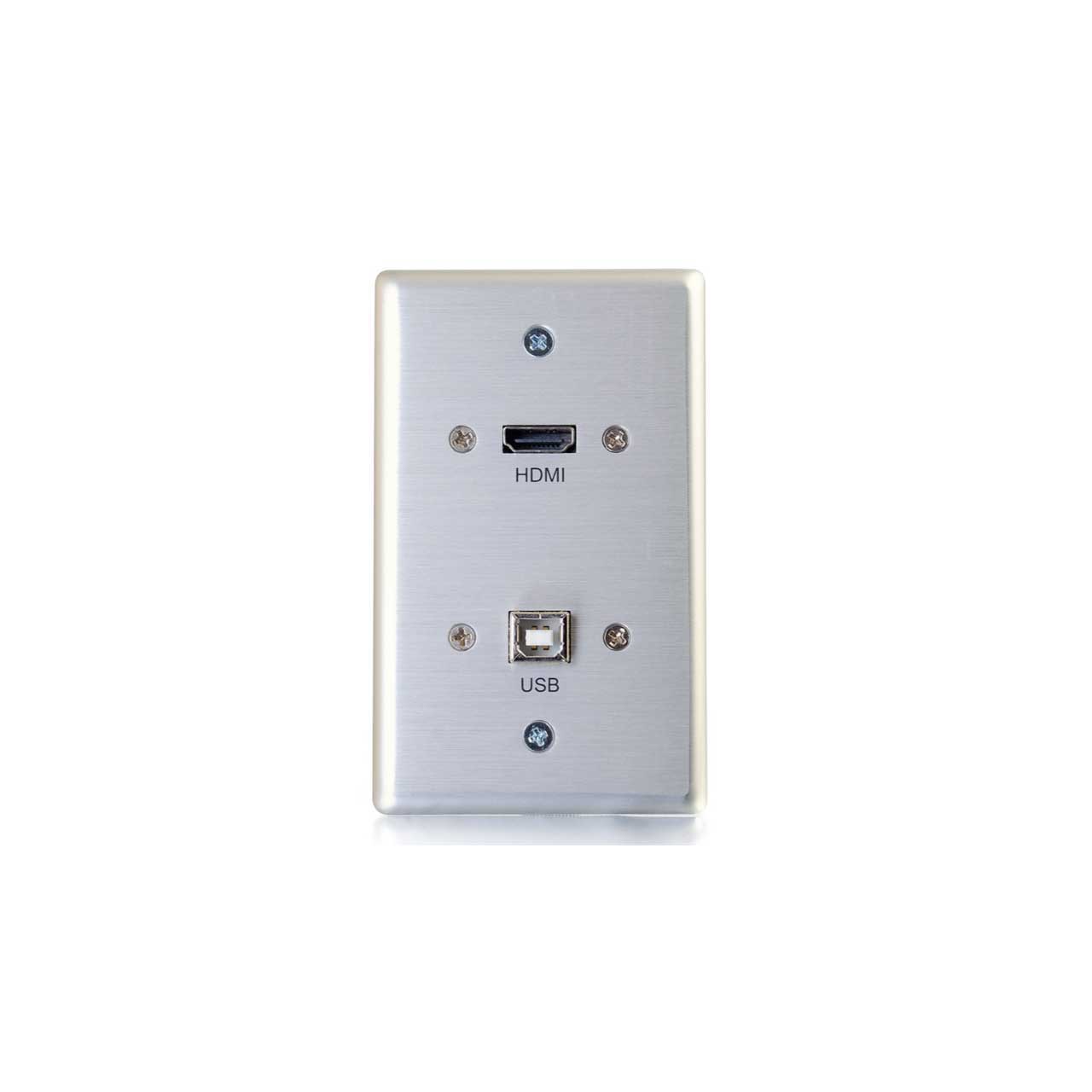

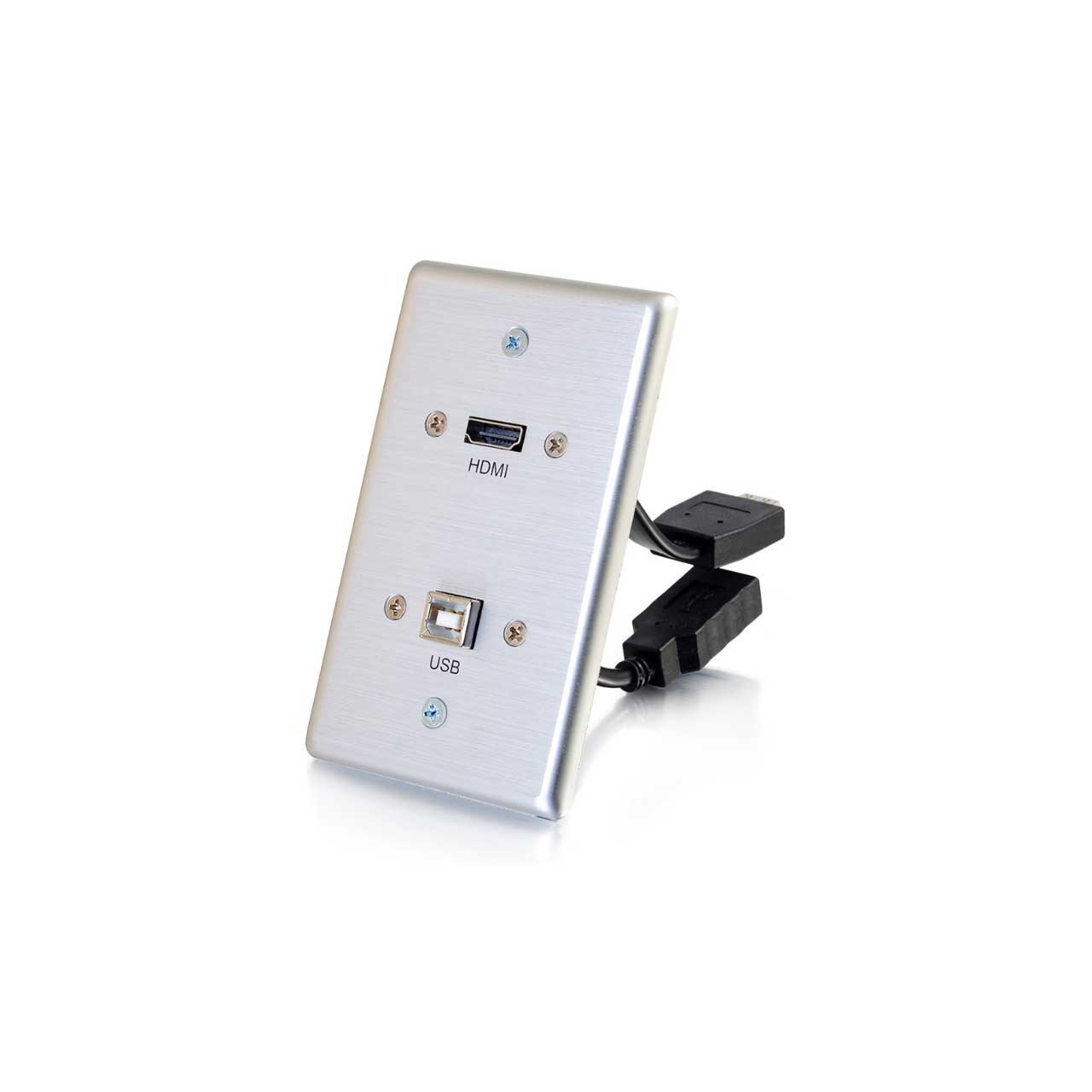

C2G HDMI and USB Pass Through Single Gang Wall Plate - Brushed Aluminum

39874 - Overview

• Features:

  • Supports HDMI audio/video signals and USB

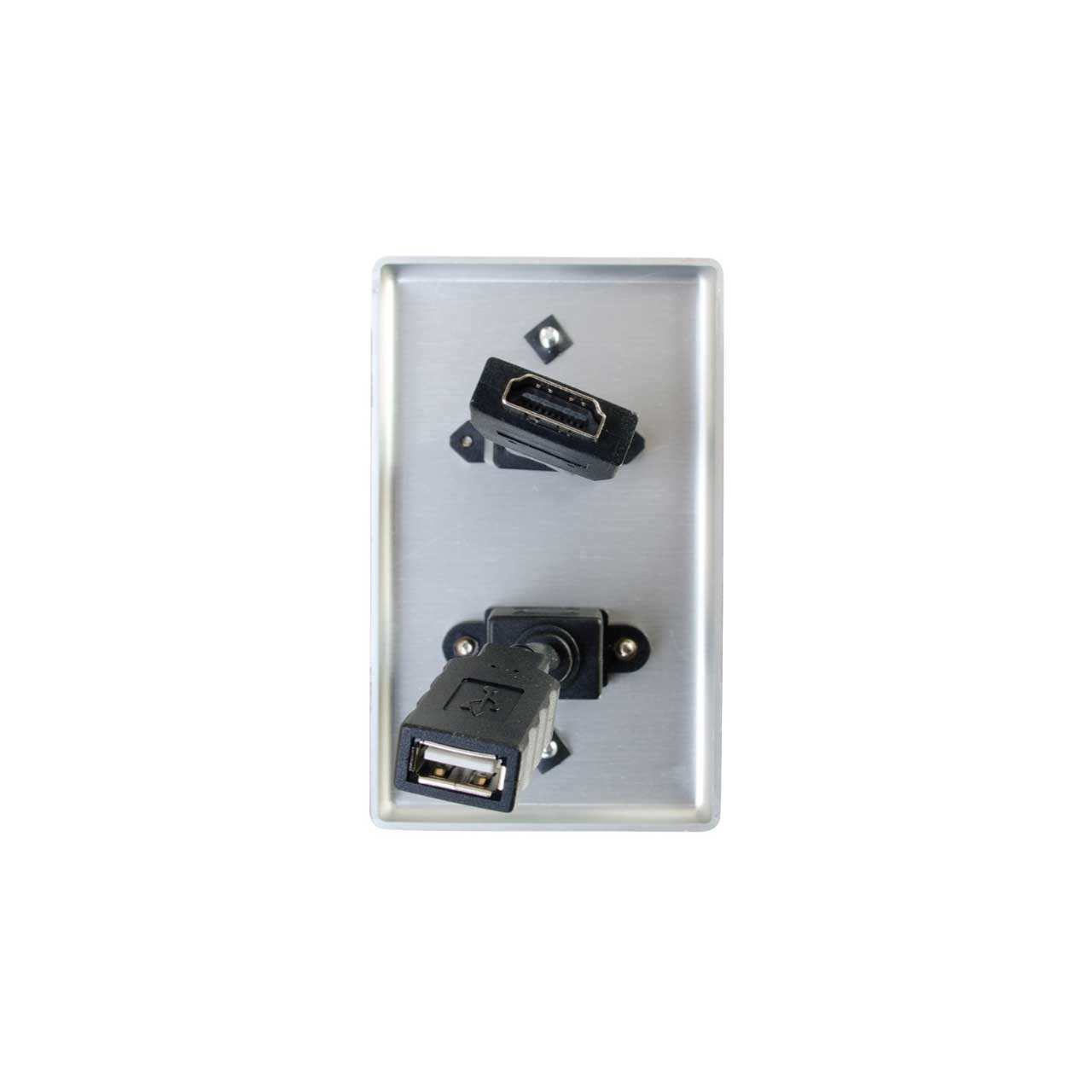

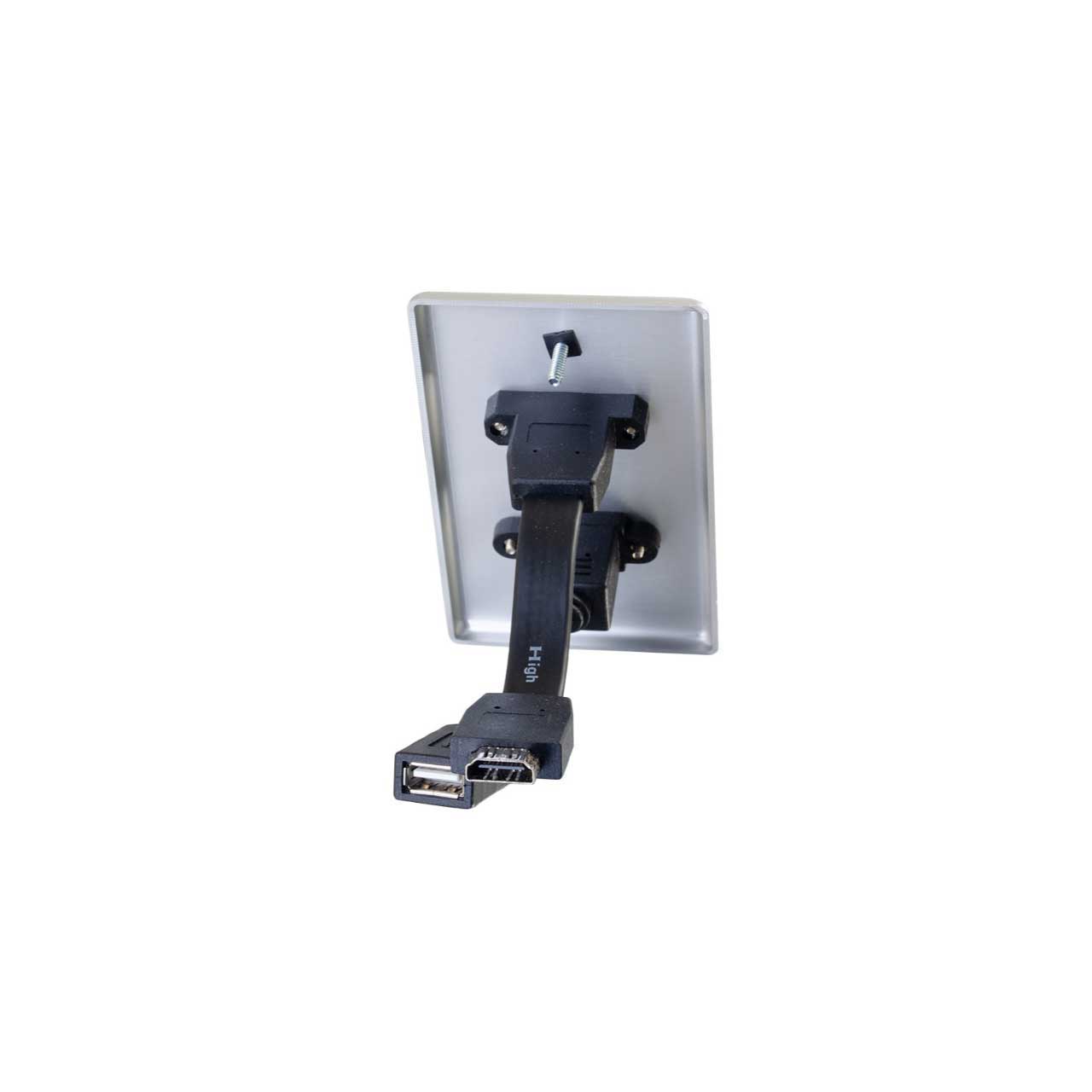

  • Flexible HDMI and USB pigtails for easy installation in a wall box
  • Compatible with a standard single gang wall box
  • Aluminum construction for durability and long life


• Specifications:

  • HDMI Electrical Specifications
  • Voltage Rating: 30V
  • Nominal Capacitance: 58PF/M
  • Conductor Resistance: @ 68°F (20°C) max, 30AWG: 376.96{OHM]/KM
  • Insulation Resistance: 10M/km @ 20°C DC 500V
  • Attenuation: @ 0.30~825MHz 5dB / 3.0M @ 825~2475MHz 12dB / 3.0M @ 2475~4125MHz 20dB / 3.0M @ 4125~5100MHz 25dB/3.0M

    USB Electrical Specifications
  • Voltage Rating: 30V
  • Conductor Resistance: @ 68°F max, 28AWG: 232{OHM]/KM; 24AWG: 93.25/KM
  • Insulation Resistance: 10M /km @ 20°C DC 500V
  • Time Delay: 5.2ns/m (max)
  • Impedance: 90& plusmn; 15%
  • Propagation Delay Skew: 100ps (Full-/High-speed only)
  • Attenuation: (Full-/High-speed only)
  • Differential Impedance: cable @ 200ps Tr(10-90%) 90± 7
  • Intra-Pair Skew: 15ps/m @200ps Tr(10-90%)
  • Attenuation/Insertion Loss: 1.5 dB/2M @ 0.1GHz / 5.0 dB/2M @ 1.25GHz / 7.5dB /2M @ 2.5GHz / 25dB /2M @ 7.5GHz
  • Differential to Common mode(max): 20dB/cable @ 0.1 ~ 7.5GHz
  • Next: [email protected] 32dB @ 2.5GHz / 23dB @ 3.0GHz / 23dB @ 7.5GHz

    Physical Specifications
  • Jacket: Black PVC
  • HDMI Jacket Thickness: 2in (0.51mm)
  • HDMI Minimum Bend radius: 1.18in (30mm)
  • USB Jacket Thickness: 0.014in (0.38mm) Min AVG
  • USB Minimum Bend radius: R47mm
  • Approvals: CE and conforms to 2011/65/EU ROHS 2

    Conductor (2 Conductors, 5 Pair):
  • Conductor: 30AWG(7/0.10TC)X5PR
  • Insulation: FM-PE, ID: 0.75± 0.05mm
  • Color: Brown/White, Red/White, Orange/White, Green/White, Blue/White
  • Drain: 30AWG (7/0.10TC) X5
  • Shield: AL Foil Wrap X5
  • Braid: (16/5/0.08TC) X5

    Conductor (4 Conductors)
  • Conductor: 30AWG (7/0.10TC) X4C
  • Insulation: PP, ID: 0.55± 0.05mm
  • Color: Red/Yellow/Orange/White
  • Drain: 30AWG (7/0.10TC)
  • Shield: AL Foil Wrap

    Conductor (2 Conductors)
  • Conductor: 24AWG (7/0.2TC) X2
  • Insulation: SR-PVC ID: 0.23± 0.05
  • Color: Red/Black

    Conductor (2 Conductors, 1 Pair)
  • Conductor: 28AWG(7/0.127TC) X2
  • Insulation: HD-PE, ID: 0.90± 0.05mm(Green/White)
  • Drain: 28AWG (7/0.127TC)
  • Shield 1: AL Foil Wrap
  • Shield 2: Braid (16/5/0.10TC)

    Wall Plate
  • Material: Brushed Aluminum 5052
  • Hardness: HRB22 Anodizing


• Item Includes:

  • 1x HDMI and USB Pass Through Single Gang Wall Plate


• GTIN:

  0757120398745
