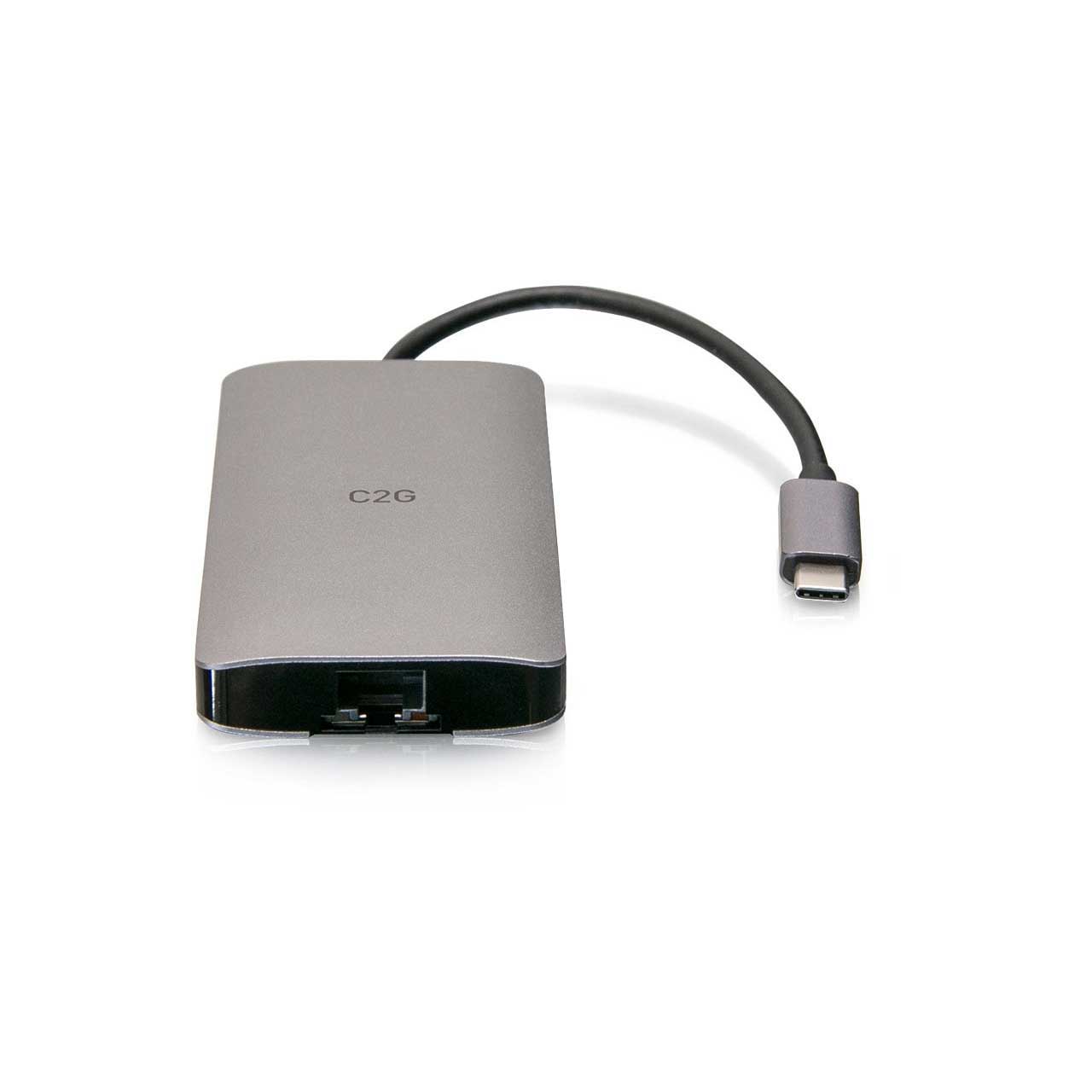

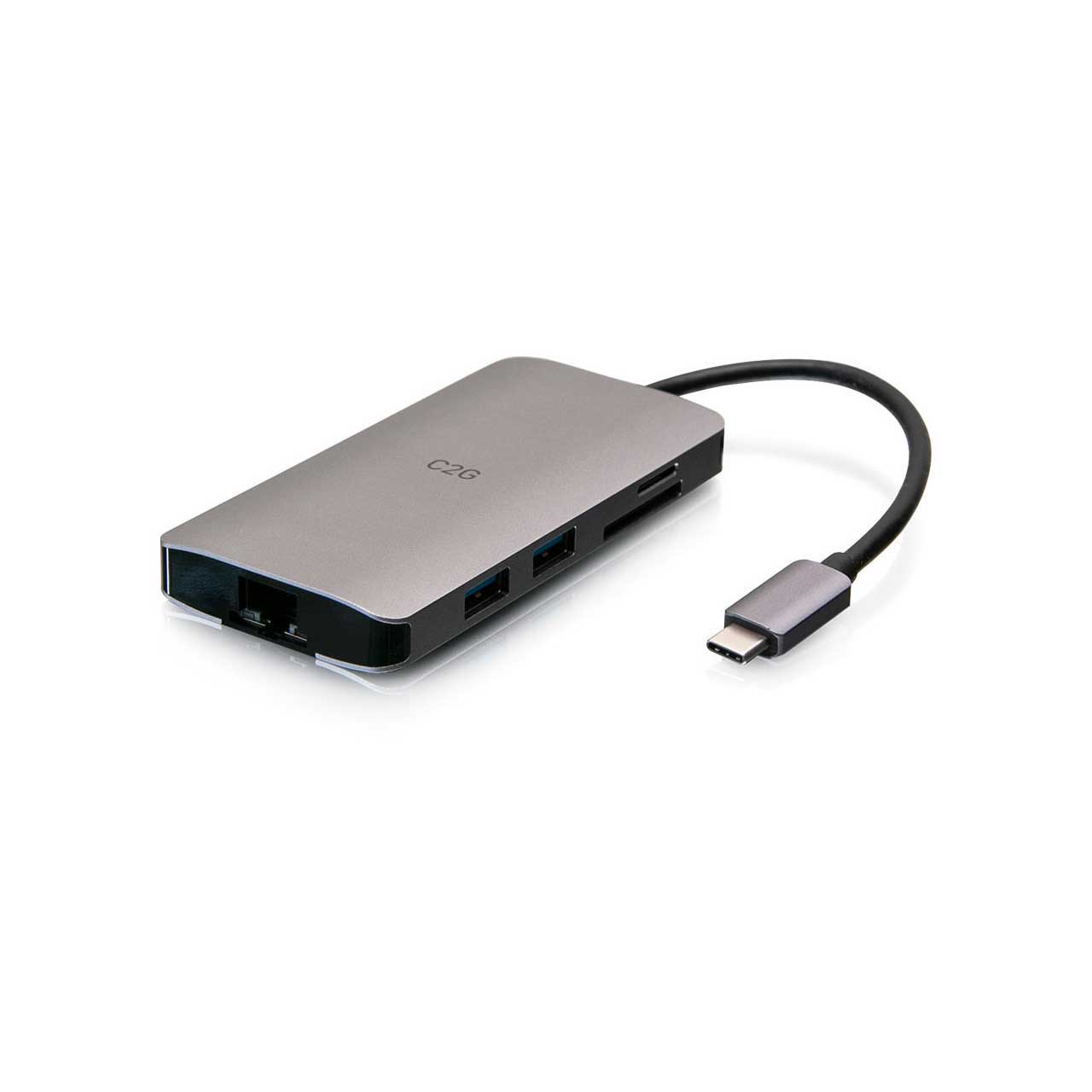

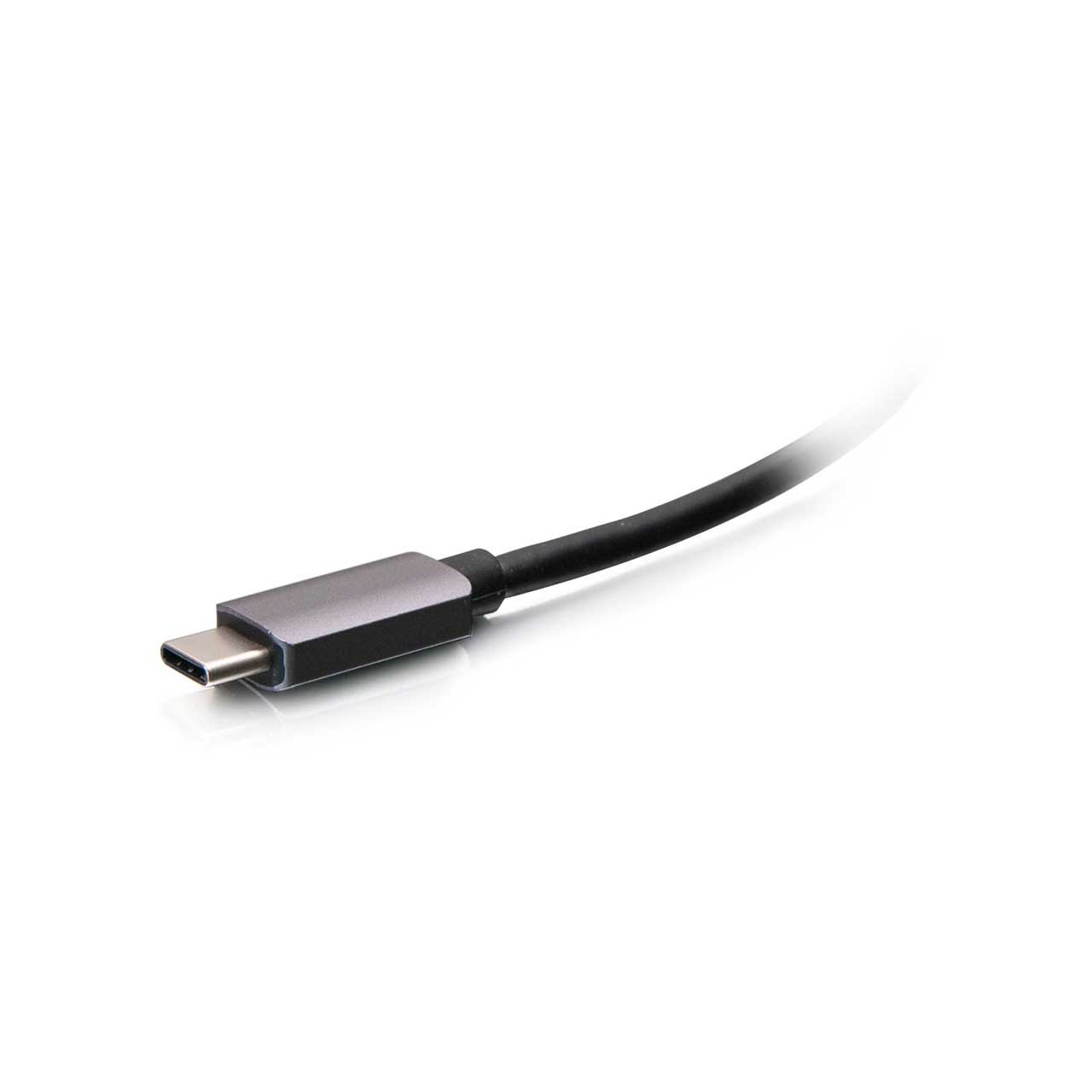

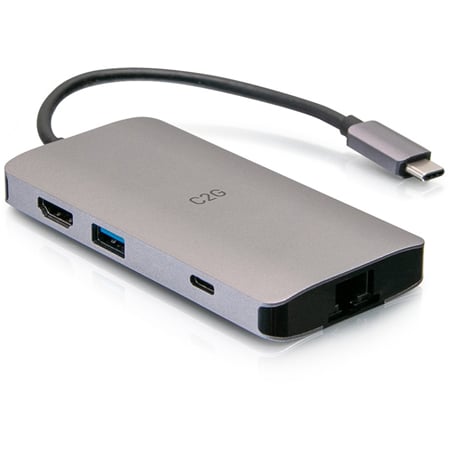

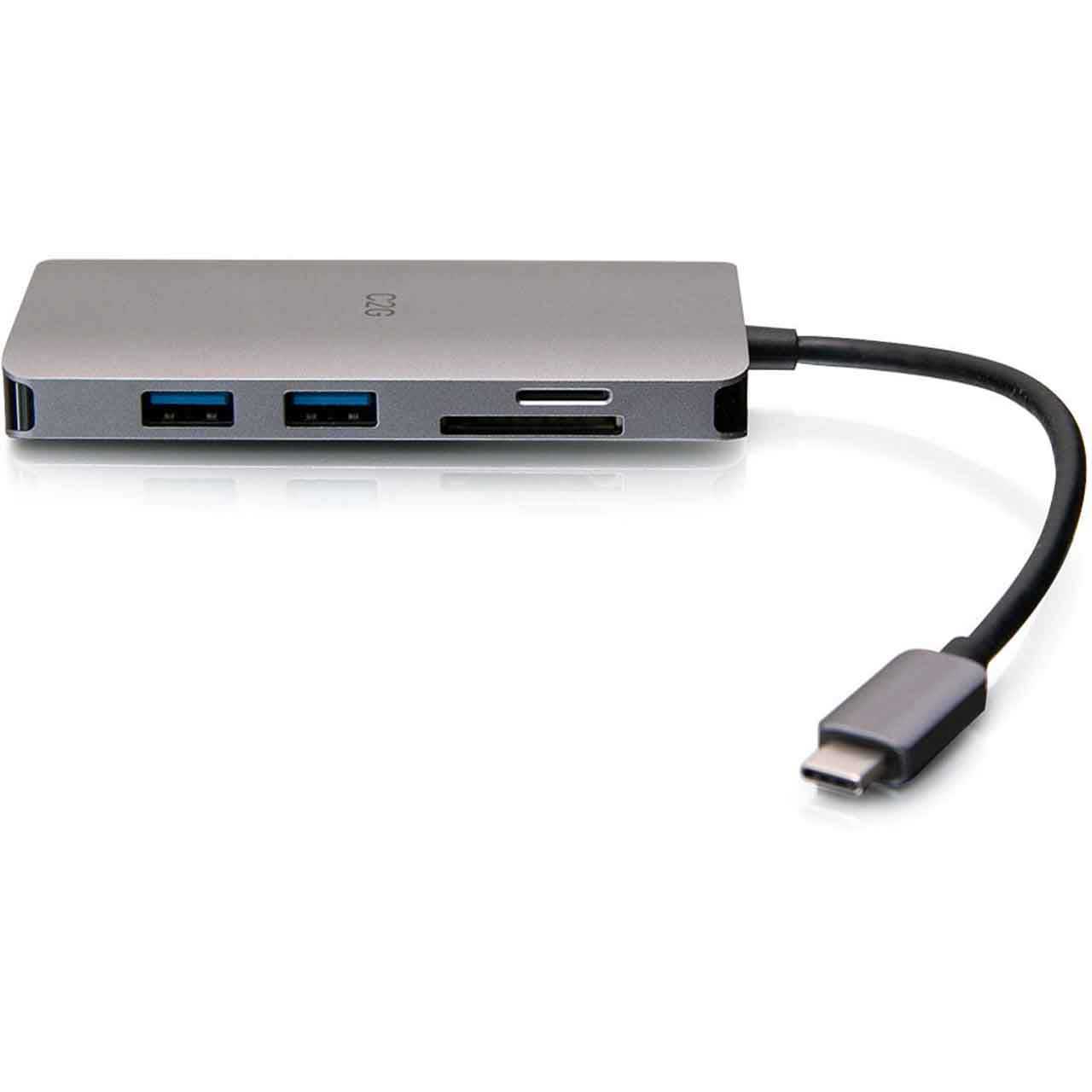

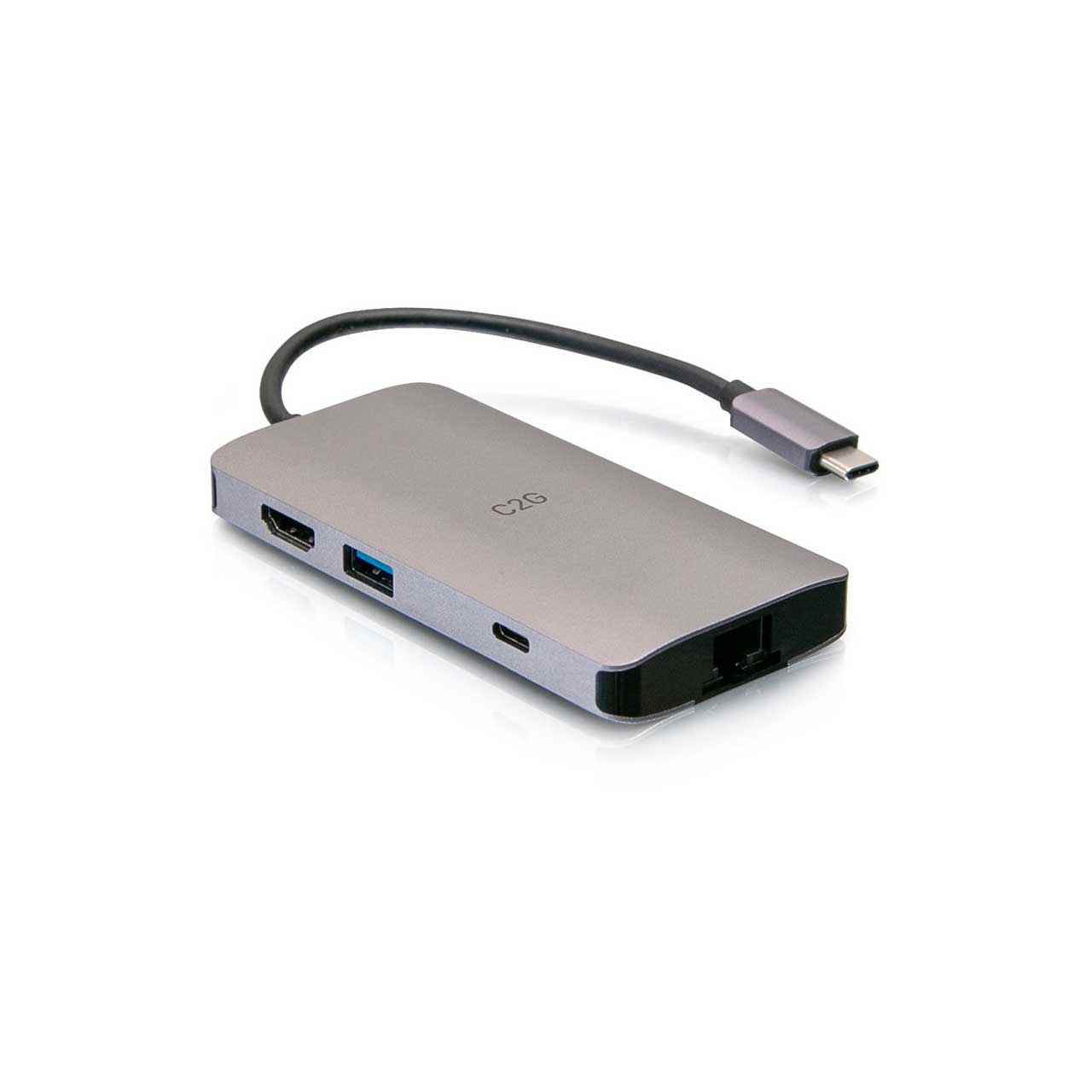

C2G 54458 USB C Mini Dock with HDMI/USB/Ethernet/SD Card Reader and USB C - Power Delivery up to 100W

ITEM #: C2G-54458 MFG #: 54458

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$99.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


54458 - Overview

This C2G 54458 USB-C 8-in-1 Mini Dock with HDMI, USB-A, Ethernet and USB-C Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops and is perfect for contributing to a desktop solution # making it ideal for inside reps that need essential connectivity while in the office or when working from home.

This USB-C mini dock supports up to 100W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.

This mini dock includes an HDMI port with a resolution up to 4K (3840 x 2160) at 30Hz for high definition audio/video. The USB-A and USB-C data ports support SuperSpeed USB 5Gbps data transfers # allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Optimize performance by connecting displays designed for 4K 30Hz signals and USB devices designed for 5Gbps transfer speeds.

Ports
4K HDMI: Connect to a 4K display via the HDMI port.
2x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
Gigabit Ethernet: Connect to local network for network and internet access.
1x USB-C: Connect storage devices and transfer data up to 5Gbps through the USB-C port.
1x USB-C Data and PD: Transfer data up to 5Gbps from a storage device and power a laptop or tablet with up to 100W power delivery.

  • Features:

    • Supports up to 100W of power delivery to keep your laptop charged
    • Supports HDMI resolutions up to 4K, for viewing your screen content at full HD
    • USB-A and USB-C ports for fast data transferring
    • SD Card Reader to transfer pictures, video, or other multimedia
    • Hard wired Ethernet port for when security requires it or when WiFi is not available
    • Reversible, symmetrical USB-C connector, so no guessing how to plug it into your laptop
    • Plug-and-play, no additional software or drivers needed
    • 5 year warranty

  • Specifications:

    • Color: Gray
    • Video Resolution: 4K 30Hz, 4K, 1080p
    • Data Transfer Rate: 5 Gbps
    • Cable: USB 3.1 ~ [34AWG(7/0.06TC)+EAM]*4P+34AWG(7/0.06TC)*2C+24AWG(41/0.08TC)*2C+34AWG(7/0.06TC)*4C+AB(16/9/0.06TC75%) OD: 4.2MM ~ Black TPE No Print
    • Rated Temperature: 80°C ; Voltage: 30V
    • Conductor Resistance: At 20°C Max 34AWG: 860 OHMS/KM
    • Insulation Resistance: 10M-KM MIN at 20°C DC 500V(EIA-364-21)
    • Dielectric Strength: AC 500V/1 Minute No Breakdown( EIA-364-20)
    • Operating Temperature: 0° to +45°C; 15-85% RH (Non-Condensing)
    • Storage Temperature: -10° to +70°C; 15-85% RH (Non-Condensing)
    • Connector: HDMI A Female: Contact Pin: C5191, Gold Plated Shell: C2680, Nickel Plated Insulation: LCP, Black
    • Connector: USB-C Male: Contact Pin: Copper Alloy, Gold Plated Shell: Stainless Steel, Nickel Plating Insulation: LCP, Black
    • Shell: Cover: ABS+PC/Black
    • Shell: Main Cover: ABS+PC/Black/Printing: C2G
    • Shell: Front Cover: ABS+PC/Black
    • Inspection: 100% Test for Short/Open
    • Inspection: Mechanical test for Connectors
    • Inspection: 100% Function Test

  • Item Includes:

    • 1x C2G 54458 8-in-1 Mini Docking Station with HDMI/USB-A/Ethernet/SD Card Reader and USB-C Power

  • GTIN:

    0757120544586
