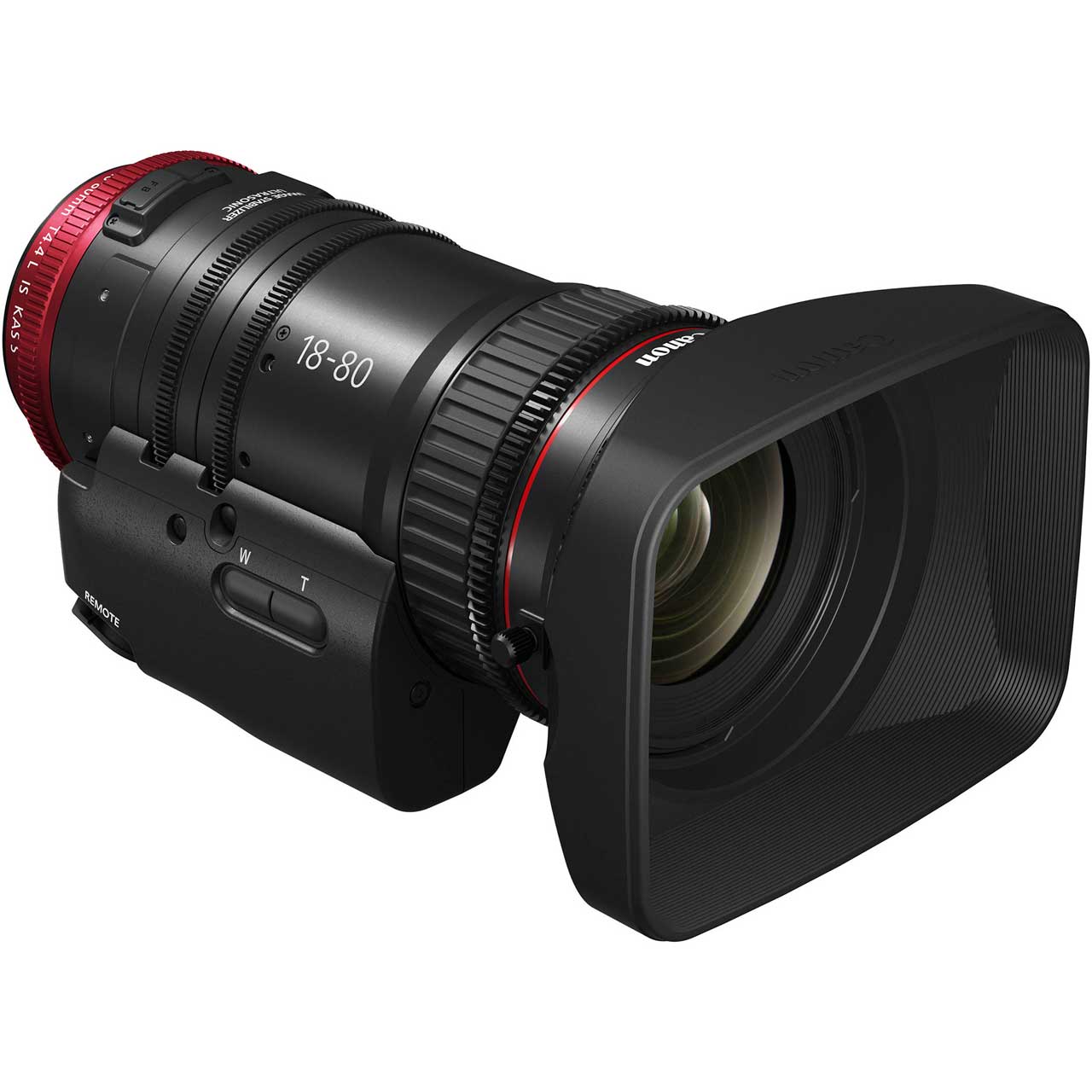

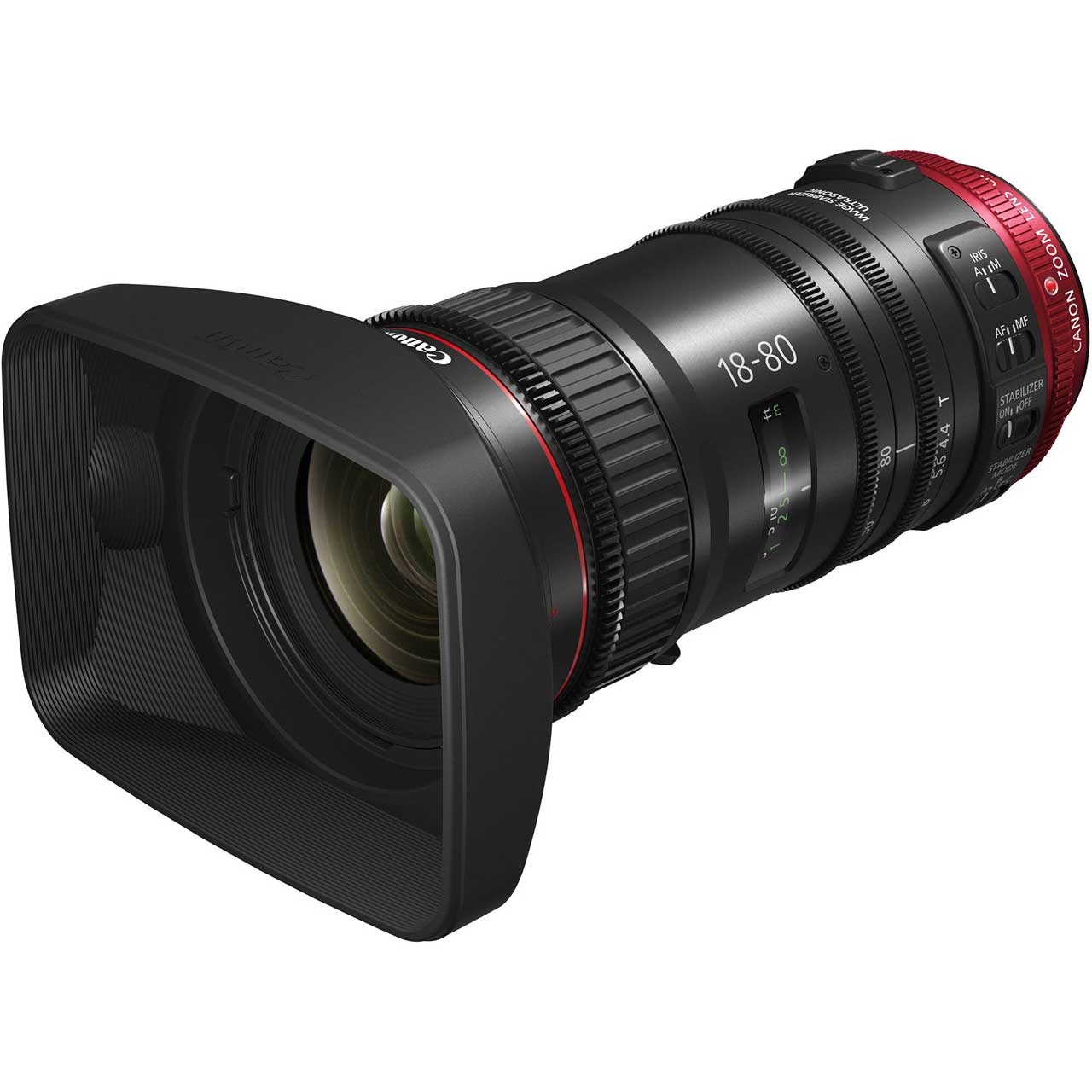

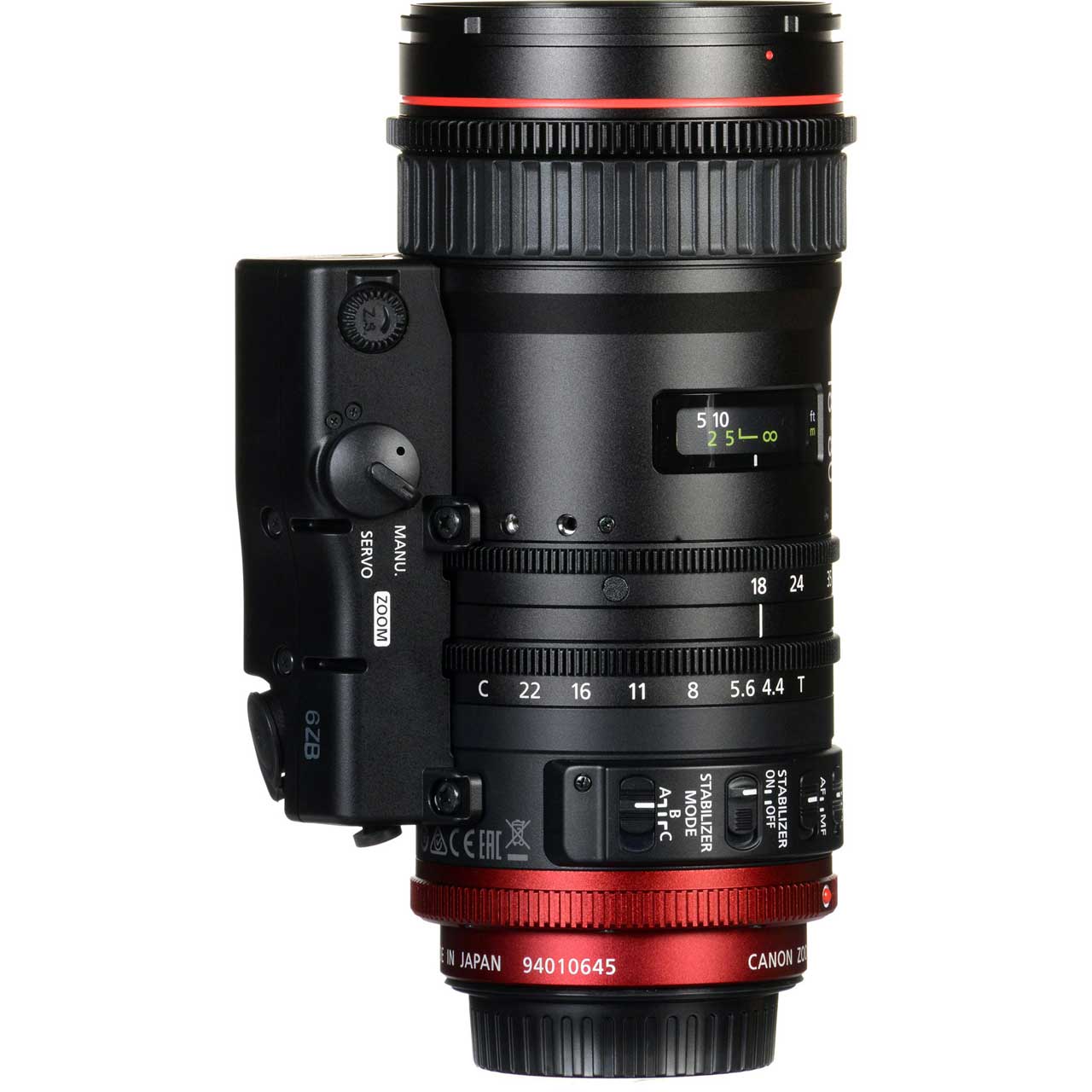

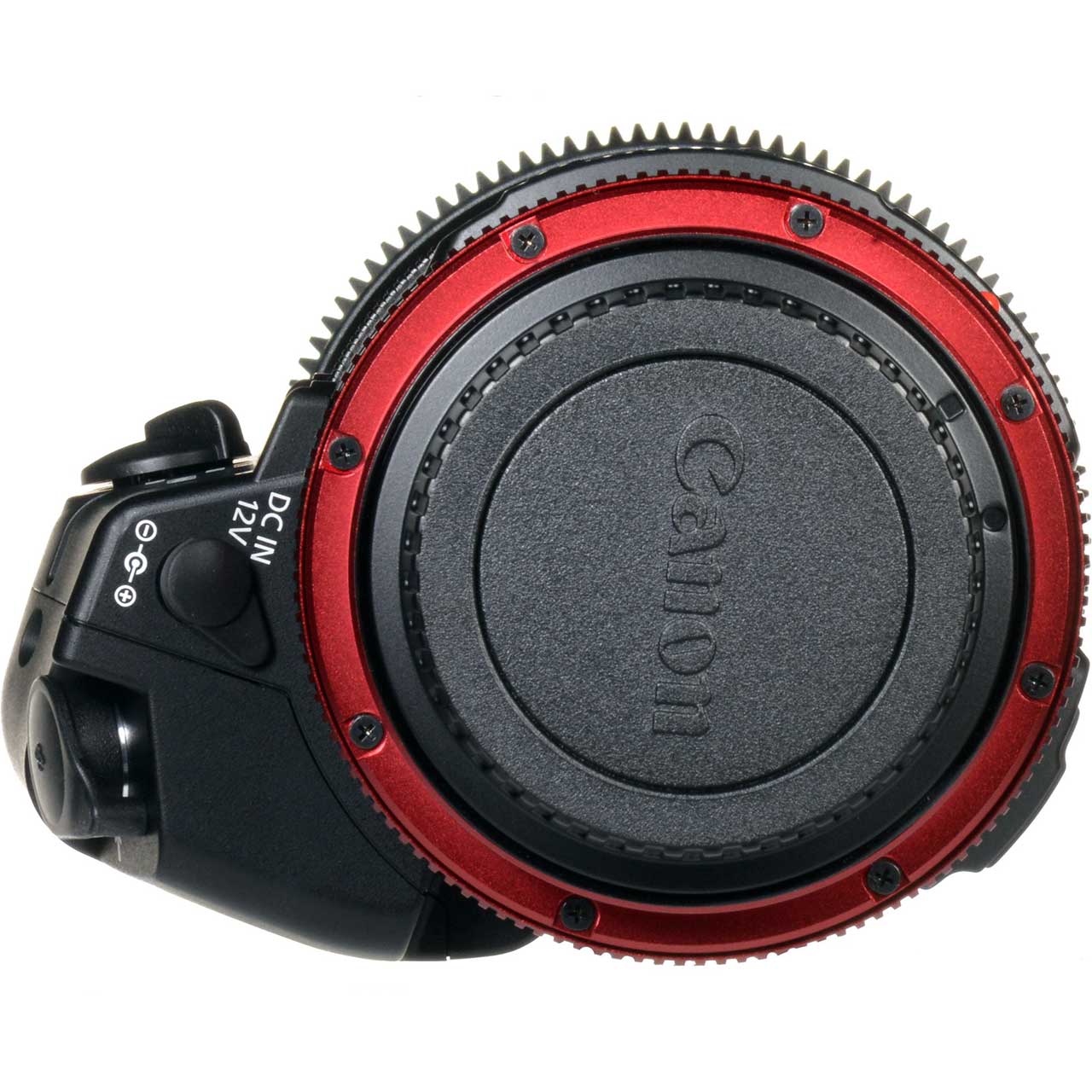

Canon 18-80mm Camcorder Lens EF Mount

ITEM #: CAN-1714C002 MFG #: 1714C002

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$4,830.00

Our Price:

$4,100.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


1714C002 - Overview

The COMPACT-SERVO 18-80mm T4.4 EF-mount lens combines the benefits of compact size and light weight (only 2.65 lbs.) for outstanding mobility. Designed to shoot video, this lens can be ideal for the cinematographer moving up from our EF lenses, combining the functionality of our EF lenses with the video shooting features of our Cinema lenses.

Acknowledging the need to control zoom, focus and iris, Canon has developed this zoom lens with full external servo control. The integrated servo drive unit is compatible with broadcast industry-standard lens controllers including Canon's standard broadcast lens controllers (ZSD-300D/FPD-400D). The optional ZSG-C10 Zoom Servo Grip can mount to the lens for handheld operation.

Three levels of Image Stabilization and incorporated autofocus functions set the COMPACT-SERVO 18-80mm T4.4 EF lens apart from traditional Super 35mm Cinema lenses. A 9-blade iris creates a rounded aperture so out-of-focus highlights appear circular. The lens also features a 4.4x zoom magnification, a focal length range of 18-80mm and a 130° smooth rotating focus ring. The COMPACT-SERVO 18-80mm T4.4 EF lens offers professional video functionality all at an affordable price, making it ideal for a wide range of video applications including documentary, cinema, news gathering, wedding and other video production.

  • Specifications:

    • Mount Type: EF
    • Image Coverage: Super 35
    • Zoom Ratio: 4.4x
    • Maximum Relative Aperture: T4.4 (F4) at 18-80mm
    • Iris Blades: 9
    • Angular Field of View: Aspect Ratio 1.78:1, Dimensions 24.6 x 13.8mm; 68.7° x 41.9° at 18mm / 17.5° x 9.9° at 80mm; Aspect Ratio 1.9:1, Dimensions 26.2 x 13.8mm; 72.1° x 41.9° at 18mm / 18.6° x 9.9° at 80mm
    • Minimum Object Distance from Image Sensor: 0.5m (1.7 ft.)
    • Object Dimensions at M.O.D.: Aspect Ratio 1.78:1, Dimensions 24.6 x 13.8mm; 43.4 + 24.3cm at 18mm / 9.5 + 5.3cm at 80mm
    • Aspect Ratio 1.9:1, Dimensions 26.2 x 13.8mm
    • 46.2 + 24.3cm at 18mm / 10.1 + 5.3cm at 80mm
    • Front Diameter: 84mm
    • Filter Size: 77mm
    • Approx. Dimensions (W x H x L): 93.4 x 107.2 x 182.3mm
    • Approx. Weight: 2.65 lbs.

  • GTIN:

    0013803282566
