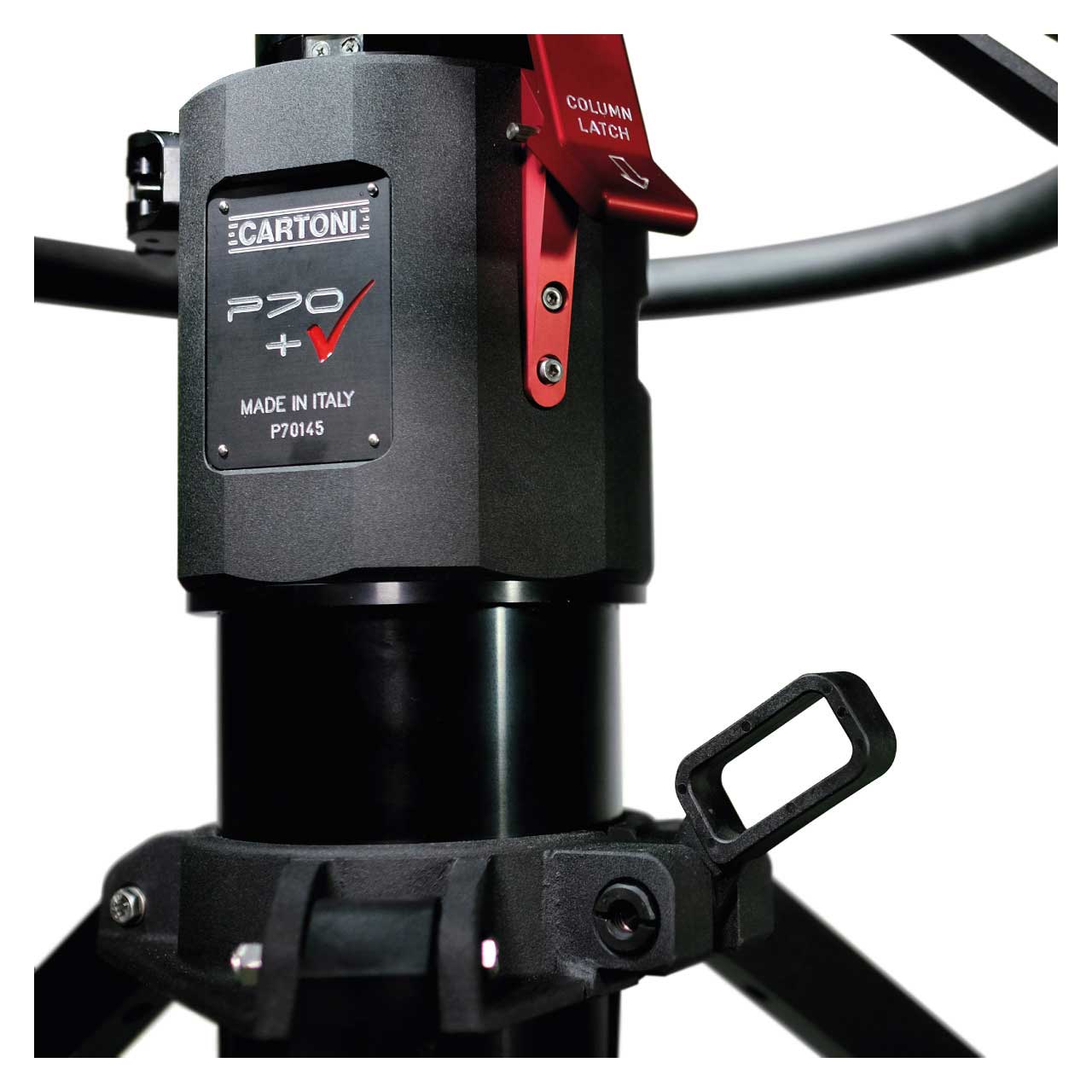

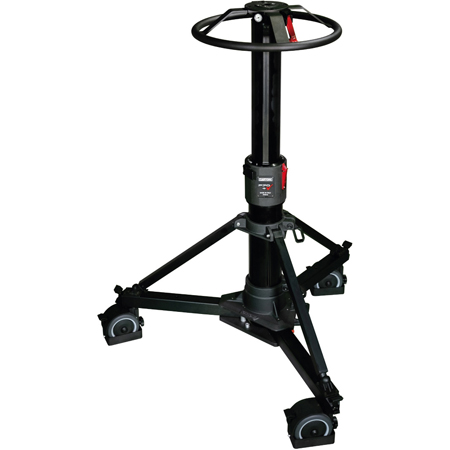

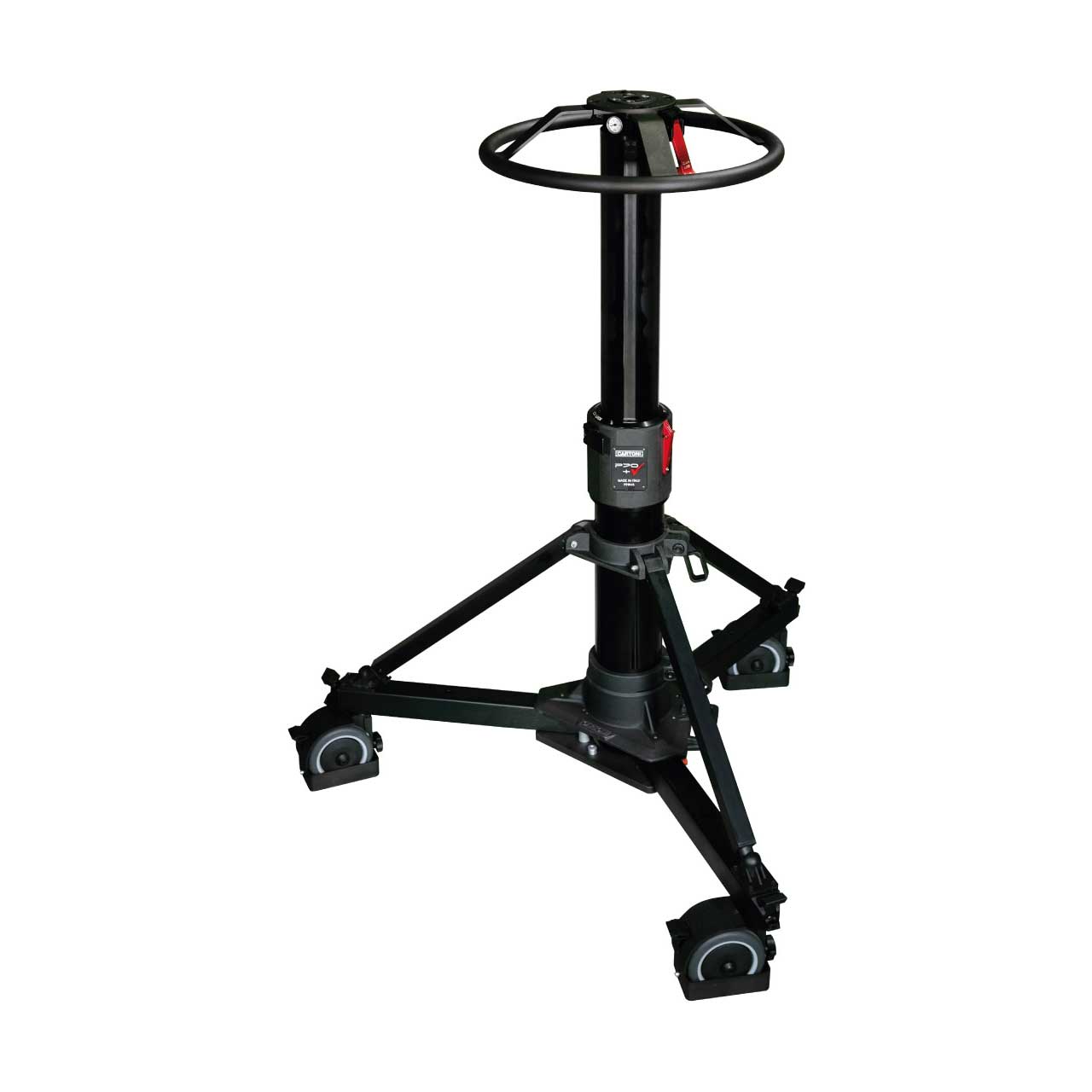

The Cartoni KP7F22 is a P70 pedestal with Focus 22 head, 2 pan bars. flat base adapter and pump. The Cartoni P70+ is a portable and compact system for both Studio and OB applications. Extremely stable yet lightweight, its ideal performance is reached with camera/lens combination of around 121lbs (55kg). The air filled, one shot column is fast and safe to operate: the air can be set in manually or by compressor, and a safety air pressure valve prevents danger of over pumping. The innovative column design provides outstanding stability and jerk-free control with exceptional smoothness and precise movements. Accurate camera balance is achieved at full extension by simply activating the bleed valve, releasing excess air pressure. The column supports a maximum payload of 154lbs (70kg) at 125psi.

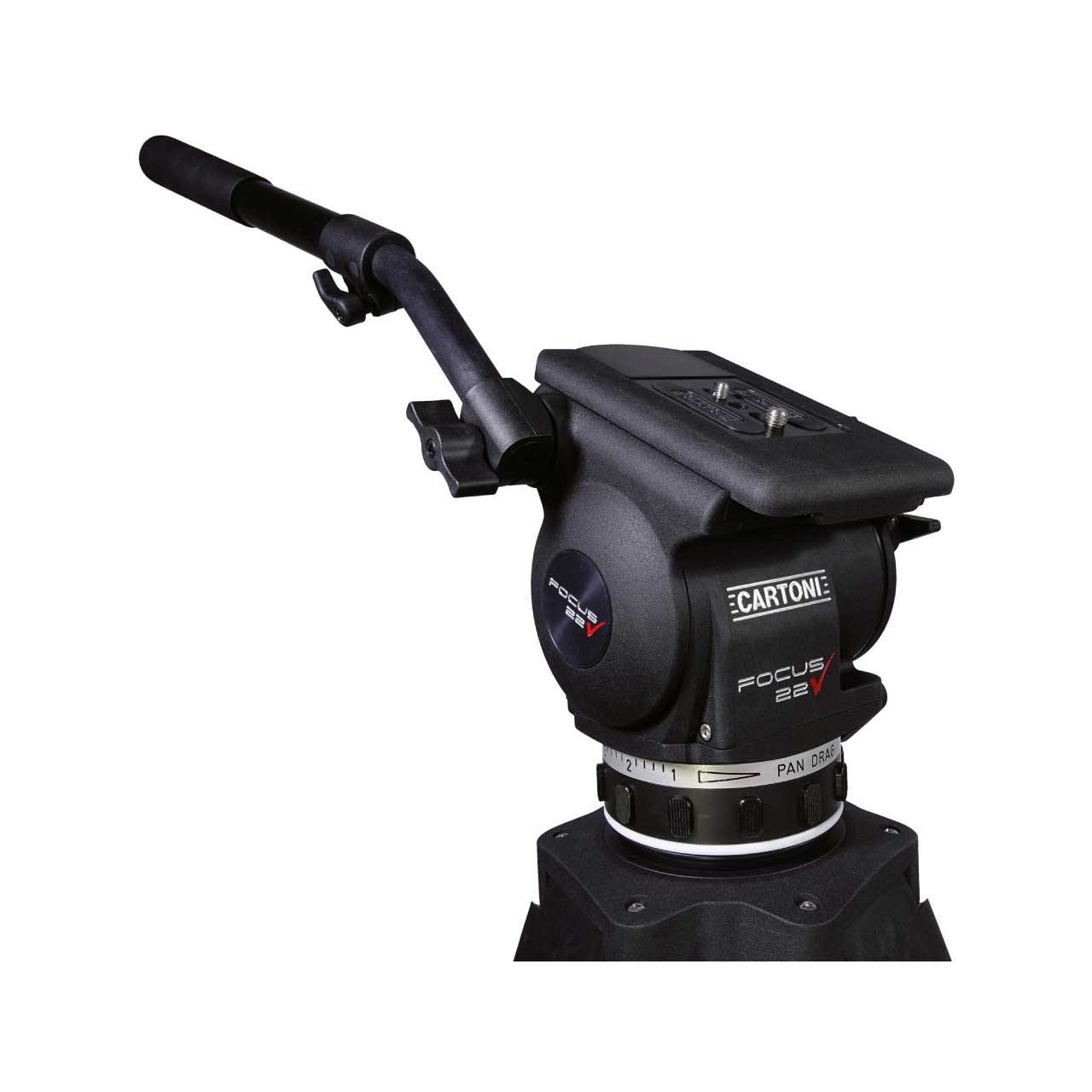

On the foldable dolly, the six-position track lock, cable guards, and foot operated brake on each of the 125mm twin wheels provide smooth movements in any desired direction. The column is firmly secured to the dolly by a double clamp, easily engaged by two ergonomic locking levers. A set of 200 mm pneumatic tires with wheel brakes are available for OB use. The Focus 22 fluid head is specifically designed to support a wide variety of ENG cameras, featuring the patented Cartoni "wing" continuously adjustable counterbalance. With its broad range of payloads - 6.5lbs (3kg) to 48.5lbs (22kg) - the Focus 22 aims to become the ideal partner for all news gathering and outdoor shooting jobs.
