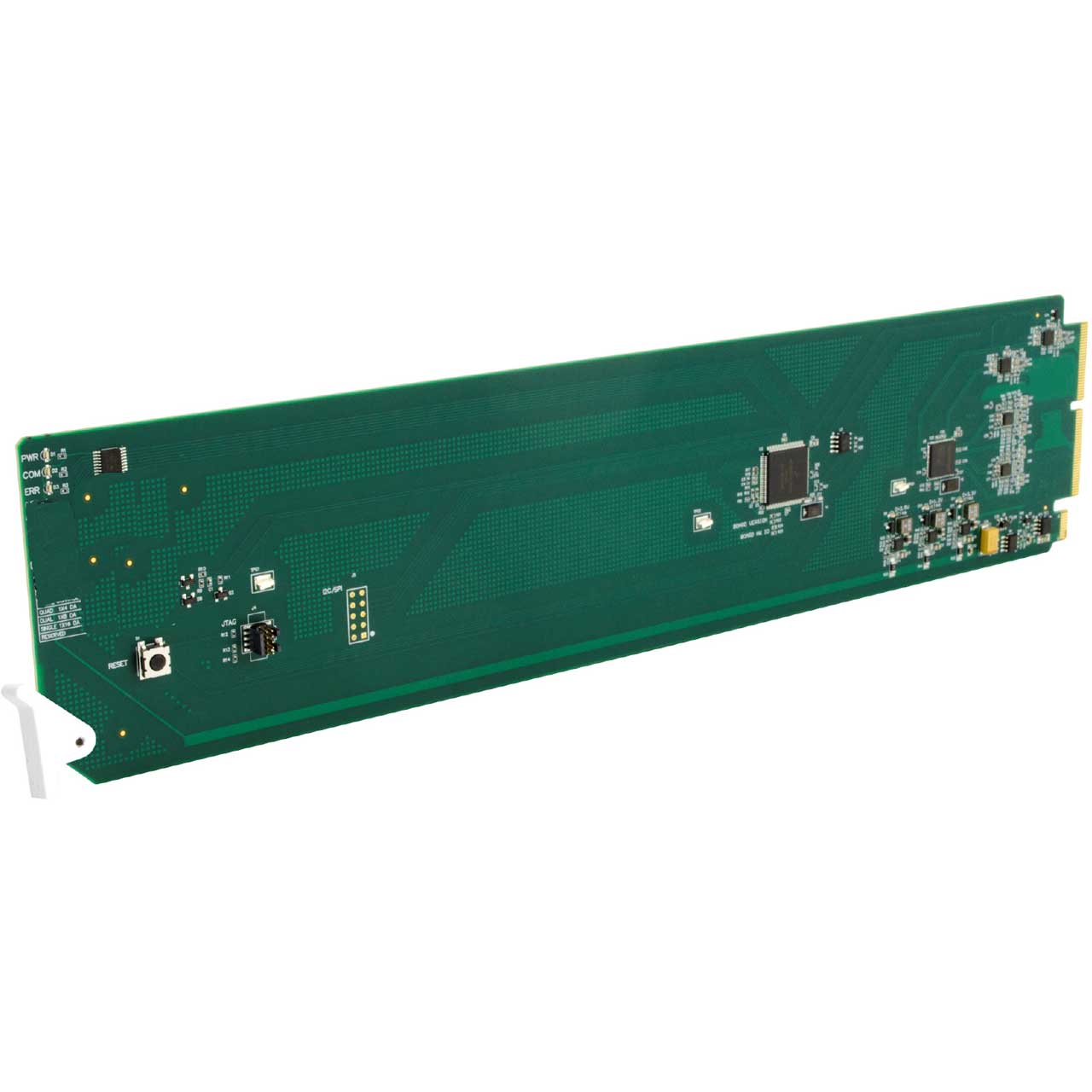

Cobalt Digital Royal 9910DA-WC Audio Word Clock openGear Distribution Amplifier

Name: Cobalt Digital Royal 9910DA-WC Audio Word Clock openGear Distribution Amplifier
Brand: Cobalt Digital
SKU: CB-9910DA-WC
Price: 395.00 USD
Availability: PreSale

ITEM #: CB-9910DA-WC MFG #: 9910DA-WC

Cobalt Digital

List Price:

$415.00

Our Price:

$395.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9910DA-WC - Overview

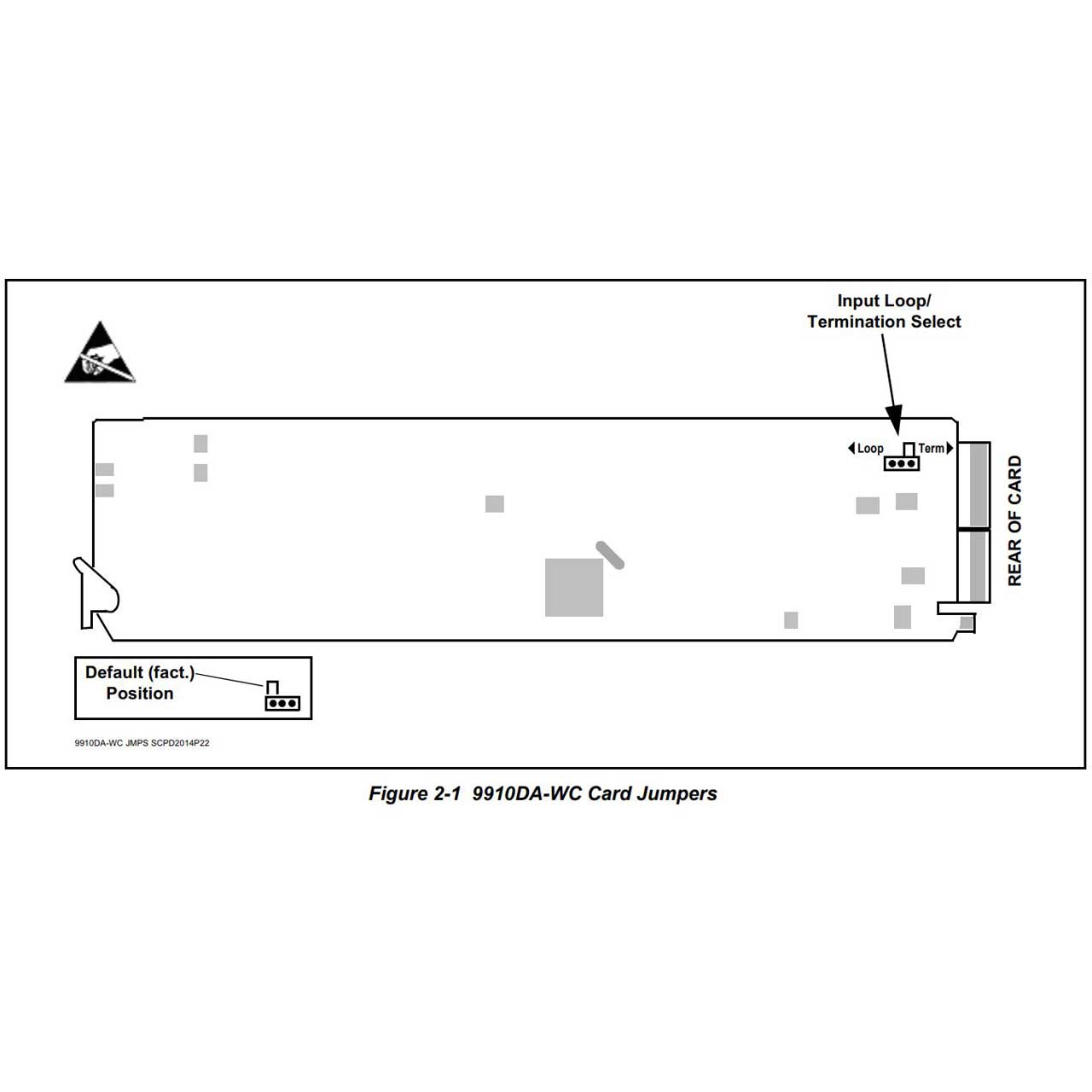

The Cobalt Digital 9910DA-WC Audio Word Clock Distribution Amplifier provides 1x8 distribution with one word clock input and eight 75Ω word clock outputs. Card jumpers allow setting the input as Hi-Z looping input or on-card 75Ω terminated. The card can be accessed using DashBoard™ remote control for status monitoring.

Features:
- Multi-mode input provides hi-Z looping or card-terminated operation
  Remote monitoring via DashBoardT software or OGCP-9000 Remote Control Panel
  Hot-swappable
  Five year warranty
Specifications:
- Power
- 2 Watts

  Word Clock Input
- Number of inputs: (1)
- Impedance: User selectable as hi-Z looping or card-terminated 75Ω
- Sensitivity: 200 mV

  Word Clock Outputs
- Number of DA outputs: up to (8)
- Impedance: 75Ω
- Level: 10 Vp-p square wave (unterminated), 5 Vp-p square wave (terminated into 75Ω)
- Looping Output: (1)

  Performance
- Sampling frequencies up to 192 kHz

9910DA-WC - Recommended Accessories

Cobalt RM20-9910WC-B/S-HDBNC 20-Slot Frame Rear I/O Module - All Connectors are HD-BNC
RM209910WCBSHDBN
Our Price: $311.00
Laird Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 3 Foot
HDBNC4855-MM03
Our Price: $40.95
Laird Belden 4794R HD-BNC Male to Standard BNC Male 12G-SDI Cable - 1 Foot
HDBNC4794-B01
Our Price: $36.49
Cobalt Digital OGCP-9000 2RU Remote Control Panel
CB-OGCP-9000
Our Price: $3,895.00
Cobalt Digital OGX-FR-C-P 20 Slot openGear Frame with Cooling
CB-OGX-FR-C-P
Our Price: $2,200.00

9910DA-WC - Reviews

9910DA-WC - Attachments

Cobalt Digital 9910DA-WC Manual

Overview

9910DA-WC - Overview

Features:
- Multi-mode input provides hi-Z looping or card-terminated operation
  Remote monitoring via DashBoardT software or OGCP-9000 Remote Control Panel
  Hot-swappable
  Five year warranty
Specifications:
- Power
- 2 Watts

  Word Clock Input
- Number of inputs: (1)
- Impedance: User selectable as hi-Z looping or card-terminated 75Ω
- Sensitivity: 200 mV

  Word Clock Outputs
- Number of DA outputs: up to (8)
- Impedance: 75Ω
- Level: 10 Vp-p square wave (unterminated), 5 Vp-p square wave (terminated into 75Ω)
- Looping Output: (1)

  Performance
- Sampling frequencies up to 192 kHz
