RM20-9243-D/S - Overview

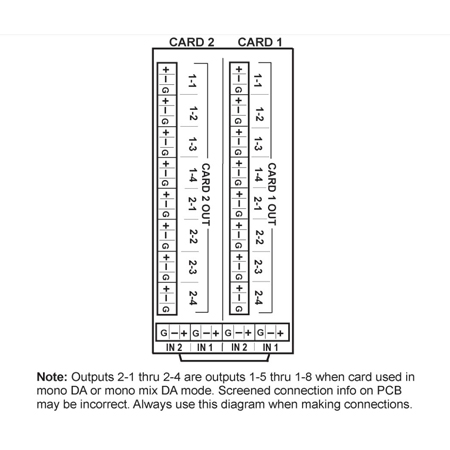

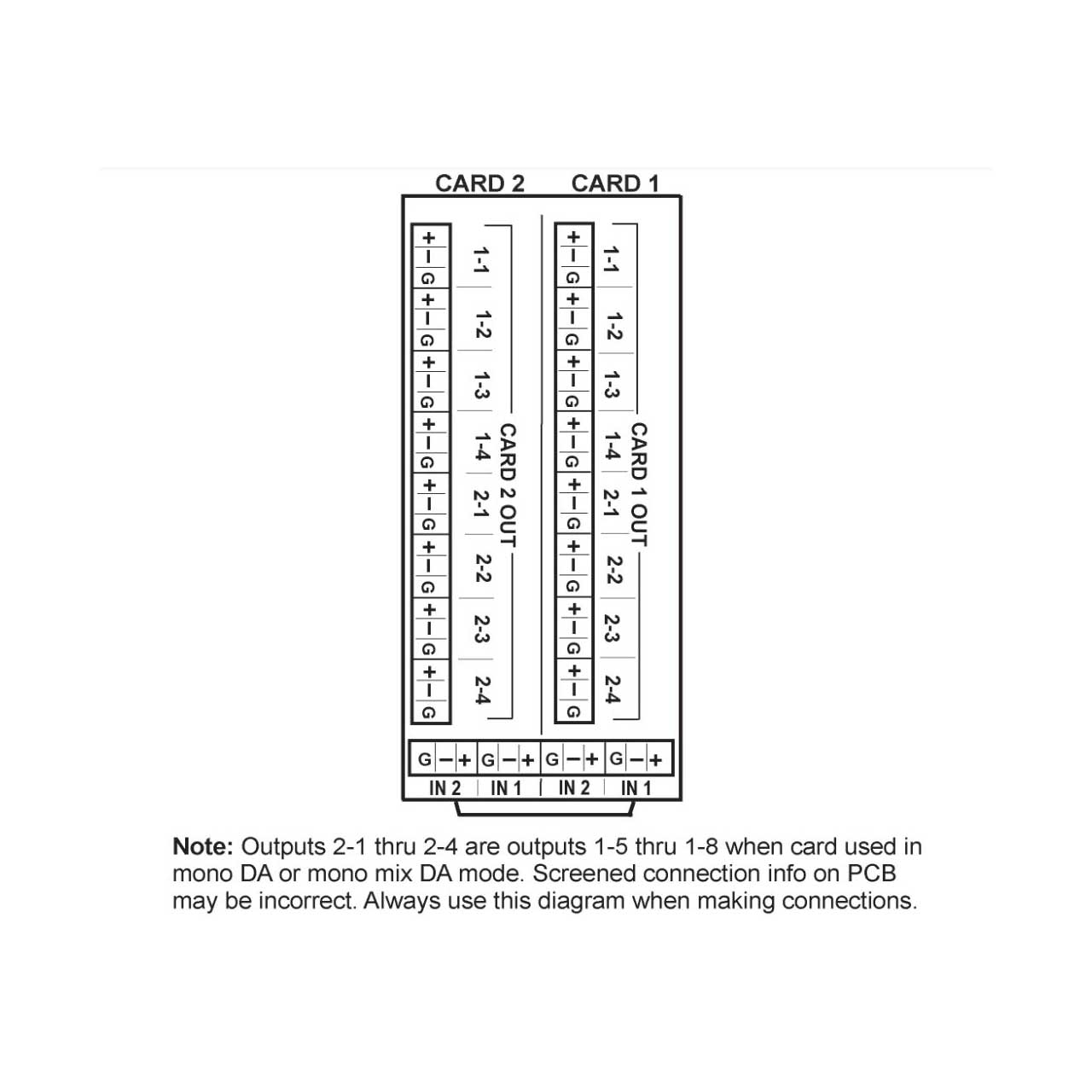

The Cobalt Digital RM20-9243-D-S is a rear I/O Module (Split) Dual 1x4 Balanced Analog Audio I/O (connections are per card) w/ Phoenix type removable modular connectors.

The 9243 Analog Audio Distribution Amplifier with Remote Gain Control is a broadcast-quality balanced analog audio DA with stereo 2x4, mono 1x8, and stereo sum L+R x 8 selectable output modes. Unlike most analog audio DAs, the 9243 electronic attenuators allow overall gain (stereo ganged) and per-channel trim (offset) via DashBoard remote control.

Features:
- Full remote control of operating mode and gain control
- Multiple modes - stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs.
- Full broadcast-grade balanced signal capability with 27dBu
- maximum input level support. Low-impedance outputs.
- Selectable card switch control or DashBoard remote control
- (usable with DashBoard and Cobalt OGCP-9000 remote control panels).
- Remote control via Ethernet using free DashBoardT software,
- or optional OGCP-9000 remote control panel.
- Hot swappable openGear card.
- Five-year warranty.
Specifications:
- Power: < 5 watts
- Number of Inputs: (2) balanced
- Impedance: > 20 kΩ, balanced
- Maximum Input Level: +27 dBu
- Connector Type: Phoenix removable modular
- Gain: -15 dB to +15 dB
- Frequency Response: 20 - 20 kHz ±0.1 dB
- Noise: < -85 dBu, 10 - 22 kHz at unity gain
- Harmonic Distortion: < 0.01%
- Number of Outputs: (8) balanced; available as stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs
- Impedance: 60Ω, balanced
- Output Isolation: > 60 dBFF
- Max Level: +26 dBu
- Connector Type: Phoenix removable modular
