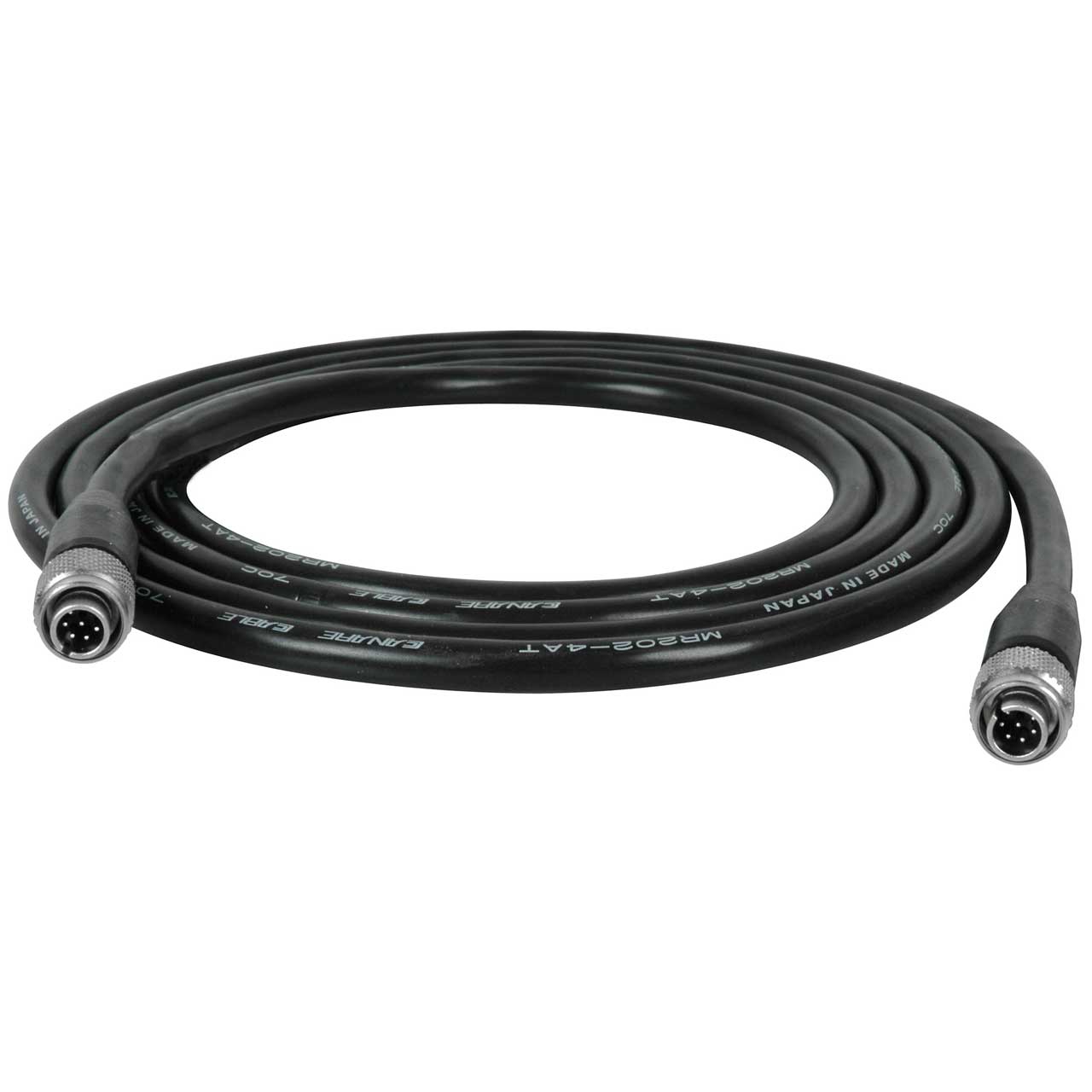

Laird Canare MR202-4AT Sony CCA5 Equivalent Control Cable w/ Hirose 8-Pin For BVP & HDC Cameras - 10 Foot

CCA5-MM-10 - Overview

• Features:

  • Canare MR202-4AT Twisted Pair Multi Channel Cable
  • Interfaces BVP and HDC Cameras to MSU, RCP and CNU Series Sony Controllers


• Specifications:

  • Canare MR202-4AT:
  • Conductor: 8 (2 per channel)
  • AWG: 25
  • Jacket Material: PVC 0.032" (0.8 mm) thick
  • Shield Coverage: 100% Aluminum Tape, Drain Wire #25 AWG
  • Dielectric Strength: 500 VAC / minute
  • Insulation Resistance: 1000 MΩ at 3 m


• Warranty:

  • 1 Year


• Use for Connection of:

  • CNU-700 Camera Command Network Unit to RCP-750 Remote Control Panel
  • CNU-700 Camera Command Network Unit to RCP-920 Remote Control Panel
  • CNU-700 Camera Command Network Unit to MSU-900 Master Setup Unit
  • CNU-700 Camera Command Network Unit to HDCU-1000 Camera Control Unit
  • CNU-700 Camera Command Network Unit to VCS-700 Video Selector Unit
