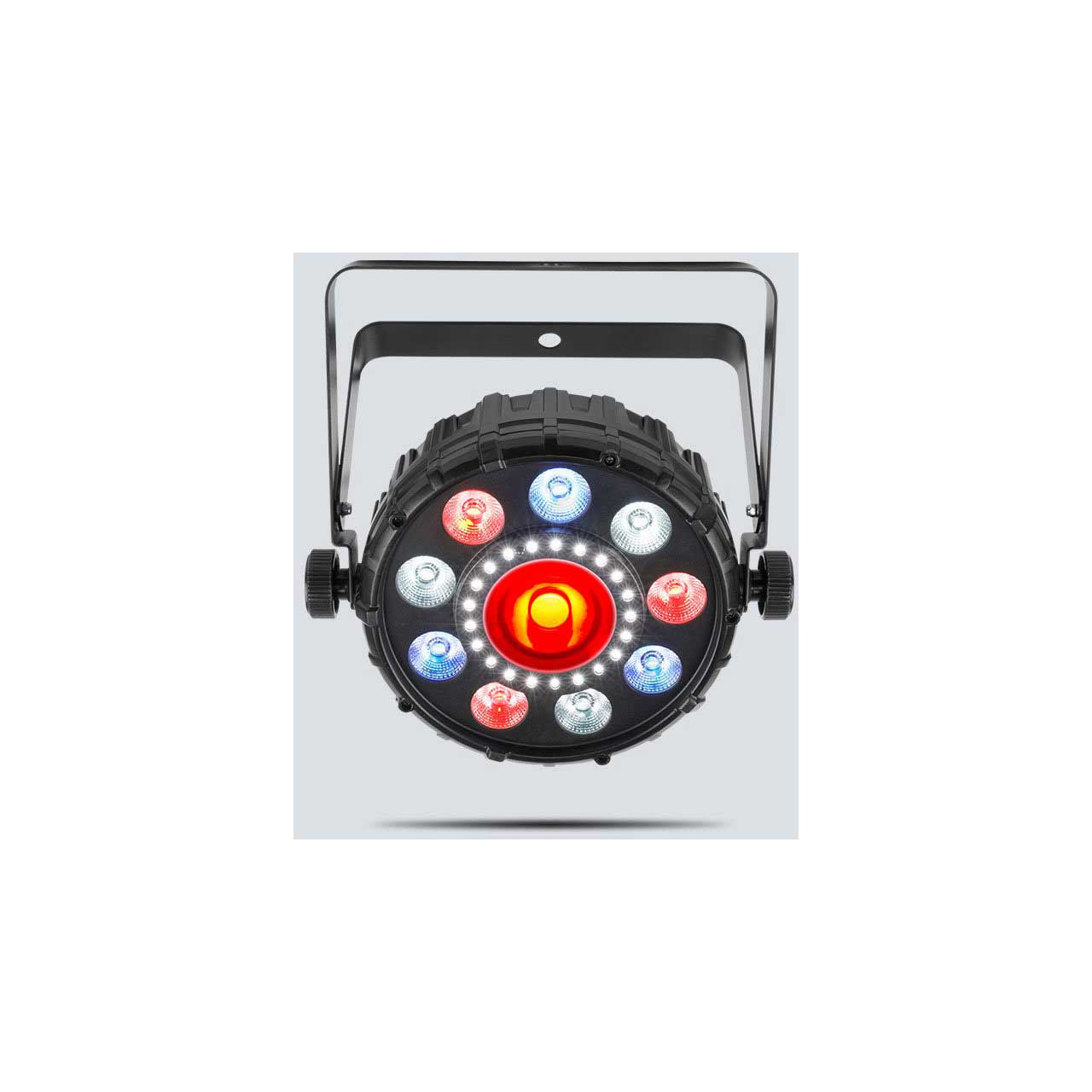

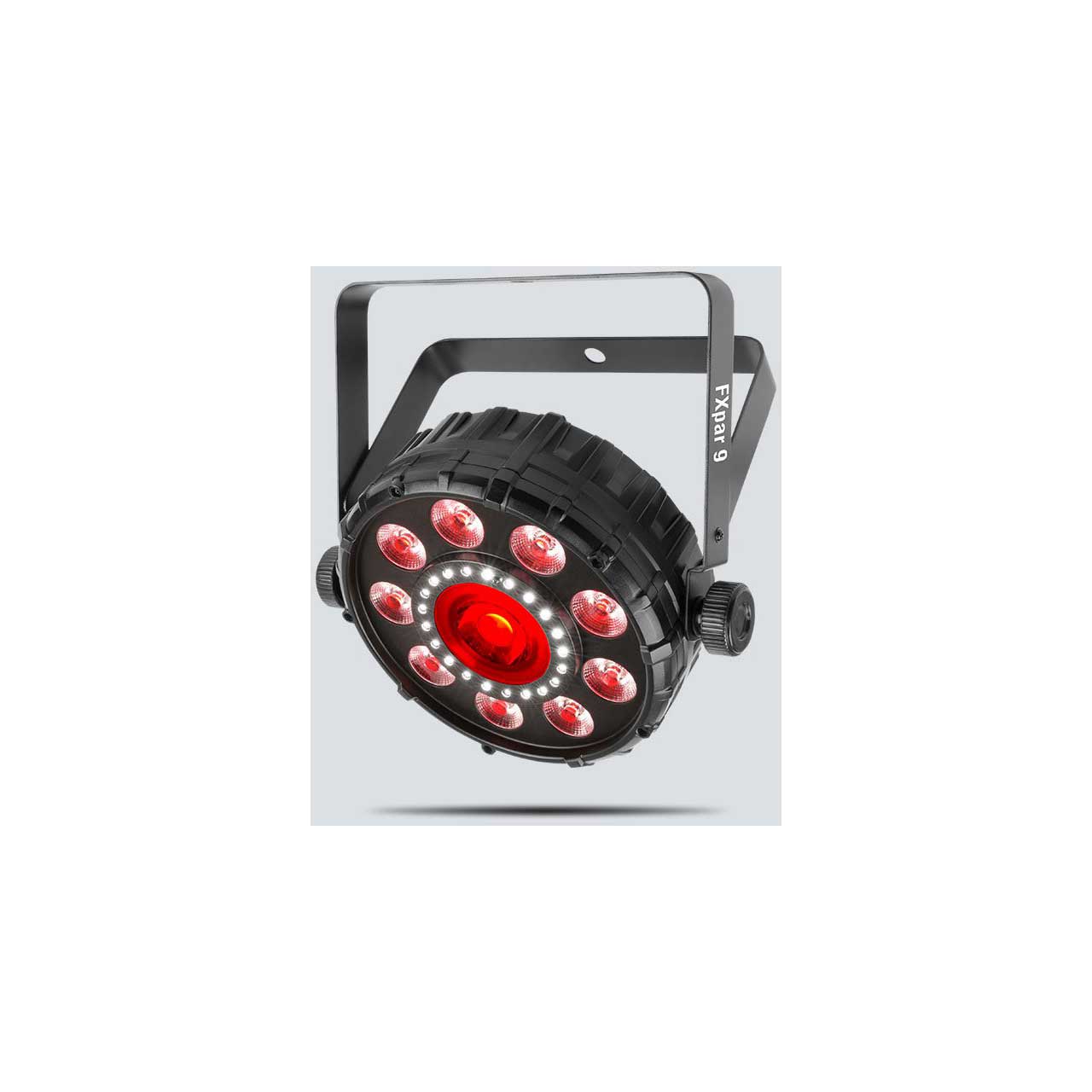

Chauvet FXPAR 9 Compact Effect Par with Multiple Technologies in a Single Light Fixture

FXPAR9 - Overview

• Features:

  • Compact effect par with multiple technologies in a single fixture
  • RGB+UV in outer ring for increased color mixing and effects
  • Separate control of center LED, outer ring and SMD strobes for dynamic effects

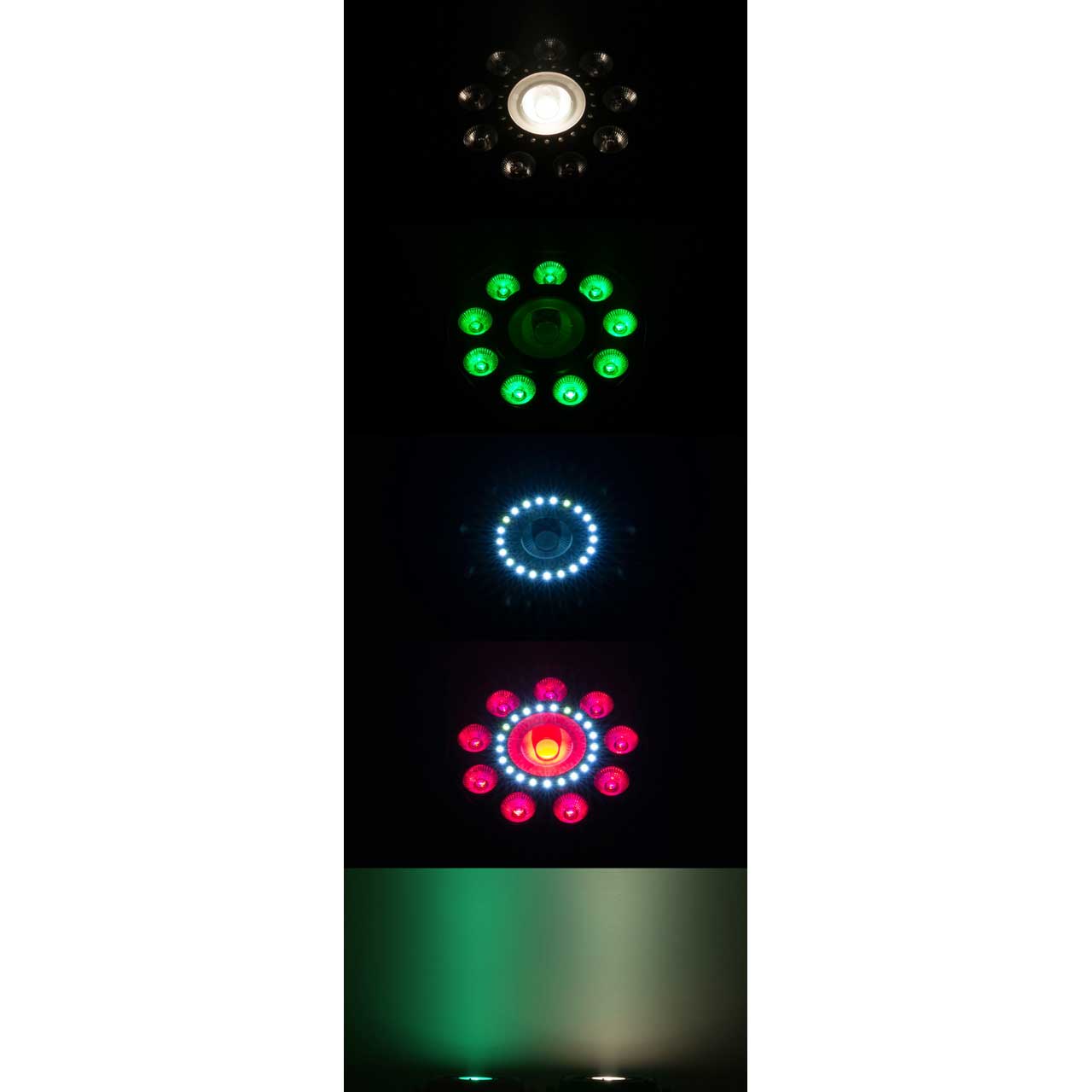

  • Multiple zones allow for spectacular effects
  • SMD strobe ring adds strobe effects to any setup big or small
  • Compatible with IRC-6 for improved control over the built-in functions
  • Generate eye-catching effects with sound-activated and automated programs
  • Power linking saves time setting up


• Specifications:

  • DMX Channels: 3, 6, 9 or 23
  • DMX Connectors: 3-pin XLR
  • Light Source: (outside) 9 LEDs (quad-color RGB+UV) 4 W, (1.4 A), 50,000 hours life expectancy; (center): 1 LED (tri-color RGB COB) 18.4 W, (2 A), 50,000 hours life expectancy; (strobe): 21 LEDs (cool white SMDs) 0.5 W, (0.2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 16.4 Hz
  • Beam Angle: 25°
  • Field Angle: 45°
  • Illuminance: 1450 lux @ 2 m
  • Power Linking: 7 units @ 120 V; 13 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 80 W, 1.1 A @ 120 V, 60 Hz; 77 W, 0.6 A @ 230 V, 50 Hz
  • Weight: 3.6 lb (1.6 kg)
  • Size: 10.9 x 10.8 x 2.9 in (279 x 275 x 74 mm)


• GTIN:

  0781462215736
