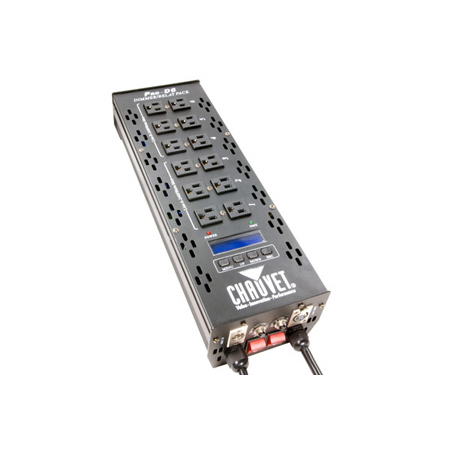

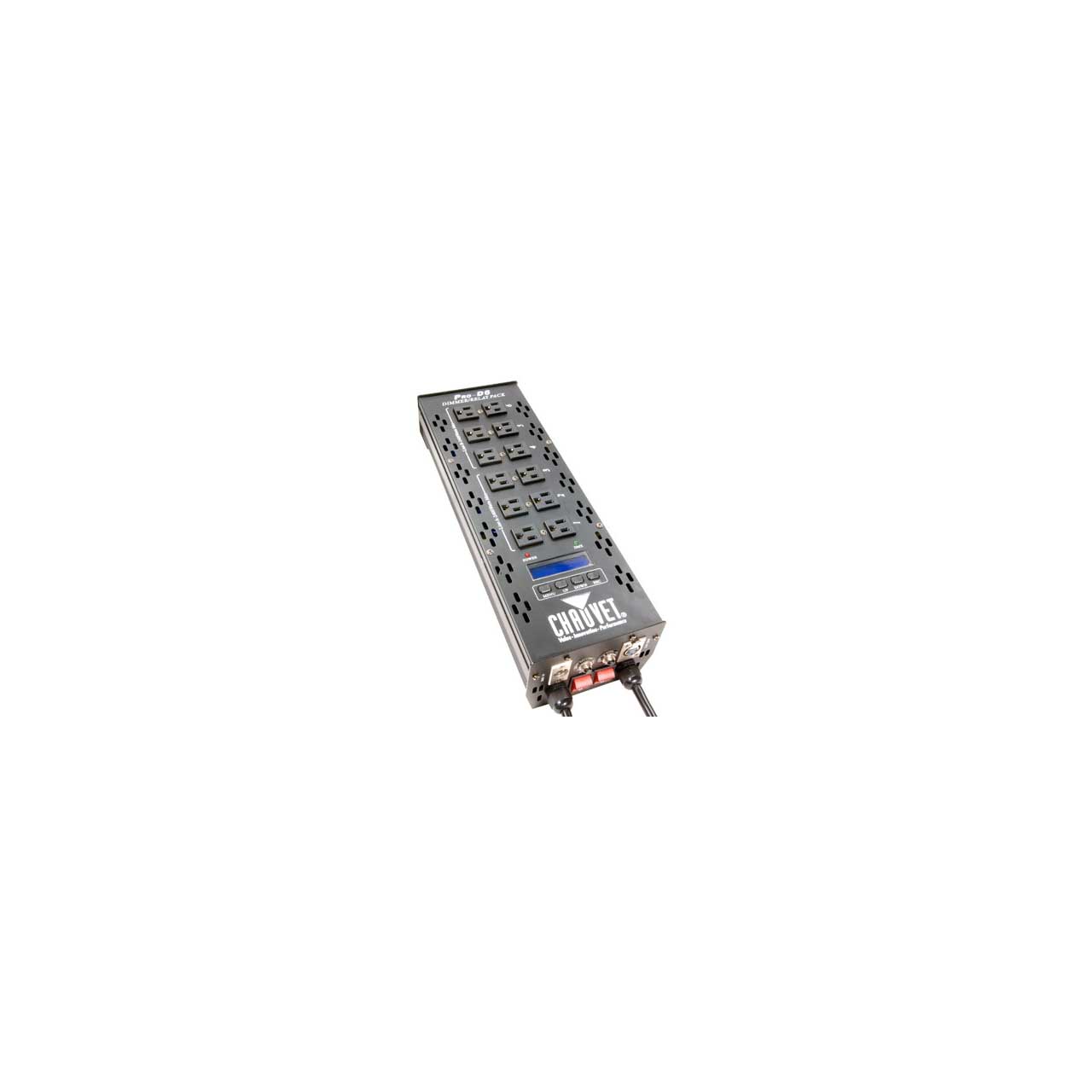

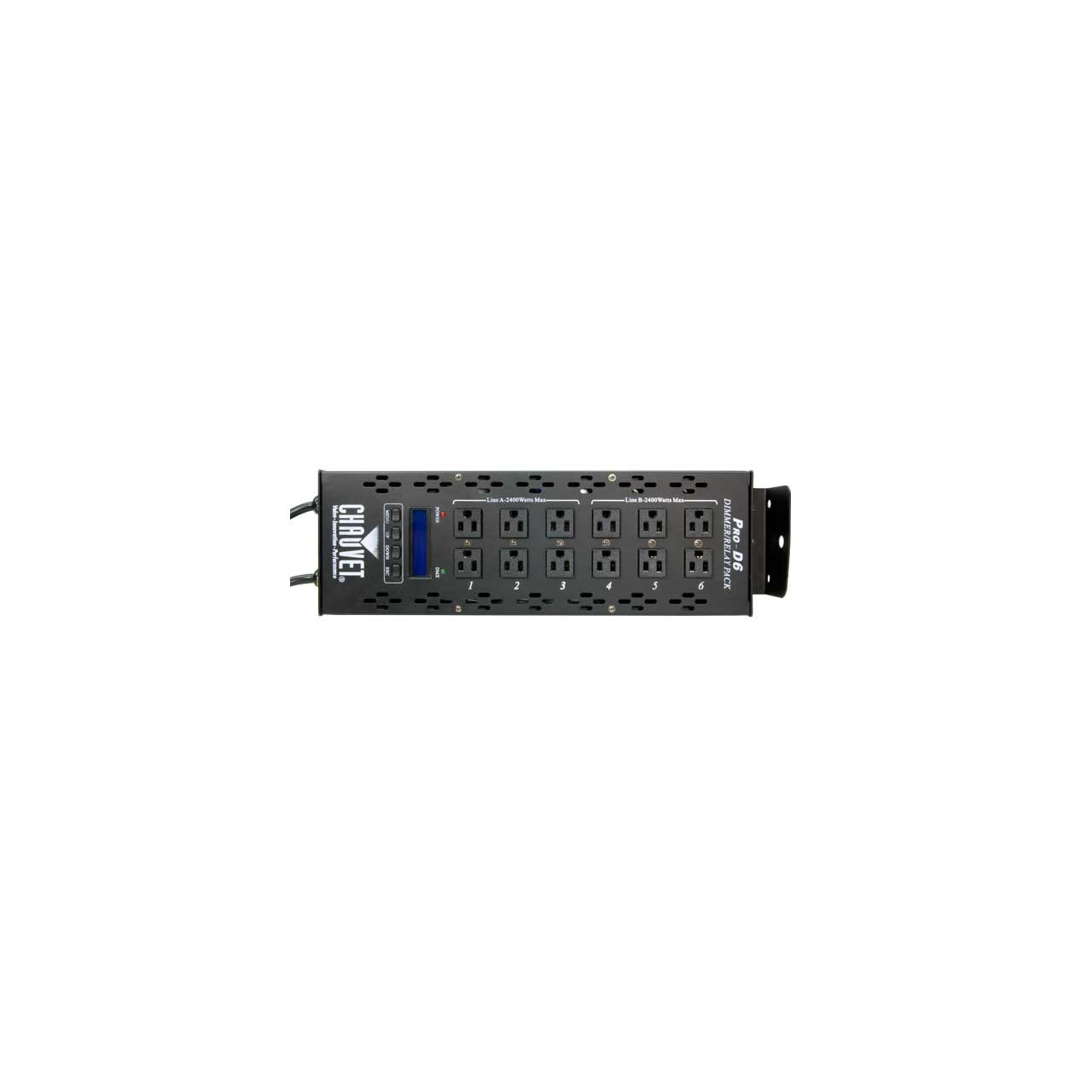

Chauvet PRO-D6 6-Channel DMX Dimmer/Relay Pack - 2 Edison Plugs Per Channel

PRO-D6 - Overview

• Features:

  • 6-channel DMX dimmer/relay pack
  • Increase control by setting each channel to any DMX address
  • Increase flexibility by setting each channel as either a dimmer or relay
  • Features a variable electronic dimmer (0-100%)
  • Optional square, switch or linear dimming curves for each channel
  • Dual 20 A power lines (requires 2 separate circuits on the same phase)
  • Increase options with an individual switch, circuit breaker and plug per line
  • Accommodates different input voltages simultaneously

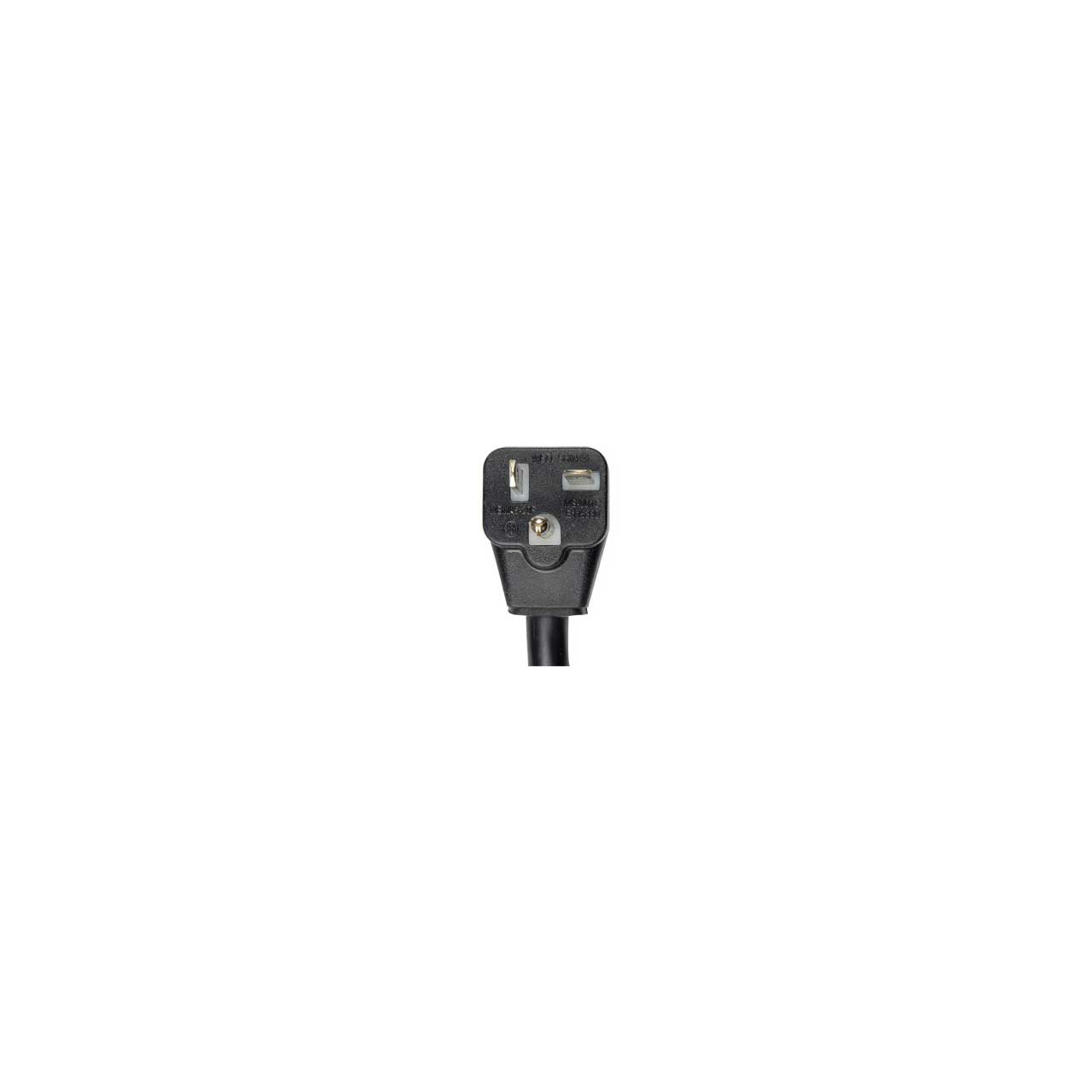

  • Includes 2 Edison plugs per channel


• Specifications:

  • DMX Channels: 6
  • DMX Connectors: 3-pin
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight: 9.3 lb (4.2 kg)
  • Size: 18 x 5.8 x 3.8in (457 x 147 x 97mm)
  • Approvals: CE
  • Output: 10 A (per channel), 20 A (per power line), 40 A (max)
  • Breaker Size: 20A 250V


• Item Includes:

  • 6-channel DMX dimmer/relay pack
  • Set each channel to any DMX address
  • Features a variable electronic dimmer (0 to 100%)
  • Includes 2 Edison plugs per channel
