Clear-Com AX-704 Encore Intercom System Program Interrupt & IFB Expansion Talent Access Station

ITEM #: CLCM-AX-704 MFG #: AX-704

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,310.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AX-704 - Overview

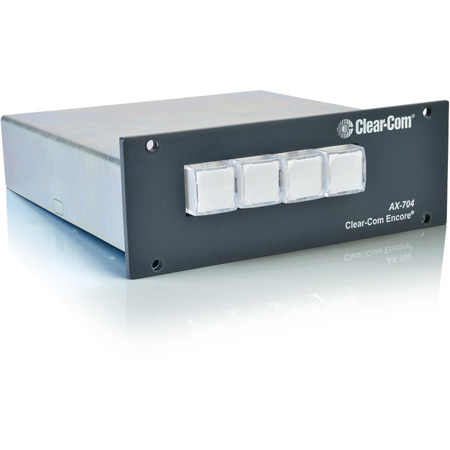

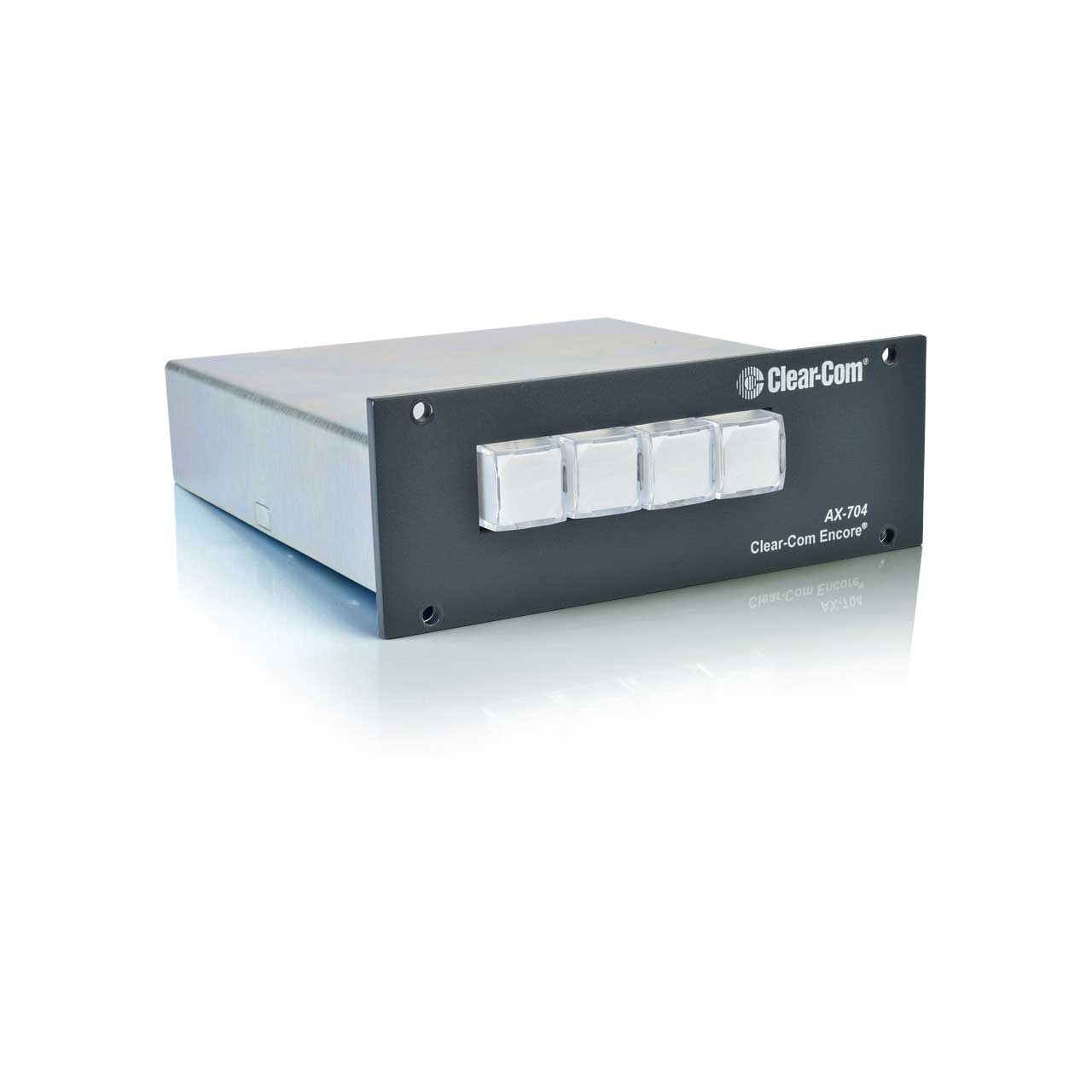

    The ClearCom Encore Intercom System AX-704 Expansion Station connects to an MA-704 Master Control and Talent Access Station (Sold Separately), expanding the IFB channel selection capabilities by four additional channels for EACH AX-704. Multiple AX-704's may be linked together to control a maximum of 96 talent channels. The MA-704 Master Control and Talent Access Station then provides individual access to the four Talent channels. The ALL button simultaneously accesses all Talent positions of the MA-704 and each AX-704 expansion station. It contains the audio line-driver circuits for cue audio. The MA-704 is required in order for the AX-704 to work but is sold separately.

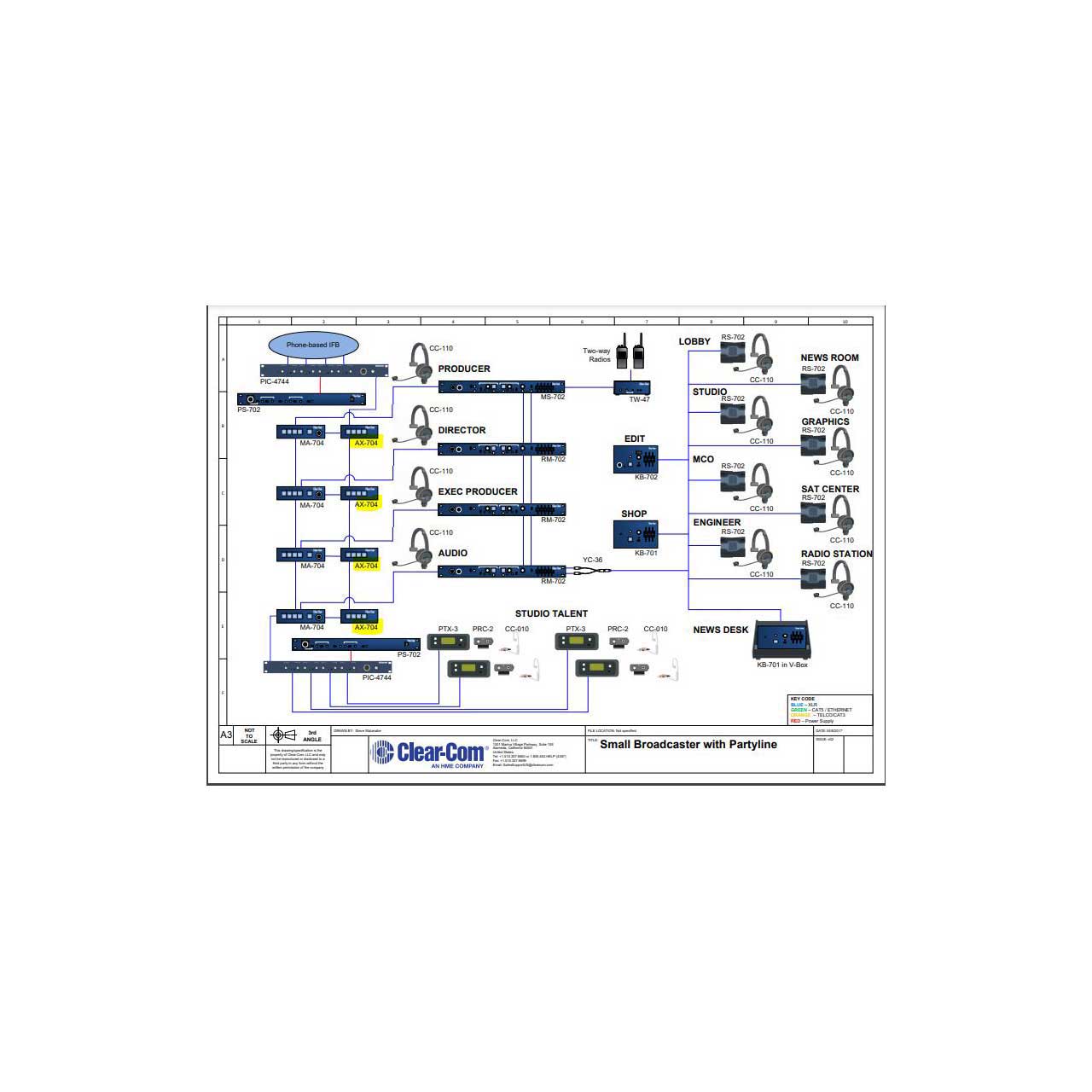

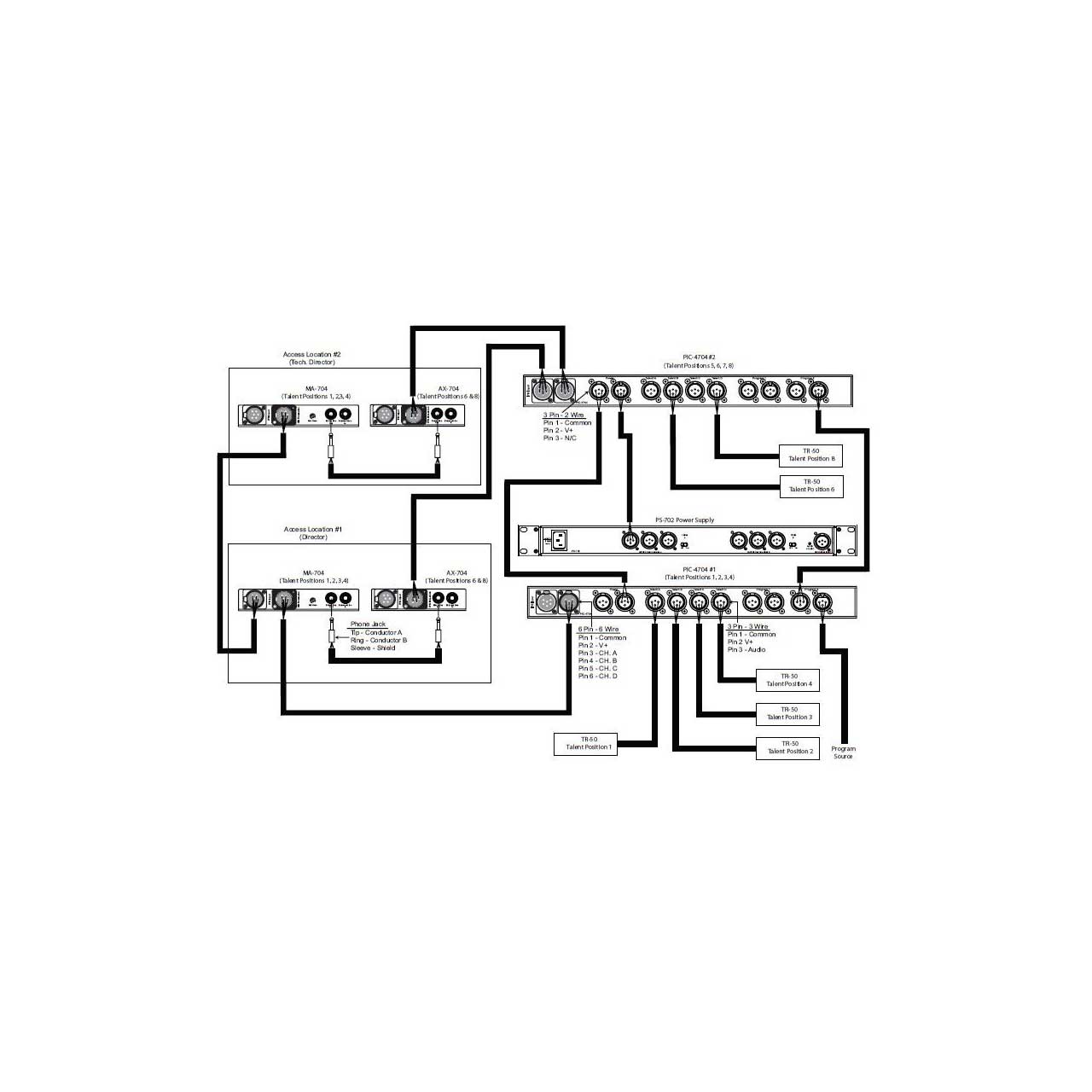

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com Intercom System.

    • Features:

      • Program Interrupt and IFB Expansion Talent Access Station
      • Expands MA-704 station by four Talent channels
      • Connect multiple expansion panels for up to 96 Talent channels
      • All IFB button simultaneously access all Talent channels
      • Tally lights indicate IFB channels in use
      • Optional rack mount kit for up to 12 talent access buttons in a 1RU
      • Powered by the intercom line

    • Specifications:

      • Power: Input Voltage Range: 20-30 VDC, Input Current (Idle) : <= 120mA, Input Current (Max): <= 150mA.

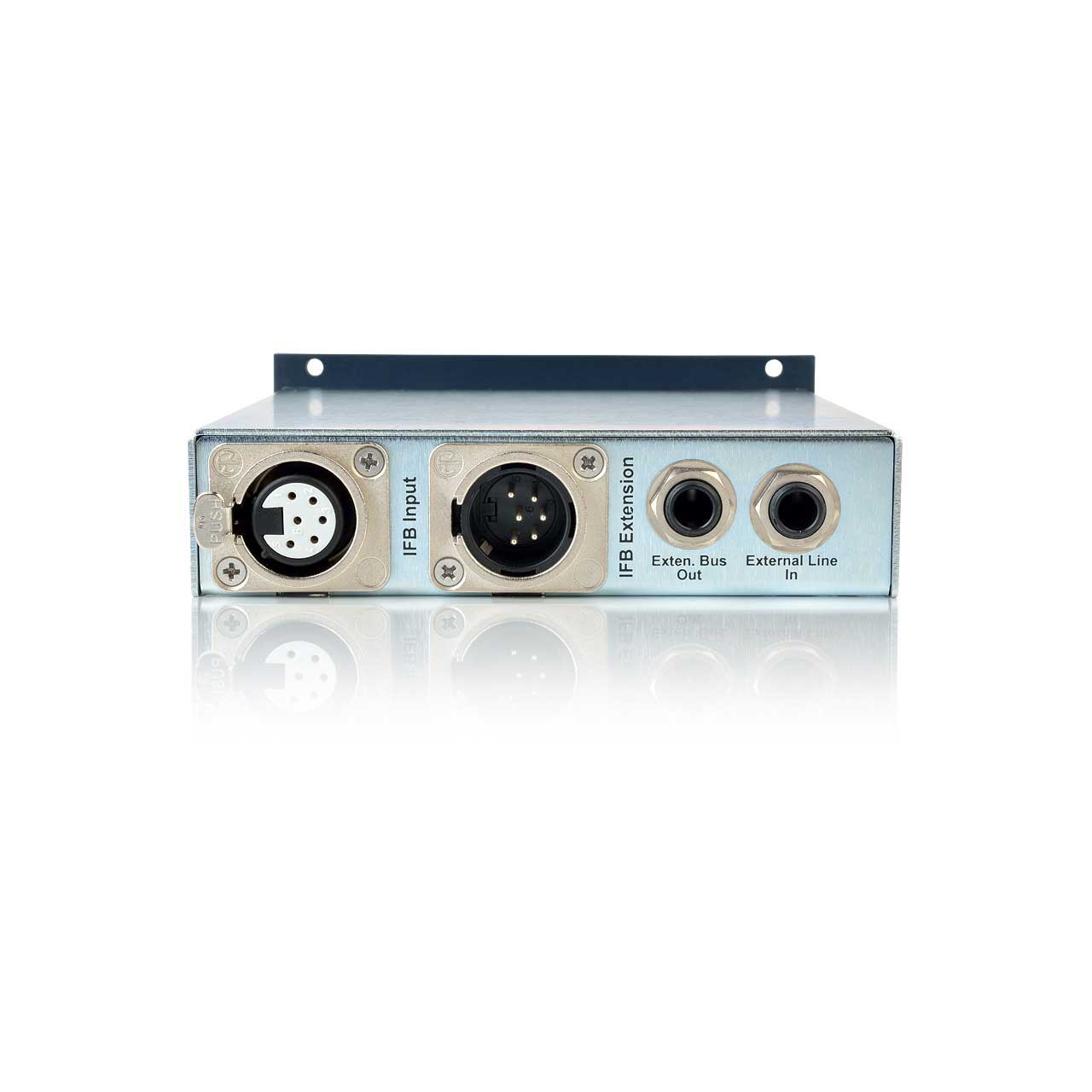

      • Rear Panel Connectors and Controls: IFB Input: (1) XLR6F, IFB Extension: (1) XLR6M, Extension Bus Out: (1) 1/4 jack socket, External Line In: (1) 1/4 jack socket.

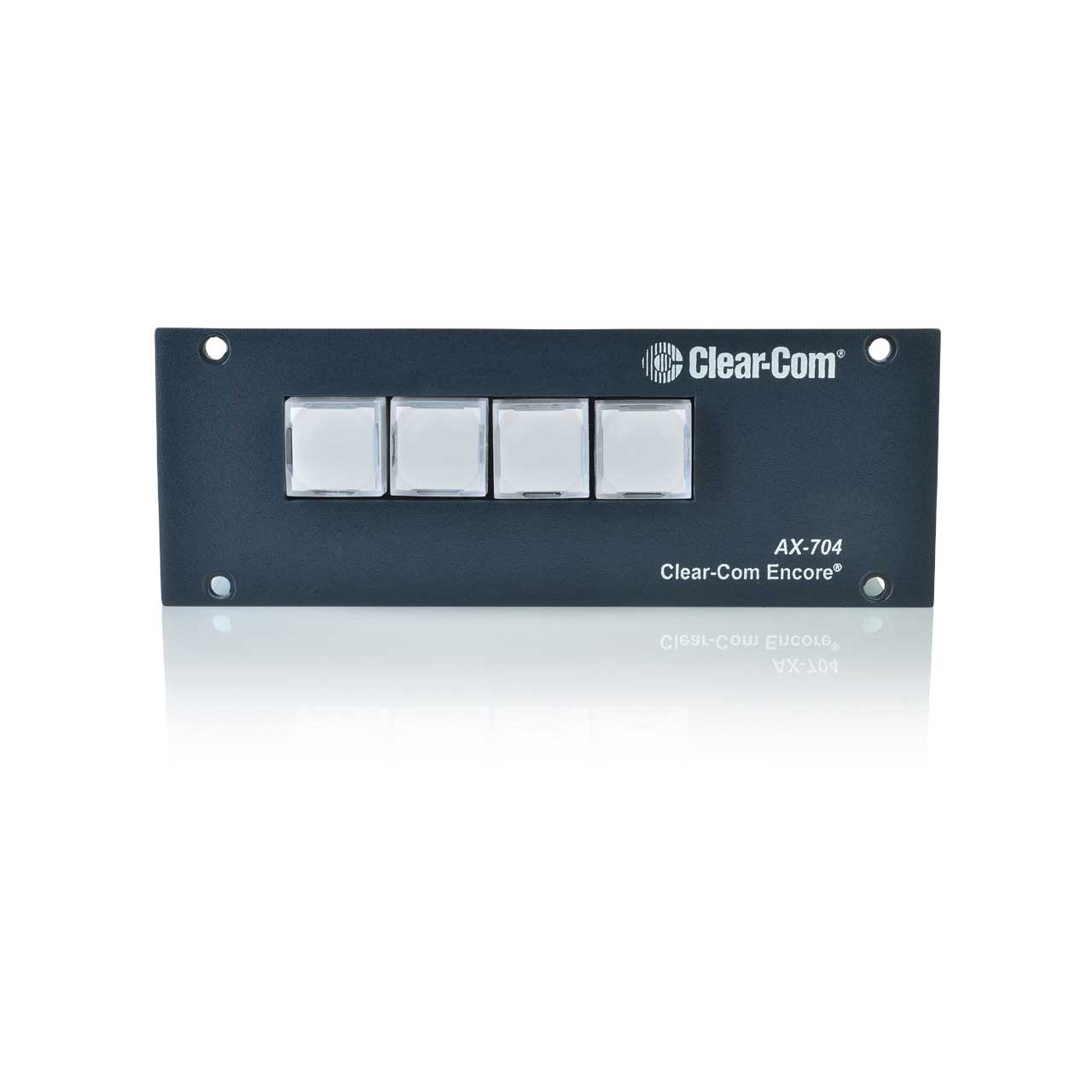

      • Front Panel Controls & Indicators: (4) Talk buttons.
      • Dimension: 1.75in x 4.9in. x 5.5in.
      • Weight: 1.35 lbs. (.61 kg).

    • GTIN:

      0642892781515
