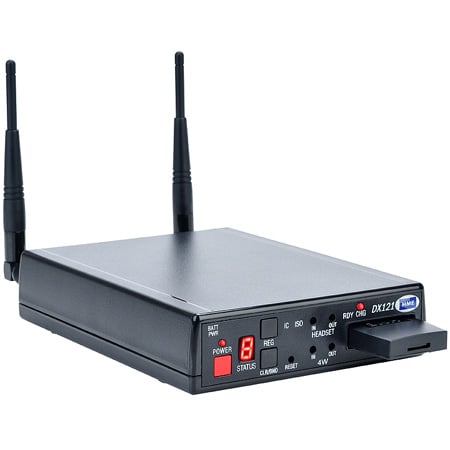

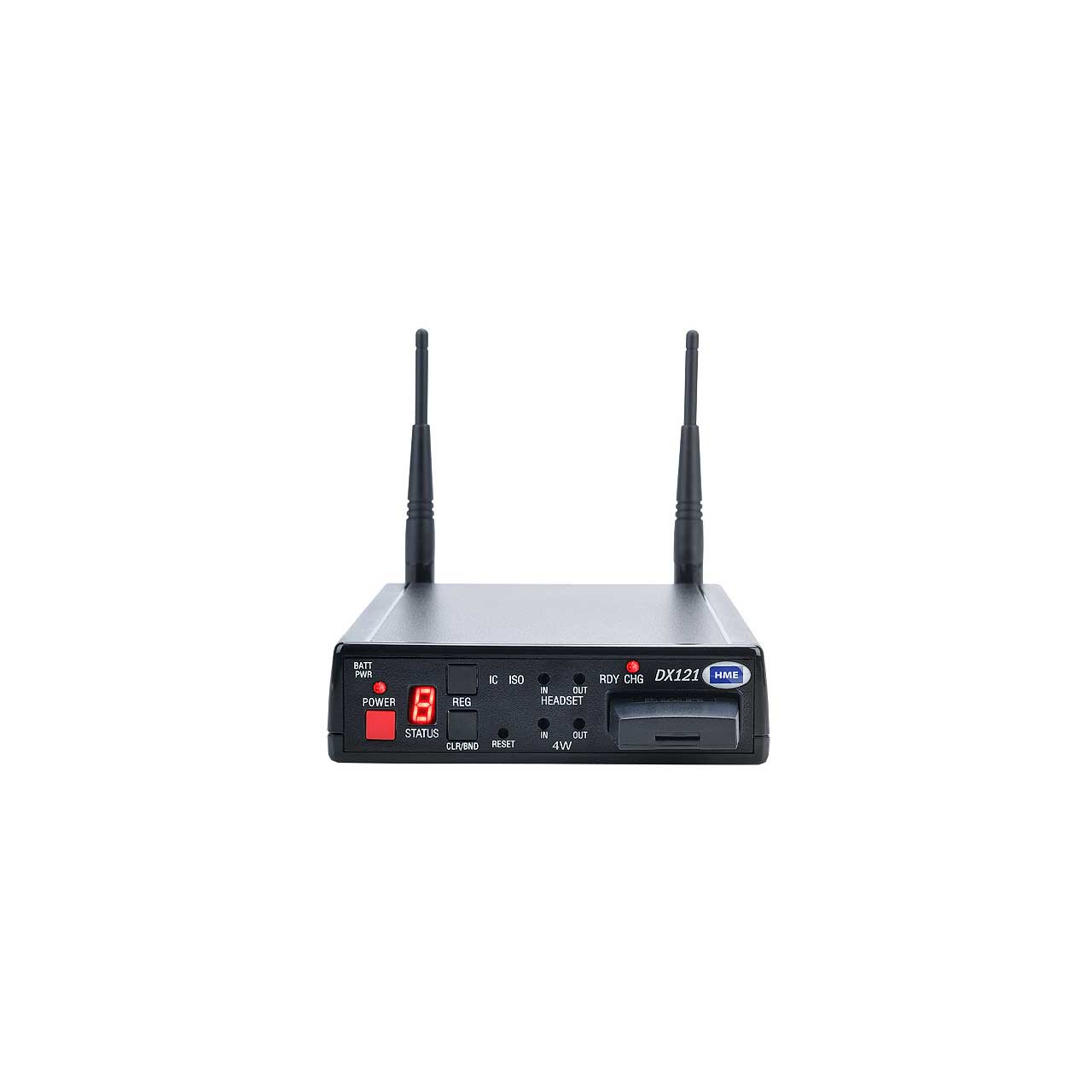

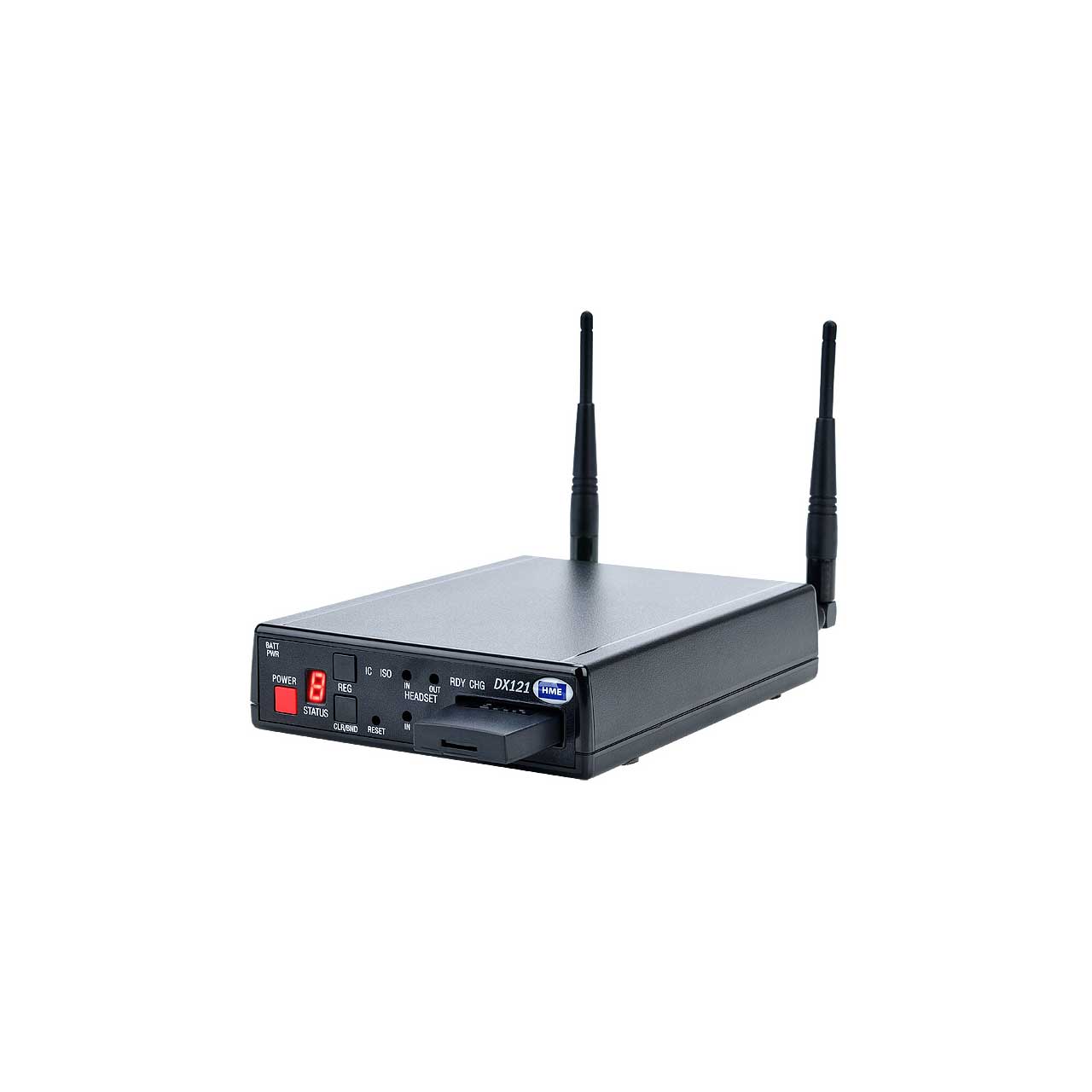

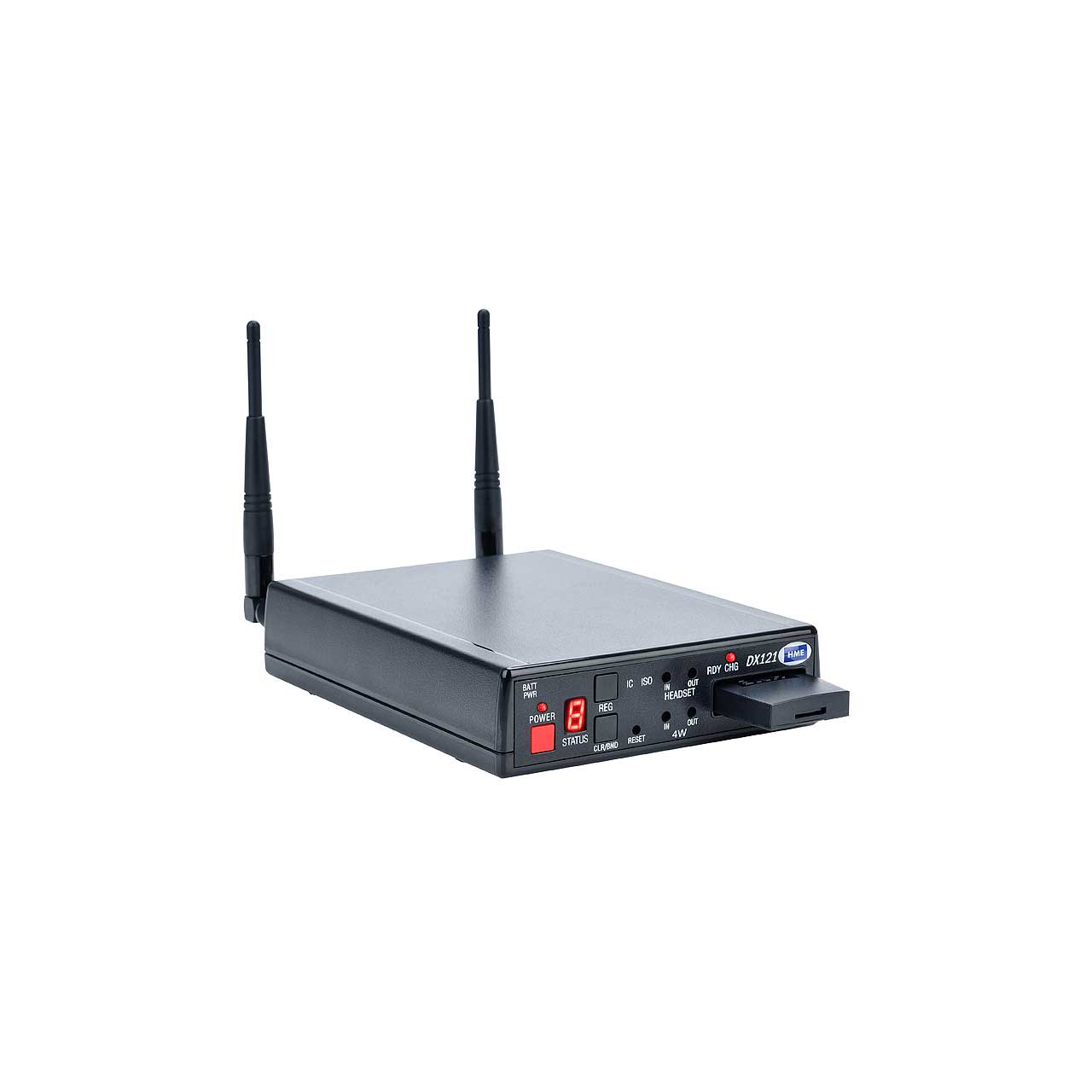

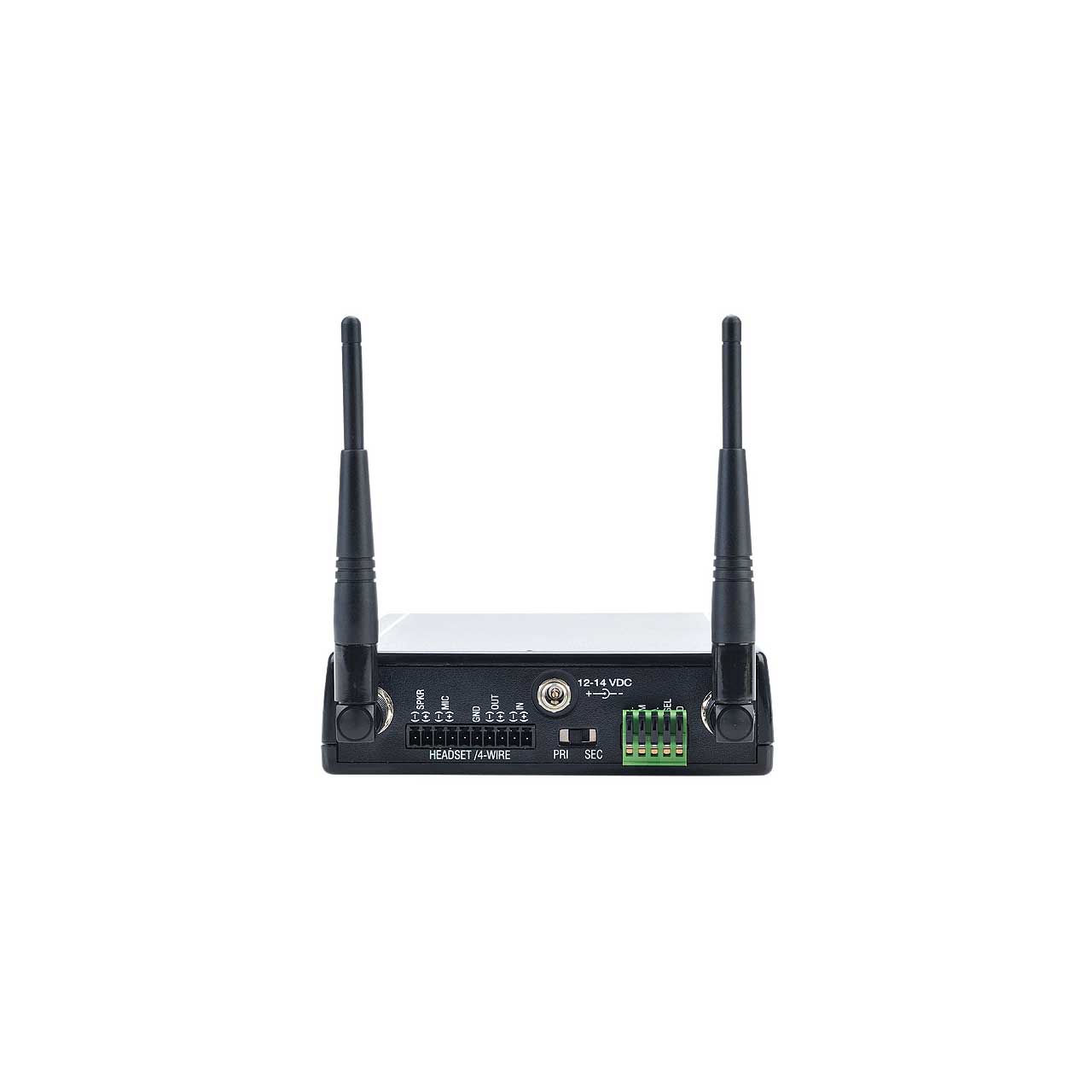

Clear-Com CZ11461 BS121 2.4GHz Single Channel Intercom Base Station ONLY for DX121 Intercom System

CZ11461 - Overview

• Features:

  • Single-channel 2.4GHz Base Station
  • 2.4GHz license-free operation
  • 1 full-duplex and 3 additional push-to-transmit beltpacks
  • Up to 8 systems can be linked together
  • Interface option available to 4-wire intercom systems only
  • Portable, compact design
  • Built-in battery charger


• Specifications:

  • System Specifications
  • Frequency Range: 2400-2483.5MHz
  • Frequency Response: 200Hz to 3.5kHz
  • Power Requirements: 100-240V AC, 50-60Hz or 12-14V DC
  • Temperature Range: -4-131°F (-20-55°C) Typ.
  • Size: 1.62 x 5.50 x 7.88in (4.1 x 14 x 20cm)
  • Weight: 1.2lbs (0.59kg) with battery
  • 4-Wire I/O: 600 Ω balanced, level adjustment
  • Headset I/O: 200 Ω balanced, level adjustment
  • Antenna Type: External, dual diversity ½-wave dipole (R-TNC connector)
  • System Distortion: <2%
  • Communication Security: 64-bit encryption dual slot diversity
  • Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)

    Transmitter Specifications
  • Type: Frequency-Hopping, Spread Spectrum (FHSS)
  • Transmit Power: 100mw Burst
  • Modulation Type: Gaussian filtered FSK, TDM
  • Frequency Stability: 13 ppm
  • Harmonics/Spurious: Exceeds FCC and ETSI specifications over temperature

    Receiver Specifications
  • Type: Frequency-Hopping, Spread Spectrum (FHSS)
  • RF Sensitivity: <-90dBm w 10-3 BER
  • Frequency Stability: 13 ppm
  • Distortion: 2%
  • FCC License: Not Required
