Clear-Com U-BOX-RJ45 Encore Surface Mount Enclosure - 1 Channel / 4-wire - Desk/Wall for KB Speaker Stations

ITEM #: CLCM-U-BOX-RJ45 MFG #: U-BOX-RJ45

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$455.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    U-BOX-RJ45 - Overview

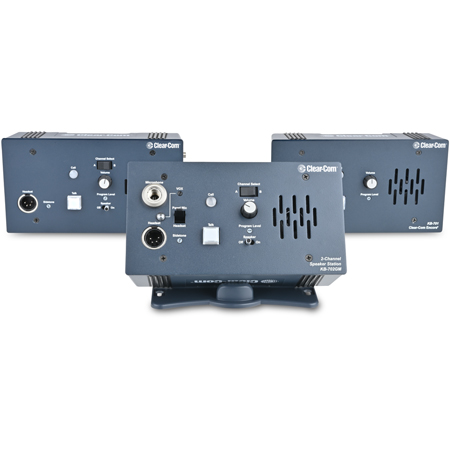

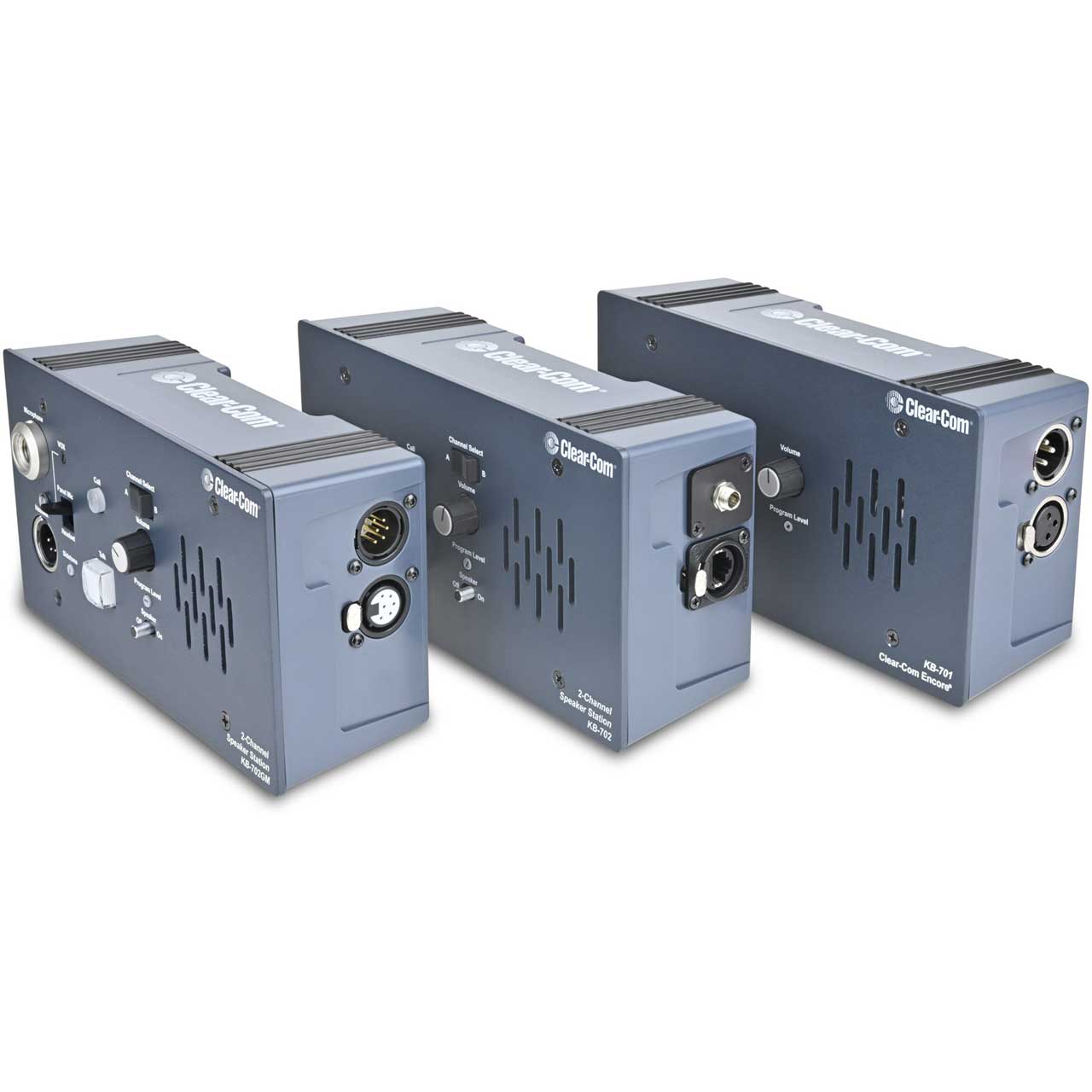

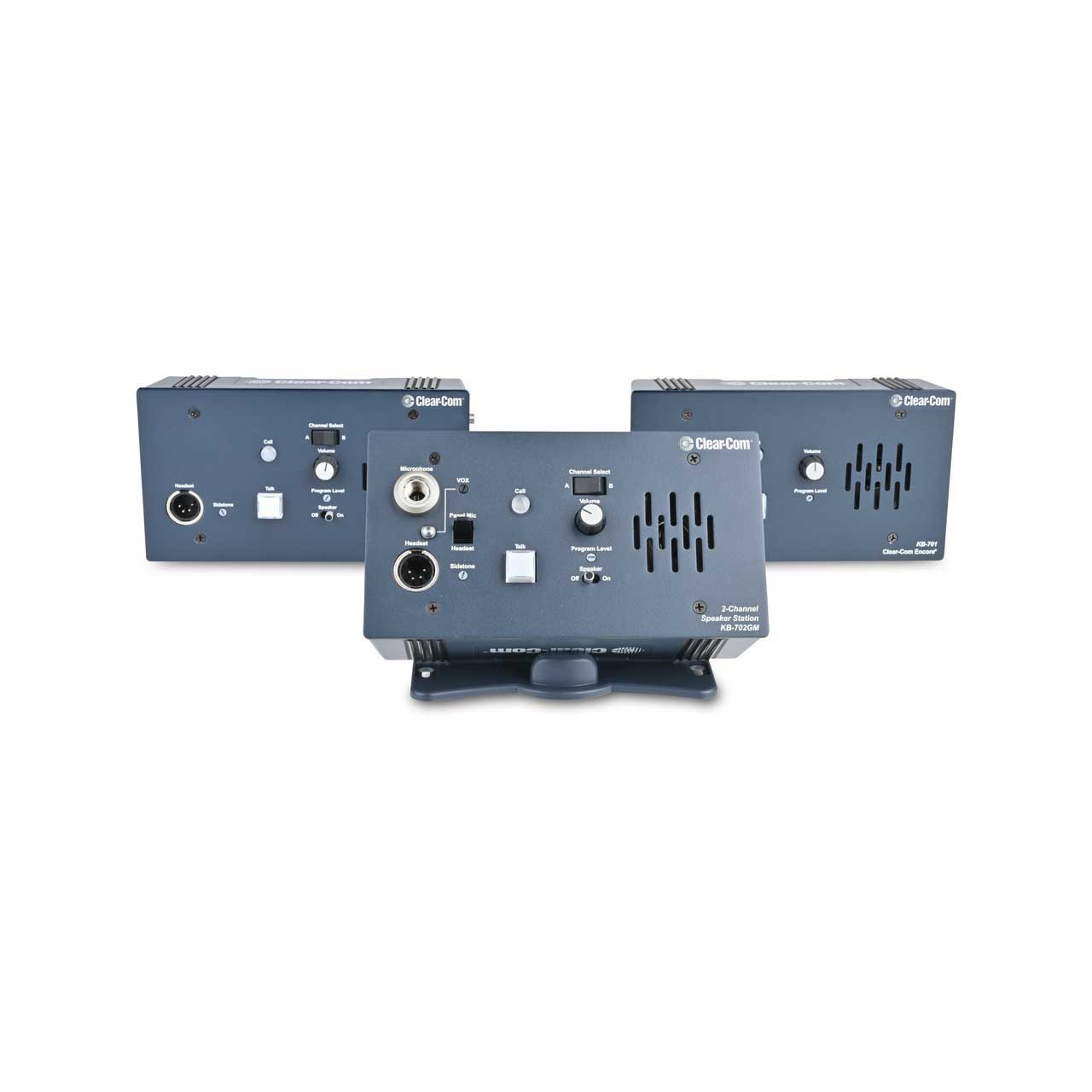

    The Clear-Com U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation. Each version of the U-Box contains all necessary wiring to attach a respective KB device to the enclosure. The U-Box can be mounted flush to a wall or desk with a provided angled mounting bracket. The mounting bracket provides 45® operation of the KB speaker station from horizontal and vertical surfaces. Screw head eyelets are available on both the U-Box and the wall mount for permanent fastening. The U-Box can also be fastened to a VESA 75 universal mount providing a wide range of mounting options available from third party vendors.

    U-Box-RJ45 - Four Wire for use with EB7-4W

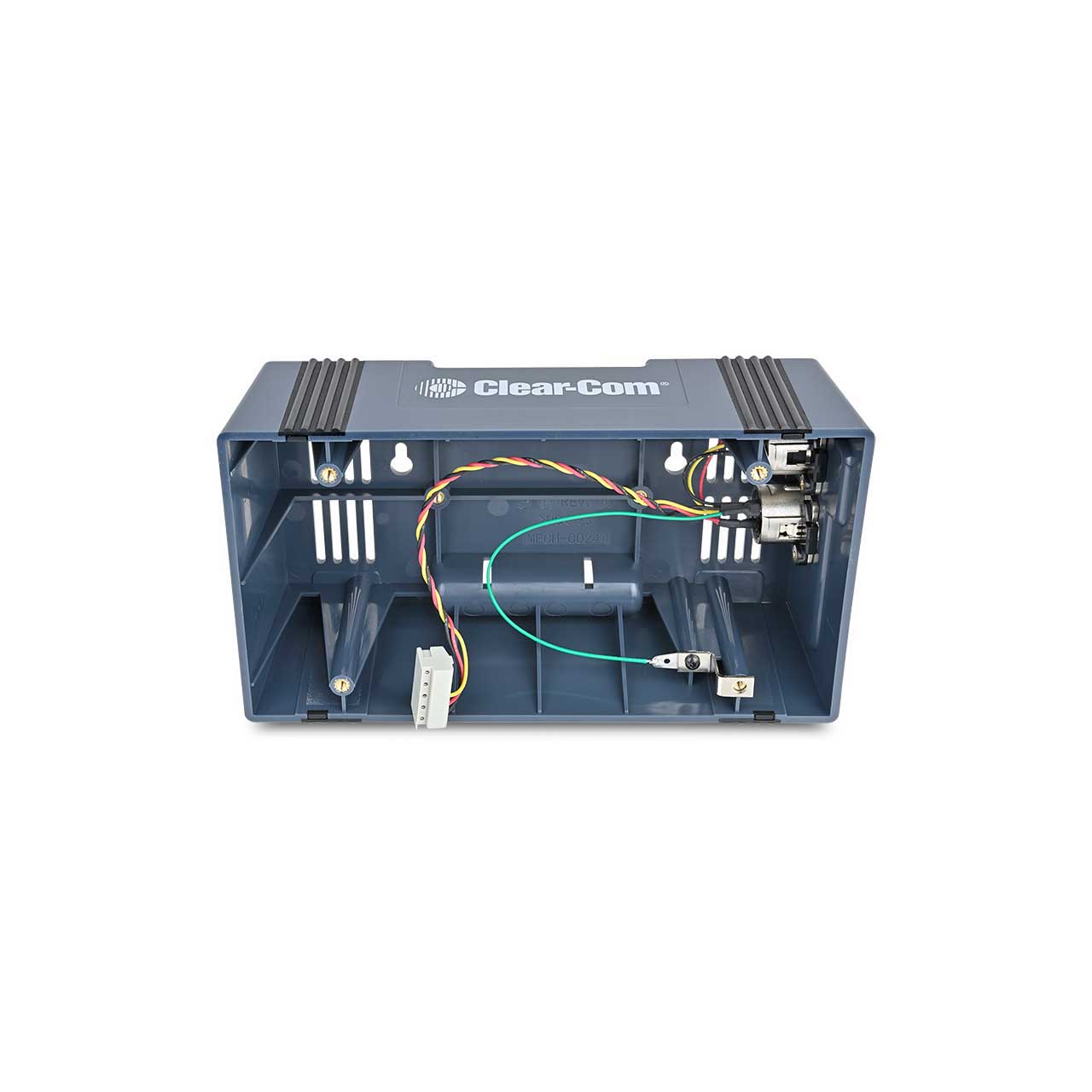

    The U-Box-RJ45 includes an etherCON® RJ45 connector and DC power jack mounted on the side panel. Internally, the connectors are wired to a terminal block for effortless connection to the EB7-4W four-wire adaptor. External Power Supply is required to power the U-Box-RJ45.

    • Features:

      • Enclosure for KB speaker station
      • Permanently installed or portable
      • Integrated handles
      • Vertical or angled KB installation
      • Desktop or wall mount
      • VESA 75 mounting option
      • Rugged enclosure
      • Available wired for single or dual-channel partyline and 4-wire

    • Specifications:

      • Connectors
      • Four-Wire: etherCON RJ45
      • Input Power Connector: DC 2.1mm Co-axial

        Environmental
      • 32° - 158°F (0 - 70°C)

        Mounting
      • Keyholes Center-to-Center: 4.0in (101.6mm)
      • Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
      • VESA Sockets Center-to-Center: 2.95in (75mm)
      • VESA Thread Type: M4x10
      • Mounting Bracket - Keyholes Center-to-Center: 5.9in (149.9mm)

        Dimensions
      • U-Box: 4.5 x 8.2 x 2.8in (HxWxD)
      • U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in (HxWxD)

        Weight
      • U-Box: 0.71lbs (0.32kg)
      • U-Box with Mounting Bracket: 0.90lbs (0.41kg)
      • U-Box with KB Speaker Station: 1.97lbs (0.89kg

    • Item Includes:

      • 1x Clear-Com U-BOX-RJ45 Encore Surface Mount
      • 1x Screw Kit to fasten KB / HB (4 screws) 6-32 x 1/2"
      • 1x Mounting Bracket Kit
