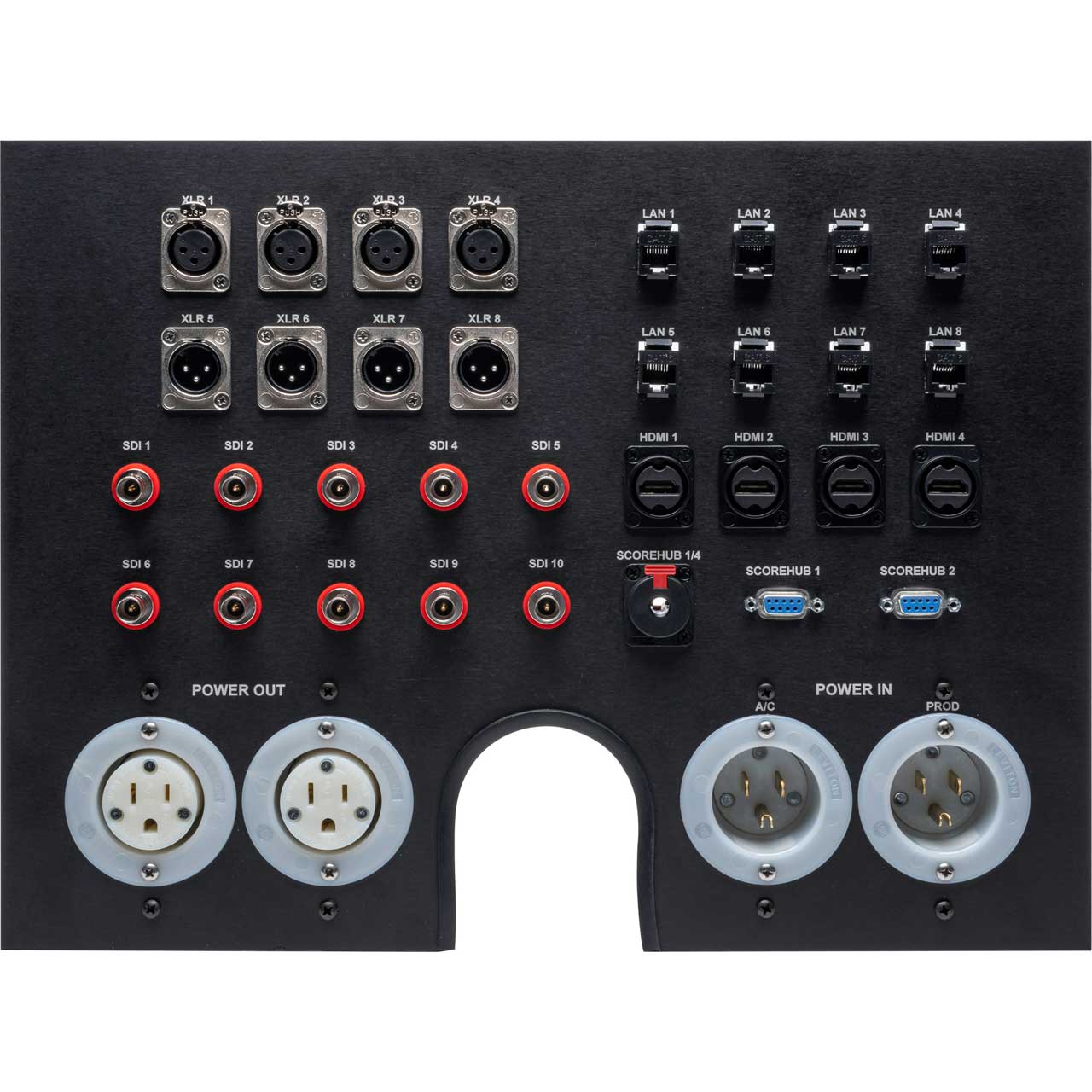

This gorgeous 16" x 12" Black Anodized panel was custom made for the Spanish Fork Community Network News Channel 17 studio. We worked closely with the customer to deliver a custom cut in the panel bottom to fit their needs.
The panel is completely engraved to identify all I/O channels and includes 10 RJ45 network jacks, 10 SDI BNC Feed-thru jacks, 4 HDMI Feed-thrus. It has A/C power in and out, RS232 scorehub jacks and 4 channels each of XLR Feed-thrus for audio inputs and audio ouputs.
The finishing touch of this panel was to wire an 8-inch fantail for the ¬" scorehub connection.
