Camplex opticalCON DUO NO2-4FDW-A to (2) ST Female Single Mode Breakout Box

ITEM #: CMX-NEMA2 MFG #: CMX-NEMA2

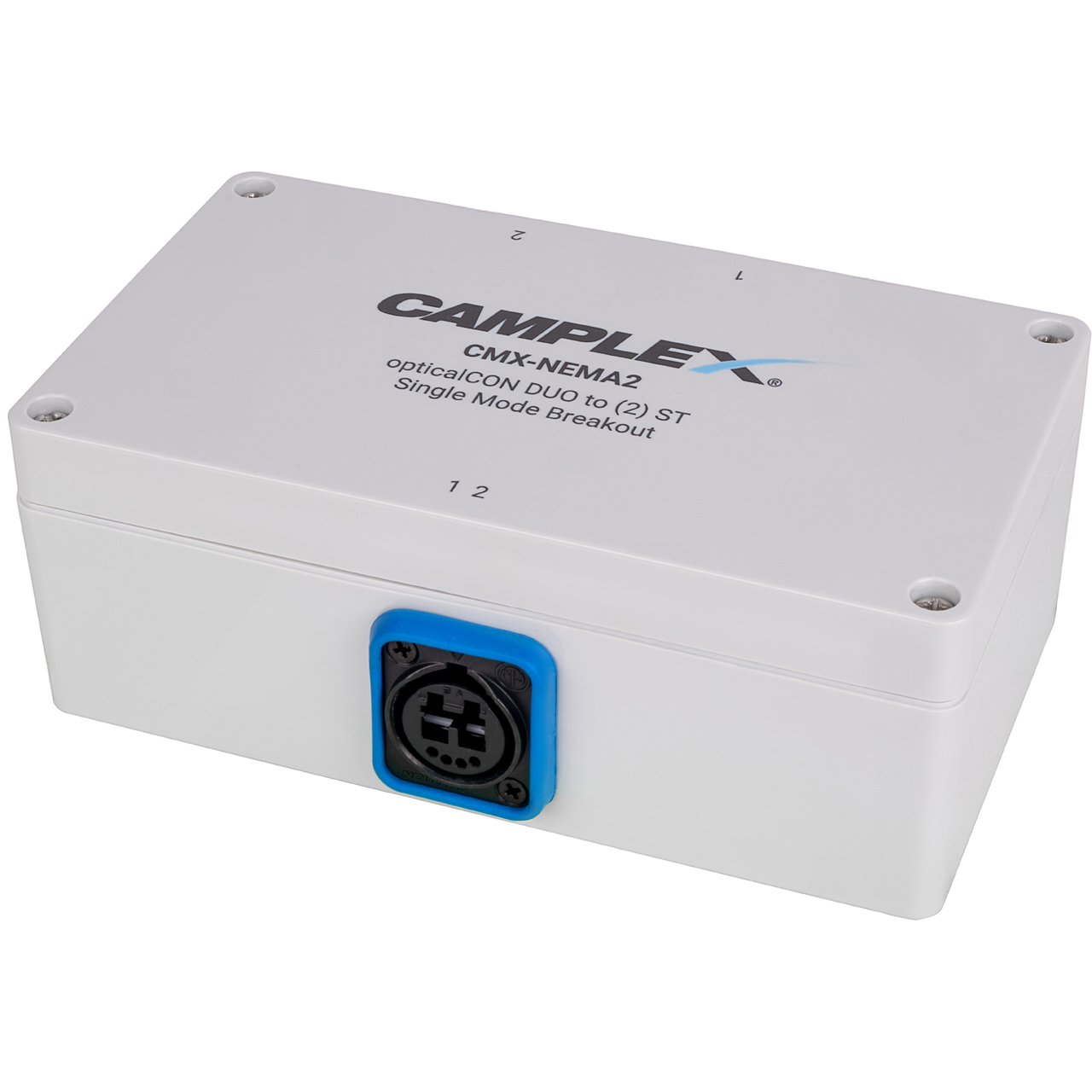

Primary Image

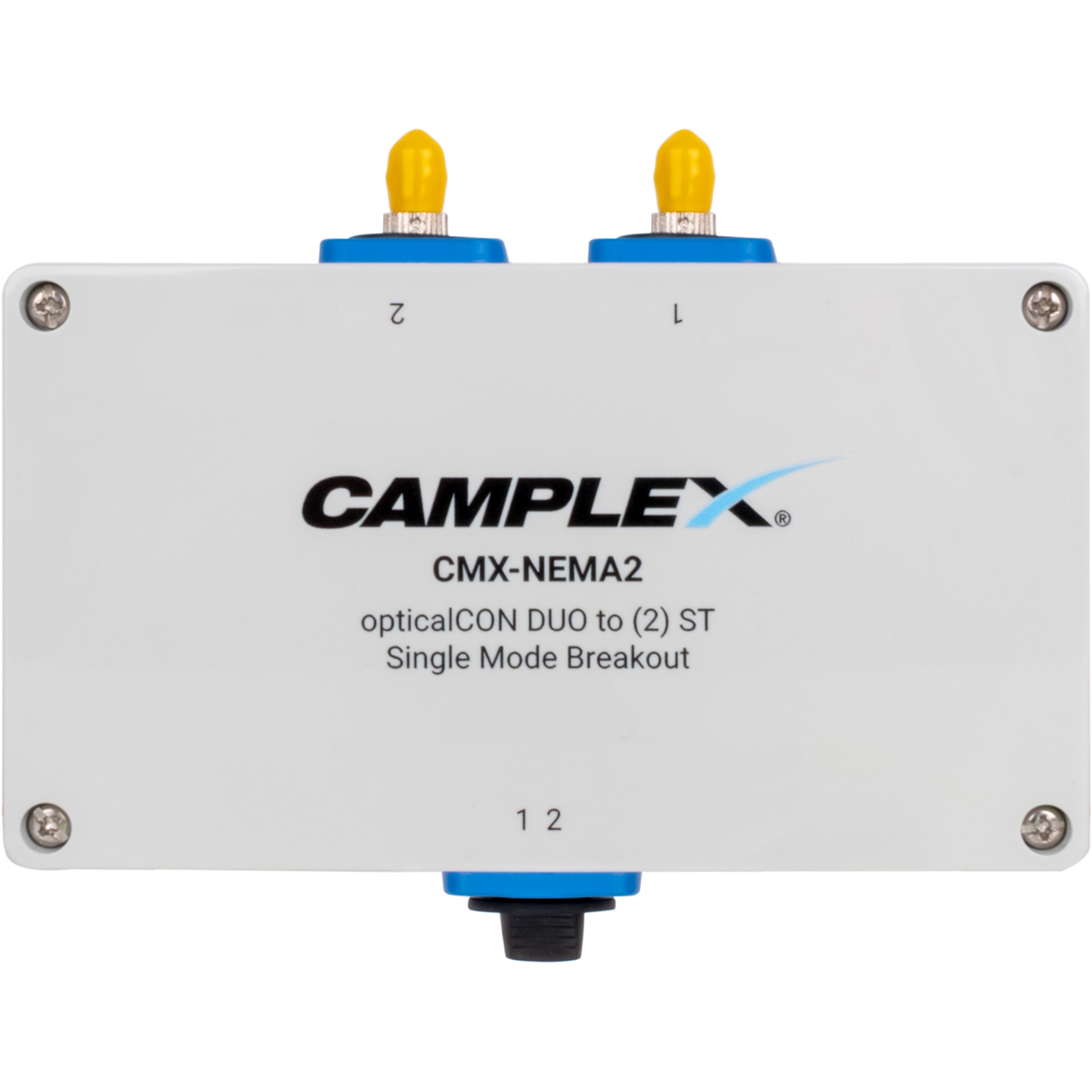

  • Product Image Thumbnail 1 of 5

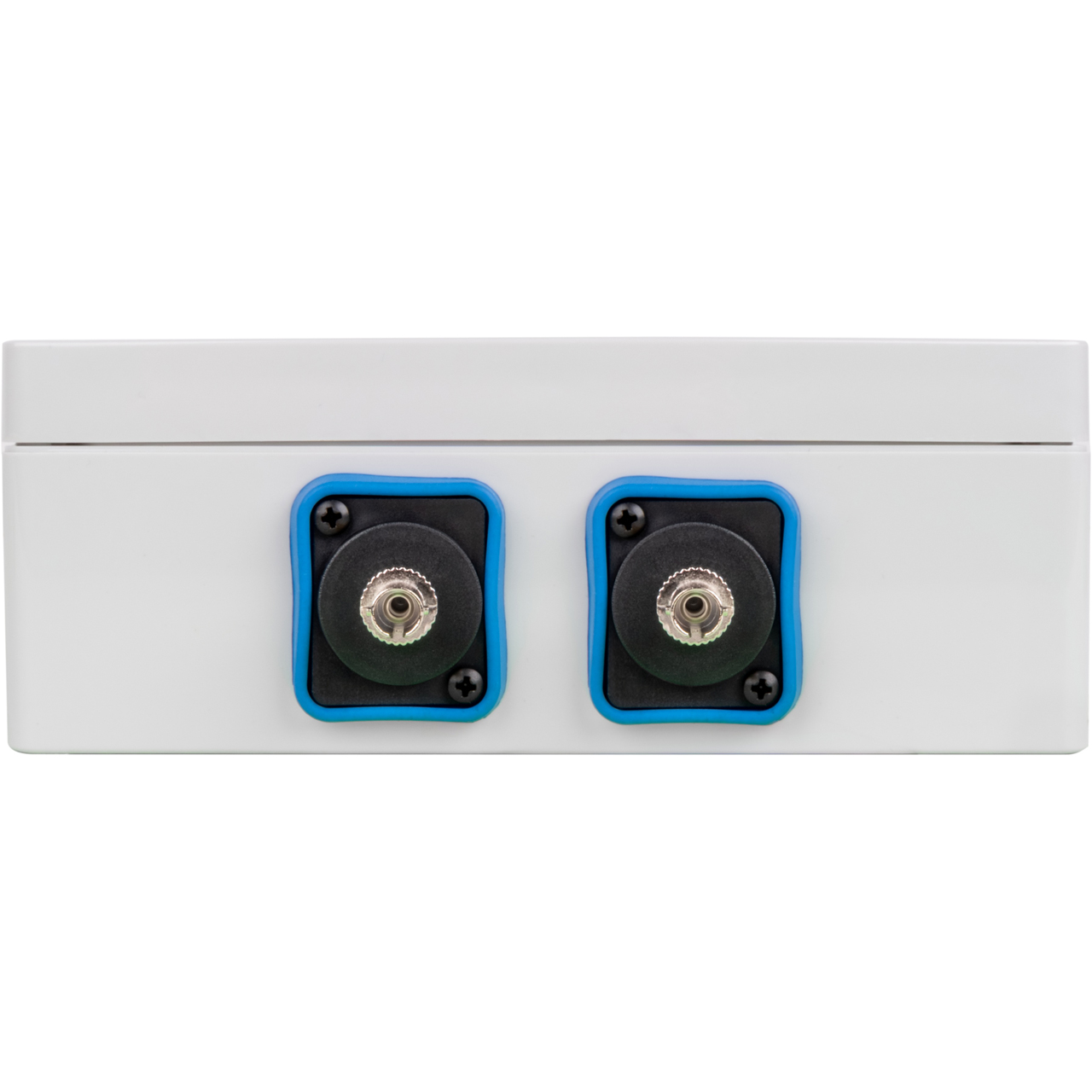

  • Product Image Thumbnail 2 of 5

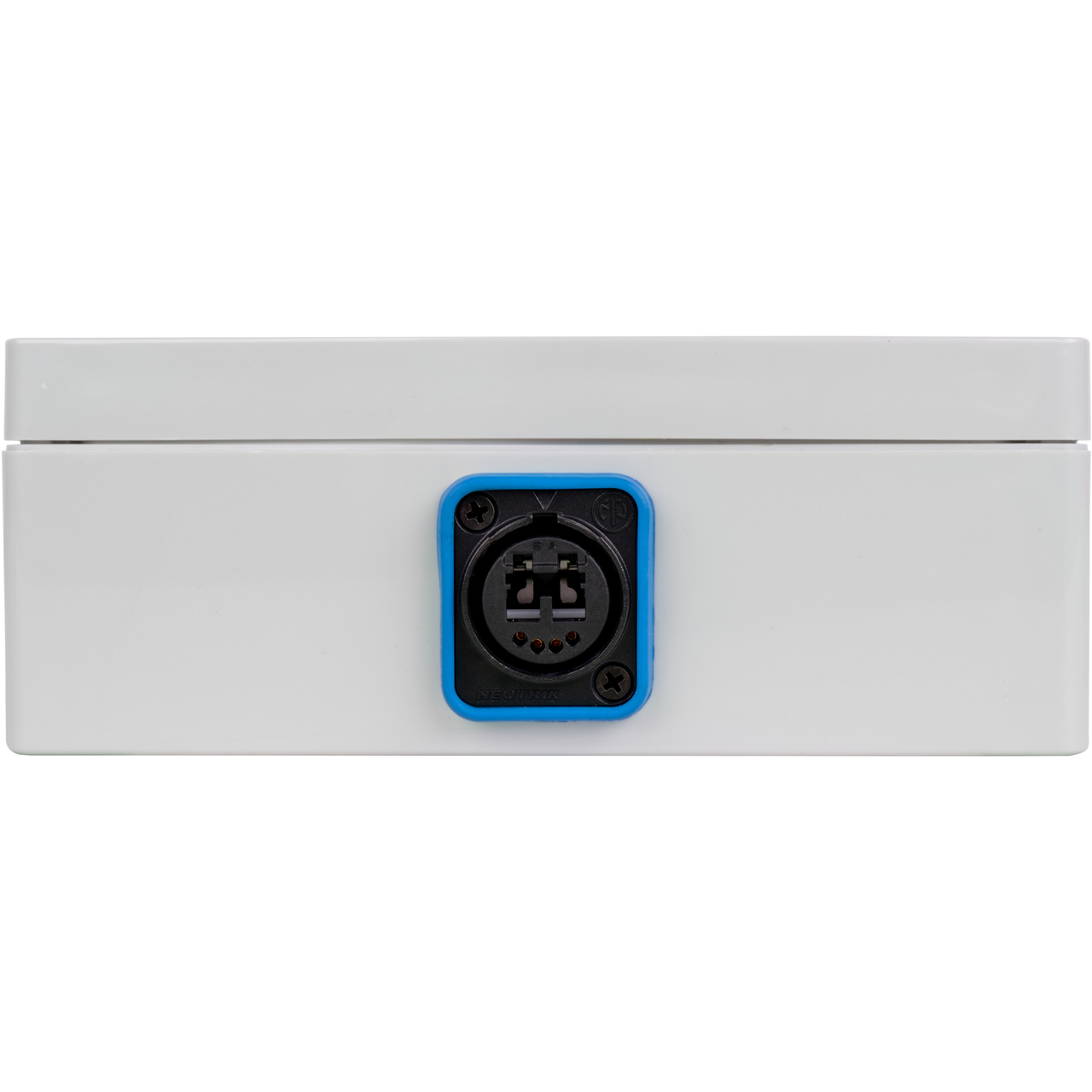

  • Product Image Thumbnail 3 of 5

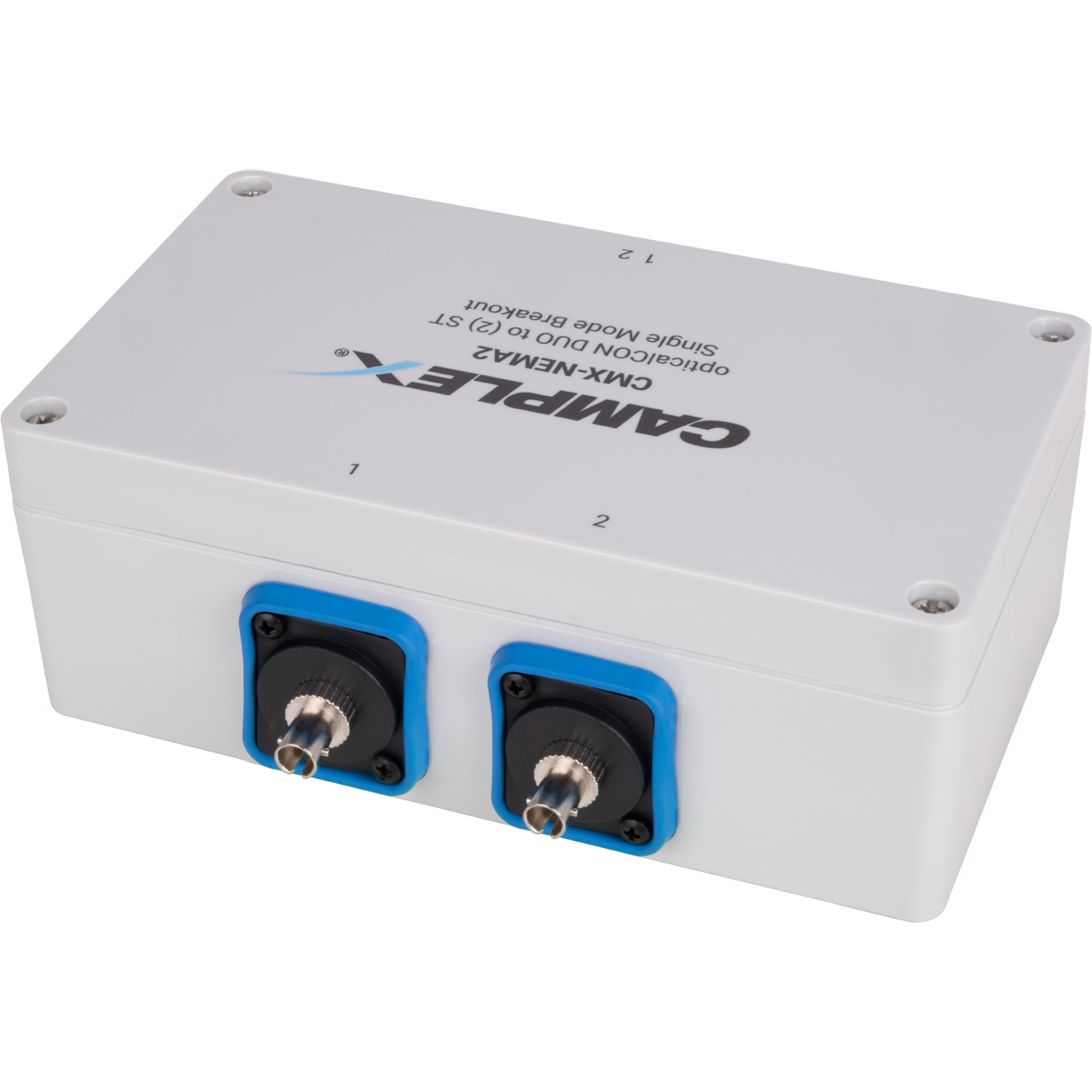

  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$388.95

Our Price:

$356.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-NEMA2 - Overview

Handy rugged and weatherproof Camplex fiber optic adapter-breakout boxes are used to adapt Neutrik opticalCON DUO connectors to standard ST, LC or SC fiber optic connectors. All models are housed in a field serviceable NEMA weatherproof polycarbonate box with rubber gasket for rigorous indoor and outdoor use. Highest quality fiber connectors are used with integral metal dust caps. Designed for easy cleaning and replacement of internal jumpers.

Models are also available to adapt Neutrik opticalCON QUAD to opticalCON DUO connectors. Other variations include singlemode, multimode and models with weatherproof 4 pin XLR power taps.

  • Features:

    • High-Quality Neutrik connectors
    • Rubber feet prevent sliding
    • Lightweight NEMA-rated polycarbonate enclosures

  • Specifications:

      Neutrik Connectors
    • Contact Resistance: < 7mΩ
    • Dielectric Strength: 1.5kV DC
    • Insulation Resistance: > 2GΩ

      ST Connectors
    • Insertion Force: ≤0.2dB
    • Lifetime: 1000 Mating Cycles

  • Warranty:

    • 1 Year
