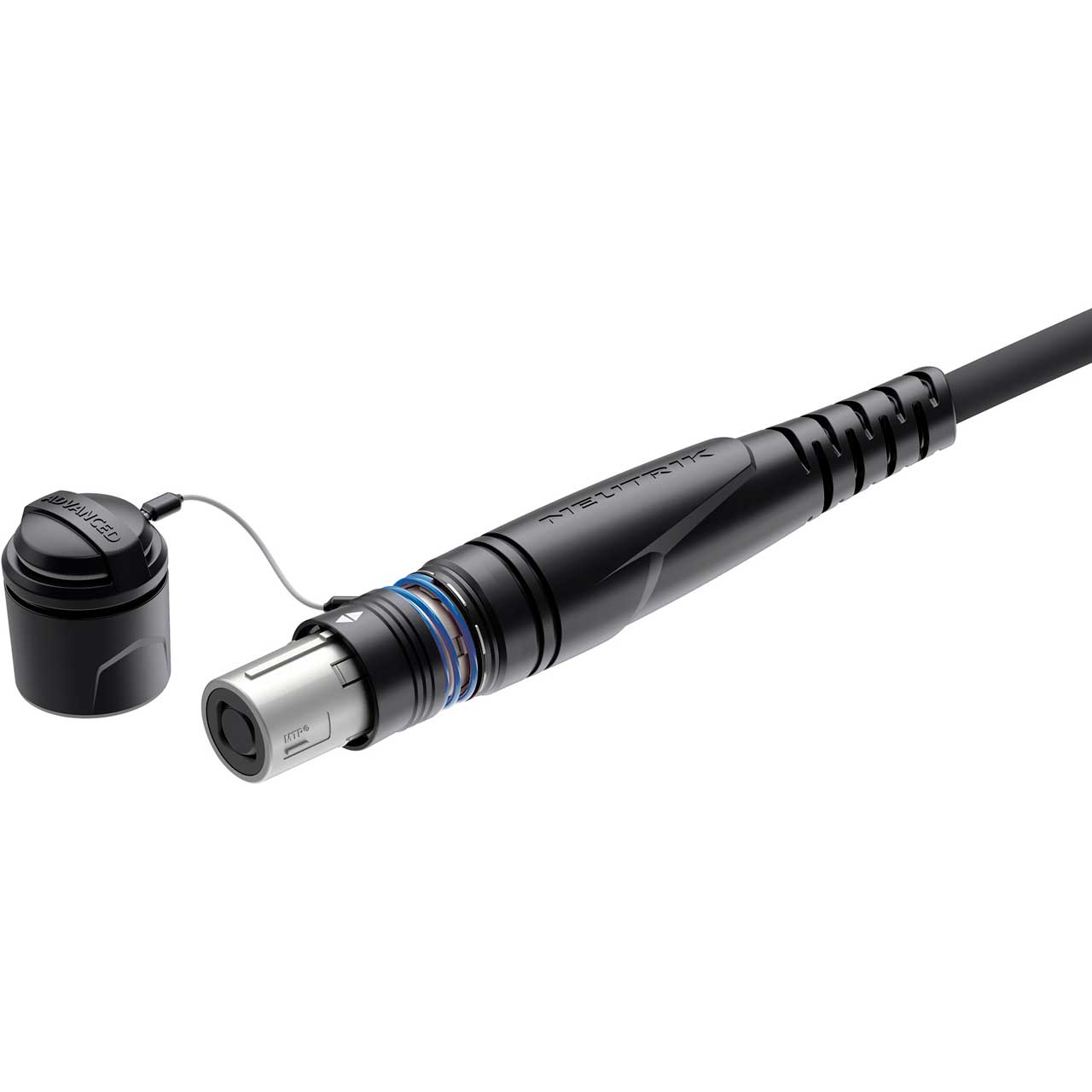

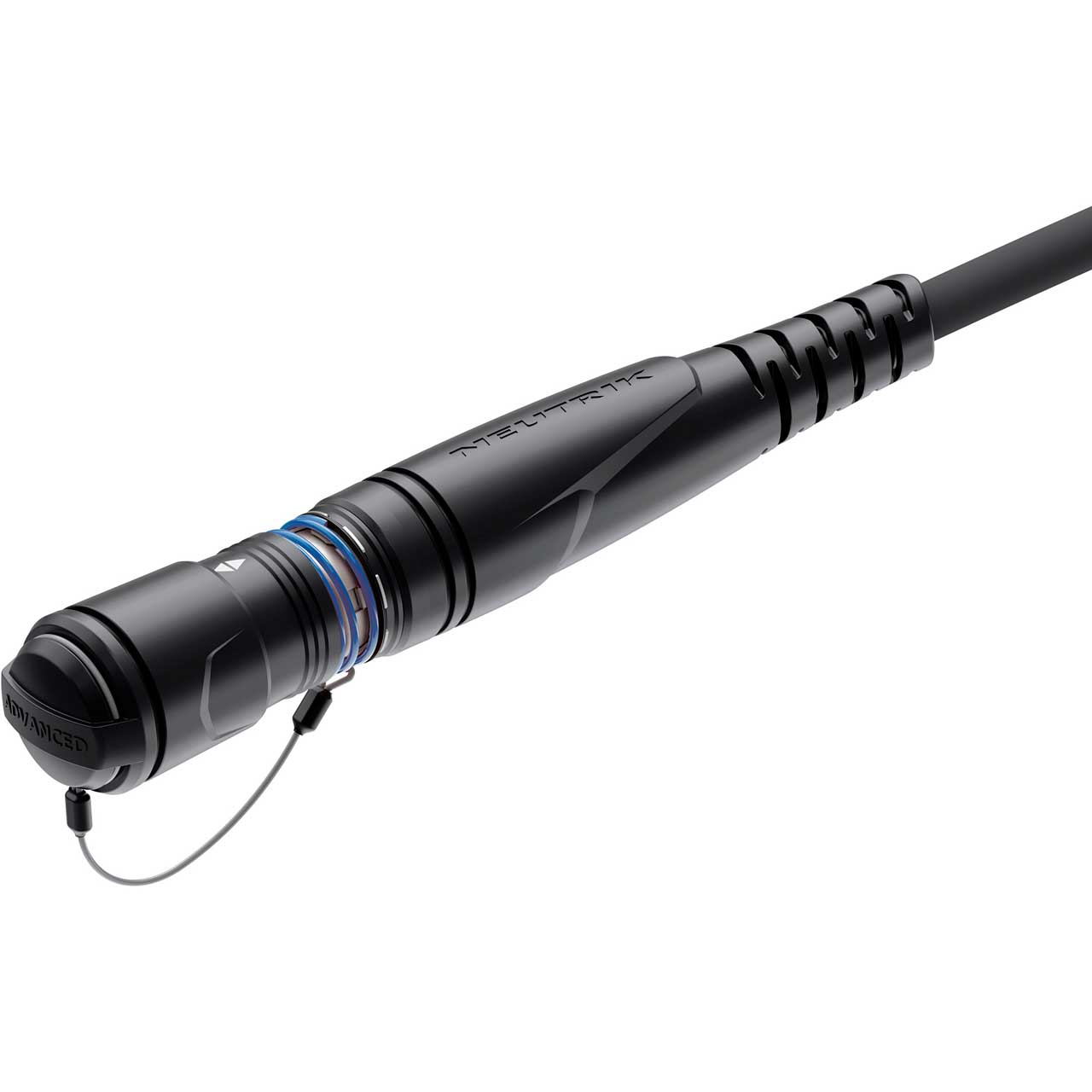

Camplex opticalCON MTP/MPO Multimode 48 Fiber Field Cable - NKO48M-A-0- 3 Meters (10 Foot)

ITEM #: CMX-OCMTPM48-003 MFG #: CMX-OCMTPM48-003

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,387.95

Our Price:

$3,105.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-OCMTPM48-003 - Overview

The Camplex opticalCON MTP/MTP singlemode field cable with 48 fiber Neutrik opticalCON MTP connectors simplifies connections and reduces installation time by running multiple fibers in one cable. This ruggedized Camplex cable saves space for field deployable broadcast AV applications and data transmission over singlemode fiber trunks. The opticalCON MTP connectors feature a spring loaded push-pull locking mechanism for reliable operation. Assembled, rugged and lightweight 48-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket.

The opticalCON MTP cable connector accommodates 48 optical fibers (multimode) based on conventional and proven MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Use with Camplex breakout cables, Camplex MTP NEMA field boxes, Camplex breakout boxes, Neutrik opticalCON MTP chassis connectors NO48FDW-A, for durability and high performance.

  • Features:

    • Outdoor field deployable
    • Low insertion loss and optimized optical return loss values
    • Space saving multi-fiber design reduces cleaning and mating time
    • Neutrik opticalCON MTP connectors- lockable & waterproof caps with hinged dust covers
    • Cut-proof and rodent-resistant double-jacket
    • Available in a variety of lengths.
    • Made in the USA

  • Specifications:

    • Multimode
    • 48 Fiber Assembly
    • Fiber Standard: OM3
    • Cable Diameter: 8.1mm
    • Core Diameter: 50 µm
    • Cladding Diameter: 125 µm
    • Jacket Material: Polyvinylchlorid
    • Max Tensile Load: 1300 N
    • Min. Bend Radius: 121mm
    • Crush Resistance: ≤ 500 N/cm (according to IEC 60794-1-2-E3)
    • Operation Temperature: -40°C to 85°C
    • Storage Temperature: -20°C to 70°C
    • Installation Temperature: -5°C to 50°C

  • Warranty:

    • 1 Year
