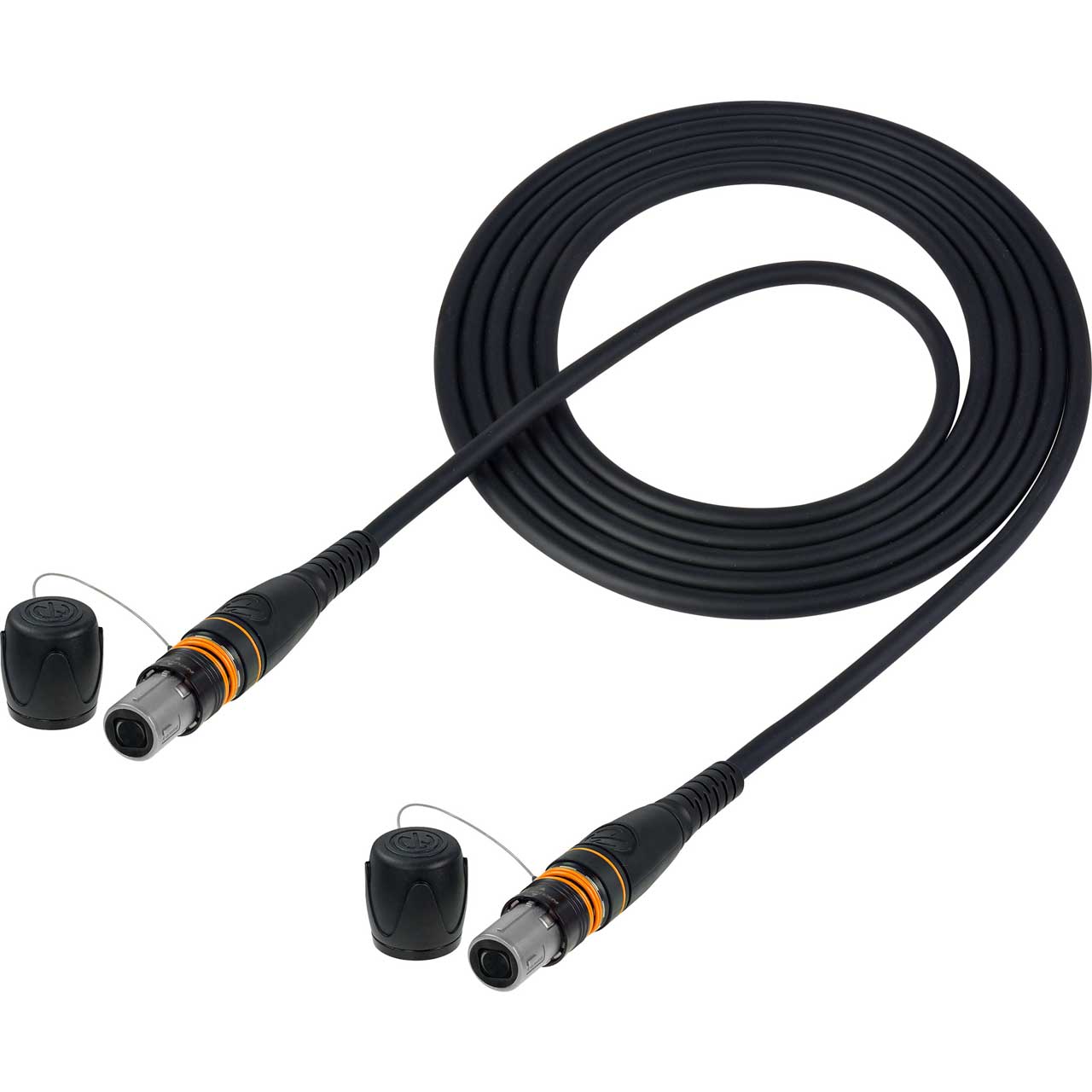

Camplex opticalCON MTP/MTP OM3 Multimode 12 Fiber Xtreme Cable - NKOX12M-A-0- 25 Meters

ITEM #: CMX-OCMTPMX025 MFG #: CMX-OCMTPMX025

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,391.95

Our Price:

$3,109.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-OCMTPMX025 - Overview

The Camplex opticalCON MTP/MTP OM3 multimode XTREME cable with 12 fiber Neutrik opticalCON MTP X-TREME connectors simplifies connections and reduces installation time by running multiple fibers in one cable. This ruggedized Camplex cable saves space for field deployable broadcast AV applications and data transmission over multimode fiber trunks. The opticalCON MTP connectors feature a spring loaded push-pull locking mechanism for reliable operation.

Highly flexible, tightly-buffered polyurethane X-TREME tactical cables feature a cut-proof and rodent resistant double jacketed glass yarn armored construction. Machine polished and interferometer tested to industry standards, and dust and water resistant according to IP65 in mated condition.

Use with Camplex breakout cables, Camplex MTP NEMA field boxes, Camplex breakout boxes, Neutrik opticalCON MTP chassis connectors NO12FDW-A, and Neutrik opticalCON MTP couplers NAO12MW-A for durability and high performance.

  • Features:

    • Outdoor field deployable
    • Laser and bend optimized OM3 fibers
    • Low insertion loss and optimized optical return loss values
    • Space saving multi-fiber design reduces cleaning and mating time
    • Neutrik opticalCON MTP connectors- lockable & waterproof caps with hinged dust covers
    • Cut-proof and rodent-resistant double-jacket
    • Available in a variety of lengths
    • Made in the USA

  • Specifications:

    • OM3 multimode
    • 12 fiber assembly
    • Neutrik opticalCON MTP X-TREME cable
    • Black double jacket PUR
    • Cable diameter: 8.2mm
    • Equivalent to: Neutrik NKOX12M-A-0
