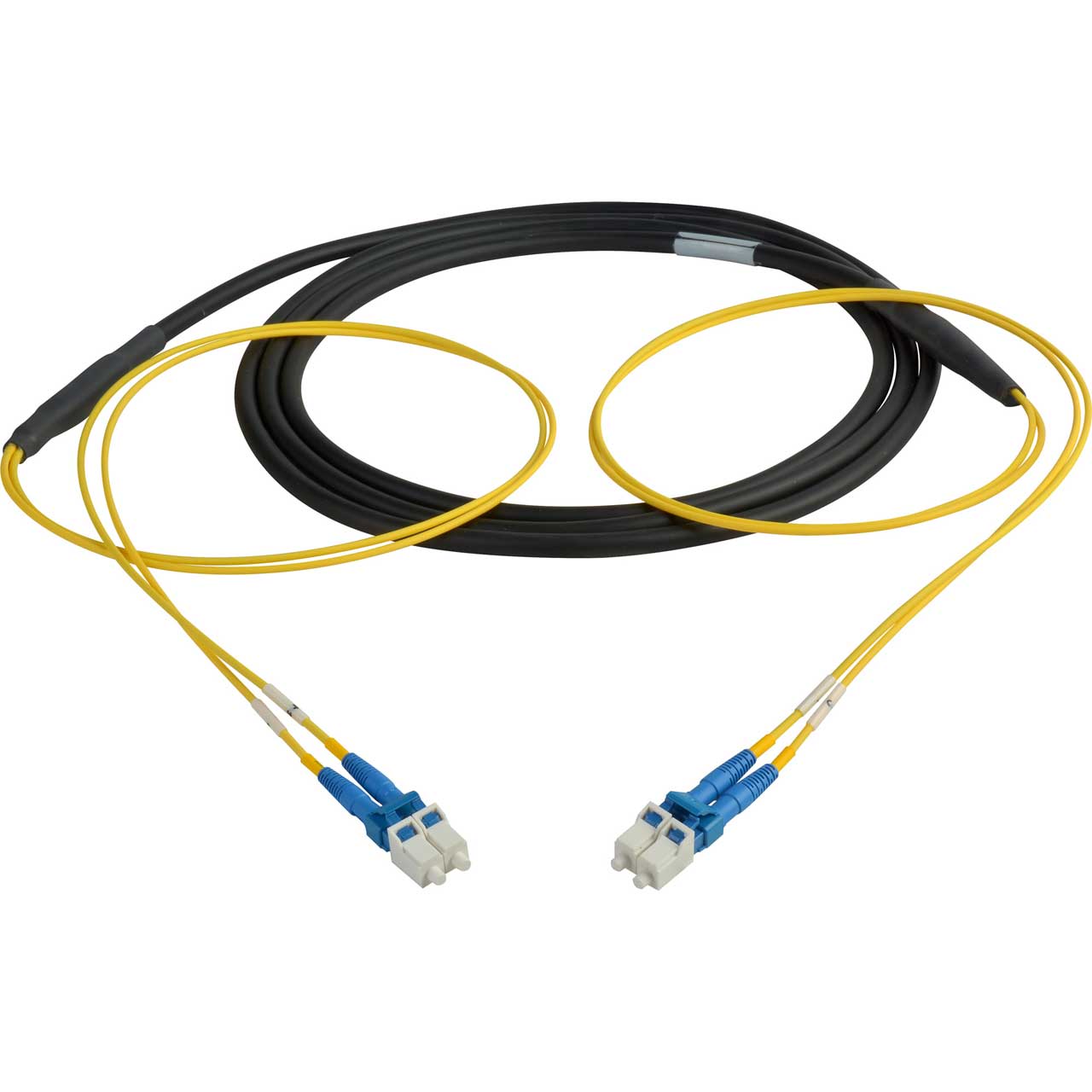

Camplex 2-Channel LC Single Mode Fiber Optic Tactical Snake 10 Foot

ITEM #: CMX-TS02LC-0010 MFG #: CMX-TS02LC-0010

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$85.49

Our Price:

$77.49

Availability: In Stock
iAvailability Description Popup


CMX-TS02LC-0010 - Overview

Flexible and Crush Resistant Outdoor Fiber Cable

High quality and cost-effective Camplex CMX-TS series tactical fiber cables are designed for broadcast and pro-AV deployment applications and meet all tactical needs for applications requiring an outdoor rated crush and impact resistant design. The tough thermoplastic polyurethane core-locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field.

Camplex CMX-TS ruggedized multi-channel fiber optic cables are designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. All products are 100% tested and a complete set of test documentation of your cable is available upon request.

Featuring Senko LC or ST premium fiber connectors and 2, 4, 8 or 12 channels. Custom Lengths & Configurations Available.

  • Features:

    • Indoor/Outdoor rated jacket.
    • Wide temperature range (typically -55°C to 85°C)
    • 500um primary acrylate buffer with 900um secondary hard buffer
    • Excellent crush and impact resistance due to their polyurethane core-locked outer jacket
    • Designed to withstand crush and impact after deployment
    • Strong, lightweight and extremely durable cable

  • Specifications:

    • Typical RL <-55dB and IL<0.25dB
    • Industry Standard Designation: SMF-28
    • Core/Cladding Diameter (um): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cabled Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (um): 500
    • Secondary Buffer Diameter (um): 900
