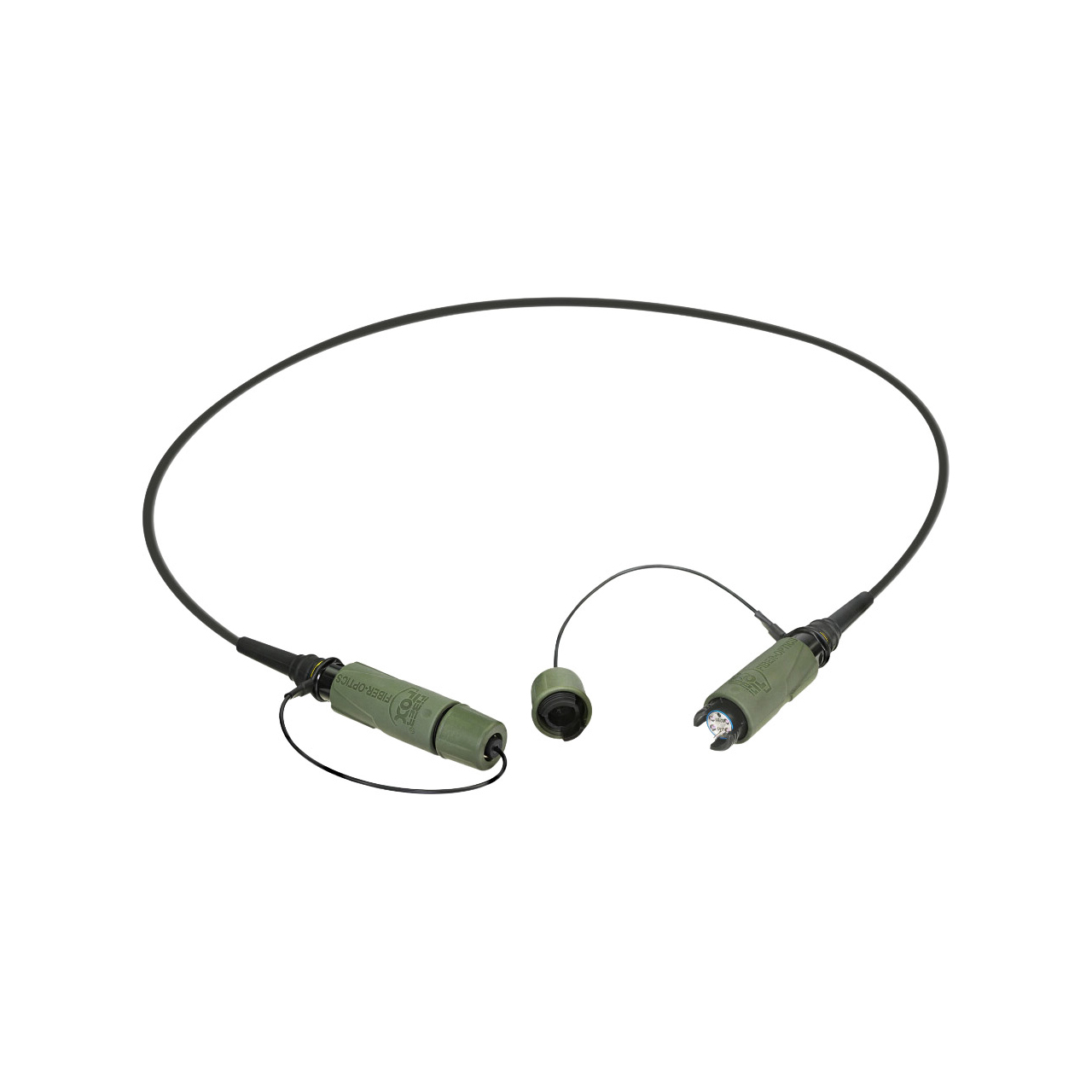

Camplex 4-Channel OM3 Multimode Expanded Beam Neutrik FIBERFOX EBC NKO4M3-FG Fiber Cable - 10 Foot

ITEM #: CMX-XBG04M-0010 MFG #: CMX-XBG04M-0010

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,871.95

Our Price:

$1,684.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-XBG04M-0010 - Overview

MIL-DTL-83526 standard expanded beam fiber cables are increasingly popular in stage and production environments due to their exceptional durability and resilience against dust, dirt, liquids, and other contaminants that can compromise the performance of standard tactical cables. These ruggedized assemblies are now widely used in applications such as video extension systems, lighting rigs, Ethernet networks, and sound systems, where reliability in challenging conditions is essential.

To meet the needs of demanding production professionals, Camplex has developed the FIBERFOX XBG04M Series - a line of 4-Channel OM3 Multimode cables designed for studios and production suites. These assemblies feature Neutrik’s FIBERFOX EBC25 4-fiber expanded beam hermaphroditic connectors with a jam-nut design also suitable for all kinds of industrial, defense & governmental and even railway applications. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. Cables fully comply with the specifications of the MIL-DTL-83526 standard and is compatible with other cables and panel mount connectors using this standard.

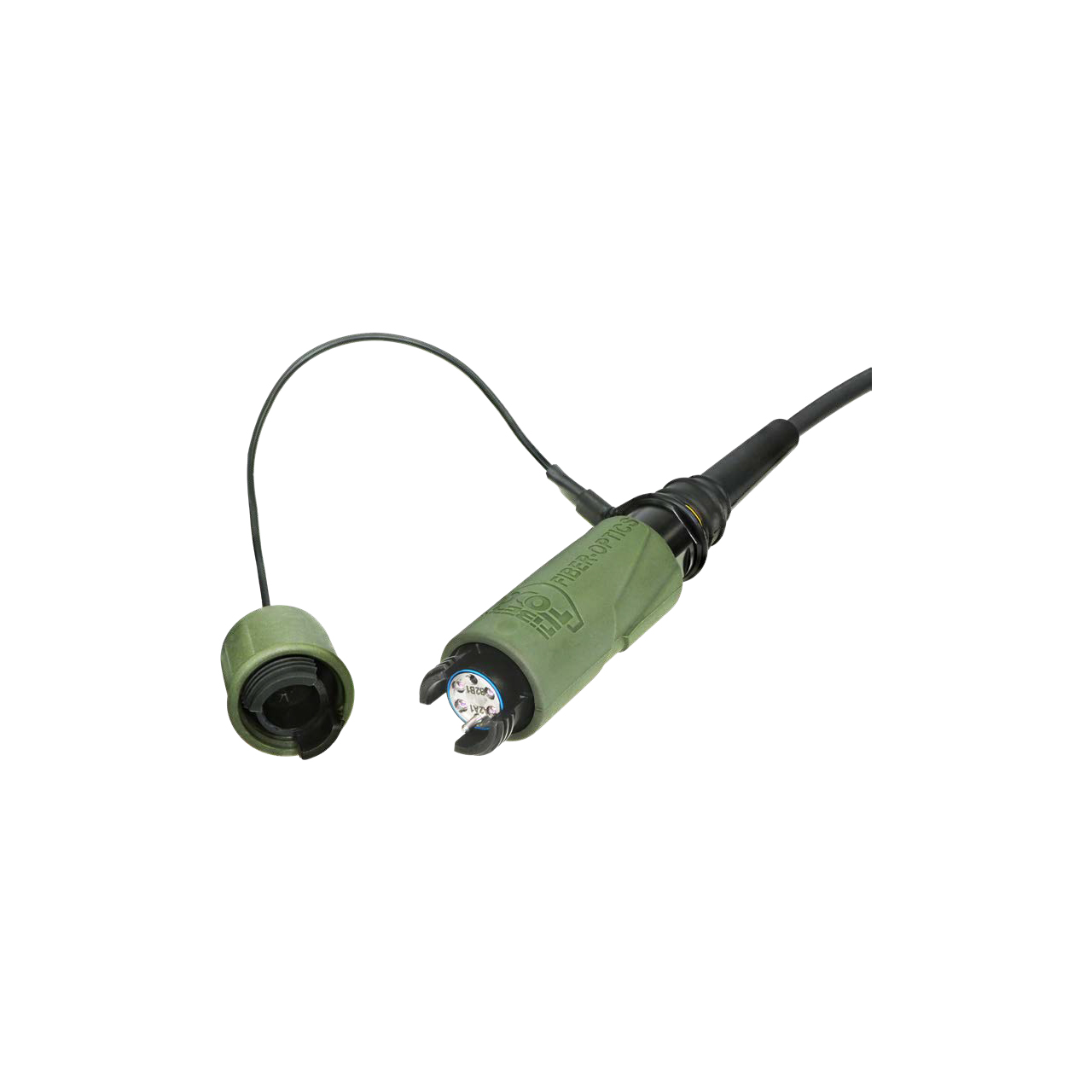

At the heart of the FIBERFOX EBC is its lens system which always ensures reliable system functionality even in harsh environmental conditions like rain, cold, heat, dust, mud or below water. This is a welcome change to traditional fiber systems where environmental challenges can often inhibit signal transmission. FIBERFOX EBC connectors comply with IP68 (connected or disconnected) and can be cleaned easily and quickly by using clear water and a lint-free cloth only. Detailed measurements or the use of special cleaning tools are not necessary!

  • Features:

    • PUR Flame-retardant
    • IP68 mated and unmated
    • Cables are directly extendable (No Couplers required)
    • Compatible with all MIL-DTL-83526 systems
    • Excellent cable retention due to aramid yarn
    • Withstands greater impact caused by animals and environmental conditions
    • No Special Cleaning or measurement tools
    • Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations
    • For Demanding outdoor applications
    • Robust, heavy-duty connectors

  • Specifications:

    • Gender: Hermaphroditic
    • Fiber Type: Multimode
    • Number of Fibers: 4
    • Overall Diameter: 2.2in (5.8mm)
    • Core Diameter: Multimode 50µm
    • Cladding Diameter: 125µm
    • Optical Connector: EBC25
    • Cable Retention Material: Aramid Yarn
    • Insertion Loss:
      -Typical 1.5dB per Connection
      -Max 2.5dB per Connection
    • Boot Material: Rubber (EPDM)
    • Boot Insert: Steel
    • Boot Shell: Aluminum
    • Boot Shell Plating: Hard Anodize
    • Strain Relief: Brass
    • Lifetime: 10’000 mating cycles
    • Tensile Strength: 1'800N
    • Compressive Load: 50'000N
    • Bump Resistance: 4000 bumps @ 40g acceleration
    • Vibrational Sinusoidal: 10-500Hz, 0.75 amplitude @ 10g acceleration
    • Flammability: UL 94 V-0
    • IP Rating: IP68 mated and unmated
    • Mind Bend Radius: 2.2in (5.8cm)
    • Operating Temperature: -51°F to 160°F (-46°C to +71°C)
    • Weight: 0.015lbs/ft (23 kg/km)

  • Warranty:

    • 1 Year
