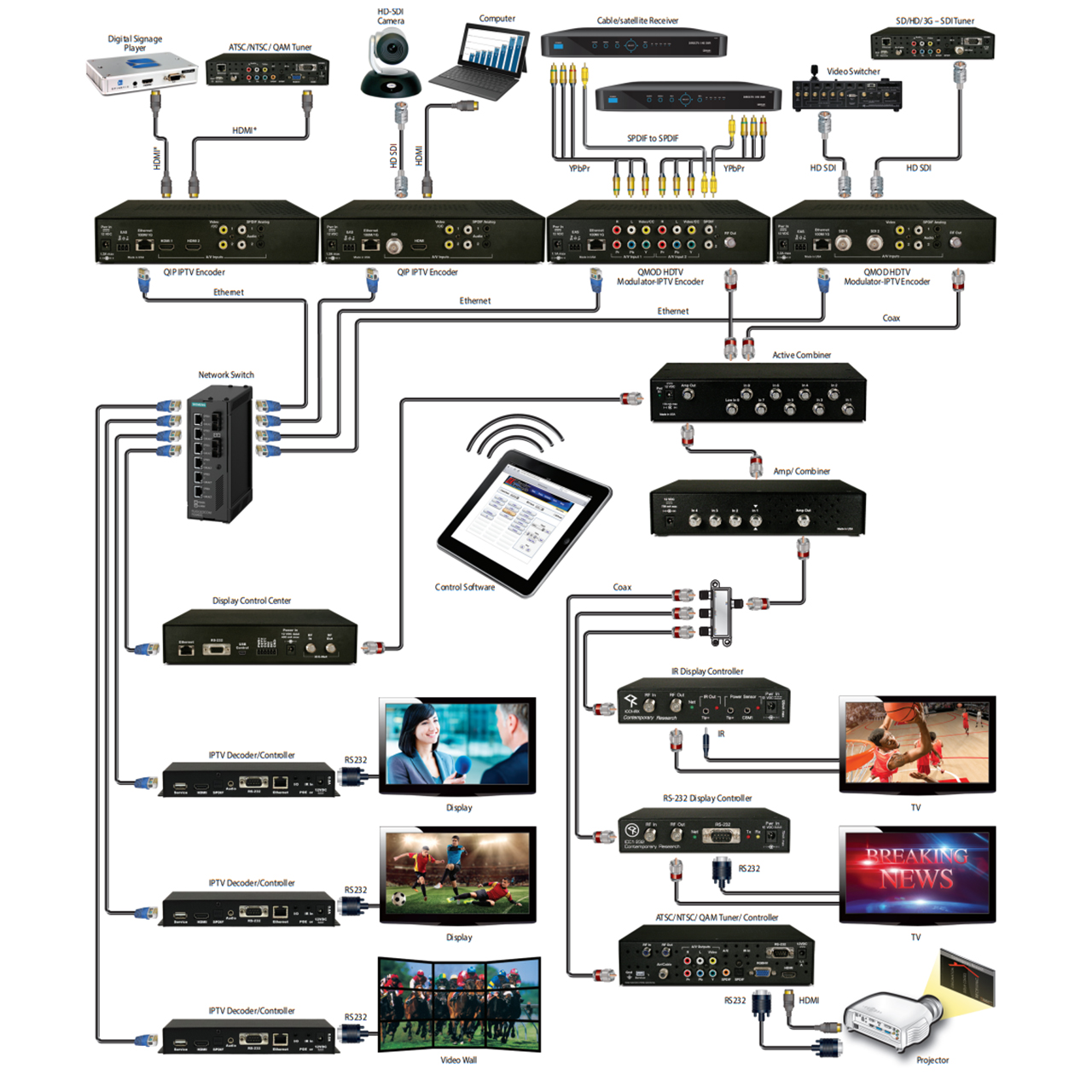

Contemporary Research QMOD-HDMI2 Dual-Channel RF or IPTV Encoder

QMOD-HDMI2 - Overview

• Features:

  • SOURCES:
  • Two HDMI inputs, accept from 480i/29.97Hz to 1080p 59.94/60 Hz video
  • Accepts embedded HDMI Dolby AC-3 and PCM audio
  • Two Composite/CC video input for encoding, captioning, or EAS use
  • Two analog Stereo and two SPDIF coax audio inputs

    ENCODING:
  • Creates SD and high-definition MPEG-2 and/or H.264 streams at 480i, 480p, 576i, 720p, or 1080i for distribution.
  • Accepts stereo or PCM audio and converts to Dolby Digital AC-3/, with SAP dual-language capability.
  • Embedded captioning from Line 21 data on composite video inputs.
  • Dual hardware scalers enable precise formatting of digital signage for edge-to-edge presentation. Units accept up to1080p 30/60 Hz and PAL video, as well as, various computer graphics resolutions while delivering programs at a fixed resolution.
  • Dual-channel operation is standard, creates one physical channel with two HD programs.

    OUTPUT:
  • Delivers a fully agile QAM 64/256 dual program digital cable channel 2-135
  • Up to 268 HD Programs/Channels per system
  • Streams Multicast or Unicast IPTV from GigE Ethernet port
  • Distributes channel over an on-site broadband cable system with adjustable output level up to 29 dBmV, compatible with all CATV format broadband systems

    OPERATION:
  • Set up with front-panel buttons and easy to use menus; including inputs, encoding, channel, and RF options or use onboard Web page for setup and monitoring
  • Update via USB or Ethernet
  • Fan cooled, with variable speeds
  • Saves power and rack space using efficient design
  • Includes compact switching power supply
  • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
  • Meets RoHS safety and California energy standards


• Specifications:

  • PHYSICAL:
  • 8.5" [216mm] wide x 1.73" [62mm] height (1RU) x 6.0" [153mm] deep
  • 1.5 lbs [0.68kg]
  • +32° to 122° F operating temperature, convection cooled
  • Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
  • For HRF Half-Racks, use the RK2EZ kit to mount each modulator
  • Fan cooled, with variable speeds

    SCALING:
  • Dual hardware scalers
  • Accepts 480i - 1080p video and various computer graphics resolutions
  • Edge to edge presentation with zoom, shrink and X/Y axis positioning
  • Native or scales to fixed output resolution, 1080p scaled to 1080i

    ENCODING:
  • MPEG2/H.264 Profile: MP@HL for HD, MP@ML for SD
  • 1080i, 720p, 576i, 480p, and 480i output resolution
  • MPEG2 Video Encoding bitrate 10-25 Mbps, HD, 5-6 Mbps 480i, variable bitrate if set for IP output only
  • H.264 Video Encoding bitrate 5-10 Mbps, HD, 2-4 Mbps 480i, or variable bitrate if set for IP output only
  • Converts PCM or MPEG1, Layer 2 audio to stereo AC-3, AAC or MP12, pass-through AC-3
  • SAP Dual-language capability, second audio track is MPEG1, Layer 2
  • Dual encoders can stream a simultaneous MPEG2 or H.264 QAM MPTS stream and separate IP SPTS streams, or one encoder can process an MPEG2 stream for QAM, and the second can process an H.264 IP stream

    MODULATION
  • Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1)
  • MER 38 dB typical

    COMPLIANCE
  • FCC Class B, RoHS, meets California energy standards

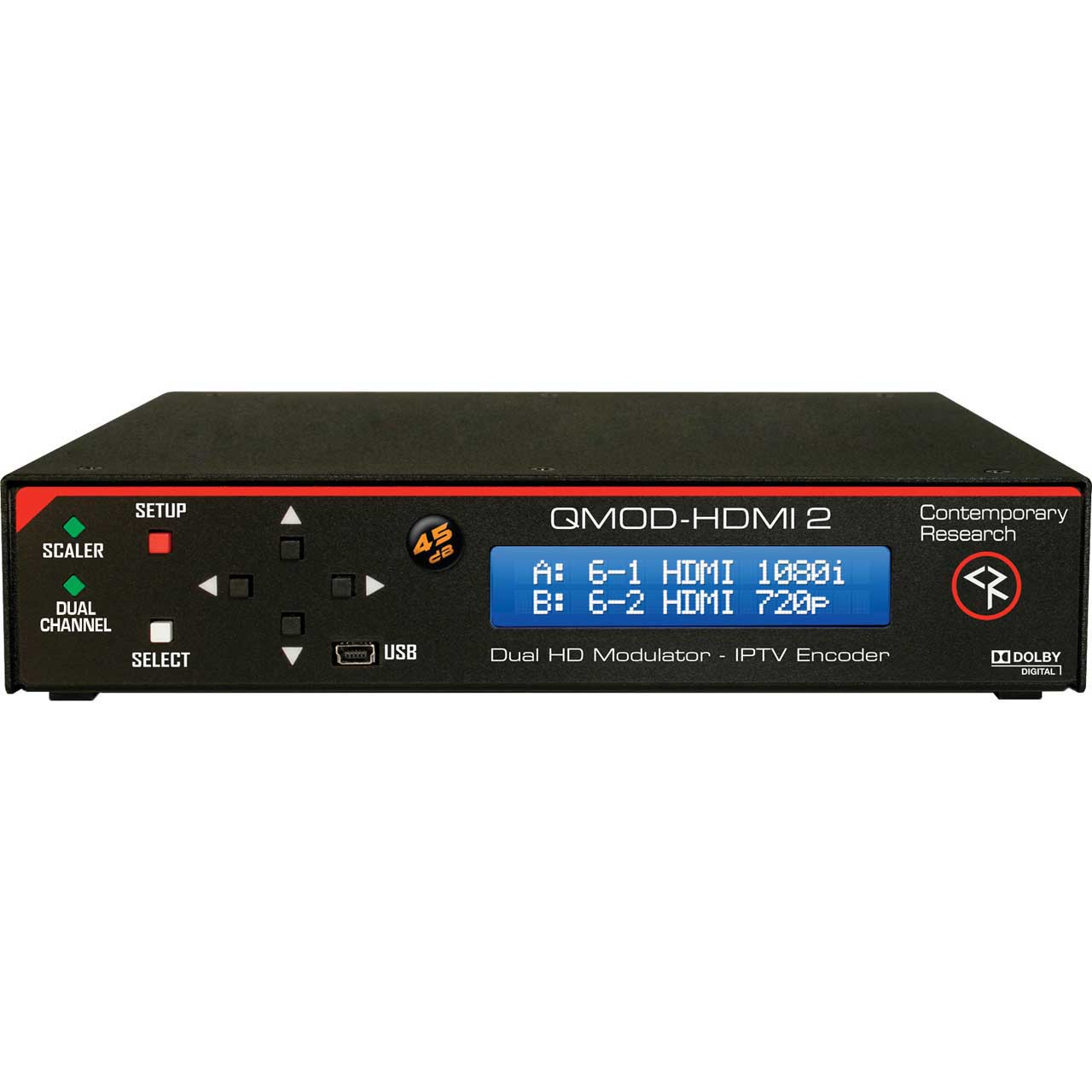

    FRONT PANEL:
  • Menu Setup with front panel Select and Directional buttons
  • Menu LCD, Blue with 2 lines of 20 white characters each

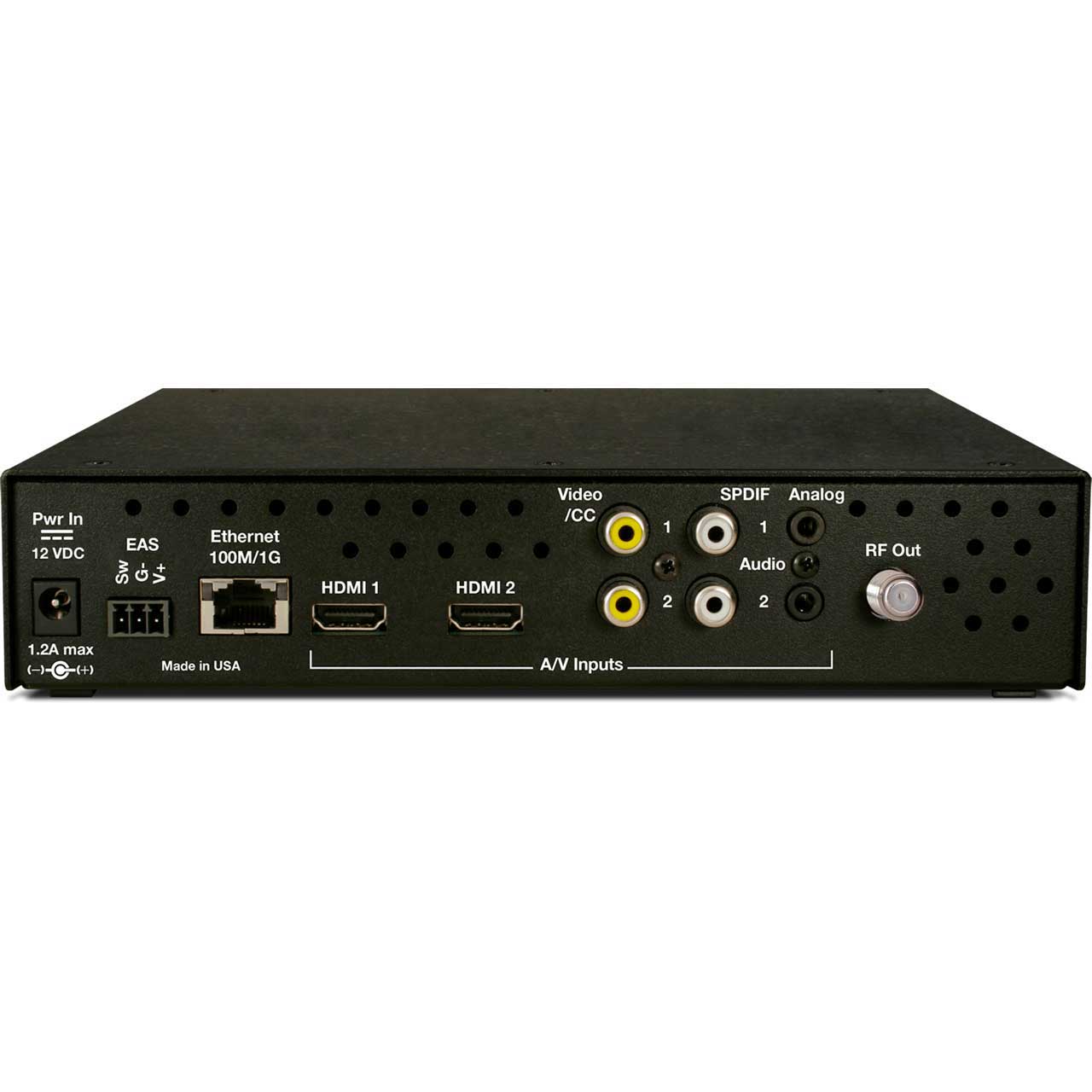

    BACK PANEL:
  • Power: 2.1mm coaxial jack (inside center conductor positive)
  • 1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
  • EAS: 3 GPI Pins for momentary or latching control
  • Ethernet: RJ-45 GigE Ethernet connector for IP control, updates. Unicast or Multicast IPTV, and internal Web page
  • HDMI (non-HDCP: Two HDMI inputs, up to 1080p
  • Composite Video: RCA female NTSC/PAL (480i/576i), 29.97 Hz, also used for Line 21 captioning data
  • SPDIF Audio: Two Digital SPDIF Coax RCA jacks, PCM/AC-3 48/44.1K sample rate
  • Inputs assignable to video inputs
  • Stereo Audio: Two stereo analog 3.5mm inputs
  • Inputs assignable to video inputs
  • RF: `F', female, 75 ohm impedance
  • Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
  • 6 MHz bandwidth fits any open channel without interference to adjacent channels
  • 1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
  • 29 dB typical output power, attenuated in 5 steps, approx 4 dB
