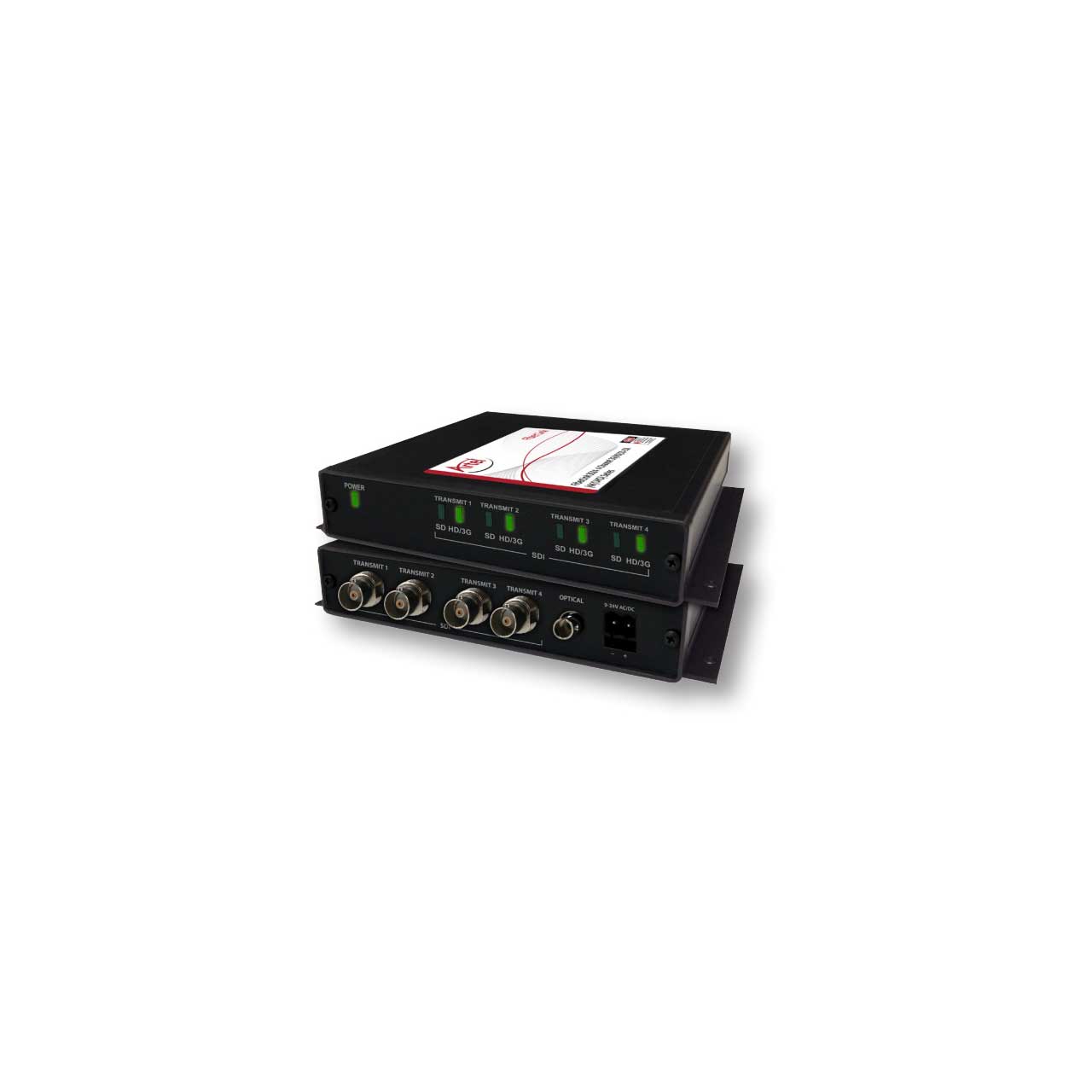

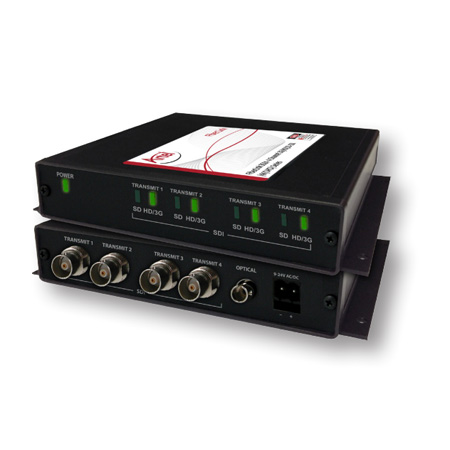

The Fiberlink 3524 series supports 4 channels of independent 3G/HD/SD-SDI or DVB-ASI, with or without embedded audio and data, and transmits it over two single mode or multimode fibers. When using all four inputs, Fiberlink 3524 supports 4K/UHD resolutions at 60 fps. Fiberlink 3524 is capable of transmitting two 4K/UHD signals at 30 fps simultaneously.
All SMPTE compliant signals are equalized and reclocked. Each receiver features four reclocked, non-inverting BNC outputs. The 3524 Series is compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 305M-2005, 310M-2004, 344M-2000 and DVB-ASI. The series is immune to pathological patterns over entire link budget and operating temperature range. For maximum flexibility, the units may be configured with ST or LC optical connectors.
Fiberlink 3524 Series is ideal for any broadcast or professional video application: broadcast studios, sporting events, confidence monitoring, OB vans, video conferencing and more!
