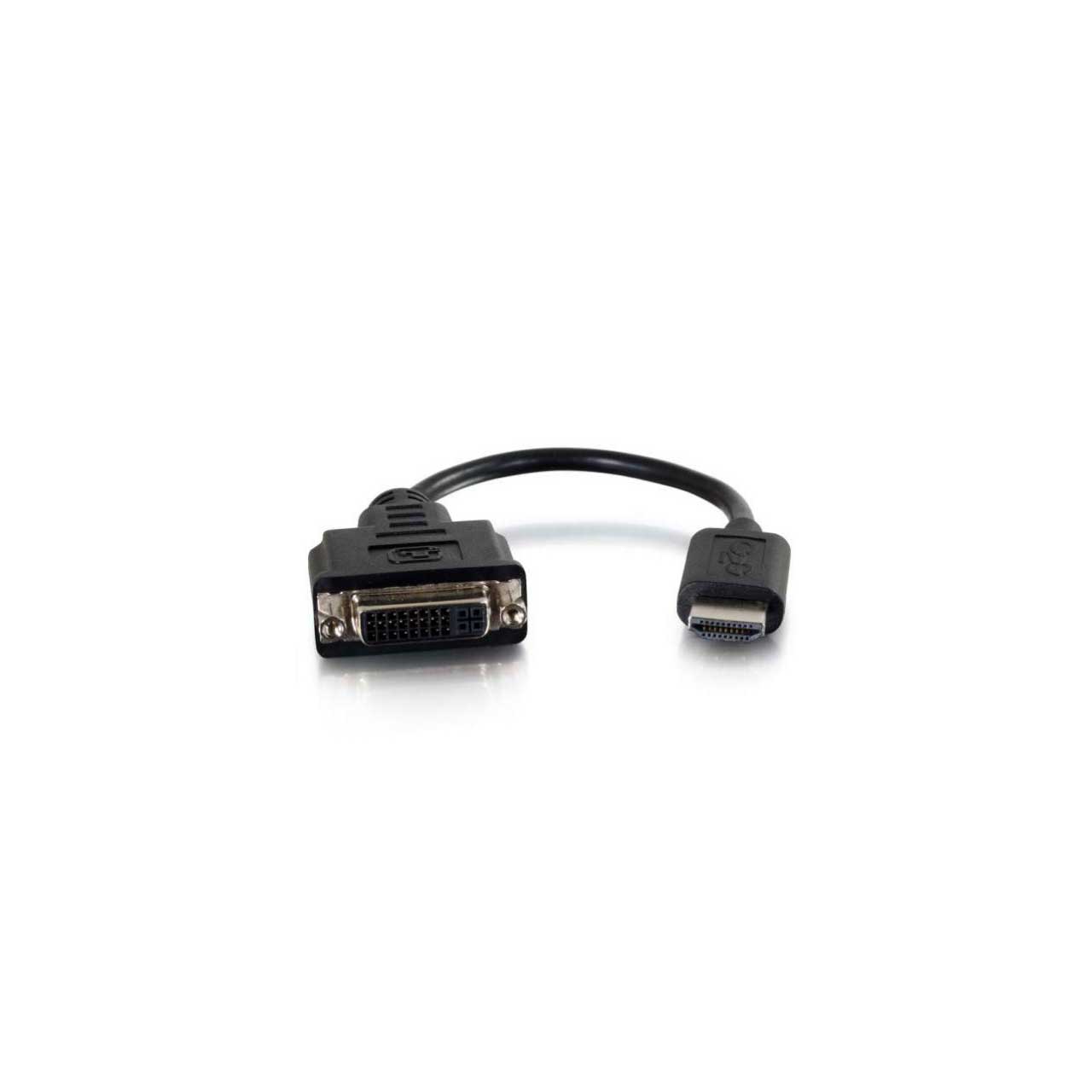

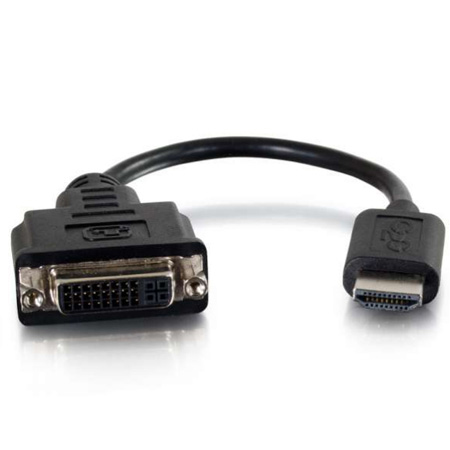

C2G 41352 HDMI to DVI-D Adapter Converter - HDMI to DVI-D Single Link - Male/Female

41352 - Overview

• Features:

  • Adapts the video output of a HDMI-enabled Chromebook or laptop so that it may be connected to a DVI-D display
  • Connects to the video output of a small laptop without causing undue stress on the port
  • Supports up to a 1920x1200 resolution
  • Use with a DVI-D cable for a complete solution


• Specifications:

  • Resolutions Supported: 480i/480p, 576i/576p, 800x600, 720i/720p, 1280x1024, 1600x1200, 1080i/1080p
  • Voltage: 5V, 500mA
  • Voltage Rating: 30V
  • Pixel clock rate: Up to 165MHz
  • Minimum Bend Radius: 12mm
  • Operating Temperature: 0 C to 70 C
  • Storage Temperature: -10 C to 40 C
  • Adapter Length: 203mm
  • Approvals: CE
  • Conductor Type: 32AWG Tinned Copper
  • Insulation: Foam-PE
  • Shield: AL Wrap; Braid
  • Drain: 32AWG 7/0.127B


• Item Includes:

  • 1x C2G 41352 HDMI Male to Single Link DVI-D Female Adapter


• GTIN:

  0757120413523
