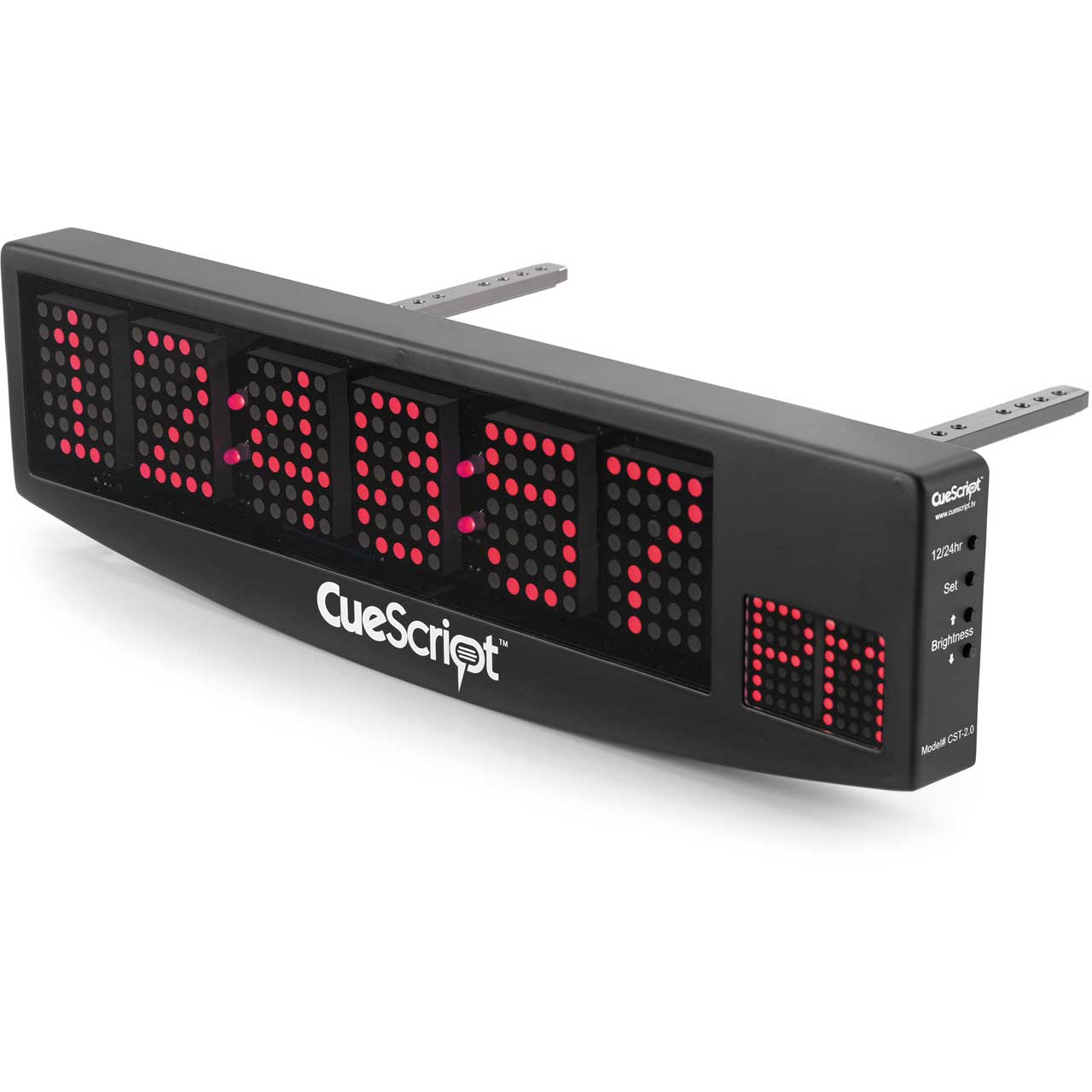

CueScript CSTD Time Display

CSTD - Overview

• Features:

  • VTC input and backup time kept with a 32kHz watch crystal
  • Power and VITC via USB direct from the CueScript monitor
  • Simple mounting to CueScript CSM and CSMV2 Monitors
  • 12 hour or 24 hour mode selection
  • Adjustable brightness
  • Changes colour from green to red on tally
  • Reads and displays VITC SMPTE time code both NTSC and EBU


• Specifications:

  • Dimensions (LxWxH): 17" x 13" x 7"
  • Weight with Mounting Arms: 1.54lbs
  • LED Displays: 6 2" 5x7 dot matrix 5mm LED displays and 2 1.2" 5x7 3mm displays for AM or PM
  • Power: Powered directly from monitor (5V) and low current (500ma).


• Item Includes:

  • 1x CueScript CSTD Time Display
  • 1x Mounting hardware
  • 1x USB cable


• Warranty:

  • 3-Year Limited Warranty
