DBX ZC-BOB Wall-Mounted Breakout Box for Home Run or Parallel Wiring Configurations

ITEM #: DBX-ZCBOB MFG #: ZC-BOB

Primary Image
DBX Professional Products
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$124.74

Our Price:

$115.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ZC-BOB - Overview

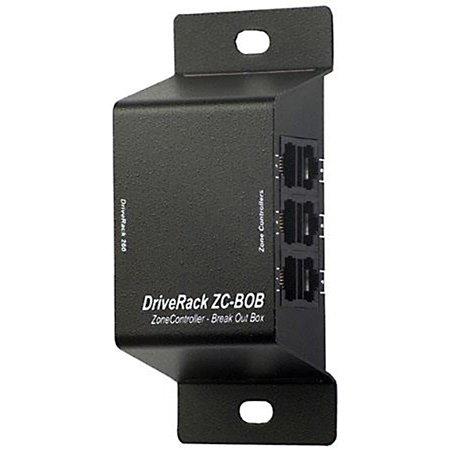

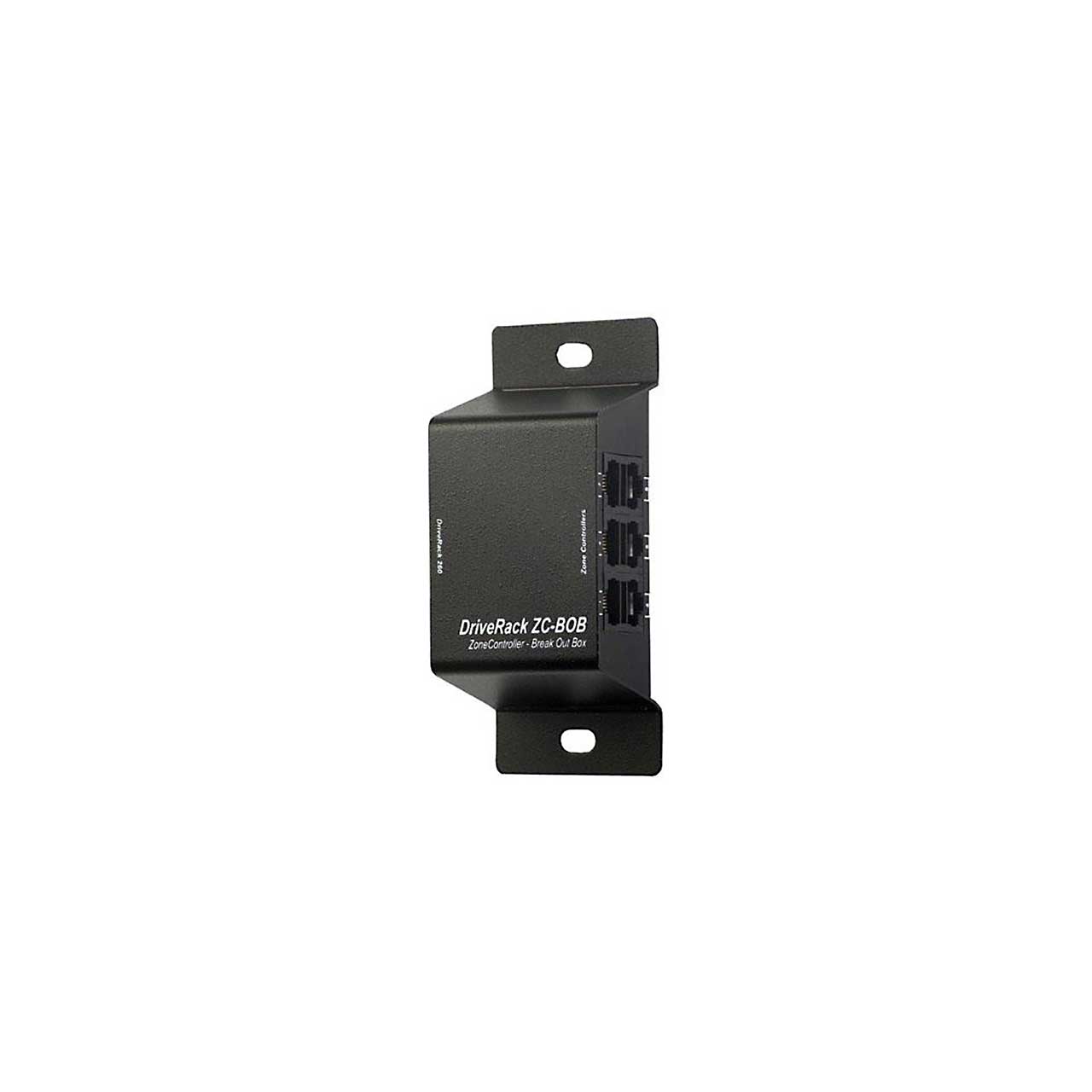

The dbx ZC-BOB Wall-Mounted Breakout Box offers up to 6 RJ-45 input jacks for "Home Run" or parallel wiring configurations of the dbx ZC wall panel controllers, and one output RJ-45 jack for connection to the dbx DriveRack or ZonePro device.

  • Features:

    • Programmable contact closure interface
    • Up to 1000ft on CAT 5 cable


  • Specifications:

    • Connectors: 7x RJ-45
    • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600ft. Six Zone Controllers: 300ft.
    • Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000ft
    • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher


  • GTIN:

    0691991400704
