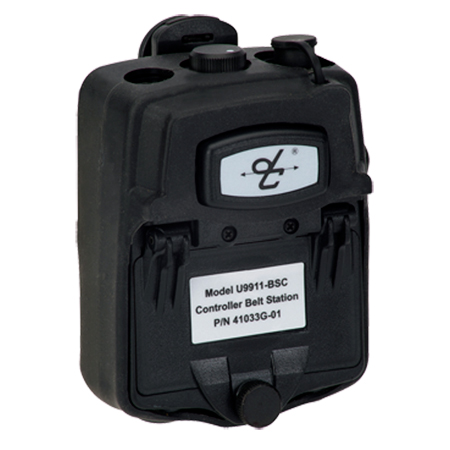

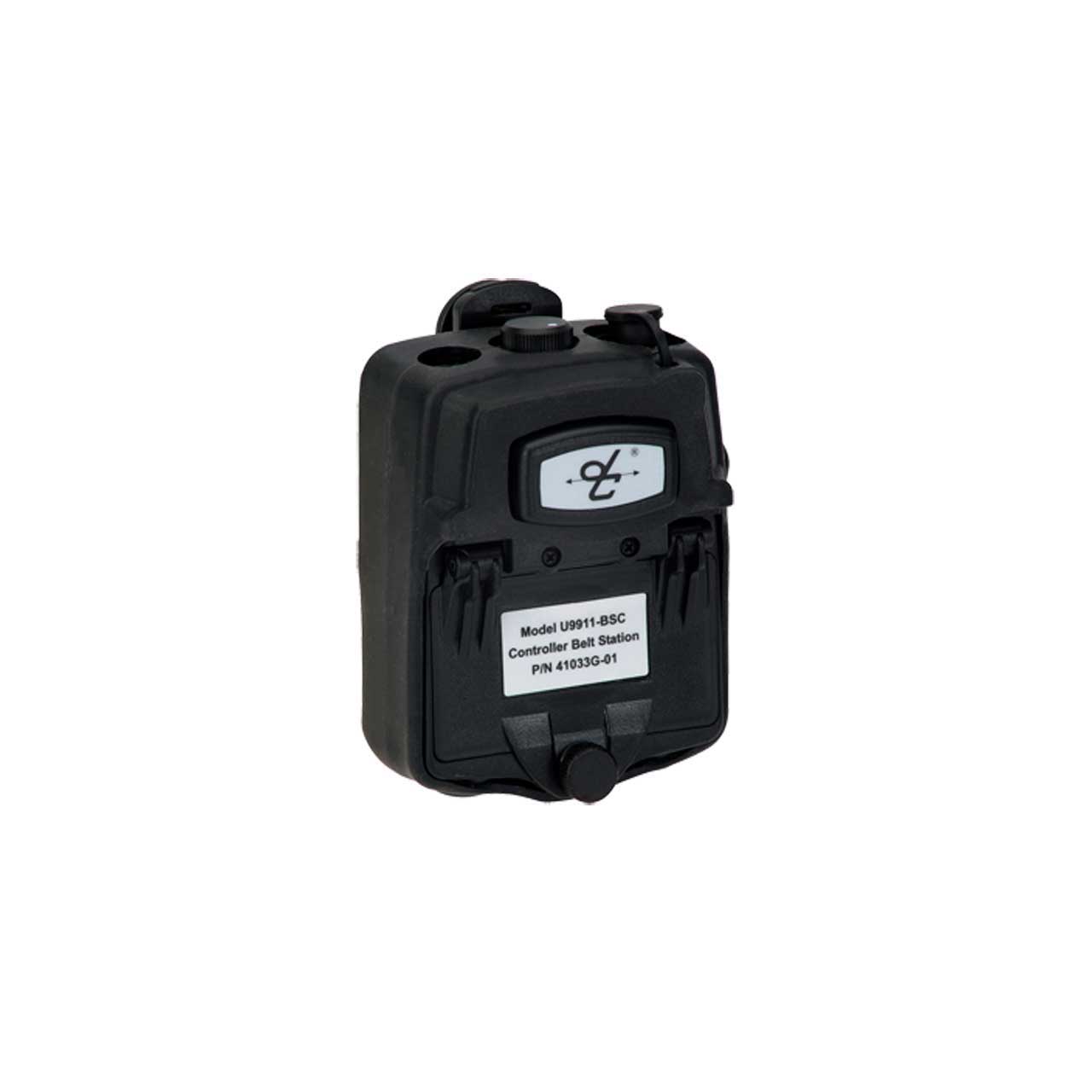

David Clark U9911-BSC Wireless Intercom Beltpack

ITEM #: DC-U9911-BSC MFG #: U9911-BSC

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$761.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


U9911-BSC - Overview

The Series 9900 Wireless Intercom System is the perfect solution for wireless intercom communications in demanding environments, such as industrial facilities, construction sites, jet engine test cells, or any application requiring rugged, reliable and secure communications in and around high-noise areas.

The U9911-BSC Controller Belt Station is designed to serve as the "master" control, or fixed part, to which all belt stations within a work group are linked. It accommodates one wireless headset itself, and acts as a relay for all intercom audio between multiple Wireless Belt Stations, combining to form a work group of between two (2) to five (5) users.

A Single Controller can accommodate up to four (4) connected wireless users at a time with hands-free, full duplex intercom communications. It also includes a VOX override PTT button, VOX control knob, and an on/off/link button with LED indicator (link/comm/battery status).

The U9911-BSC is powered by a Li-polymer rechargeable battery, capable of 24 hours of continual usage between charges, and removable from its water-tight compartment within the RF shielded, marine-grade enclosure.

  • Features:

    • Hands-free, full-duplex intercom
    • Internal antenna provides range of at least 300 feet from Controller
    • Linked Belt Stations automatically reconnect to Controller when power is lost and regained, or when returning from out-of-range distance ("strong link")
    • Multiple independent Controllers operate in same RF vicinity with no cross-talk
    • Links up to 4 wireless users per Controller; 2 to 5 position system
    • Marine-grade, water-tight enclosure and components
    • Audible voice prompts for link/purge status, out-of-range, low battery
    • Easily accessible battery compartment with removable Li-Polymer battery
    • Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours), not included
    • VOX control with proprietary "helper" tone, assists in ideal VOX setting
    • Large PTT for link and VOX override
    • Power button with LED indicator for visual status of link, PTT and battery charge
    • Military grade twist-lock connector
    • Rubberized outer skin, black
    • 360-degree rotational belt clip

  • Specifications:

    • Weight (with battery): 10oz (280g)
    • Frequency: 1920MHz - 1930MHz
    • Average Power Output: 4mW (100mW peak) in USA
    • Range: 300 Foot line-of-sight, typical
    • Carriers: 5 each - 1,728kHz Spacing
    • Time Slots: 2 x 12 up and down stream
    • Operating Temperature: 14° to 113°F (-10° to 45°C)
    • Storage Temperature: -4° to 140°F (-20° to 60°C)
    • Dimensions (HxWxD): 4 x 2-3/4 x 1-7/8" (2.5"D with belt clip)
    • Power Source: Li-polymer rechargable 3.7V cell, 2000mAh
    • Power Consumption/Current Draw: 100mA, typical


U9911-BSC - Required Accessories
