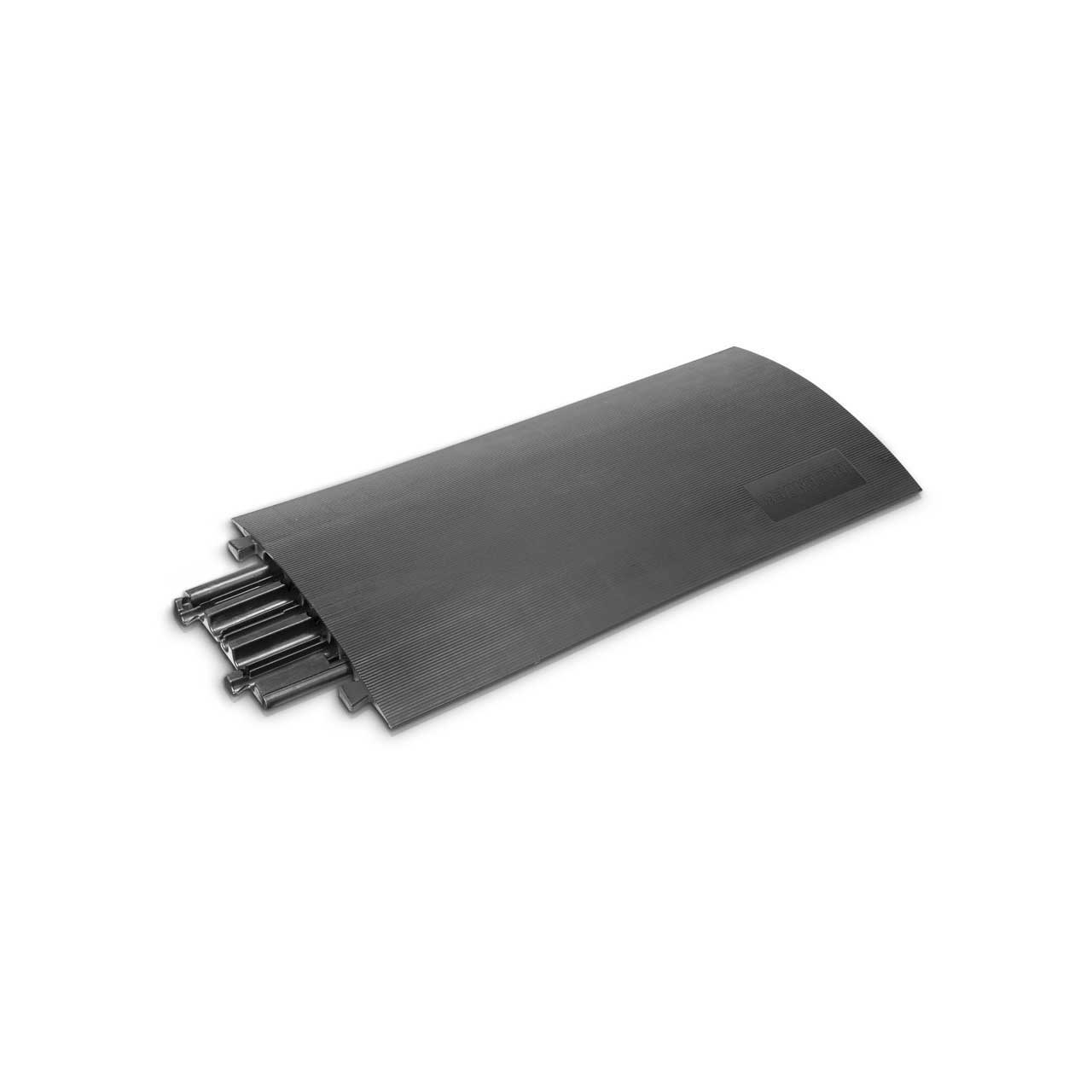

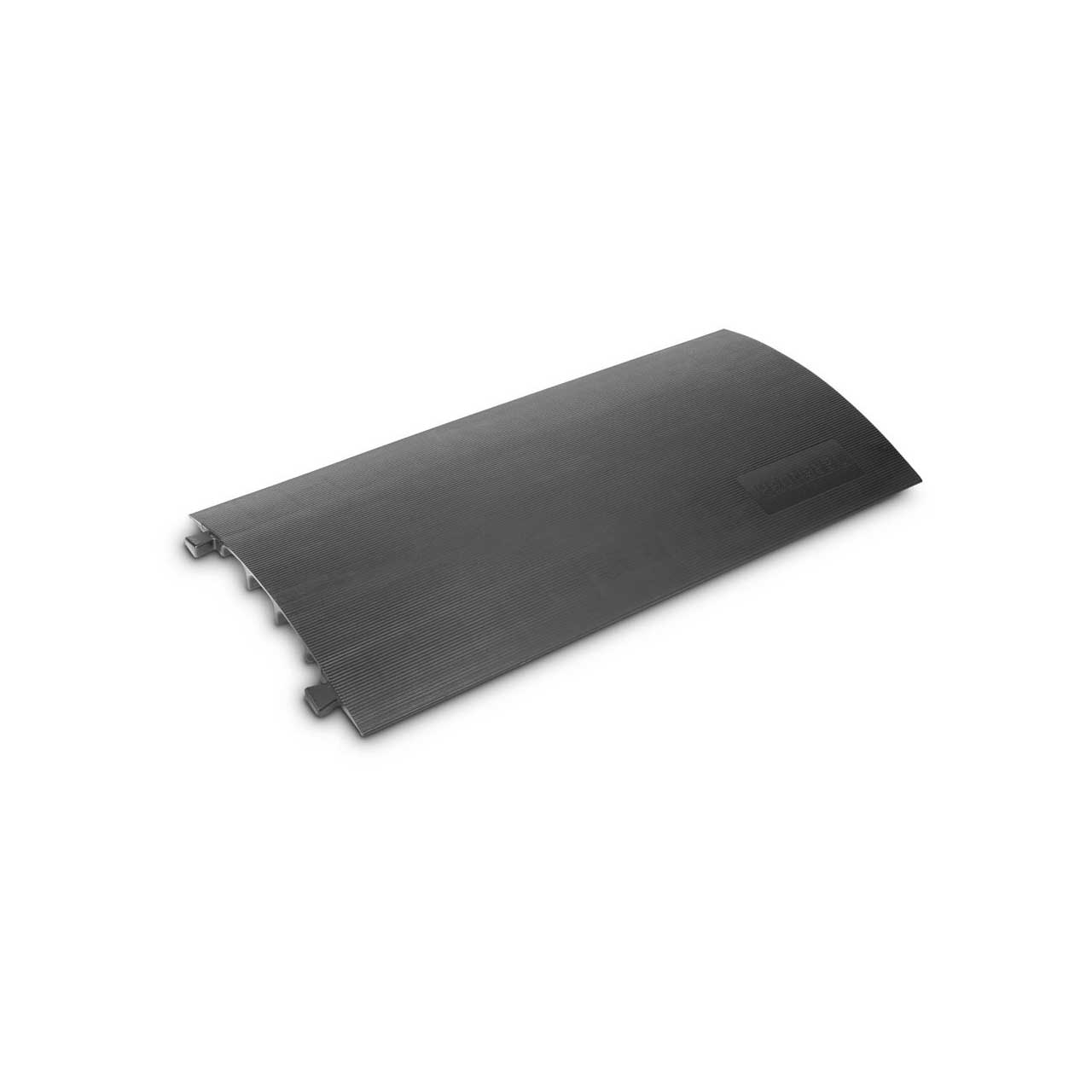

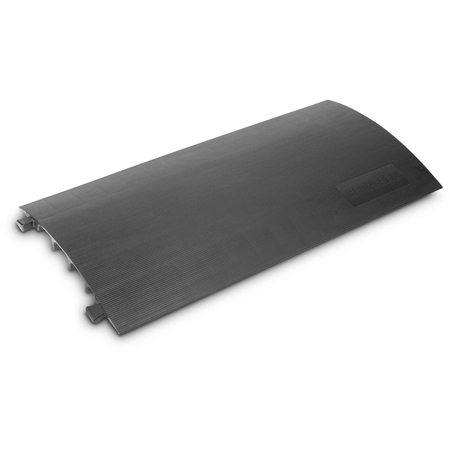

Defender DEF-85100 Compact 7-Channel Small Cable Protector - Black - 31x16x1.45 Inches

DEF-85100 - Overview

• Features:

  • Non-slip, overlaid cable protector made of black, recyclable polyurethane
  • 7 channels: 1 channel 28 x 30 mm, 2 channels each 28 x 23 mm, 28 x 27 mm und 28 x 29 mm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 81 x 42,5 x 3.7 cm; Weight 3.6 kg
  • Reliable protection for cables and personnel for indoor and outdoor use

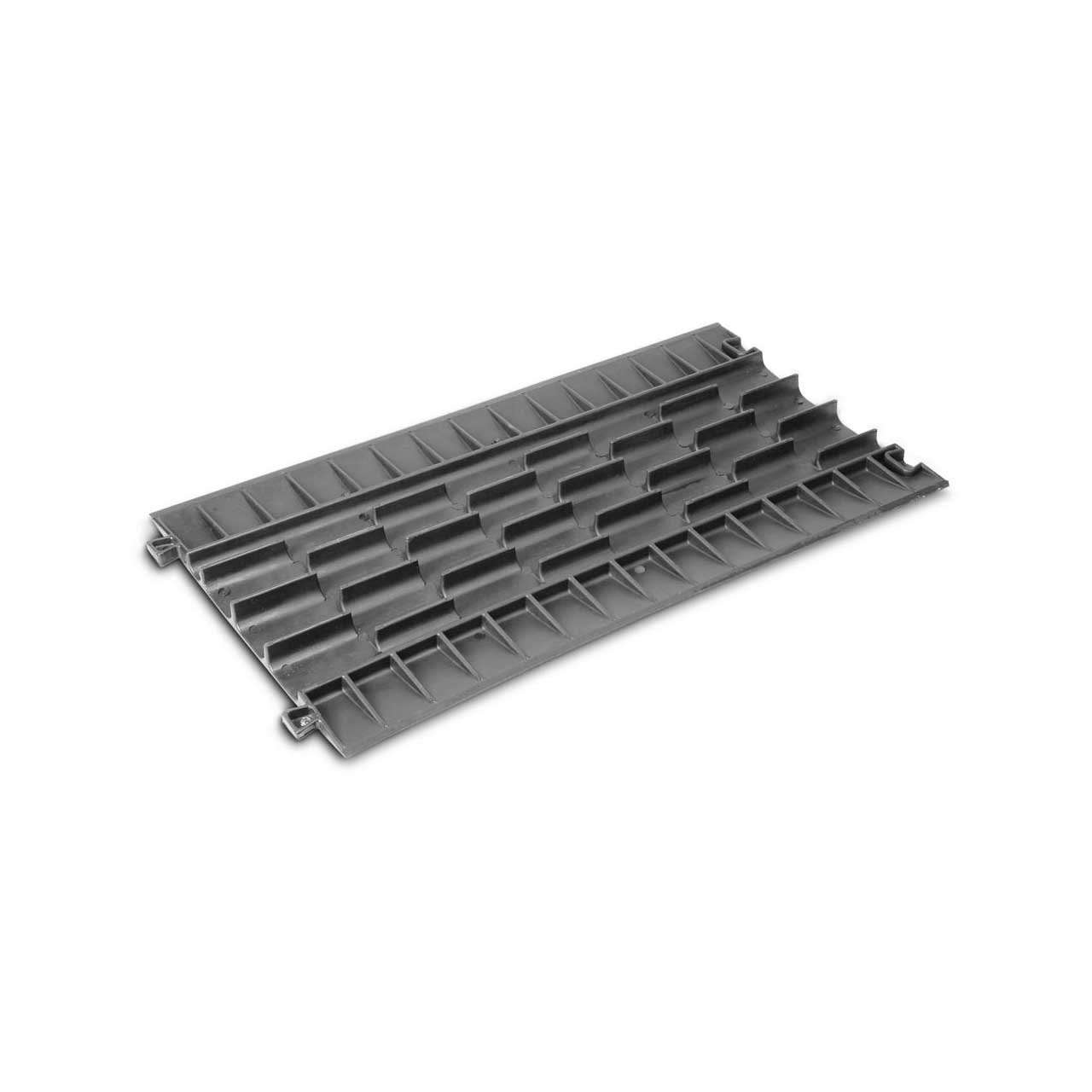

  • Expandable with Base Item No. 85103 for higher loads such as forklifts and lifting trucks
  • Channels with base: 5 channels 22 x 21 cm
  • Weight with base: 7 kg
  • Not suitable for vehicular traffic
  • TUV SUD certified


• Specifications:

  • Product type: Cable Protectors
  • Type: 7 Channels
  • Length: 810 mm
  • Width: 425 mm
  • Height: 37 mm
  • Channels: 7
  • Width channel 1: 28 mm
  • Height channel 1: 23 mm
  • Width channel 2: 28 mm
  • Height channel 2: 27 mm
  • Width channel 3: 28 mm
  • Height channel 3: 29 mm
  • Width channel 4: 28 mm
  • Height channel 4: 30 mm
  • Width channel 5: 28 mm
  • Height channel 5: 29 mm
  • Width channel 6: 28 mm
  • Height channel 6: 27 mm
  • Width channel 7: 28 mm
  • Height channel 7: 23 mm
  • Material: Polyurethane
  • Max load: Pedestrians, bicycle
  • Chemical resistance: Oil-resistant
  • Chemical resistance: Petrol-resistant
  • Hardness range: 88 ± 4 Shore
  • Fire protection class: B2
  • Temperature range: -30°C to 60 °C
  • Weight: 3,5 kg


• Warranty:

  • 5 Years


• GTIN:

  4049521015380
