Defender DEF-85200 Mini 3-Channel Cable Protector - Yellow/Black - 41x11.4x1.9 Inches

ITEM #: DEF-85200 MFG #: DEF-85200

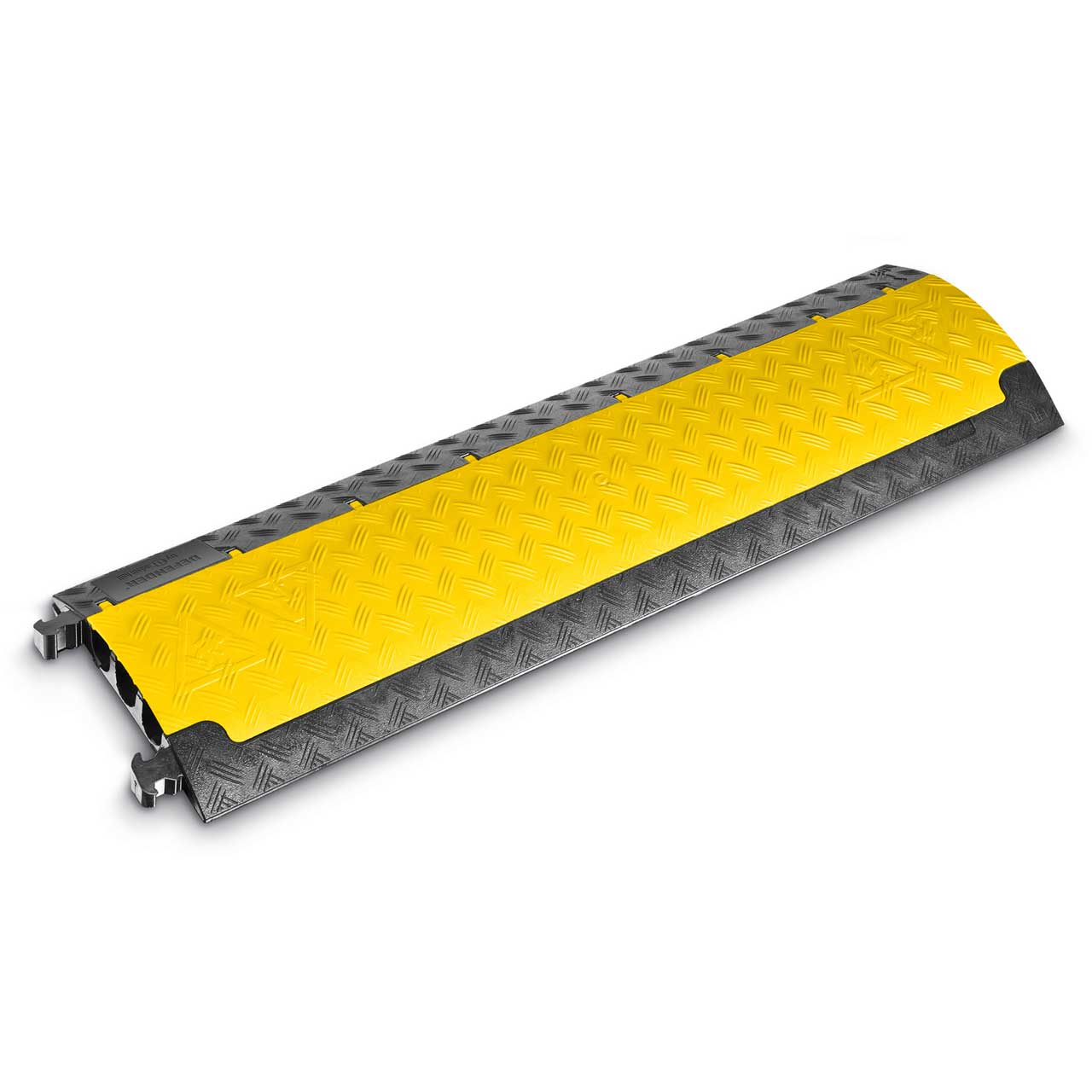

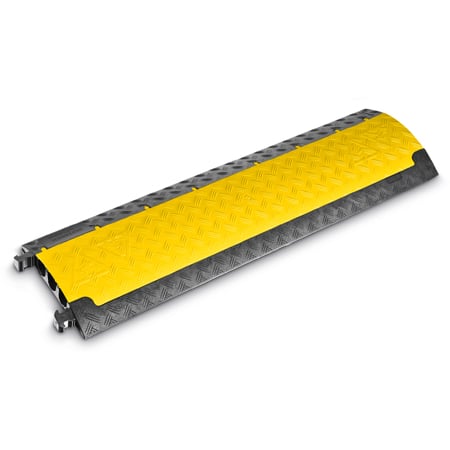

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$159.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DEF-85200 - Overview

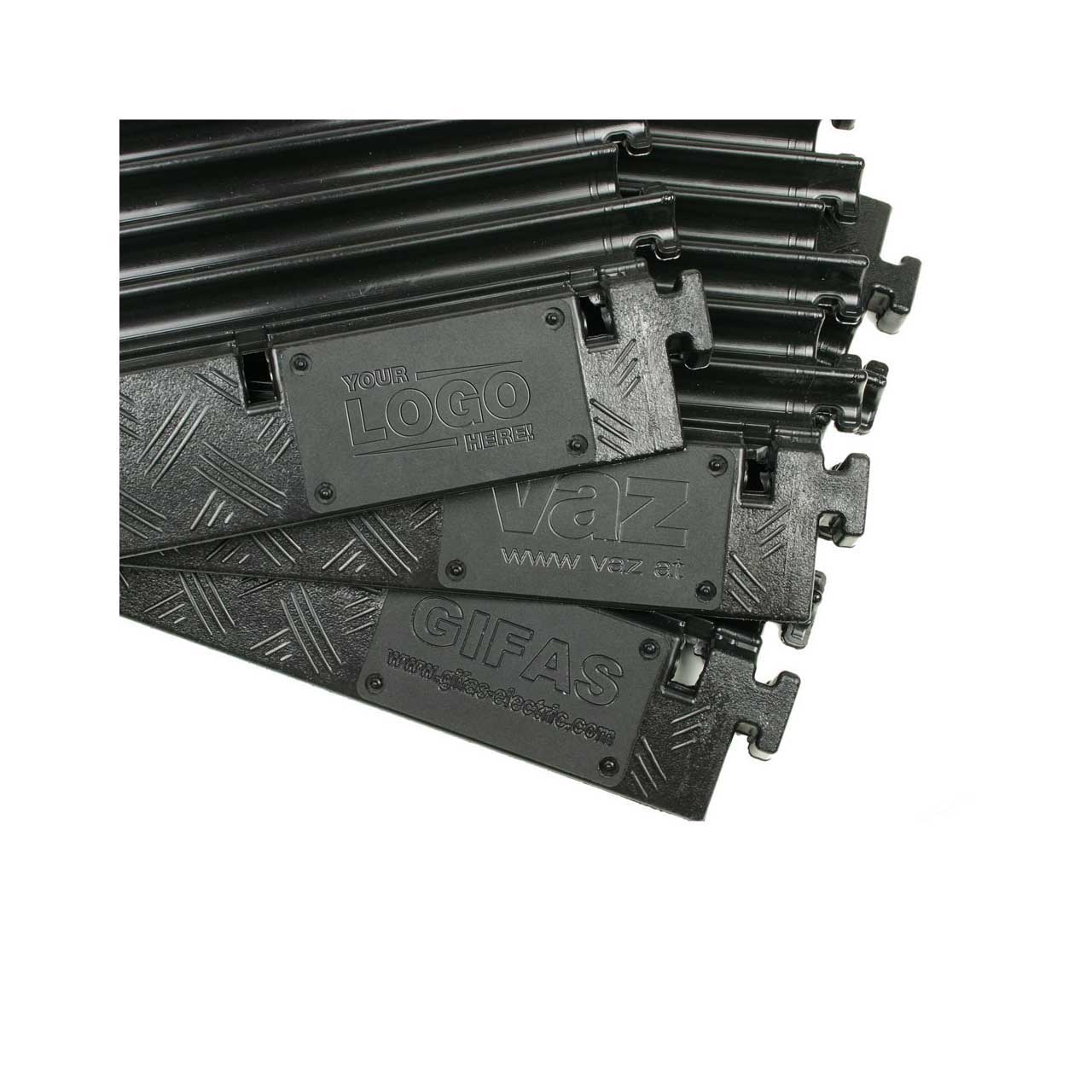

Defender DEF-85200 3-channel cable protector is small but sturdy. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic. Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area

  • Features:

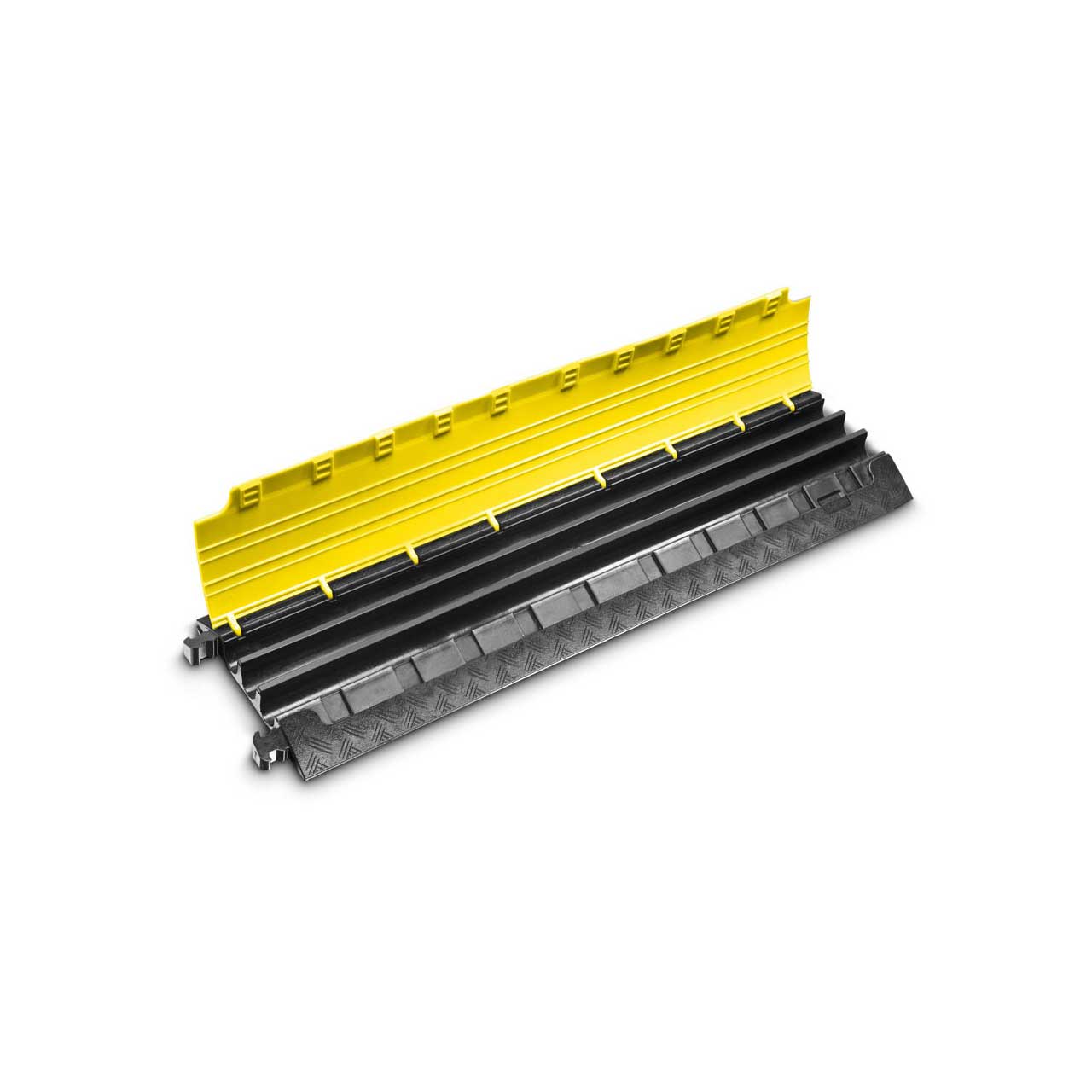

    • Patented, self-cleaning lid hinge
    • 3 channels: 1 channel 1.37" x 1.37", 2 channels 1.37" x 1.18"
    • Load bearing capacity approx. 2t / 7.87" x 7.87"
    • Fire resistance class E according to DIN EN 13501-1 (B-s1 applied for)
    • Resistant to oil, acid, petrol and short-term contact with solvents
    • Dimensions 40x12x2 Inches / 11lbs
    • Reliable protection for cables and personnel for indoor and outdoor use
    • Not suitable for vehicular traffic
    • End ramps for secure cable inlet and exit as accessories
    • TUV SUD certified

  • Specifications:

    • Product type: Cable Protectors
    • Type: 3 Channels
    • Width: 290 mm
    • Height: 50 mm
    • Length: 1005 mm
    • Channels: 3
    • Width channel 1: 35 mm
    • Height channel 1: 30 mm
    • Width channel 2: 35 mm
    • Height channel 2: 35 mm
    • Width channel 3: 35 mm
    • Height channel 3: 30 mm
    • Material: Polyurethane
    • Max load: approx. 2 t on a surface area of 20 x 20 cm
    • Chemical resistance: Oil-resistant
    • Chemical resistance: Petrol-resistant
    • Chemical resistance: Short-term contact with solvents
    • Hardness range: 88 Shore ± 4 Shore
    • Fire protection class: Class E in accordance with DIN EN 13501-1 (B-s1 pending)
    • Temperature range: -30 to +60 °C
    • Weight: 5,9 kg

  • Warranty:

    • 5 Years

  • GTIN:

    4049521015465
