Defender DEF-86100 Micro 2 Channel Cable Protector - Yellow/Black - 39x10.7x1.77 Inches

ITEM #: DEF-86100 MFG #: DEF-86100

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$119.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DEF-86100 - Overview

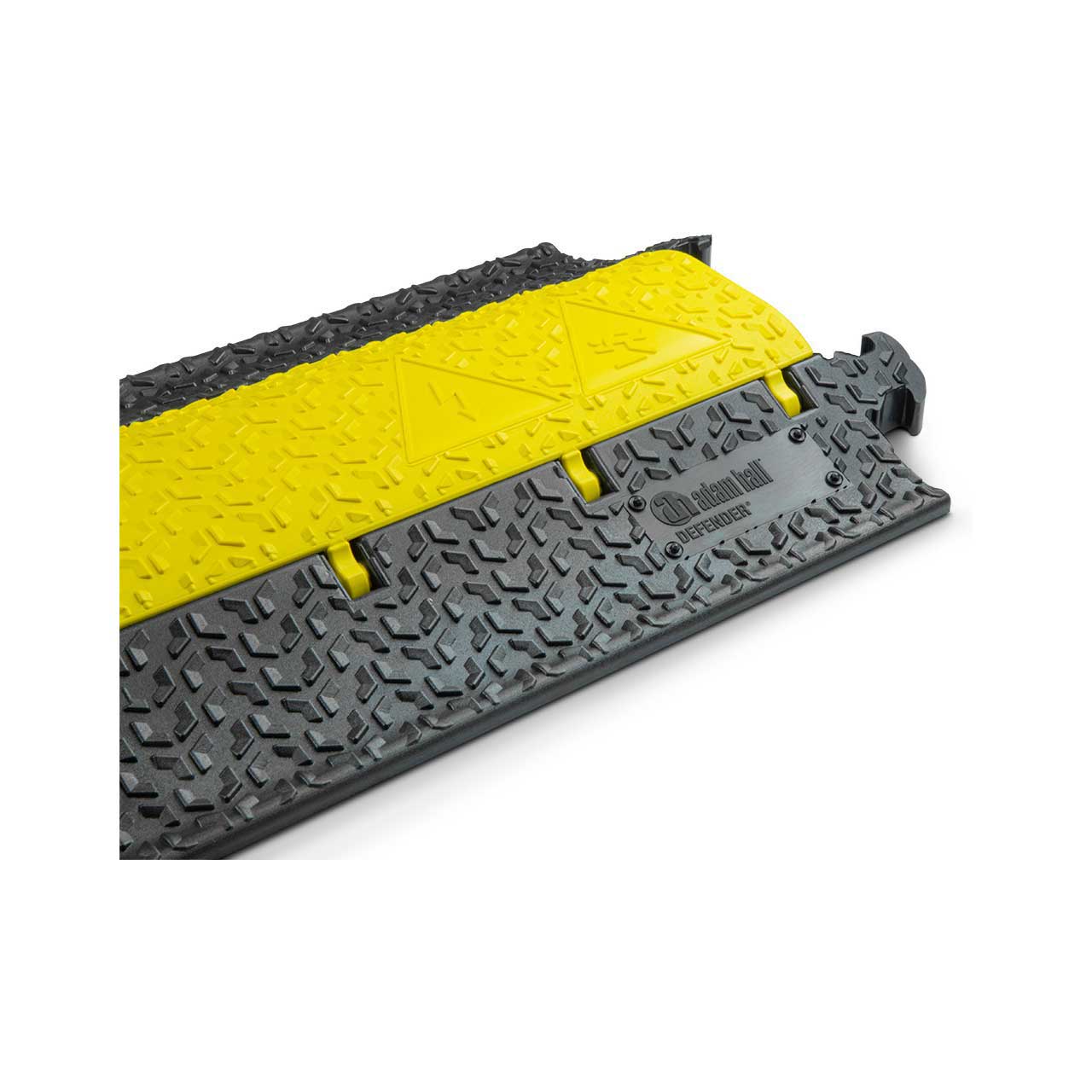

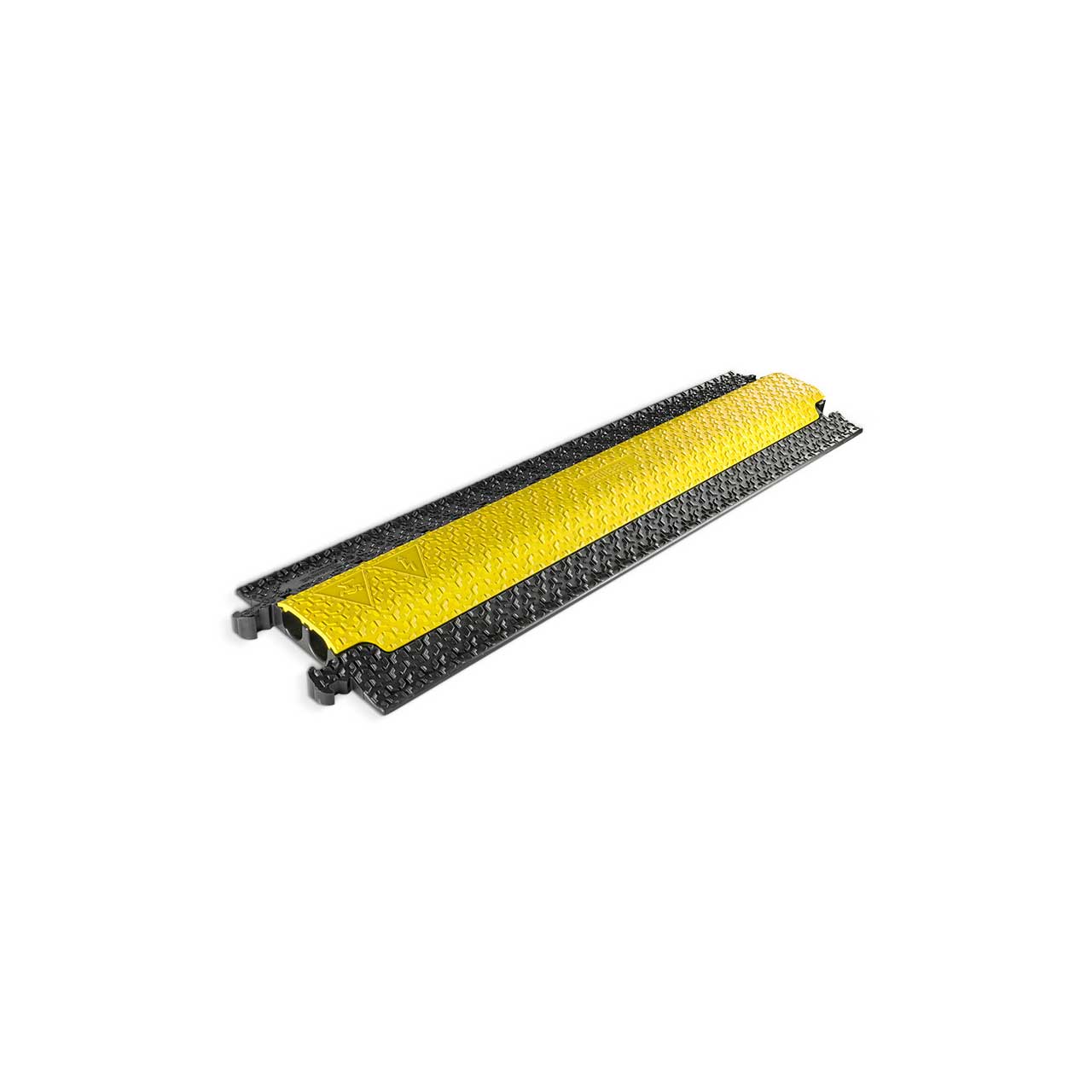

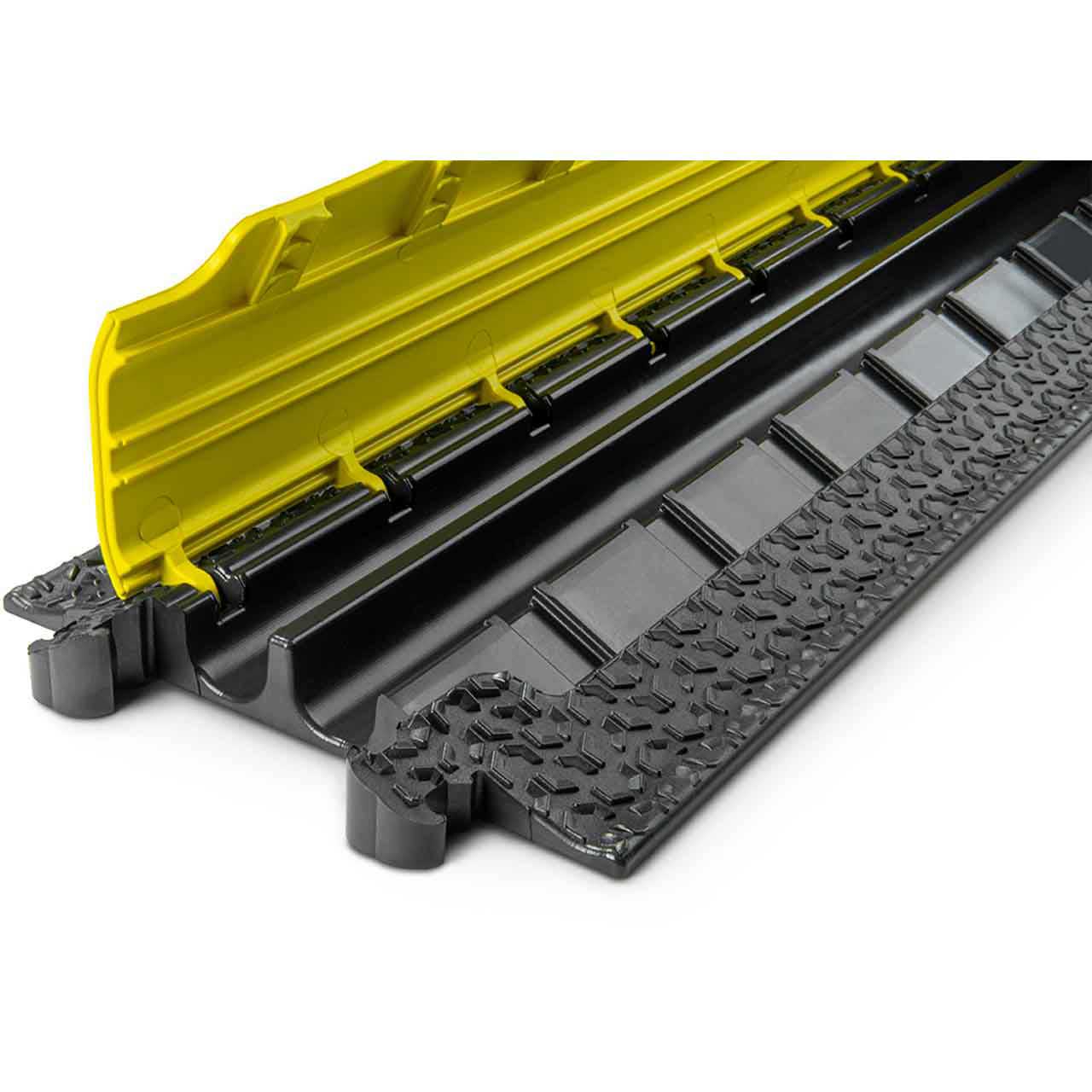

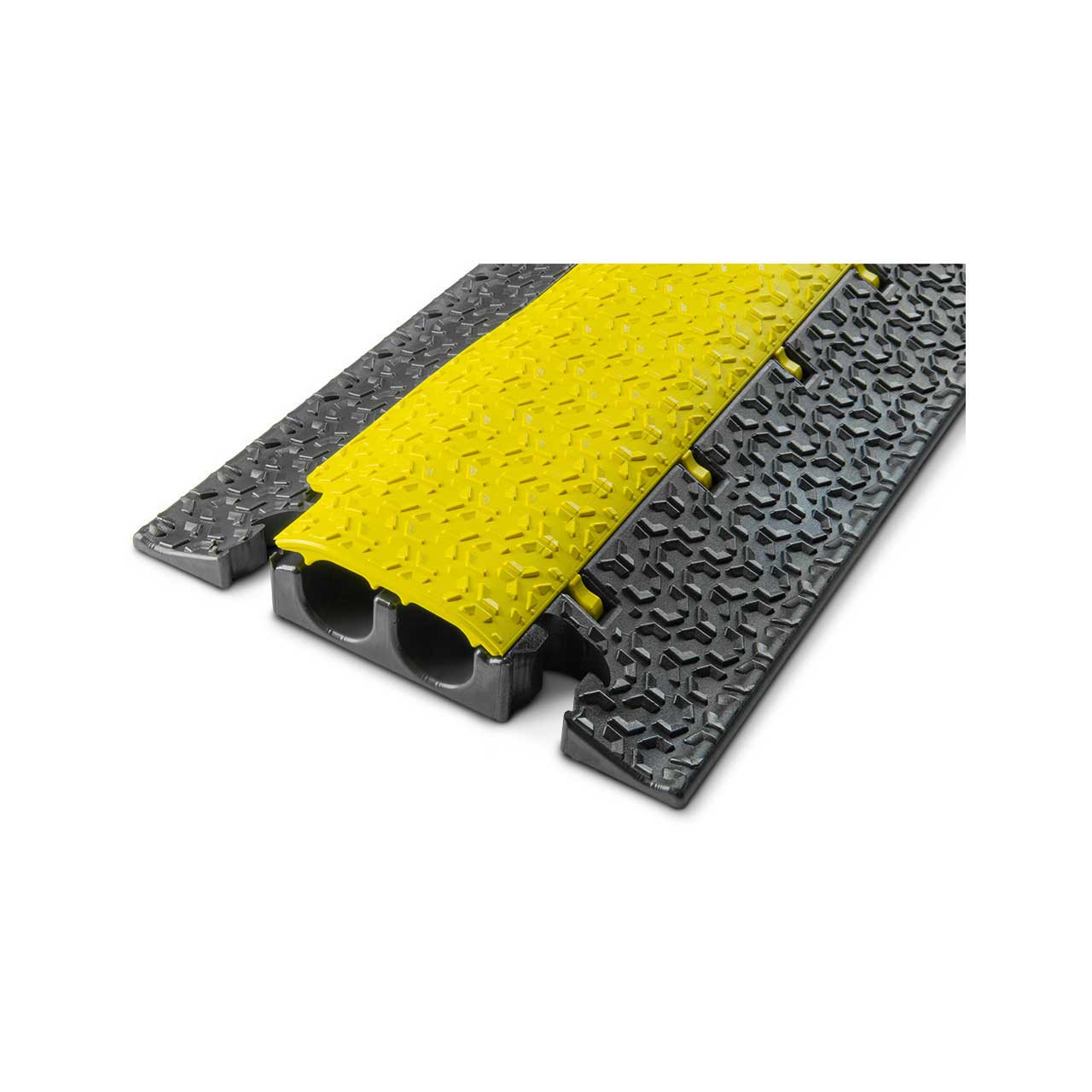

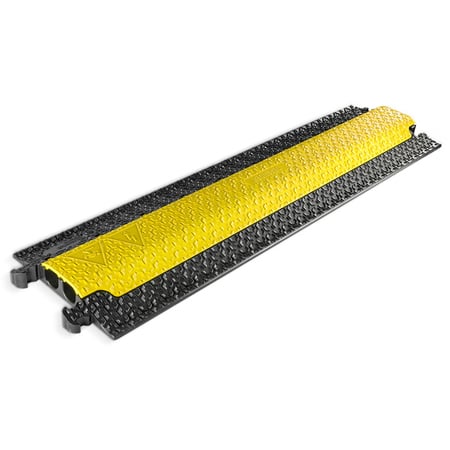

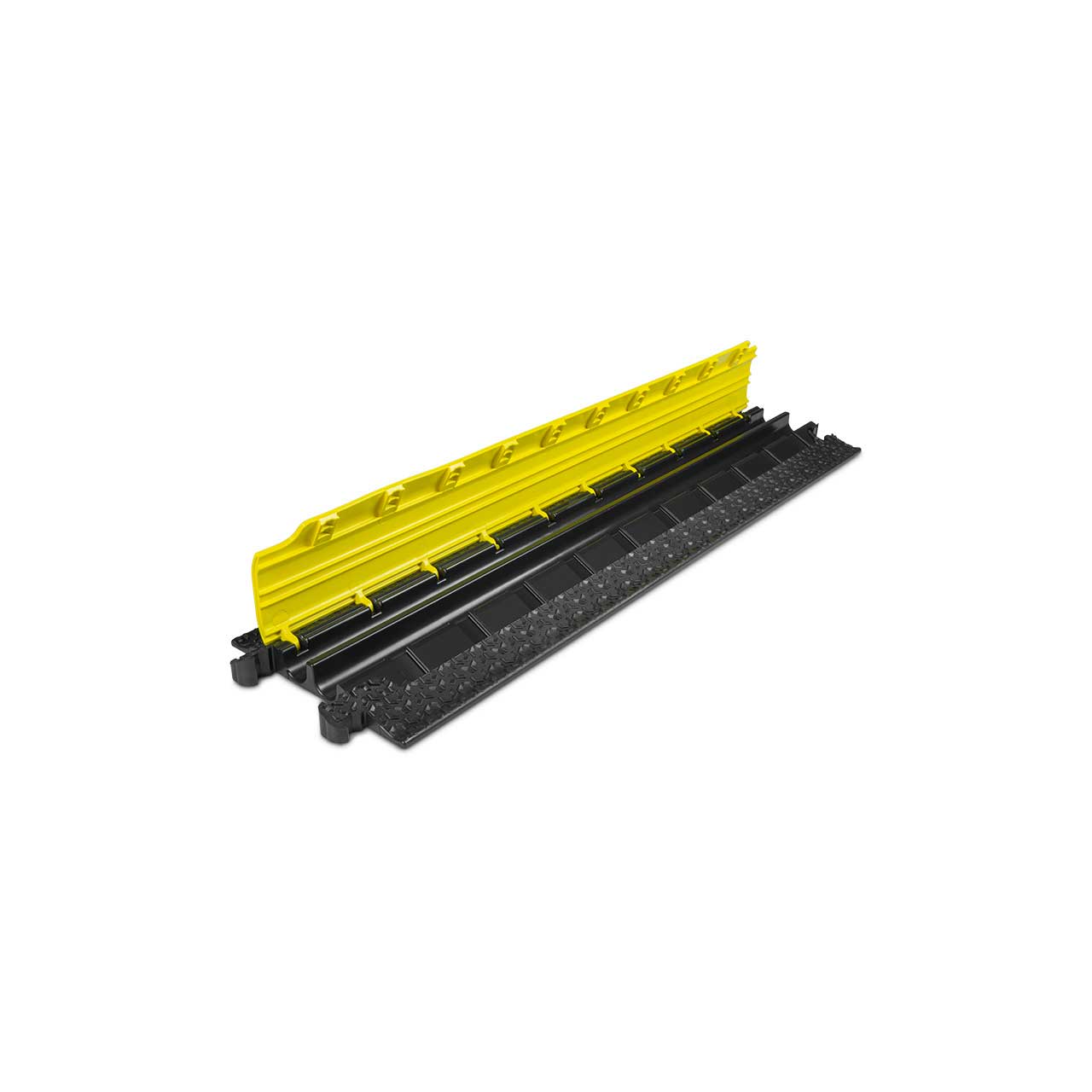

The compact DEF-86100 Defender® MICRO cable protector is ideally suited to indoor and outdoor use such as at exhibitions and trade fairs and in shopping centres, stages or studios. It has two 35 x 30 mm cable guides for high-power cables and water hoses. With a maximum load capacity of 2 tons per 20 x 20 cm area, MICRO cable protectors are able to withstand vehicles, trolleys and pedestrians. Their high level of tread and slip resistance is derived from the LaserGrip® surface with its special structure and unique design. Extremely breakage-resistant TPU material ensures the durability of the robust cable protector.Even greater safety thanks to the new 3D LaserGrip® surface The innovative design of the 3D LaserGrip® surface significantly increases tread and slip resistance. Due to the special shape and surface structure, the risk of moving an entire line of Defender® MICRO cable protectors is significantly reduced - even when driven over by heavy vehicles.

Label your cable protectors! All Defender cable protectors can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in Defender's download area.

  • Features:

    • Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
    • Yellow polyurethane lid with high warning effect and secure closure
    • Self-cleaning lid hinge5 channels 34 x 36 mmLoad bearing capacity approx. 5 t / 25 x 30 cm
    • Fire resistance class B2 (DIN 4102)
    • Resistant to oil, acid, petrol and short-term contact with solvents
    • Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
    • Reliable protection for cables and personnel for indoor and outdoor use
    • Also available with pre-drilled mounting holes with a blue lid (Item No. 85300BLUE)
    • Curves and end ramps for flexible cable protection are available as accessories TUV SUD certified

  • Specifications:

    • Product type: Cable Protectors
    • Type: 2 Channels
    • Width: 10.74"
    • Height: 1.77"
    • Length: 39.5"
    • Channels: 2
    • Width channel 1: 1.37"
    • Height channel 1: 1.18"
    • Width channel 2: 1.37"
    • Height channel 2: 1.18"
    • Material: Polyurethane
    • Max load: approx. 2 t on a surface area of 7.87" x 7.87"
    • Chemical resistance: Oil-resistant, Petrol-resistant, Short-term contact with solvents
    • Hardness range: 88 Shore ± 4 Shore
    • Fire protection class: B2
    • Temperature range: -22°F to 140°F
    • Weight: 11lbs

  • Warranty:

    • 5 Years

  • GTIN:

    4049521407550
