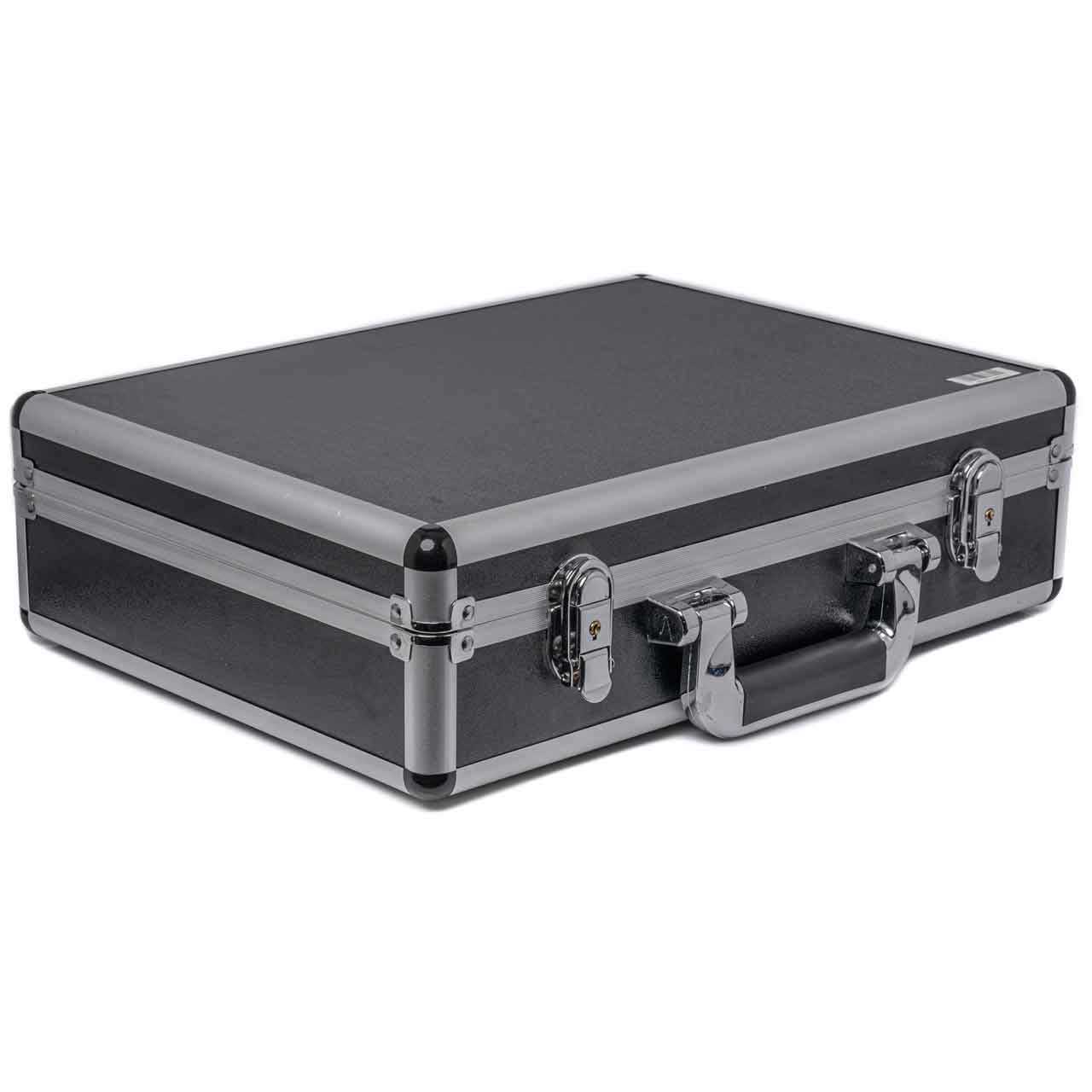

Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function with Case - Bstock (Display Model)

ITEM #: DELV-HDSD-10-BS2 MFG #: DELV-HDSD-10-BS2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-HDSD-10-BS2

DELV-HDSD-10-BS2 - Overview

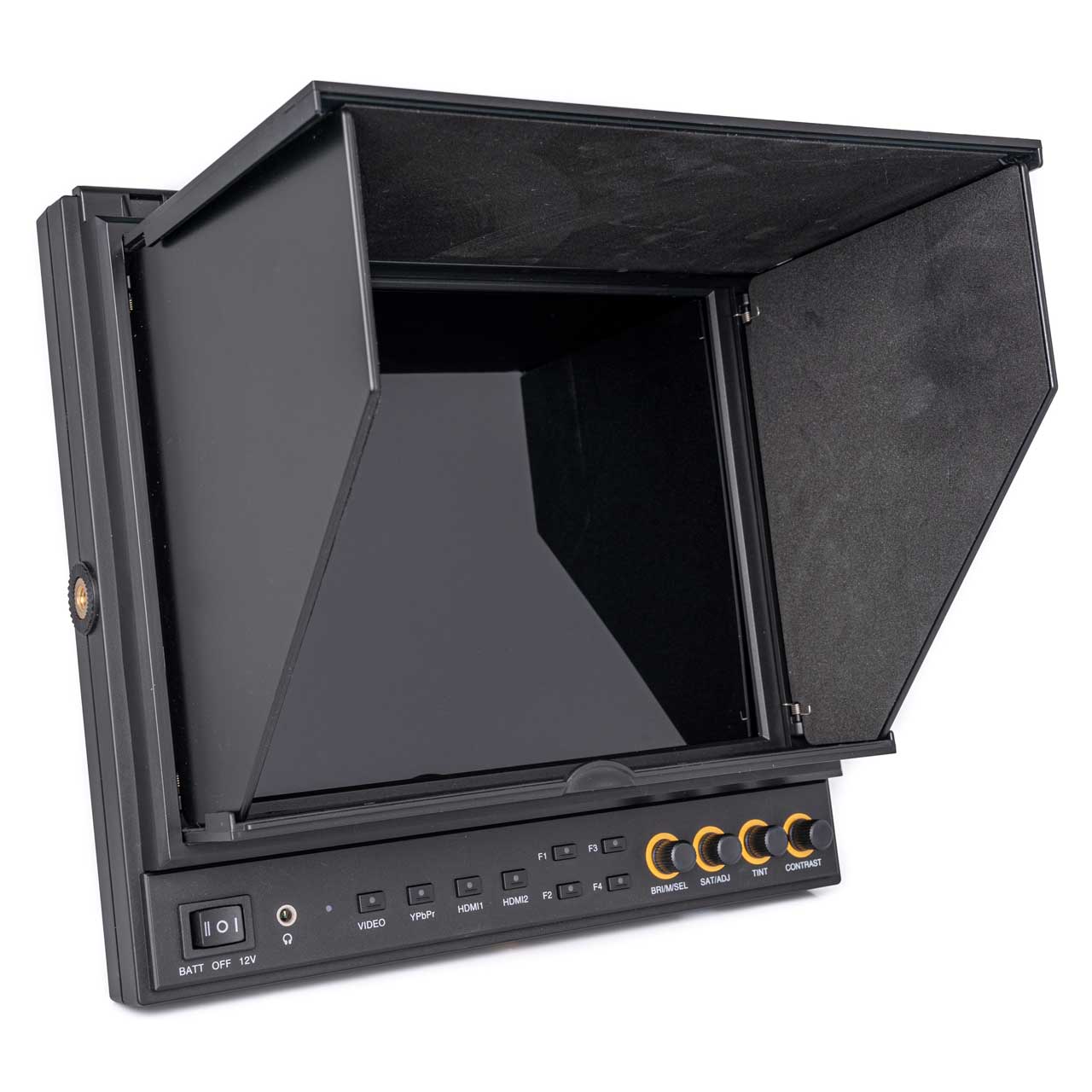

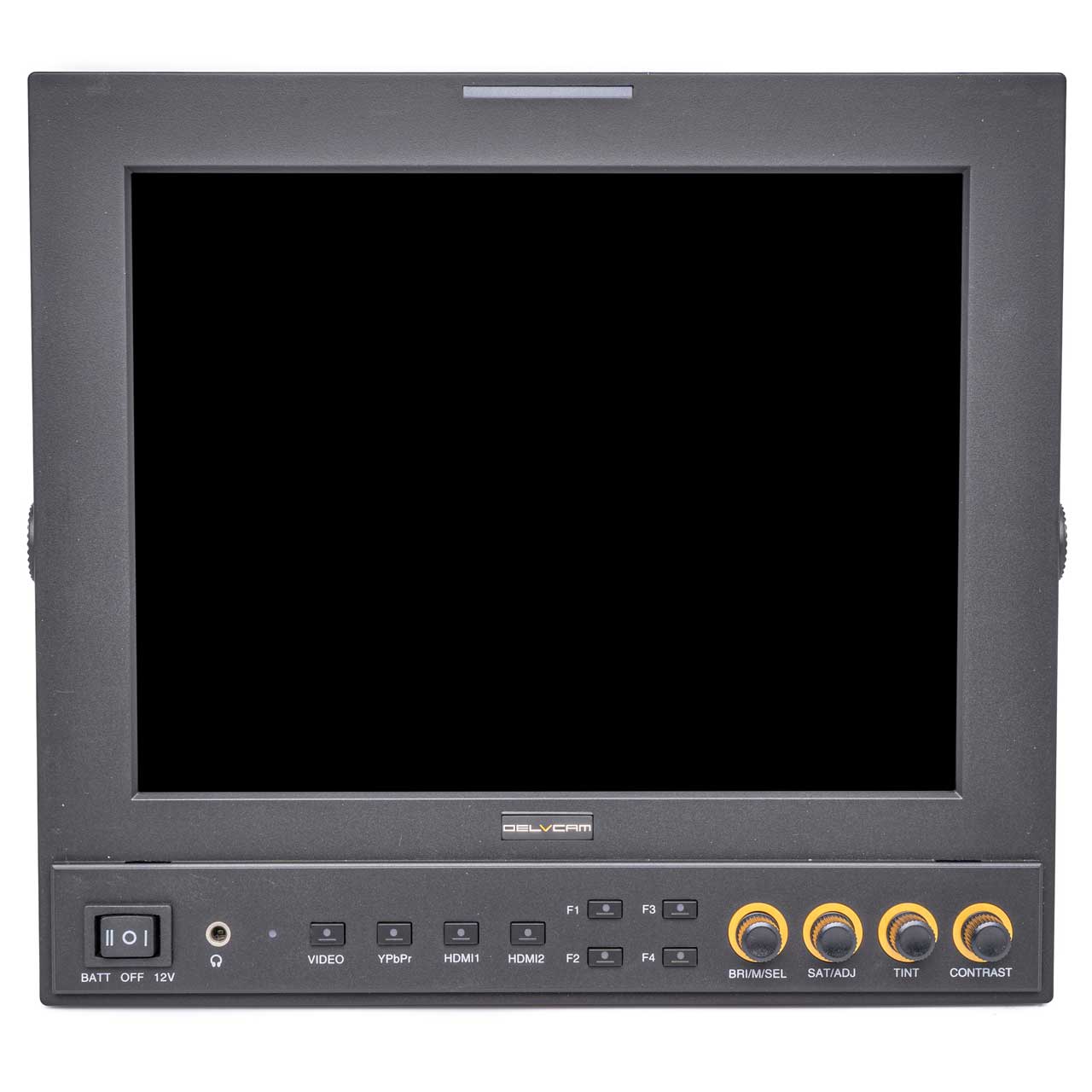

The Delvcam DELV-HDSD-10, an LED HD broadcast monitor with dual HDMI inputs, component video, and a built-in sunshade, is optimized for studio and video editing work. The 9.7" LCD is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot.

The physical 1024x768 resolution provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.

The DELV-HDSD-10 features an HDMI-output which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. This monitor also includes all the AV connections that a broadcast professional needs. Composite and component through BNC connectors and two HDMI inputs cover all the bases for common broadcast applications.


Please Note: This unit was used as a display model and is in working condition.

  • Features:

    • IPS panel 178° wide viewing angles,
    • Dual HDMI inputs,
    • Wide voltage: DC 7-24V,
    • TALLY interface & 5V charging
    • Comply with IP52 standard!
      Bstock - The unit was used as a display model and is in working condition.

  • Specifications:

    • DISPLAY
    • Panel 9.7" IPS
    • Physical Resolution 1024x768, support up to 1920x1080
    • Aspect Ratio 4:3
    • Brightness 400cd/m2
    • Contrast 600:1
    • Viewing Angle 178°/178°(H/V)
    • Response Time (ms): HDMI 6.444, AV 1.75, YPBPR 1.486

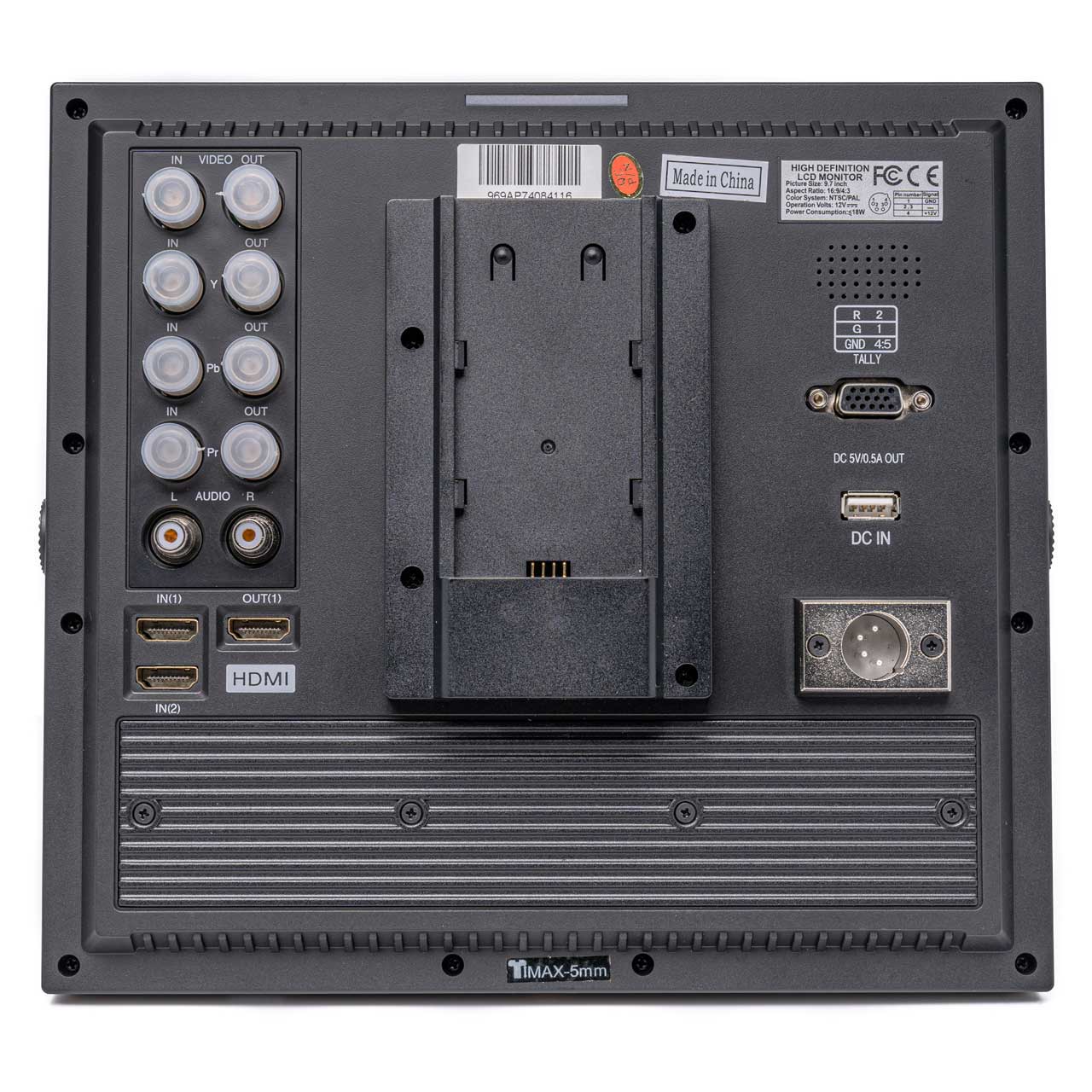

      INPUT
    • HDMI 2
    • YPbPr 3(BNC)
    • VIDEO 1
    • TALLY 1
    • AUDIO 2(L/R)

    • OUTPUT
    • HDMI 1
    • YPbPr 3(BNC)
    • VIDEO: 1
    • USB 1(5V for charging)

    • AUDIO
    • Speaker 1 (build-in)
    • Ear Phone Slot 1

    • POWER
    • Current 1500mA
    • Input Voltage DC 7-24V (XLR)
    • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
    • V-mount / Anton Bauer mount /
    • Power Consumption =18W

    • ENVIRONMENT
    • Operating Temperature -20C~60C
    • Storage Temperature -30C~70C

    • DIMENSIONS
    • Dimension(LWD) 9.69 x 8.82 x 1.22 inches
    • Weight 2.36 lbs / 3.06 lbs (with cover)

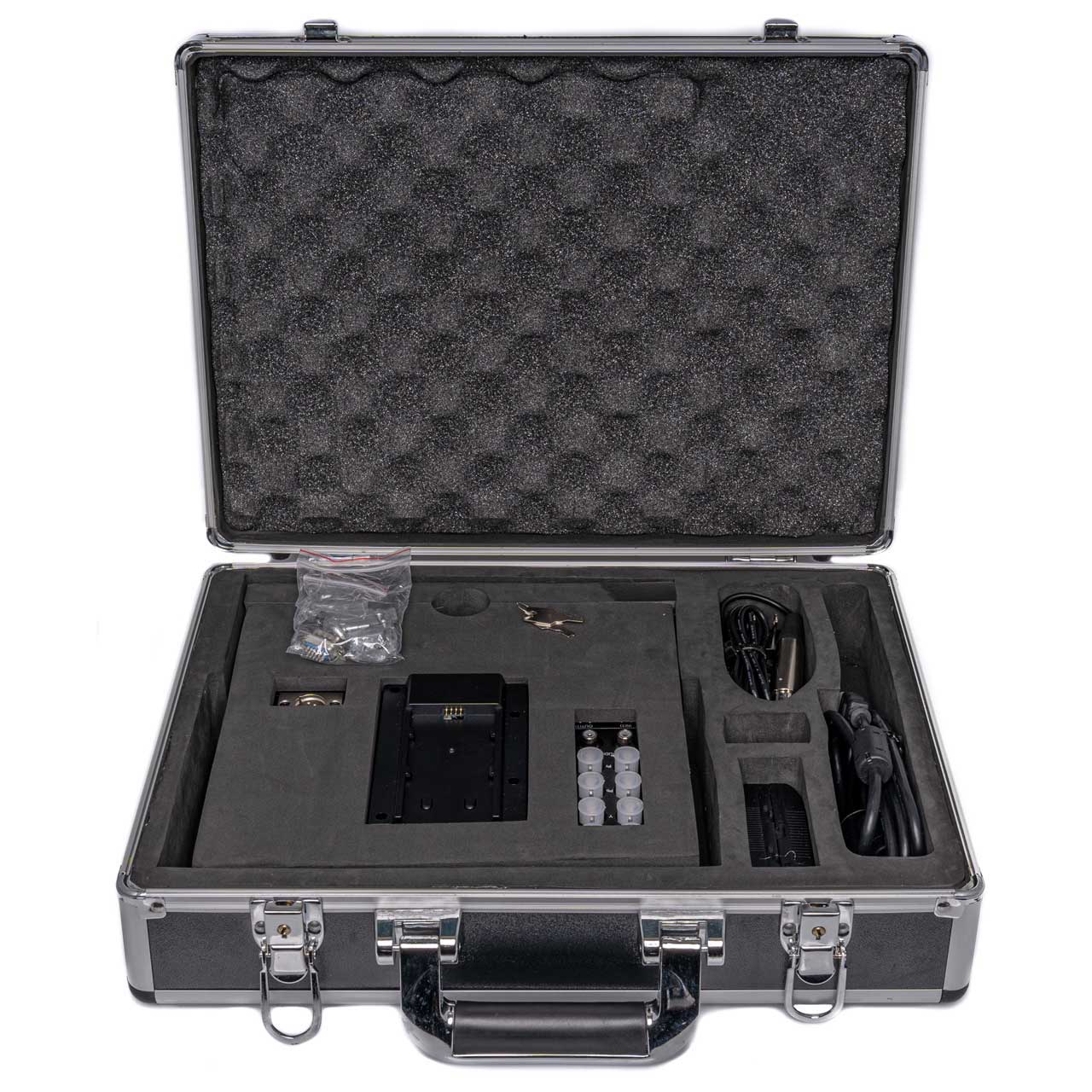

  • Item Includes:

    • Sunshade
    • 12VDC Power Cable (XLR)
    • HDMI Cable
    • Talley Connector
    • Battery Plate Bracket
    • Battery Plates: LPE6, F970

  • Warranty:

    • 1 Year
