HSW5-CC-BSTK - Overview

In a perfect union of technology and the senses, Delvcam introduces the DELV-HSW5-CC. A field monitor that not only offers full HD 1920 x 1080 resolution luminary eye candy but delivers pixel perfect images to your world by offering a built in vectorscope, waveform and histogram. Keep your input signals in check as these scopes make it a cinch to adjust and truly monitor the primary focus of your image.

The DELV-HSW5-CC is a true "Field Monitor" in every regard! Its portable compact design, rugged metal housing and sunshade and super high 1000:1 contrast ratio make it outdoor ready for field and ENG production.

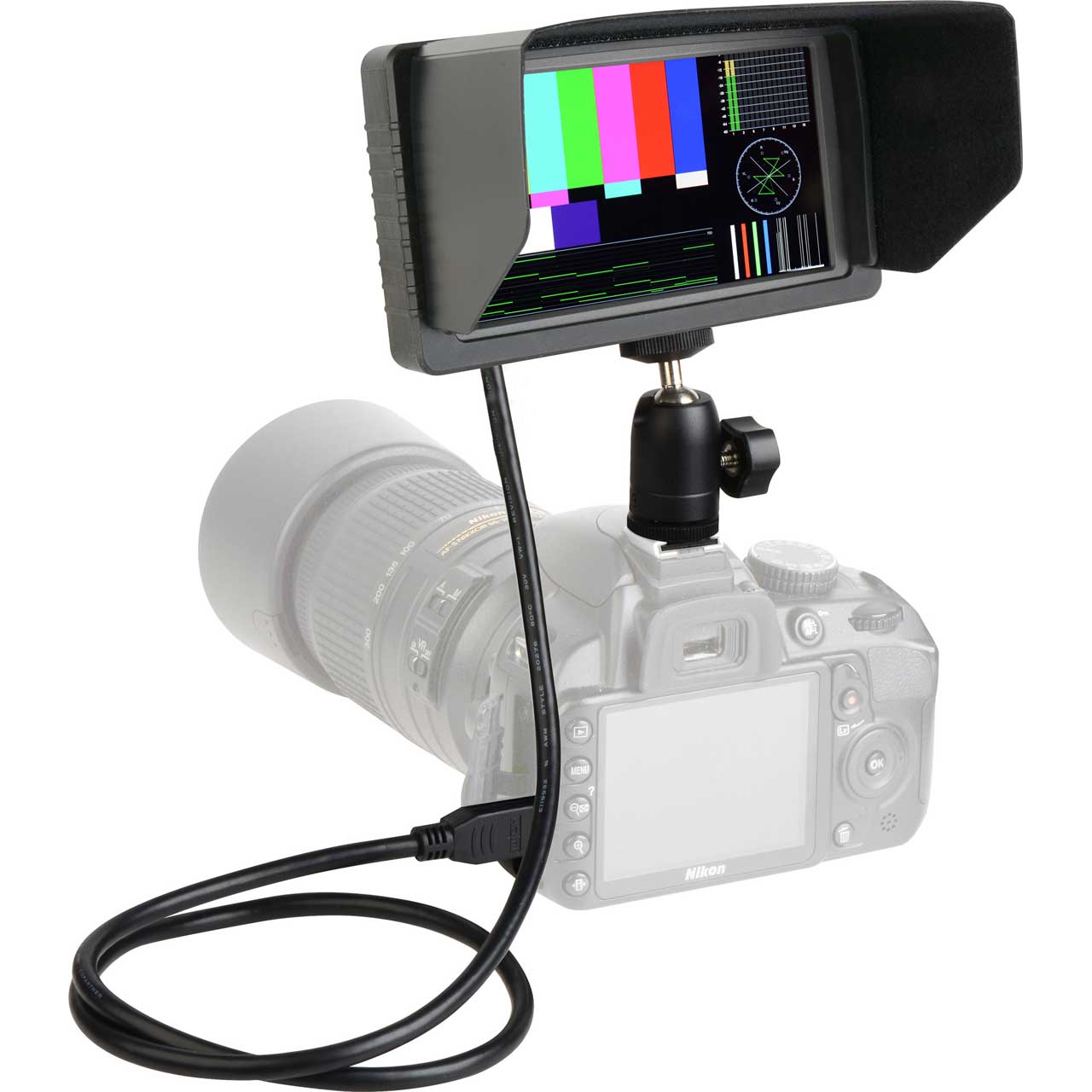

In addition to all of these great features, the DELV-HSW5-CC boasts an I/O interface that accepts and converts both HDMI and 3G-SDI and can be cross-converted on the output. All wrapped up in a sturdy frame that easily mounts on top of your camera, Delvcam sets the bar high and keeps the price point low! Designed for the real heroes of our industry; the camera operators, directors, and cinematographers.

  • Features:

    • High Resolution: 1920 x 1080
    • High Contrast: 1000:1
    • 160° Wide Viewing Angles
    • SDI and HDMI Cross Conversion Output
    • Waveform, Vectorscope, and Time Code Displays
    • Audio Level Meter, Histogram, and Waveform
    • Right Channel Speaker and Stereo Earphone Jack

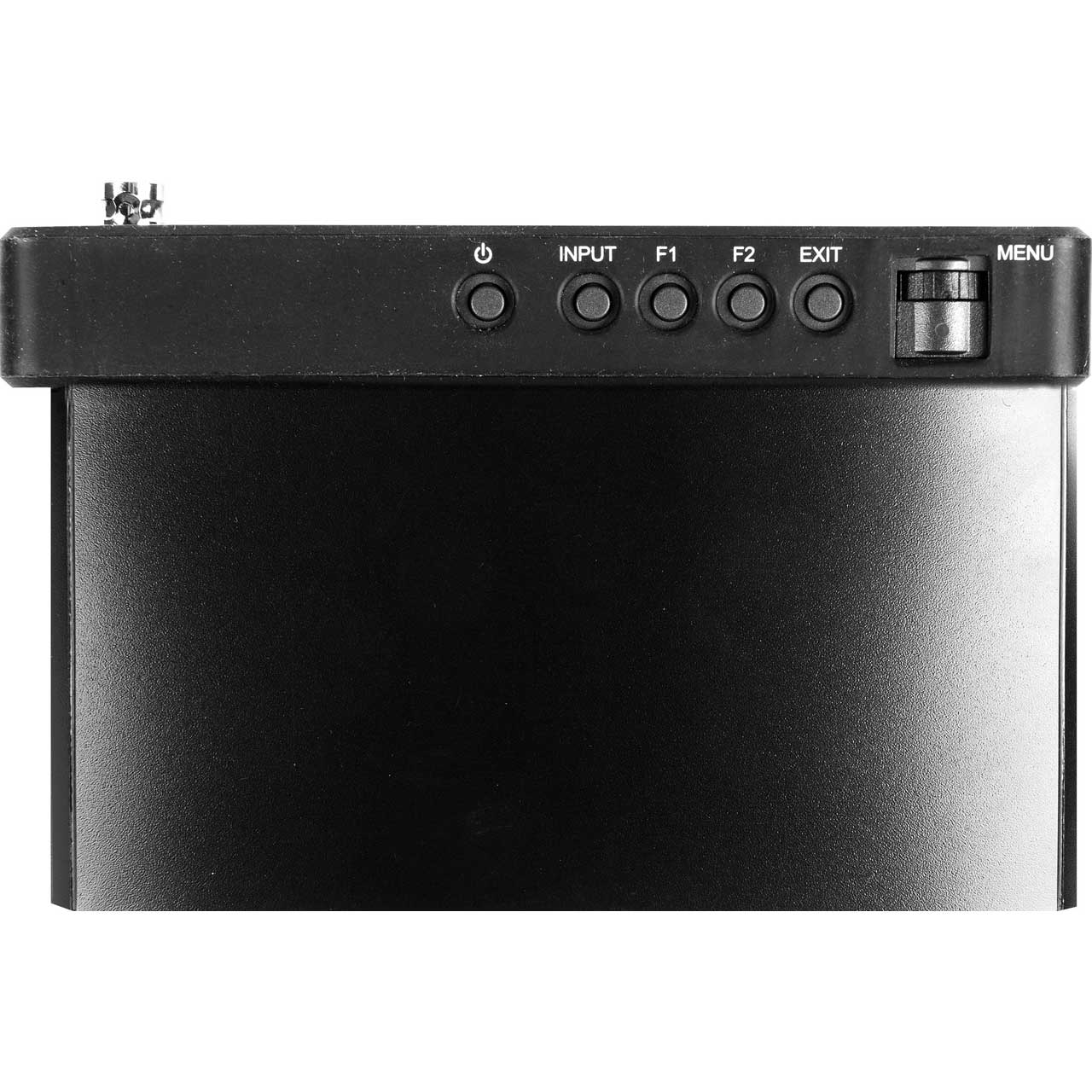

    • Two User Definable Buttons
    • Rugged Metal Housing

  • Specifications:

    • Display Screen: 5.5 inch, IPS
    • Aspect Ratio: 16:9
    • Brightness: 450cd/m2

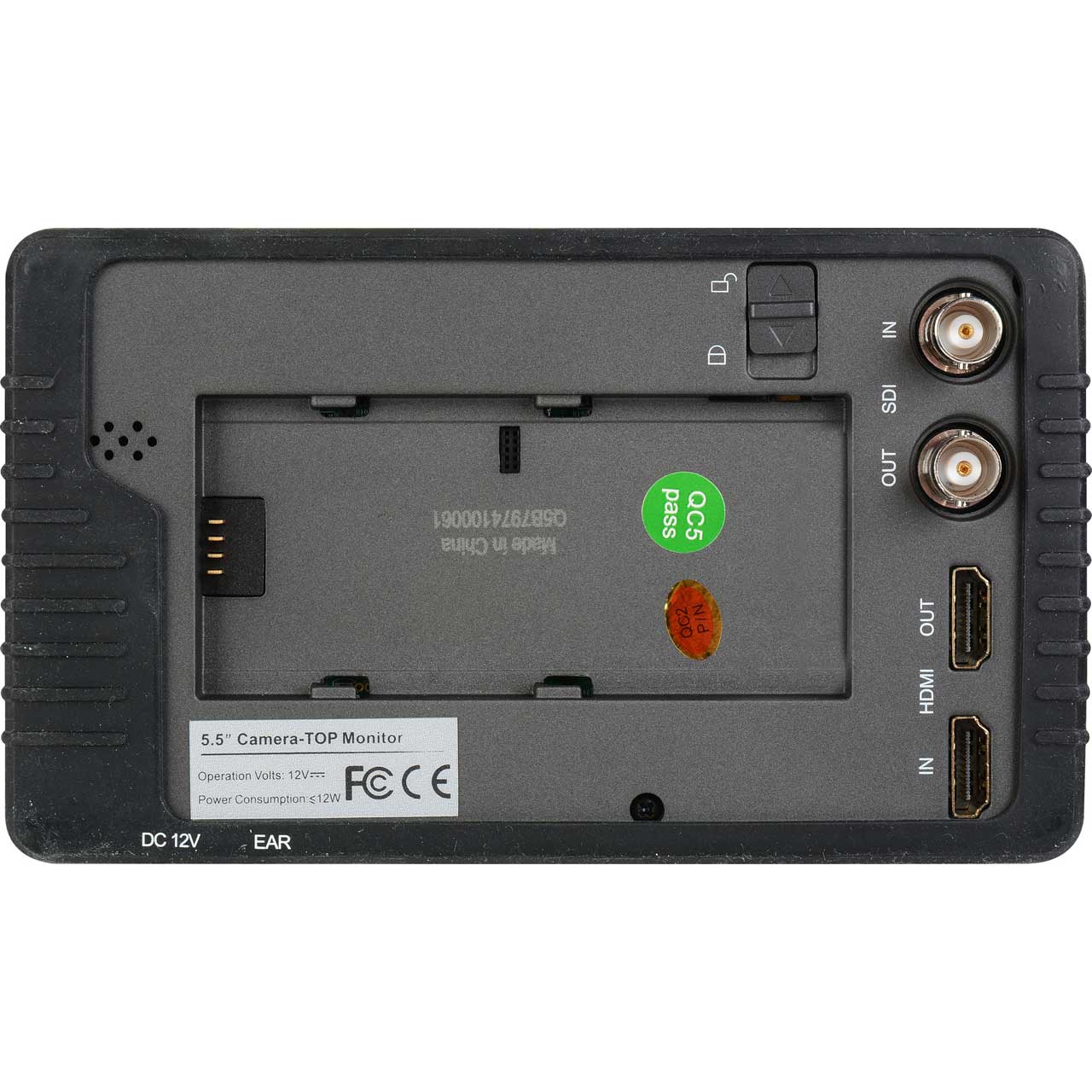

    • Input: 1 3G-SDI, 1 HDMI
    • Output: 1 3G-SDI, 1 HDMI
    • Current: 1A
    • Power Consumption: 12W
    • Input Voltage: 7-24VDC
    • Audio: 1 Speaker, 1 Earphone Jack
    • Weight: 0.71 lb / 320g, 0.75 lb /340g (with case)
    • Dimensions: 6.1 x 3.54 x 0.79in / 154.5x90x20mmm, 6.2 x 3.7 x 0.91in / 157.5x93x23mm (with case)

  • Item Includes:

    • Sunshade
    • HDMI AC Cable
    • 12VDC Adapter
    • Battery Plates F-970 & LP-E6
    • Shoe Mount

  • Warranty:

    • 1 Year
