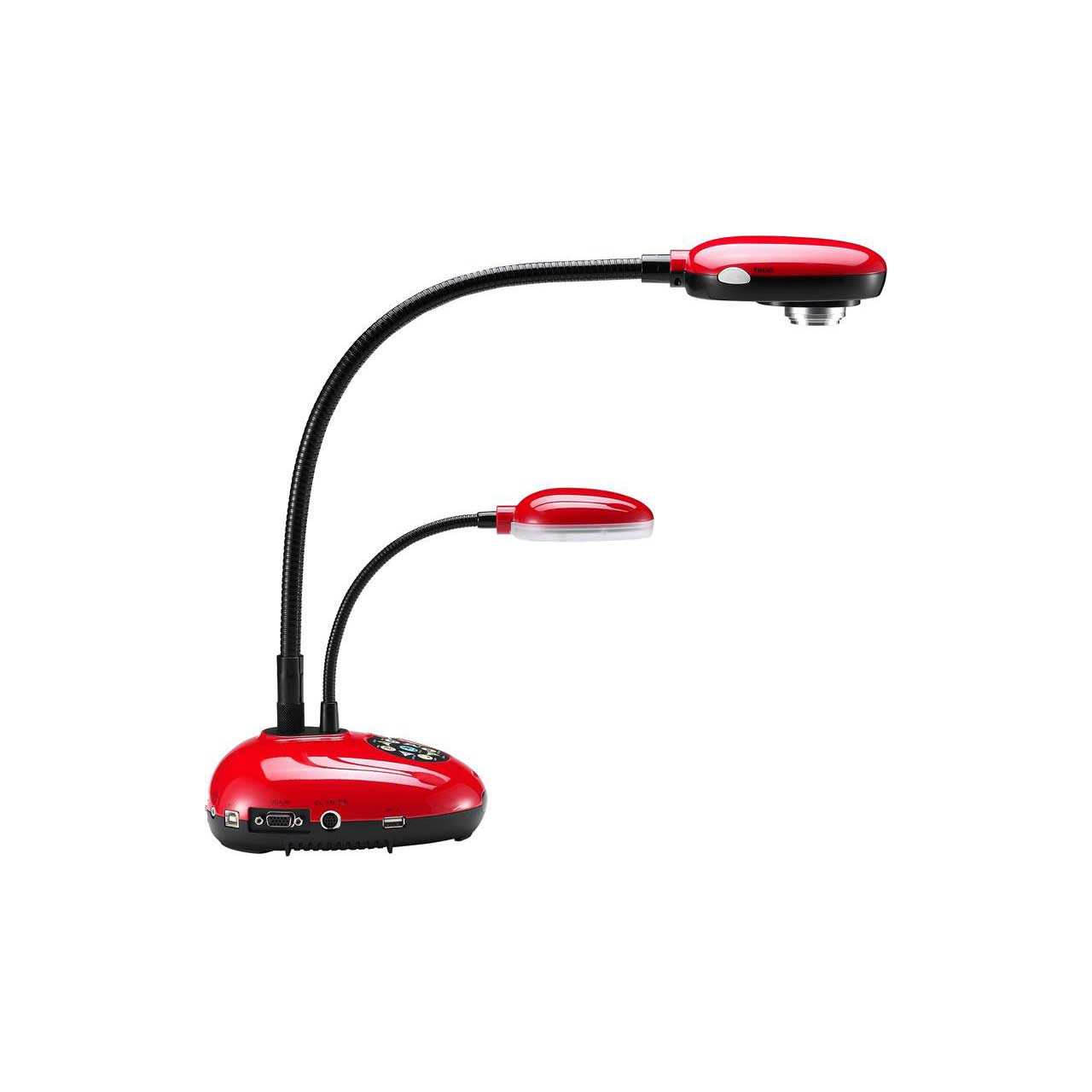

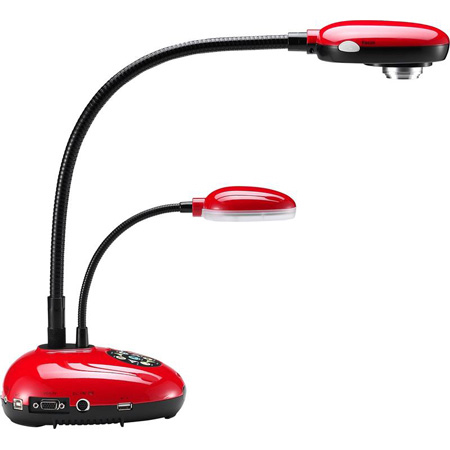

Dukane 446A Document Camera

446A - Overview

• Features:

  • High Resolution XGA, SXGA, WXGA, and 1080p
  • HDMI Digital Output & Input
  • 20x Zoom, 12x Digital Zoom, 10x Optical Zoom
  • Built in Microphone
  • Image Capture, Video/Audio Recording and Playback
  • LED Illumination
  • Internal Memory and USB Flash Drive Port
  • USB Connection Capability
  • Compatible with All Interactive Whiteboards
  • New B-Works2™ Software Included


• Specifications:

  • Imaging
  • Output Resolution XGA (1024 x 768), SXGA (1280 x 1024), WXGA (1280 x 800), 1080p (1920 x 1080)
  • Frame Rate VGA (SXGA - 1080p): - 30 fps; USB - 30 fps
  • Zoom Capacity: 2x pixel zoom and 12x digital zoom, 20x, Optical 10x
  • Capture Area: 18 inch x 12.5 inch (357.2 x 317.5 mm)

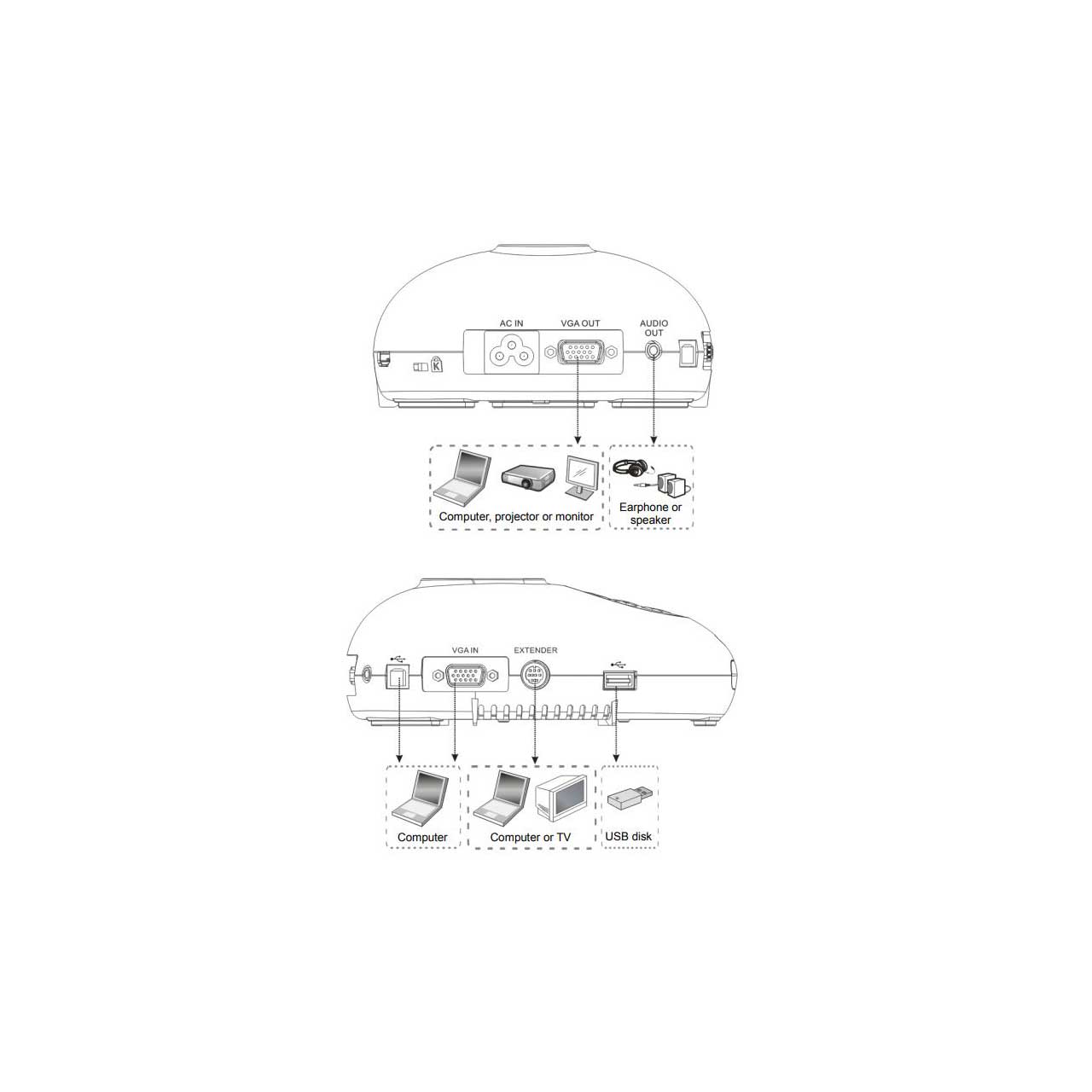

    Input/Output
  • Power Supply Built-in, 100-240 VAC, auto switching
  • Digital Out HDMI XGA/SXGA/WXGA/1080p
  • Digital In HDMI Active pass through
  • VGA In Active pass through from the computer
  • VGA Out VGA output to the projector
  • Audio In Built-in microphone
  • Audio Out 3.5mm phone jack for earphones or speakers
  • Internal Memory Capacity Up to 120 JPEG images
  • External Memory Capacity USB Flash Drive
  • USB Support USB 2.0 High Speed (up to 480 Mbps) for
  • seamless integration with interactive whiteboards
  • RS-232 Yes
  • C-Video RCA Jack (PAL, NTSC)

    Software
  • B-Works2™ Software Included Supports PC Windows 8, 7, XP, Vista and Mac OSX. (Free download from Dukane website.)
  • Video Recording with Audio Record video with various compression formats. Playback with audio out- No PC needed.
  • Image Capture: Single or continuous capture of JPEG images.
  • Annotation: Add annotations directly to live image.
  • Controls and Operations: Same set of controls as the remote control
  • USB Driver: Supports UVC, WIA and TWAIN for integration with interactive whiteboards including Promethean™, SMART™, Hitachi Starboard™, Mimio™, and others.

    Operation/Functions
  • Auto Tune Yes, single button to adjust for best possible images
  • Auto Exposure: Yes
  • Auto White Balance: Yes
  • Auto Focus: Yes
  • Photo/Text Mode: Choose photo/grayscale/text mode
  • Image Mode: Choose normal/35mm slide/microscope/ negative film
  • Image Capture: Single capturing of images to built-in memory, or to a computer via USB, or USB Flash Drive
  • Video Recording: One-touch, Video recording and playback with audio from built-in microphone
  • Picture In Picture (PIP): Yes
  • Freeze: Yes
  • Slide Show: Automatically or manually
  • Image Rotation: Full screen image rotation from 0 to 180 degrees, flip, mirror
  • Annotation: Yes, annotation with B-Works2™ Software
  • Spotlight: Yes
  • Low Light Mode: Yes
  • Pan Across the Screen: Enlarged any part of the image and pan it by using the arrow keys.
  • Mask: Yes
  • Projector Type: Supports both LCD and DLP projectors
  • Volume control: Yes, via remote or OSD (on Screen Display)

    Physical Characteristics
  • Lamp Type: 2 LED lamps for completely even light coverage,(one in camera head)
  • Weight: 5.0 lbs (2.3kg), Ship: 8.0 lbs
  • Dimensions Operating(L x W x H): 11 ft x 6 inch x 11 inch (279 x 152.4 x 279 mm)
  • Dimensions Folded(L x W x H): 7 inch x 6 inch x 11 inch (177.8 x 152.4 x 279 mm) Ship: 15 inch x 12 inch x 7 inch


• Warranty:

  • 5 Year


• GTIN:

  0605194006632
