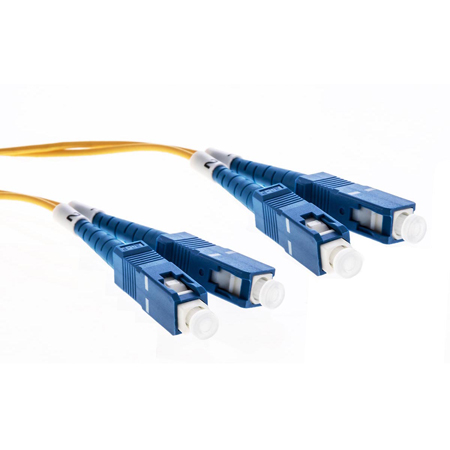

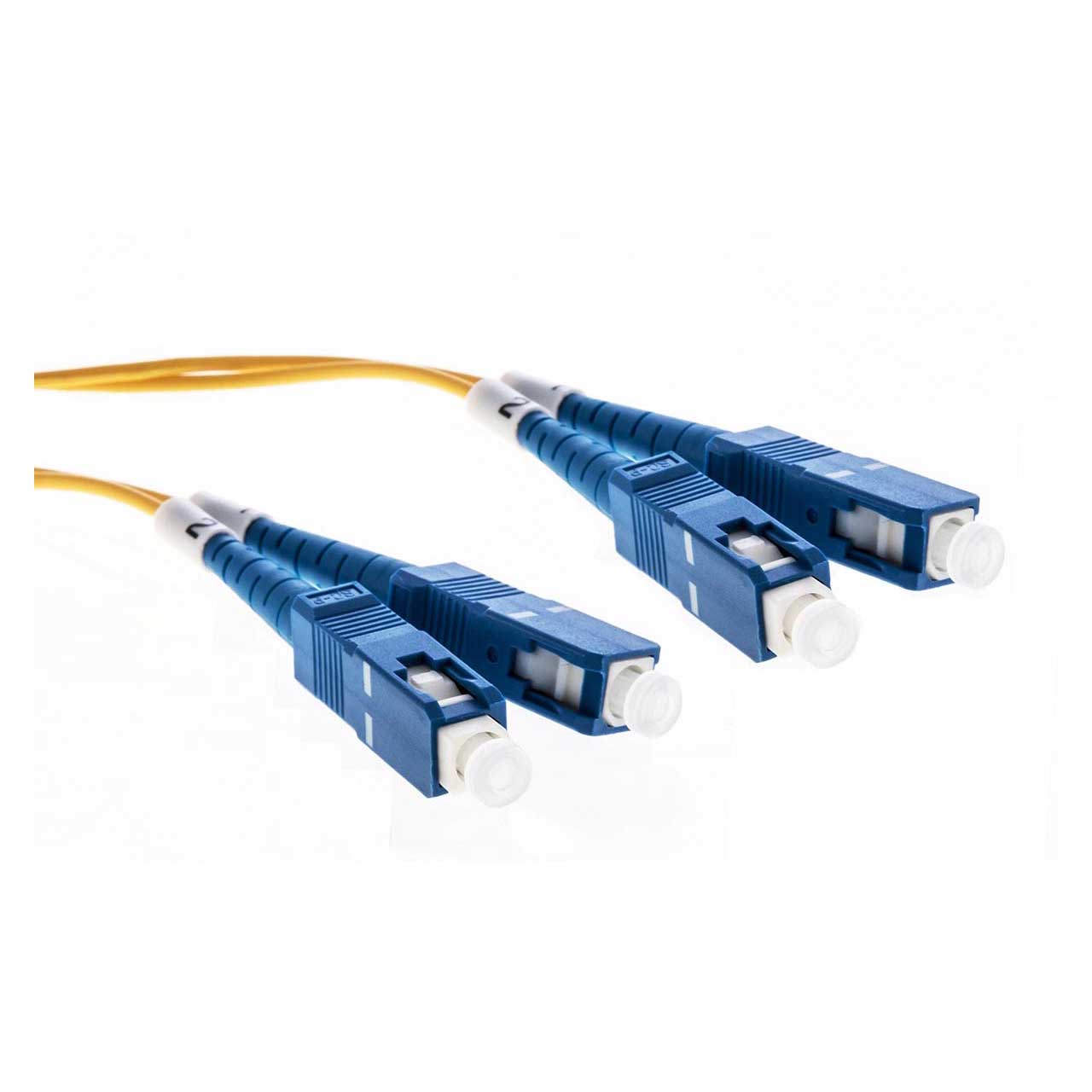

Cleerline DOS2SCSC01M-UPC SC/UPC-SC/UPC-1.6mm Riser-OS2-1m Fiber Cable

ITEM #: DOS2SCSC01M-UPC MFG #: DOS2SCSC01M-UPC

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DOS2SCSC01M-UPC

DOS2SCSC01M-UPC - Overview

Cleerline XD fiber optic patch cords deliver extreme performance and reliability for all system connections. XD series patch cords incorporate Cleerline's exclusive SSF™ integral polymer as part of the fiber optic glass technology. SSF fibers provide up to 10,000x increased bend and up to 200x increased pull strength compared to standard glass fibers. SSF fibers are extremely durable and are able to endure even repeated tight bending with insensitivity to optical loss at all wavelengths even at very low radii. High quality connectors ensure insertion loss and back reflections that exceed all industry standards.

  • Features:

    • Singlemode patch cords available in OS2 A2
    • Multimode patch cods available in OM2, OM3, OM4 versions
    • Duplex assemblies available with clips (SC and LC)
    • SC and LC connector varieties / terminations
    • Conforms to IEC, EIA-MTIA and Telecordia performance requirements
    • Available in Duplex Configurations with clips
    • Standard LC and SC connector types
    • Bend Insensitive OM2, OM3, OM4, and OS2 type fibers
    • TIA color coded connectors
    • 600um tight buffer
    • Riser Rated (OFNR) jacket type
    • RoHS compliant

  • Specifications:

    • Mode Field Diameter at Wavelength 1310nm: 8.6 ± 0.4 (µm)
    • Mode Field Diameter at Wavelength 1550nm: 9.7 ± 0.5 (µm)
    • Core / Hybrid Cladding Concentricity Error ≤ 0.5 (µm)
    • Hybrid Cladding Diameter 125 ± 0.7 (µm)
    • Hybrid Cladding Non-Circularity Error ≤ 1.0 (%)
    • Soft Peel Jacket Identifier Diameter 250 ± 0.7 (µm)
    • Coating Strip Force≤100 (g)
    • Fiber Curl≥2 (m)
    • Proof Test 100 (kpsi)
    • Bend Induced Attenuation
    • 1550nm 1 turn 10mm radius: ≤ 0.3 (dB)
    • 10 turns around a mandrel of 15 mm radius: ≤ 0.03 (dB)
    • 1625nm 1 turn 10mm radius: ≤ 1.0 (dB)

  • Warranty:

    • Lifetime
