Dracast DRDP3LDSK Plus LED1000 Daylight 3-Light Studio Kit with Li-Ion Batt Pack & V-Mount & Gold Mount Battery Plates

ITEM #: DR-DRDP3LDSK MFG #: DRDP3LDSK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,499.00

Our Price:

$2,999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


DRDP3LDSK - Overview

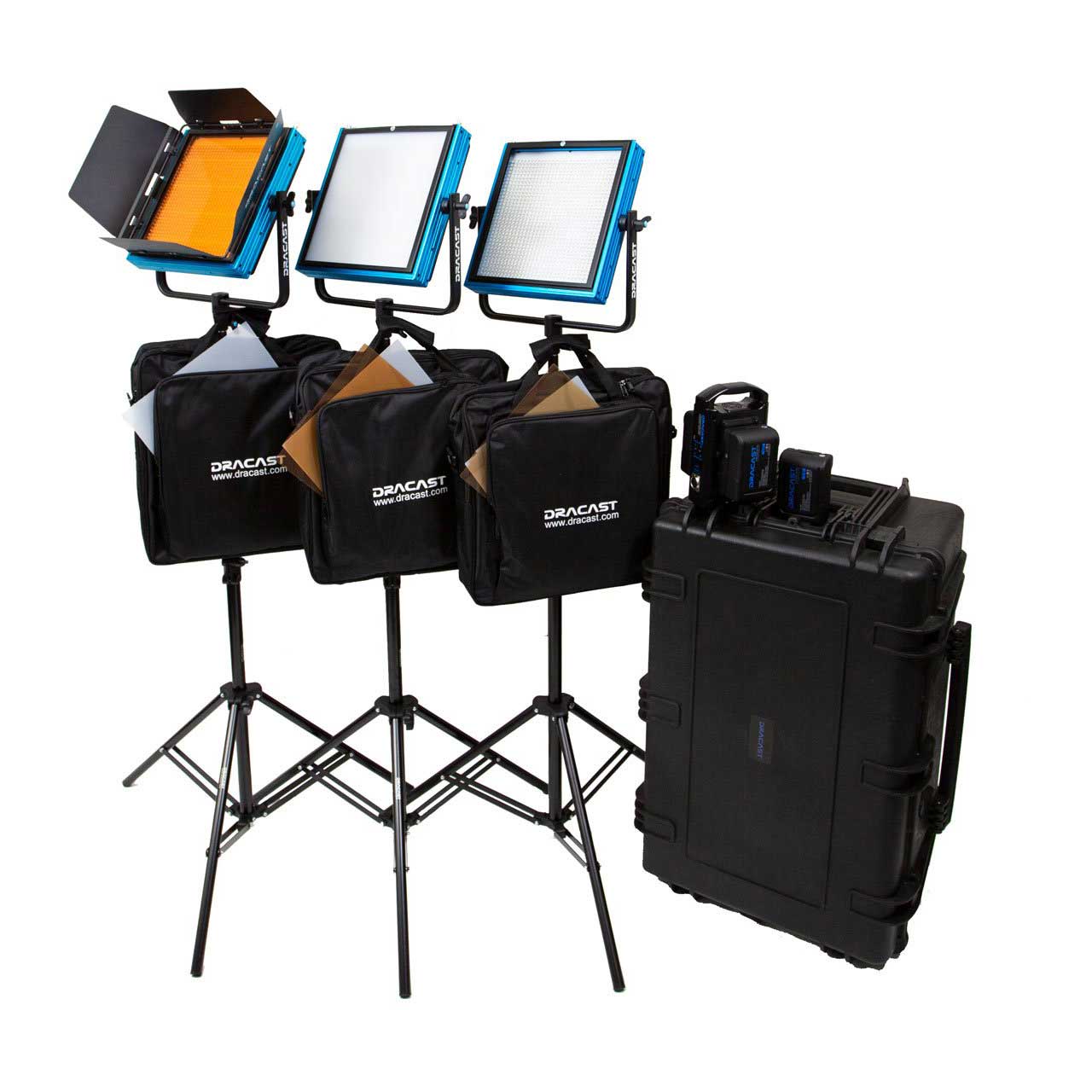

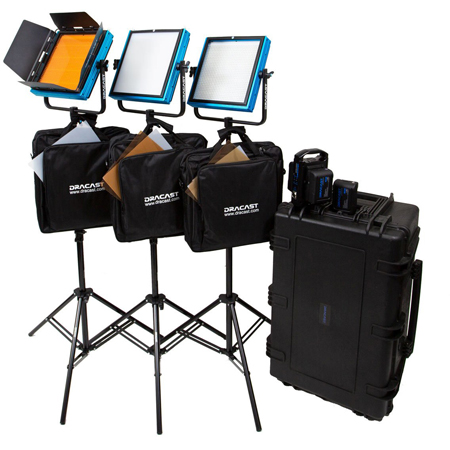

Dracast Plus LED1000 Daylight 3-Light Studio Kit with V-Mount and Gold Mount Battery Plates
Get a ton of power and versatility with the daylight-balanced Studio Plus 3-Light Kit from Dracast. It features three LED1000 Plus LED lights which offer outstanding output and make a great three-point lighting setup. Besides the fixtures, the kit also includes three 90Wh V-mount Li-ion batteries and a dual battery charger as well as four-way barndoors, filter frames, and two filter sets for the LED1000 panels. Additionally, three light stands and a hard carrying case with wheels are included.

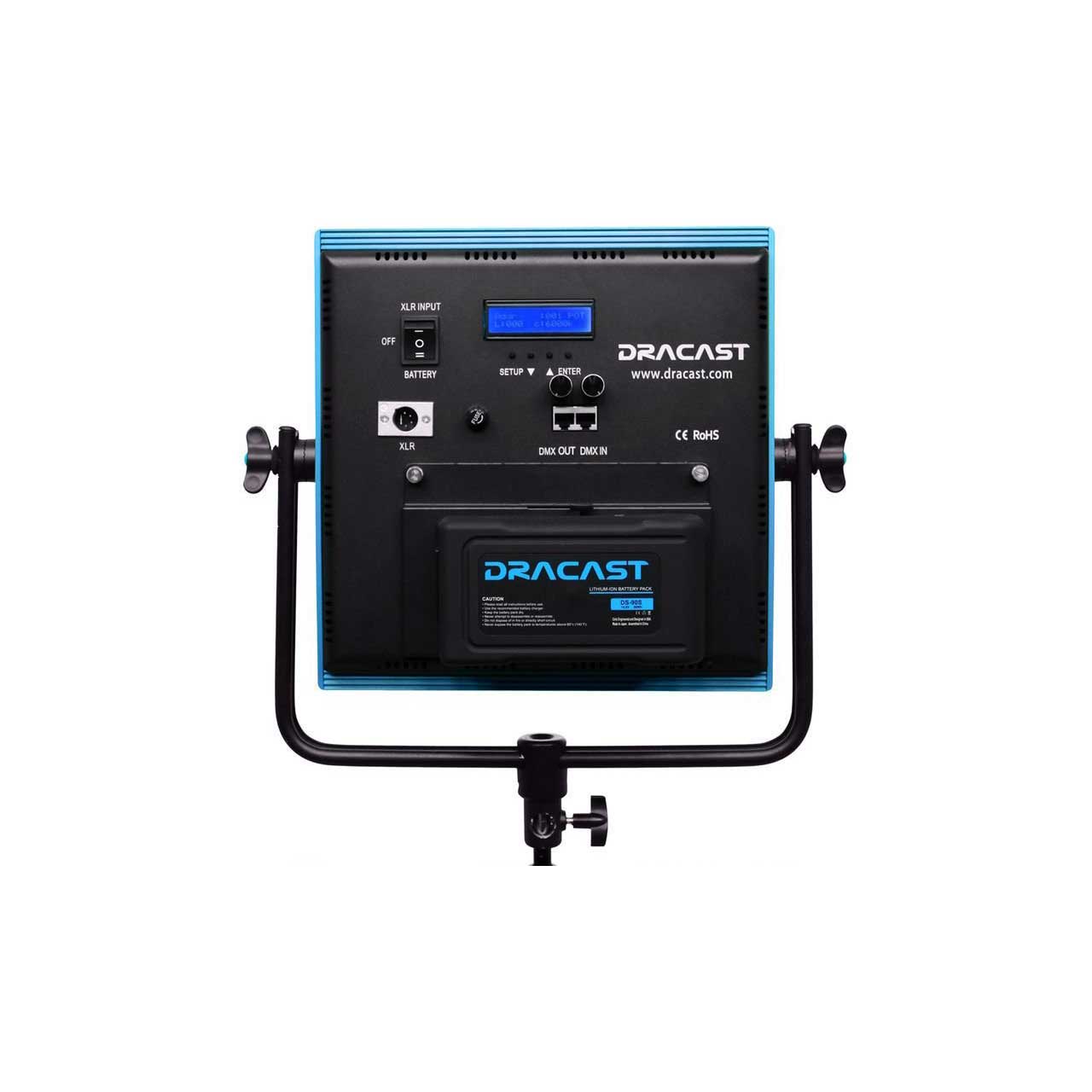

LED1000 Plus Series Daylight LED Light
Expanding on their line of panels, the LED1000 Plus Series Daylight LED Light from Dracast adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 1024 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a daylight-balanced color temperature of 5600K for matching with natural light and other fixtures.

The lights offer a spot beam angle of 45° as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 60W of power.

Barndoors for LED1000
These Barndoors from Dracast are made for the LED1000, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.

Filter Frame for LED1000 Light
The Dracast Filter Frame for LED1000 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture's accessory channel. It has a frame lock to prevent filter slippage.

Filter Set for LED1000 Light (5-Piece)
The Dracast 5 Filter Set for LED1000 Light contains rigid light modifiers that measure approximately 12 x 12" to match the fixture. Included in the kit are one each: 1/4, 1/2, and Full CTO filters to change the light's daylight balance to tungsten. A Half White Diffusion and an Opal Frost Diffusion Filter are also included to soften the light's output.

90Wh 14.8V Li-Ion V-Mount Battery
The Dracast 90Wh 14.8V Li-Ion V-Mount Battery is a memory-effect-free battery for professional camera systems. It features built-in electronics to protect the battery during charging and use, charger is not included with the battery. The 5-LED battery system provides an indicator that shows you how much capacity the battery has left before it needs to be charged. It incorporates a D-tap power outlet, so you can power accessories directly, instead of through your camera's electronics.

  • Features:

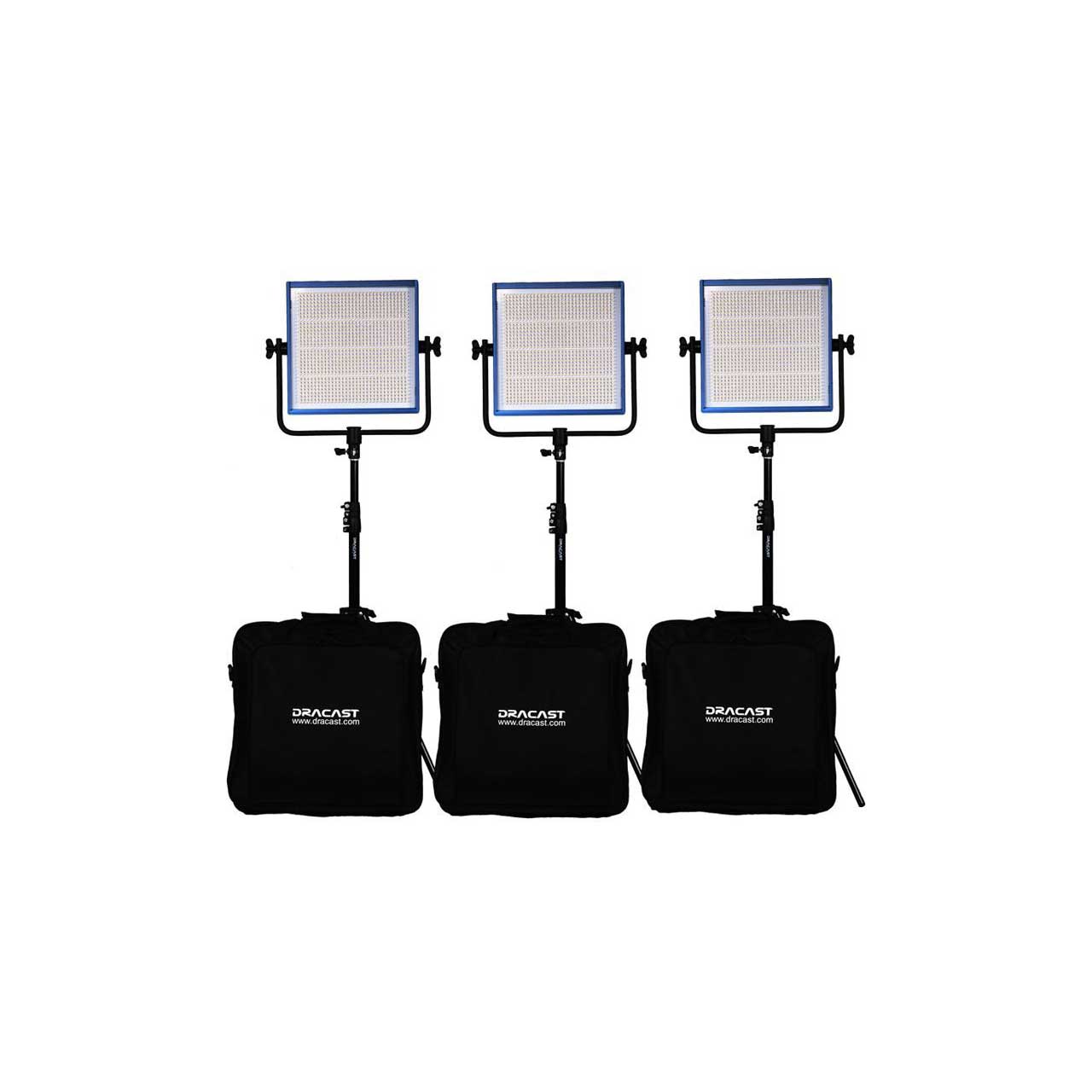

    • Three LED1000 Plus Daylight LED Lights
    • Three 90Wh V-Mount Li-Ion Batteries
    • Dual Battery Charger
    • Four-Way Barndoors
    • Filter Frames and Filter Sets
    • Three Light Stands
    • Hard Carrying Case
    • 90Wh Li-ion professional mount battery pack does not suffer from memory effect, common to NiCd batteries
    • Fits camera and lighting units with V-Mount battery bracket
    • The built-in LED battery gauge provides you with a clear visual confirmation of the battery's capacity
    • Industrial strength injection molded pull handle
    • Four wide set in-line skate style wheels for easy transport
    • TSA accepted key locking latches are available
    • Padlock holes include stainless steel padlock protector clips
    • Waterproof and dust tight design
    • Molded-in hinge for added protection

  • Specifications:

    • Light Fixture
    • Beam Angle: 45°
    • Color Temperature: 5600K
    • Color Accuracy Standard: CRI 95
    • Dimming: Yes, 0 to 100%
    • Display: None
    • Housing Material: Aluminum
    • Number of LEDs: 512
    • Fixture Dimensions: 12.0 x 12.0 x 2.0"
    • Fixture Weight: 5.5 lb (Including Yoke)

      Connectors
    • Battery Plate: 1x Gold Mount, 1x V-Mount
    • DMX Connector: RJ45 Input and Output

      Mounting
    • Yoke Mount: TVMP/ Hex Bolt
    • Fixture Mount: 5/8" Receiver
    • Accessory Mount: None

      Power
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • DC Input Power: 12 VDC
    • Power Source: AC Adapter, External Battery
    • Max Power Consumption: 30 W

      Physical
    • IP Rating: IP20
    • Packaging Info
    • Box Dimensions (LxWxH): 17.0 x 11.0 x 8.0"

      90Wh 14.8V Li-Ion V-Mount Battery
    • Mount / Series Type: V-Mount
    • Chemistry: Lithium-Ion
    • Capacity (Wh): 90 Wh
    • Output Voltage: 14.8 VDC
    • Accessory Port: 1 x D-Tap
    • Operating Temperature: -4 to 122°F
    • Dimensions (W x H x D): 6.7 x 3.9 x 1.9"
    • Weight: 1.8 lb

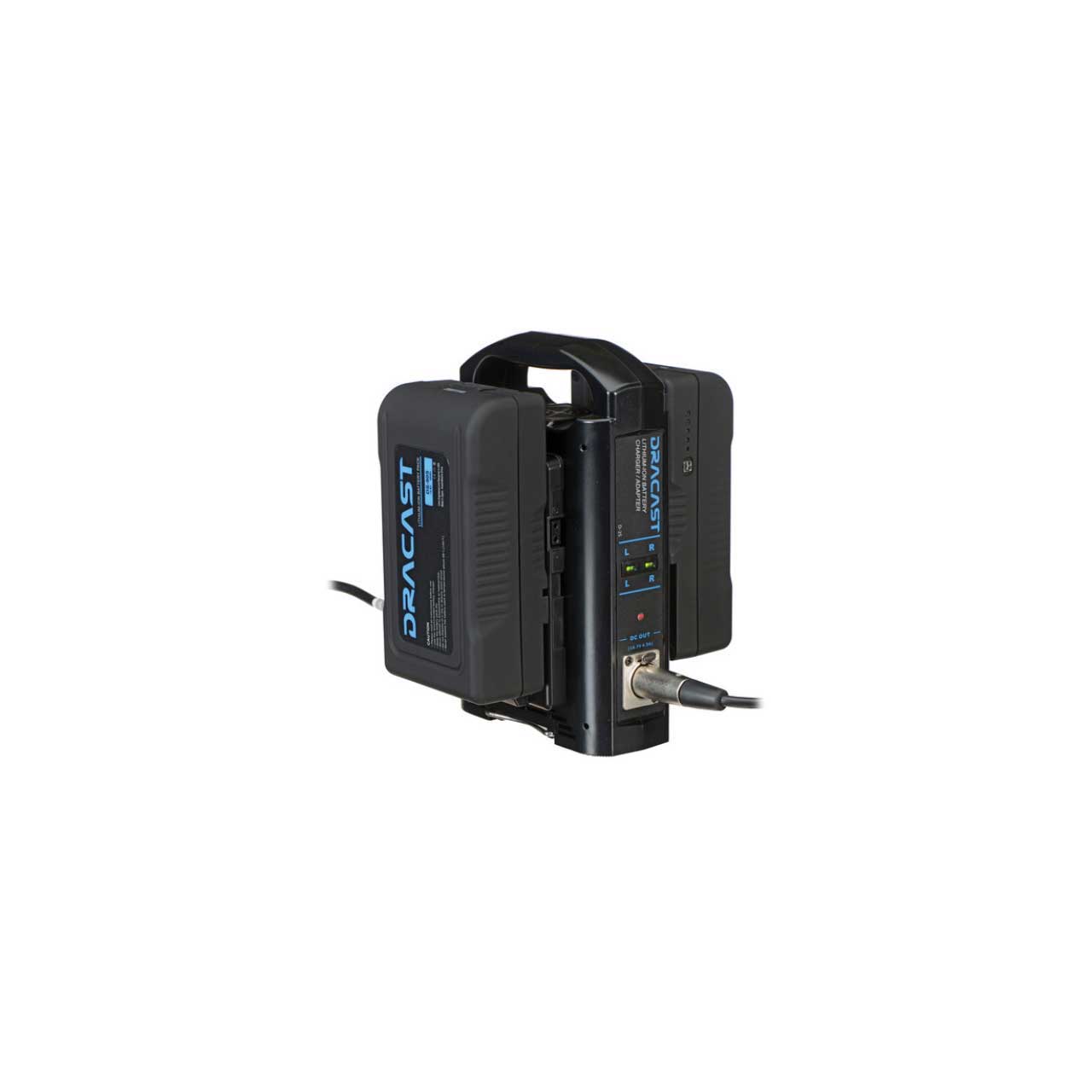

      DR-CH2V Dual V-Mount Battery Charger
    • Power Input: 90 to 240 VAC, 47 to 63 Hz
    • Power Output: 4-pin XLR, 15 VDC, 4 A
    • Power Consumption: 50 W
    • Dimensions: 4.6 x 8.9 x 5.5"
    • Weight: 2.2 lb

      DLS-805 Spring-Cushioned Light Stand (6')
    • Load Capacity: 13 lb
    • Mounting Options: 5/8" Stud
    • Maximum Working Height: 72.0"
    • Minimum Working Height: 28.5"
    • Collapsed Height: 28.5"
    • Leg Shape: Circle
    • Finish: Black
    • Material: Aluminum
    • Weight: 3.4 lb
    • Box Dimensions (LxWxH): 37.5 x 4.0 x 4.0"

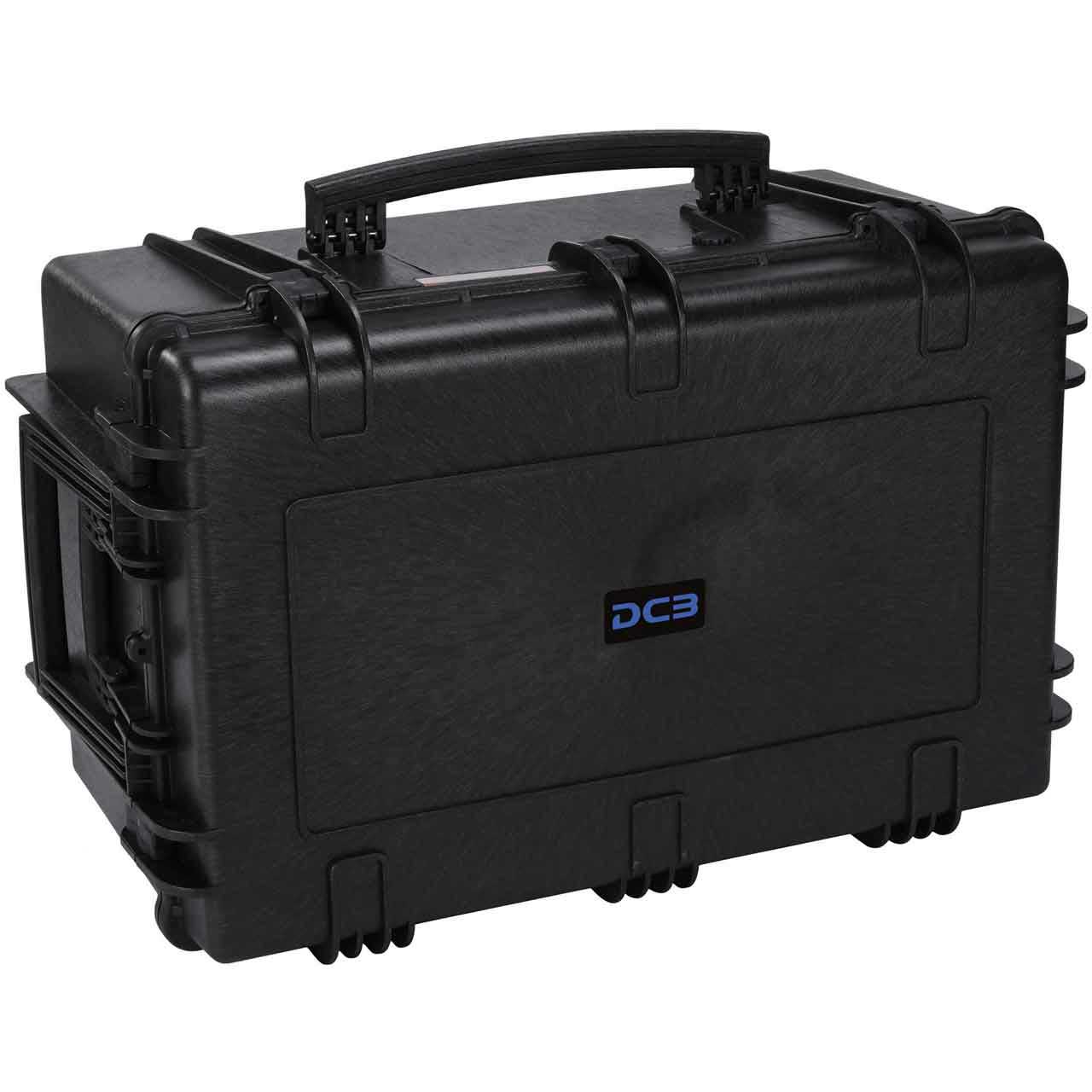

      Military-Standard Waterproof Case 10(Empty)
    • Carry/Transport Options: Top Handle, Side Handle, Telescoping Handle, Wheels
    • Closure Type: Latch
    • Materials: Polypropylene
    • Interior Contents: None
    • Exterior Dimensions (W x H x D): 31.5 x 20.8 x 12.5"
    • Interior Cubic Volume: 3.3 ft³ / 0.093 m³
    • Watertight: Yes
    • Maximum Buoyancy: 25.0 lb
    • IP Rating: IP67
    • Storage Temperature: -40 to 160°F
    • Weight: 21.6 lb
    • Box Dimensions (LxWxH): 34" x 24" x 20"

  • Item Includes:

    • 3x LED1000 Plus Series Daylight LED Light
    • 1x Battery Plate for LED1000 (Gold Mount)
    • 1x Battery Plate for LED1000 (V-Mount)
    • 1x Aluminum Yoke for LED1000 Light
    • 1x AC Power Adapter for LED1000 Light
    • 3x Carrying Case
    • 3x Barndoors for LED1000
    • 3x Filter Frame for LED1000 Light
    • 3x Filter Set for LED1000 Light (5-Piece)
    • 3x DLS-805 Spring-Cushioned Light Stand(6')
    • 1x Military-Standard Waterproof Case 10(Empty)

  • GTIN:

    0712324583571
