Dracast DRDRENGKBV Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates

DRDRENGKBV - Overview

• Specifications:

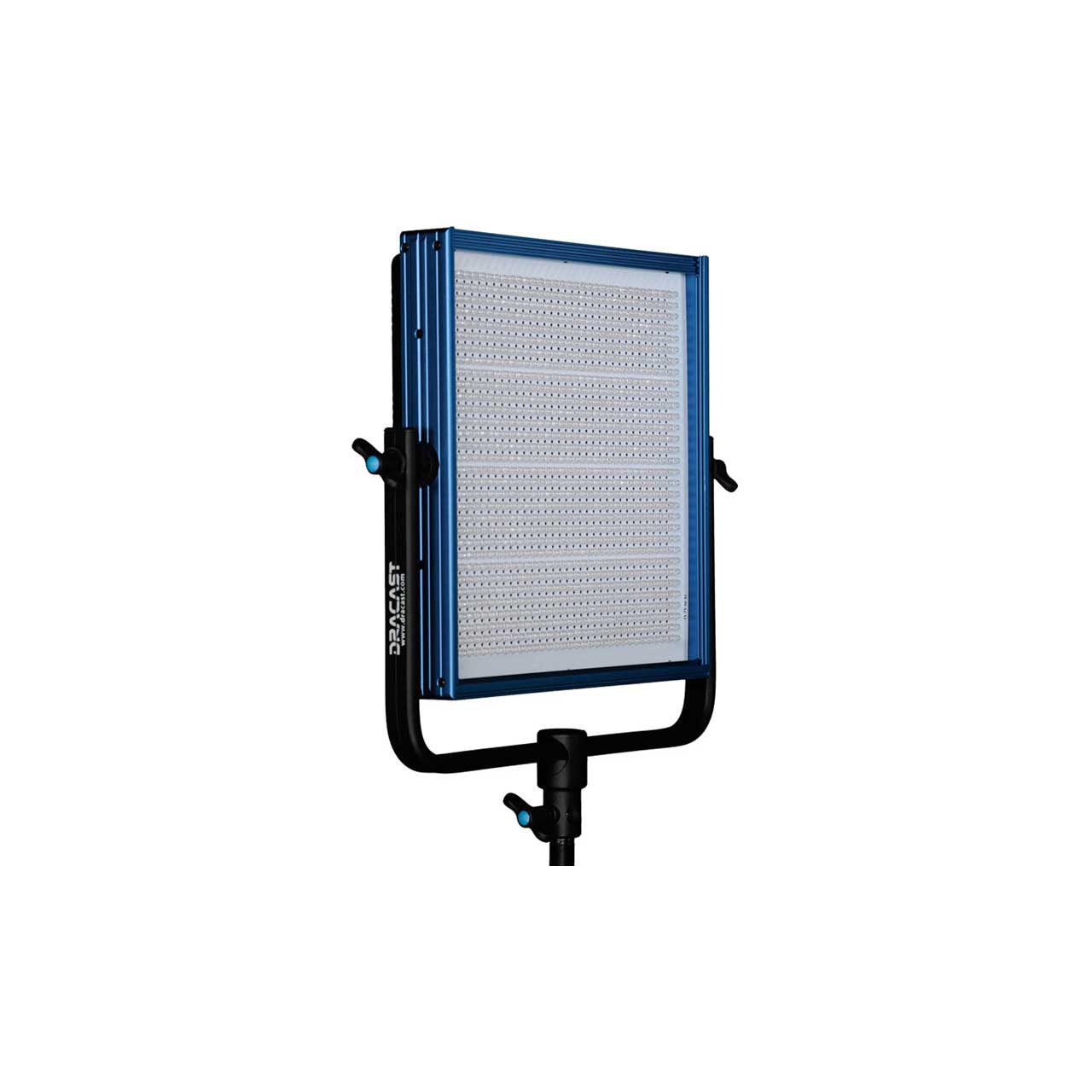

  • LED1000 Light
  • Optical System: 1024 5mm LED bulbs in 32x32 square arrangement
  • Beam Angle: 45°
  • Handling: Aluminum Yoke, Dual Locking Tilt Control
  • Mounting: Baby 5/8" Pin
  • Tilt Angle: ±90°
  • Voltage Input: 12 VDC
  • Power Consumption: 60W
  • Power Connection: 4-Pin XLR, 110 - 240VAC, 50 - 60Hz, 2.0A
  • Battery Connection: V-Mount Battery Plate (included)
  • Battery DC Voltage: 14.8 VDC
  • Battery Light Output: 100% of Total Output
  • Color Temperature: 3200K - 5600K
  • Color Rendition: CR >95
  • Dimming: 0 - 100% Continuous
  • Controls: Local On-Board Manual Controls, RJ45 DMX In/Out Ports
  • Housing Build: Aluminum
  • Estimated LED Lifetime: 50000 hours
  • Photometric Data:
    3' (0.9m): 790 fc at 8500 lux
    6' (1.8m): 251 fc at 2700 lux
    9' (2.7m): 121 fc at 1330 lux
    12' (3.6m): 68 fc at 735 lux

    LED500 Light
  • Optical System: 512, 5mm LED bulbs in 32x16 arrangement
  • Light Aperture: 4.75" x 10" (12.07cm x 25.40cm)
  • Beam Angle: 45°
  • Handling: Aluminum Yoke, Dual Locking Tilt Control
  • Mounting: Baby 5/8" Pin
  • Tilt Angle: ±90°
  • Voltage Input: 12 VDC
  • Power Consumption: 30W
  • Power Connection: 4-Pin XLR, 110 - 240VAC, 50 - 60Hz, 2.0A
  • Battery Connection: V-Mount Battery Plate (included)
  • Battery DC Voltage: 14.8 VDC
  • Battery Light Output: 100% of Total Output
  • Color Temperature: 3200K - 5600K
  • Color Rendition: CR >95
  • Dimming: 0 - 100% Continuous
  • Controls: Local On-Board Manual Controls
  • Housing Build: Aluminum
  • Estimated LED Lifetime: 50000 hours
  • Photometric Data:
    3' (0.9m): 353 fc at 3800 lux
    6' (1.8m): 107 fc at 1150 lux
    9' (2.7m): 49 fc at 530 lux
    12' (3.6m): 28 fc at 300 lux

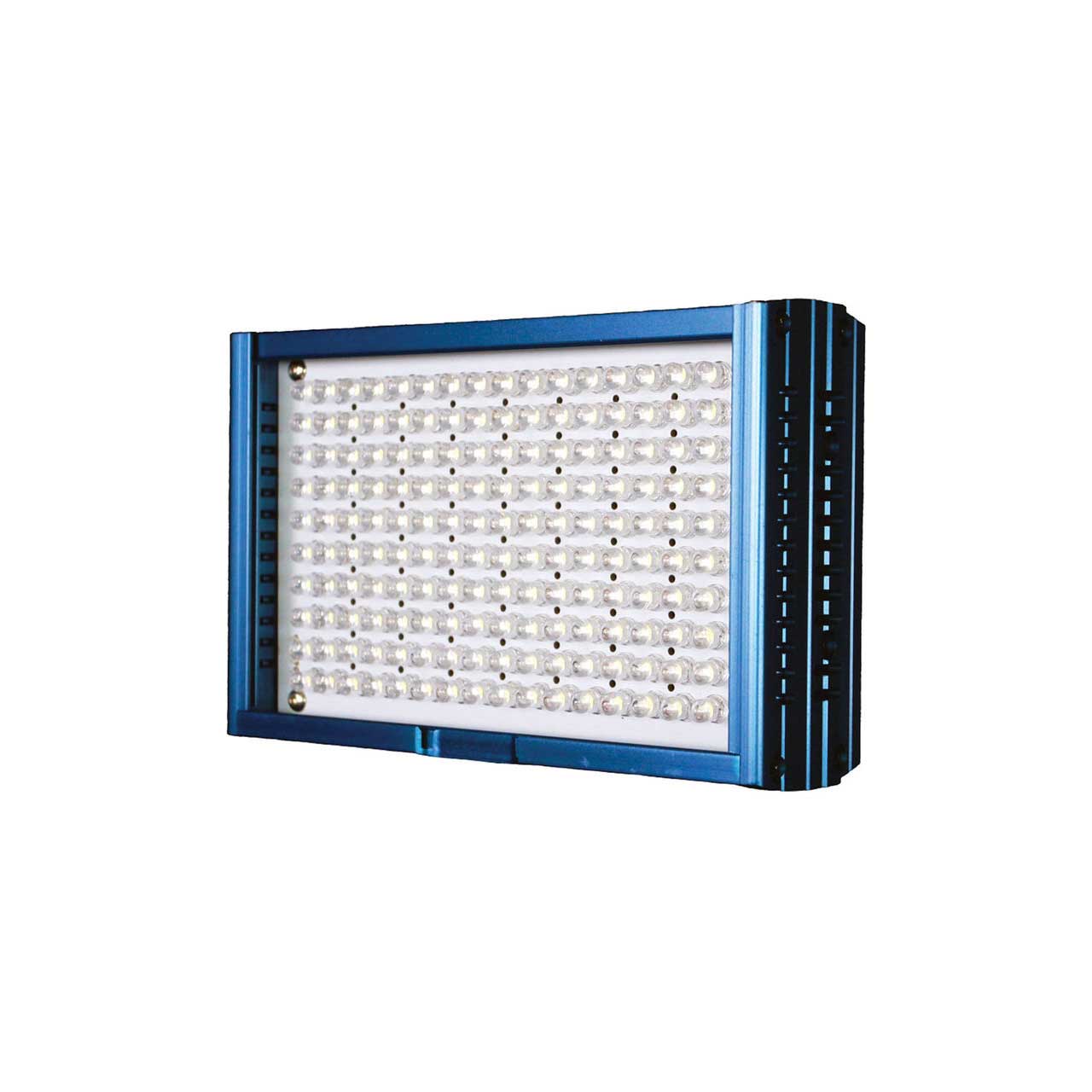

    LED160A Light
  • Optical System: 160, 5mm LED bulbs in 16x10 arrangement
  • Beam Angle: 45°
  • Handling: Top and Bottom 1/4"-20 Threaded Adapter
  • Tilt Angle: Omni Directional with Hot Shoe Adapter/360° rotation on 1/4"-20 thread
  • Voltage Input: 12 VDC
  • Power Consumption: 9.6W
  • Power Connection: Barrel Type Connector, 110 - 240 VAC, 50 - 60Hz, 2.0A
  • Battery Connection: Sony/Panasonic Battery Plate
  • Battery DC Voltage: 7.2 - 8.4VDC
  • Battery Light Output: 75% of Total Output
  • Color Temperature: 3200K - 5600K
  • Color Rendition: CR >95
  • Dimming: 0 - 100% Continuous
  • Controls: Local On-Board Manual Controls
  • Housing Build: Aluminum
  • Estimated LED Lifetime: 50000 hours
  • Photometric Data:
    3' (0.9m): 56 fc at 600 lux
    6' (1.8m): 16 fc at 175 lux
    9' (2.7m): 7 fc at 75 lux
    12' (3.6m): 5 fc at 50 lux

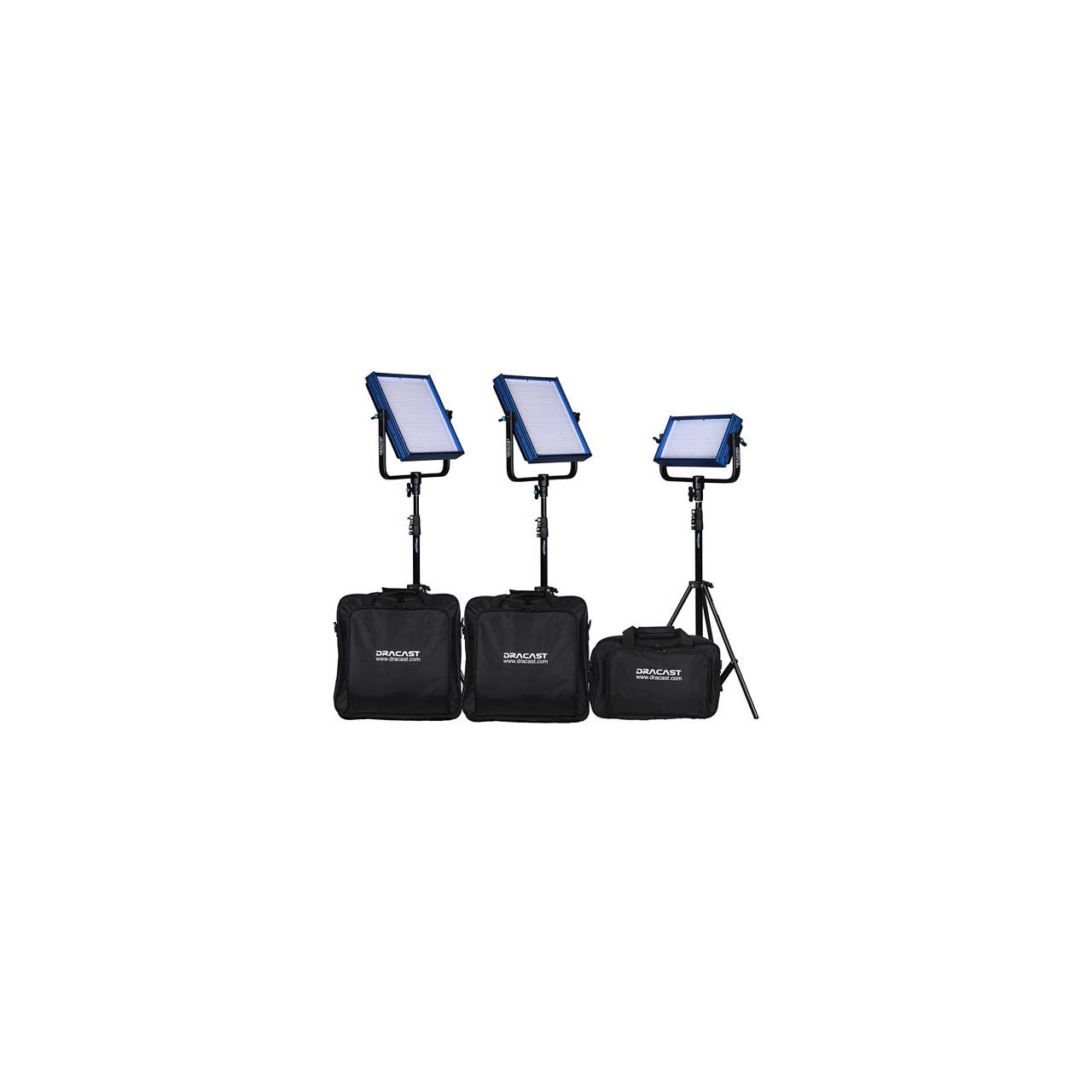

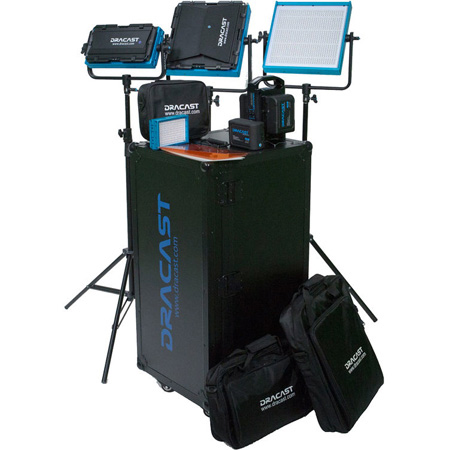

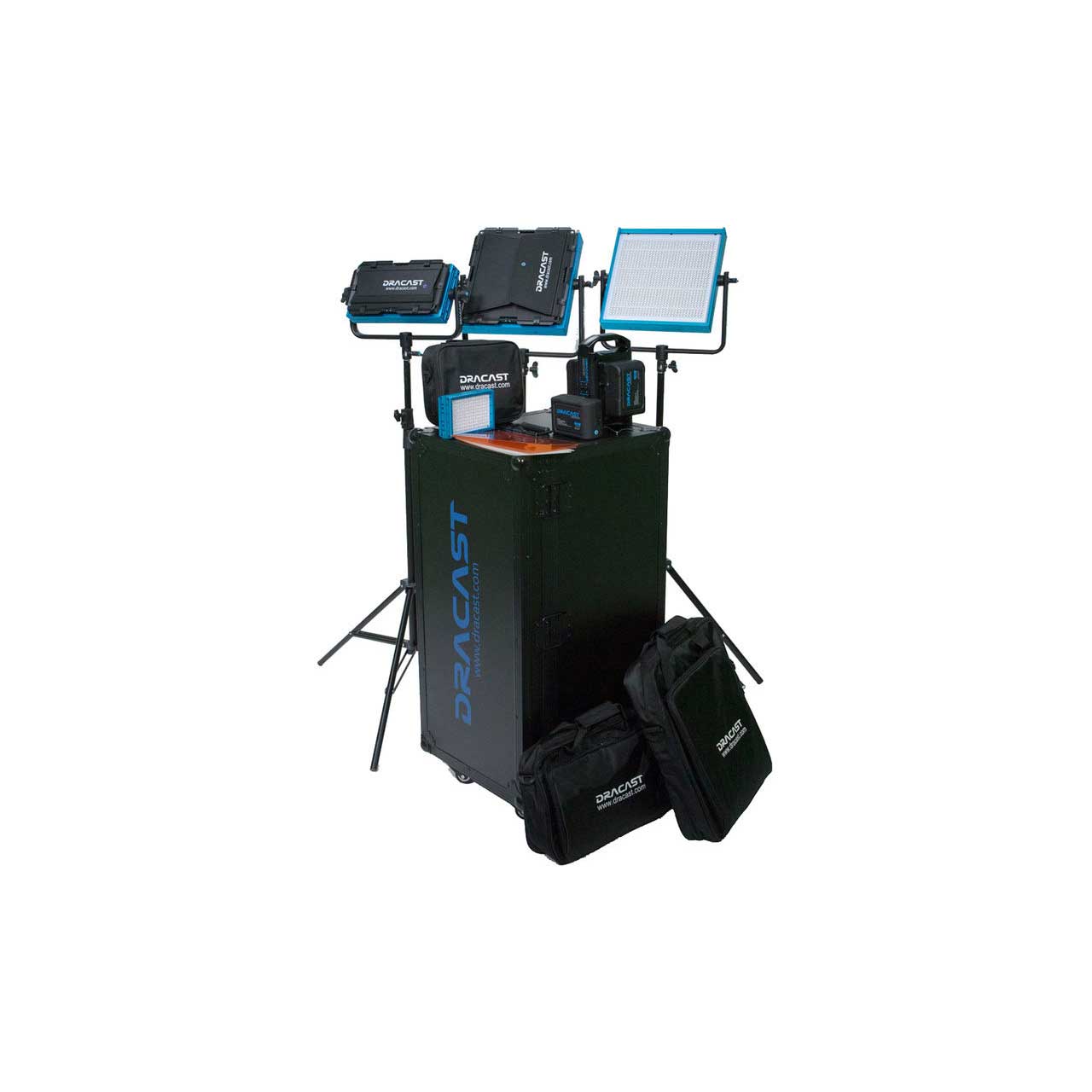

• Item Includes:

  • 1x LED160A Pro Bi-Color On-Camera LED Light
  • 1x LED500 Pro Bi-Color LED Light with V-Mount Battery Plate
  • 2x LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate
  • 3x 90Wh Li-Ion Battery
  • 1x Dual Charger Kit
  • 1x SKB Injection Molded Hard Carrying Case
  • 3x Light Stand
  • 3x Barndoor
  • 3x Filter Frame
  • 3x CTO / Diffusion Filter Pack
  • 4x Nylon Padded Carrying Bag with Shoulder Straps


• GTIN:

  0683405284017
