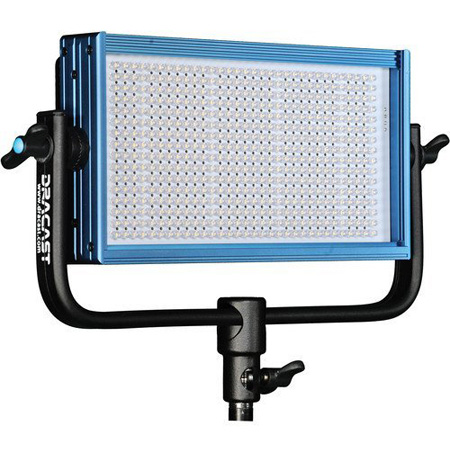

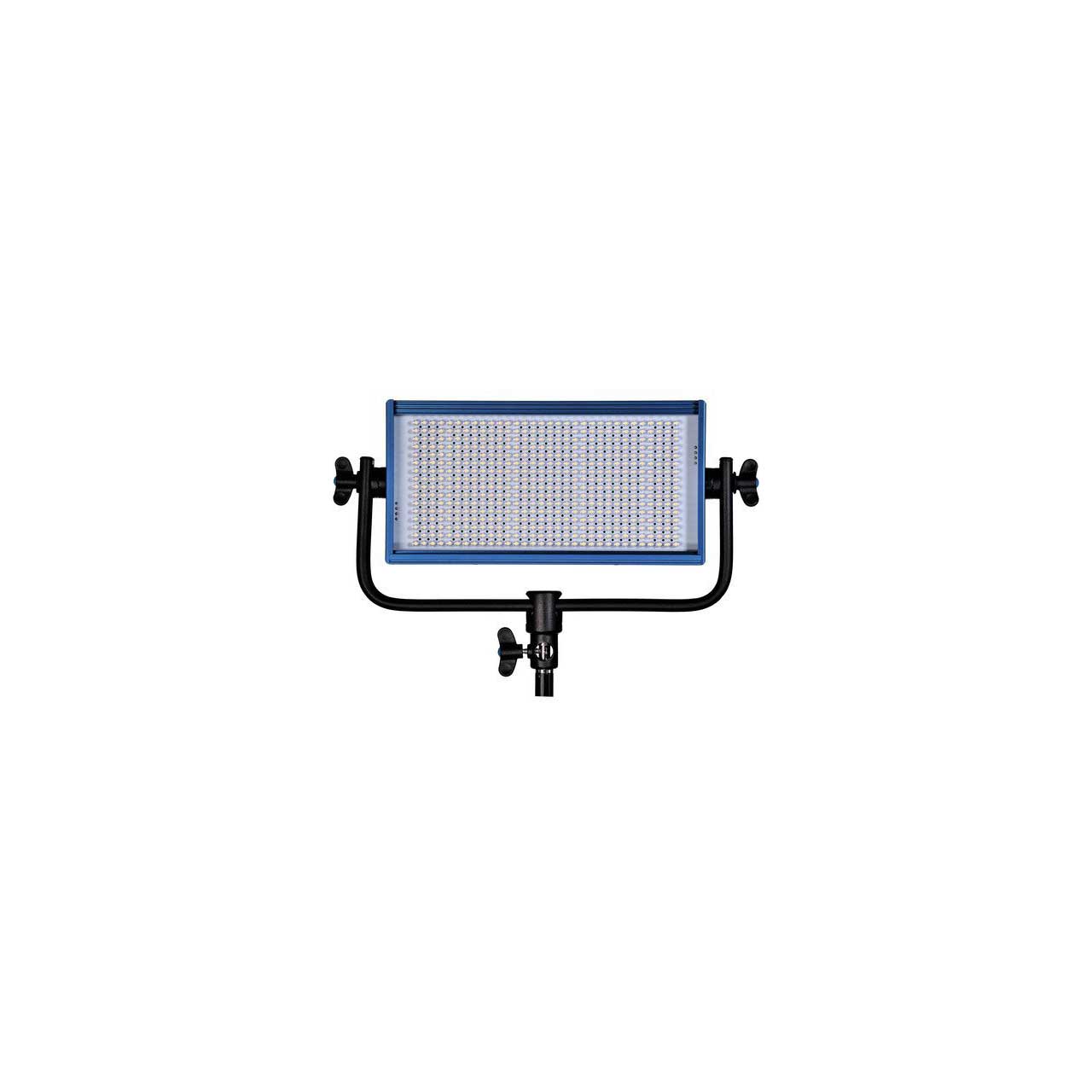

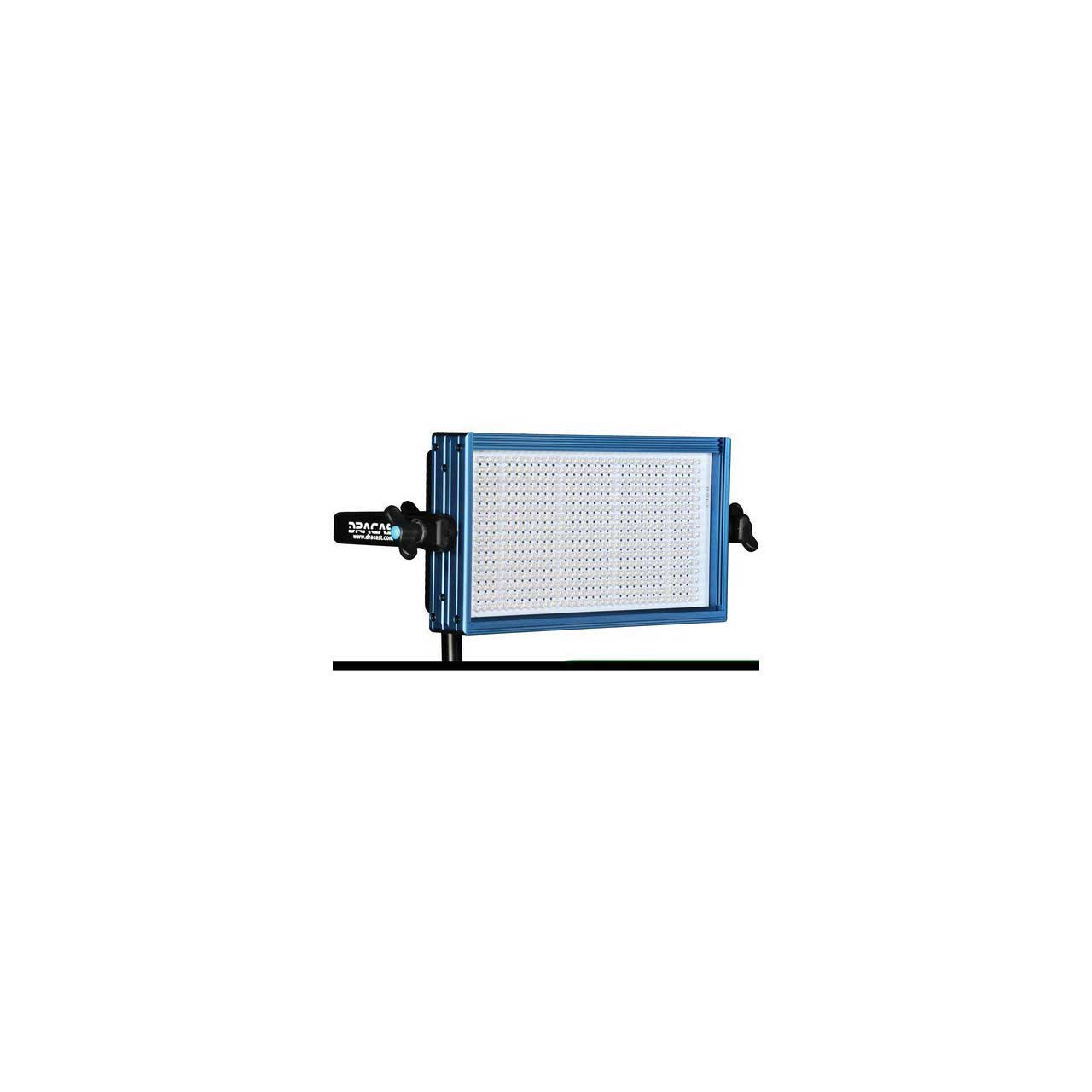

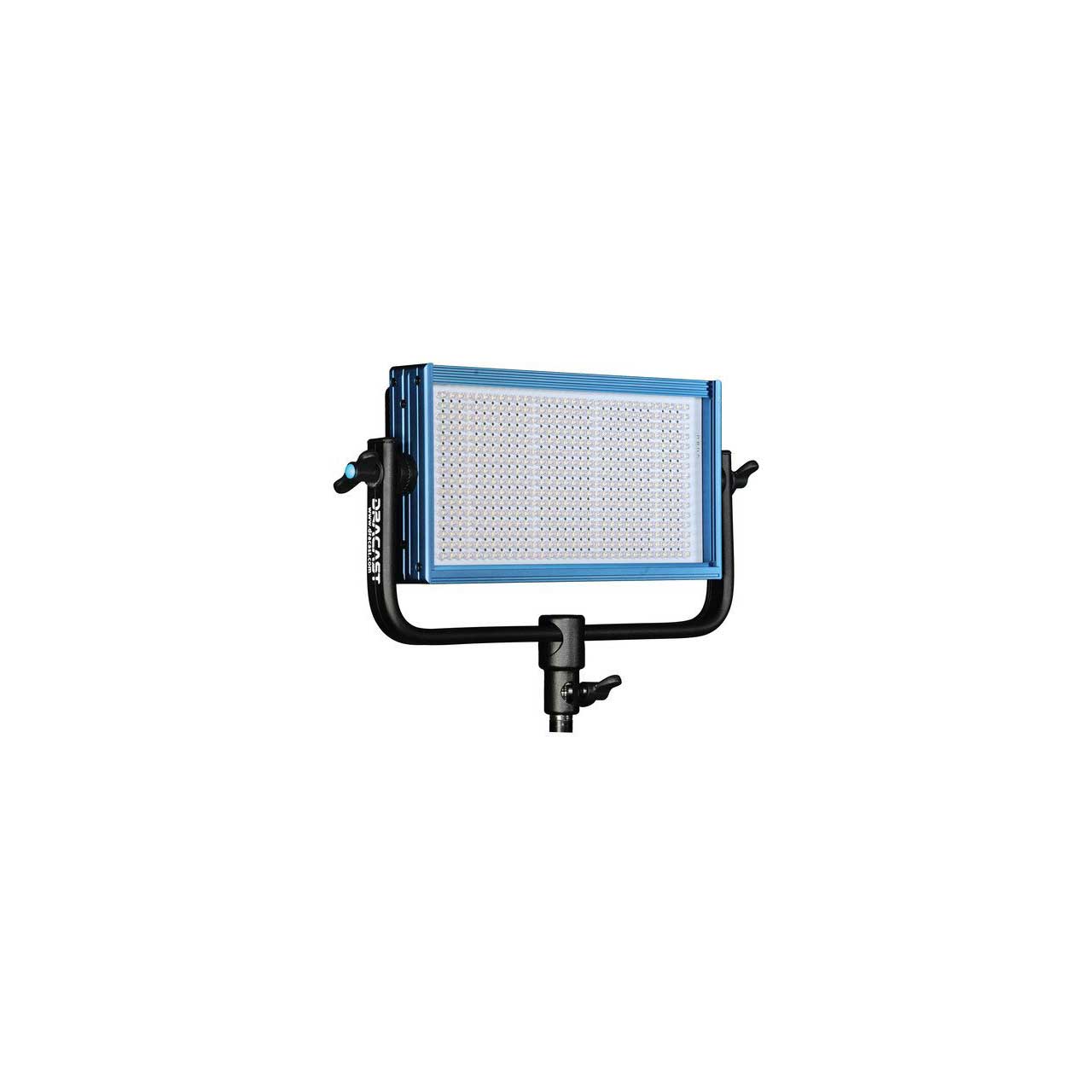

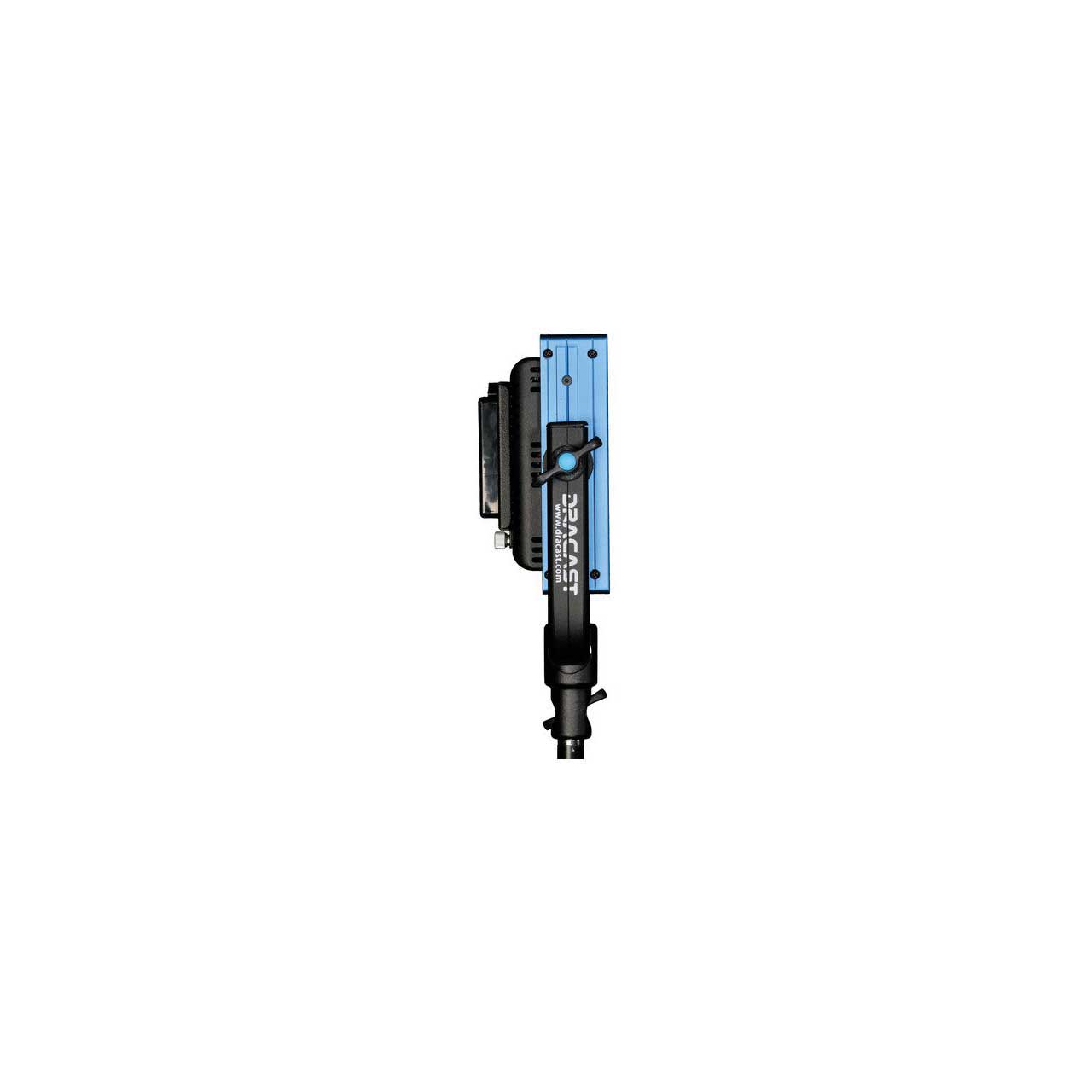

Dracast DRLED500PDVG LED500 Plus Series Daylight LED Light Panel

ITEM #: DR-DRLED500PDVG MFG #: DRLED500PDVG

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$399.00

Our Price:

$349.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DRLED500PDVG - Overview

Expanding on their line of panels, the Dracast DRLED500PDVG Plus Series Daylight LED Light adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 512 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a daylight-balanced color temperature of 5600K for matching with natural light and other fixtures.

The lights offer a spot beam angle of 45° as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 30W of power. Additionally, it is lightweight at just 4 lb and measures 12 x 6 x 2" in size.

  • Features:

    • 512 LEDs with CRI of >95
    • Color Temperature: 5600K
    • Beam Angle: 45°
    • Dimming from 0-100%
    • DC or AC Operation
    • 12 x 6 x 2" Panel; Weighs 4 lb
    • DMX Input and Output
    • Digital Display & Aluminum Chassis
    • Gold Mount and V-Mount Battery Plates

  • Specifications:

    • Light Fixture
    • Beam Angle: 45°
    • Color Temperature: 5600K
    • Color Accuracy Standard: CRI 95
    • Cooling System: None
    • Dimming: Yes, 0 to 100%
    • Display: None
    • Housing Material: Aluminum
    • Number of LEDs: 512
    • Fixture Dimensions: 12.0 x 6.0 x 2.0" / 30.5 x 15.2 x 5.1 cm
    • Fixture Weight: 4 lb / 1.8 kg (Including Yoke)

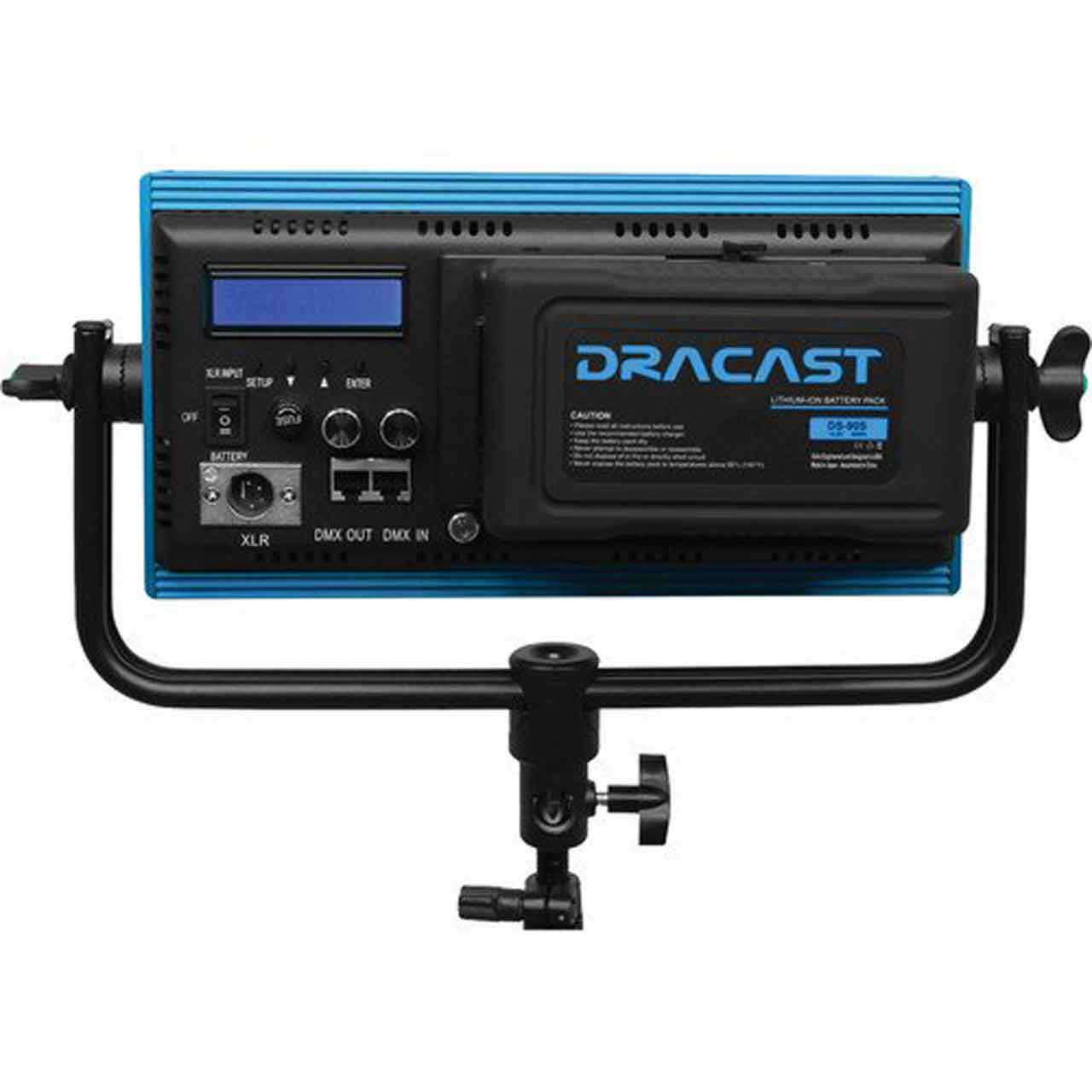

      Connectors
    • Battery Plate: 1 x Gold Mount, 1 x V-Mount
    • DMX Connector: RJ45

      Mounting
    • Yoke Mount: TVMP / Hex Bolt
    • Fixture Mount: 5/8" Receiver
    • Accessory Mount: None

      Power
    • Input: AC Input Power: 100 to 240 VAC, 50 / 60 Hz, DC Input Power: 12 VDC
    • Power Source: AC Adapter, External Battery
    • Max Power Consumption: 30 W

      Physical
    • IP Rating: IP20
    • Package Weight: 9.0 lb
    • Box Dimensions (L x W x H): 17.0 x 11.0 x 8.0"

  • Item Includes:

    • 1x Dracast LED500 Plus Series Daylight LED Light
    • 1x Battery Plate for LED500 and LED1000 (Gold Mount)
    • 1x Battery Plate for LED500 and LED1000 (V-Mount)
    • 1x Aluminum Yoke for LED500 Light
    • 1x AC Power Adapter for LED500 Light
    • 1x Carrying Case
    • 1x Limited 1-Year Warranty

  • Warranty:

    • 1 Year Limited Warranty
