Channel Vision E4200IR Digital RF Modulator

ITEM #: E4200IR MFG #: E4200IR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the E4200IR

E4200IR - Overview

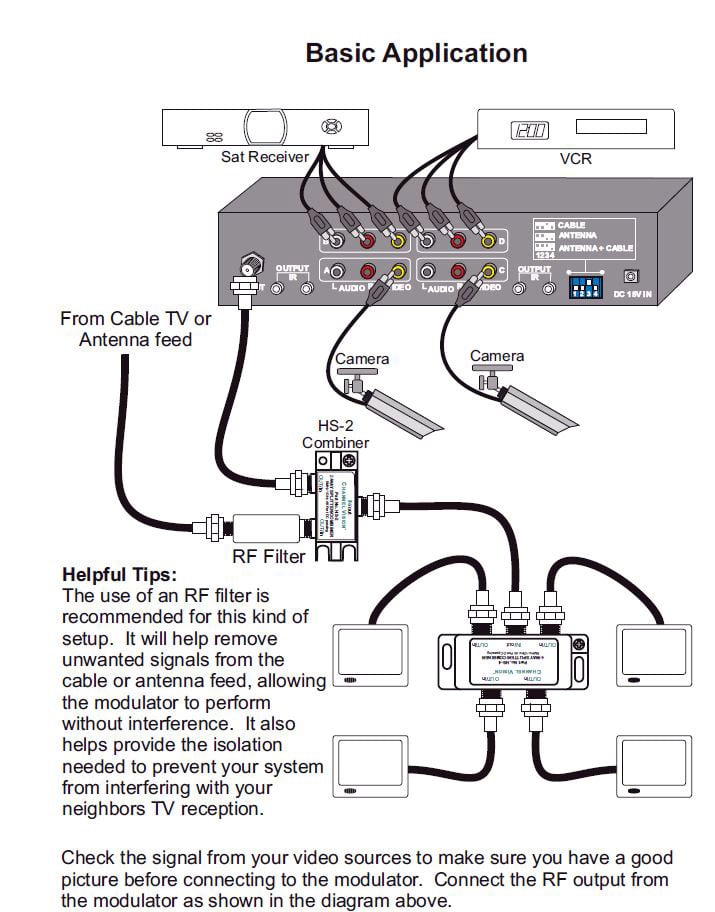

The Channel Vision E4200IR is a 4-input RF modulator that creates user selectable TV channels from standard composite video signals. In addition to creating a whole-house audio video system, these units also provide an integrated IR repeating system that runs over the same coax that delivers video to your TV set.

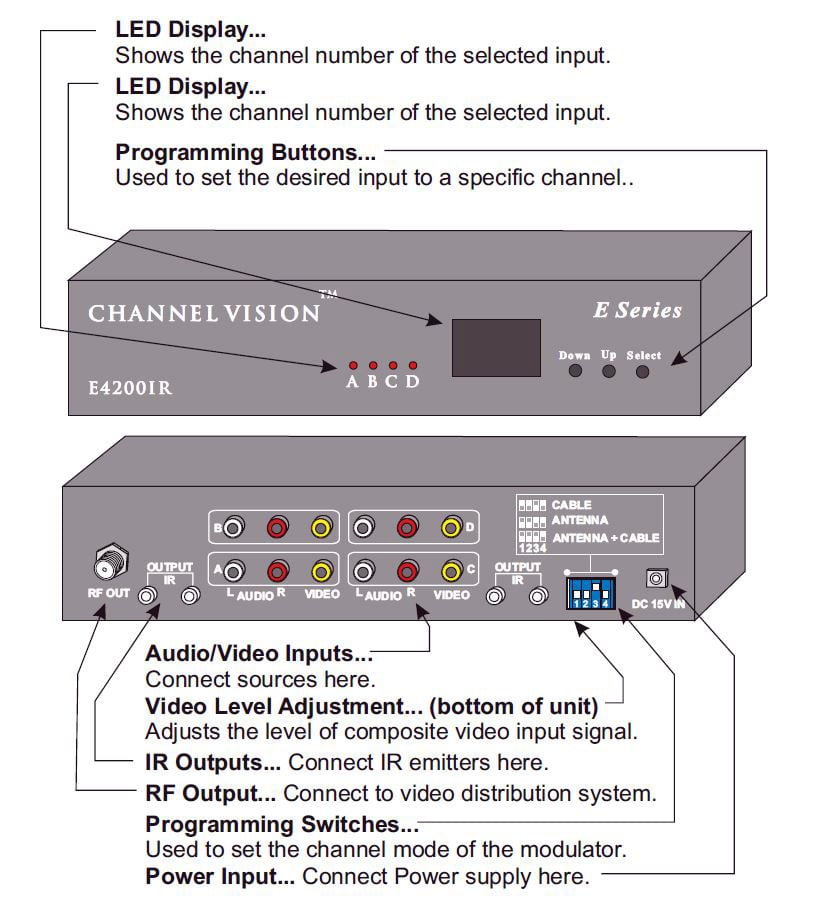

  • Features:

    • 25dBmV output
    • LED Channel display, video level adjustment
    • Economical 4 input ultra band 65-135
    • UHF 14-78 (Excluding 95-99)
    • Push button channel selector
    • Non-Volatile memory
    • Integrated IR engine


  • Specifications:

    • RF Modulator: PLL Synthesized Oscillator, Video: NTSC, Audio: L&R summed Monaural.
    • RF Carriers: Freq. Stability: 50kHz, Freq. Range: UHF 471.25-855.25MHz, Ultraband 469.25-859.25MHz, Channels: UHF 14-78, Ultraband 65-135 (Excluding 95-99), Channel Width: 6.0MHz, Audio Offset: 4.5MHz 5kHz(NTSC), 5.5MHz 5kHz(PAL-G), Sidebands: Double.
    • RF Output: RF Carrier 25dBmV, Video Output 1Vpp, Audio Output 1V RMS, Video Performance, Differential Gain Less than 2% (0.2dB),


  • GTIN:

    0690240021080
