Eartec EVADE EVX8D Full Duplex Light Industrial Wireless Intercom System with 8 Dual-Ear Headsets

ITEM #: EAR-EVX8D MFG #: EVX8D

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3,785.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EVX8D - Overview

Eartec Evade - Light Industrial Full Duplex Wireless Intercom with Dual Ear Headsets Eartec's EVADE Full Duplex Intercoms with Double Ear headsets are the next generation of simple, sound, pro audio team communication systems. These Light Heavyweight self-contained wireless feature all electronics including a compact radio built inside the ear cups eliminating wires and belt packs. Since they operate without complicated base stations EVADE Double provide affordable and reliable full duplex voice contact to demanding production crews. They are built rugged, are super easy to operate, and totally portable. Complete Evade intercoms include one "MAIN" headset that relays the digital signals generated by up to eight "Remote" units. The resulting open line talking pattern allows up to nine users to talk simultaneously and hands-free within 1/2 mile range. EVADE headsets utilize Frequency Hopping technology, automatically switching channels in order to easily circumvent interference. They also include Eartec's Auto Mute Mic boom that can be worn on either left or right and automatically mutes the transmit signal when set to the UP position. Lithium Polymer batteries (included) charge externally and are field replaceable which allows purchase of spare batteries extending the run time. Field programmable and expandable EVADE do not interfere with other RF equipment. A multi-port Battery Charger and padded storage / transport case are included.

  • Features:

    • Excellent performance - Range up to 1/2 mile Radio installed inside earcup, no wires or beltpacks
    • Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable
    • Auto Mute Boom - Mute when in UP position
    • Volume Control - Simple up / down push button adjustment Sealed for use outdoors in inclement conditions
    • Light Industrial Design - Wear comfortably for an 8 hour work shift
    • Field Programmable - Start small and add to your system as needed

  • Specifications:

    • Frequency Range: 2407MHz-2475MHz
    • Data Rate: 1MBPS
    • Bandwidth: 150KHz
    • Channel Spacing: 1MHz
    • Modulation Type: GFSK
    • Gain of Antenna: 0db
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM/16kbit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Power Supply: Rechargeable Li-polymer Battery @ 3.7v/1000mAH
    • RF Output Power: 80mw
    • Operating Temperature: 0 - +50° C
    • Operating Relative Humidity Range: 30% - 90%
    • Operation Current: 110mA
    • Operation Time: 8h
    • Range: 1/2 mile (open field)
    • No FCC License Required

  • Item Includes:

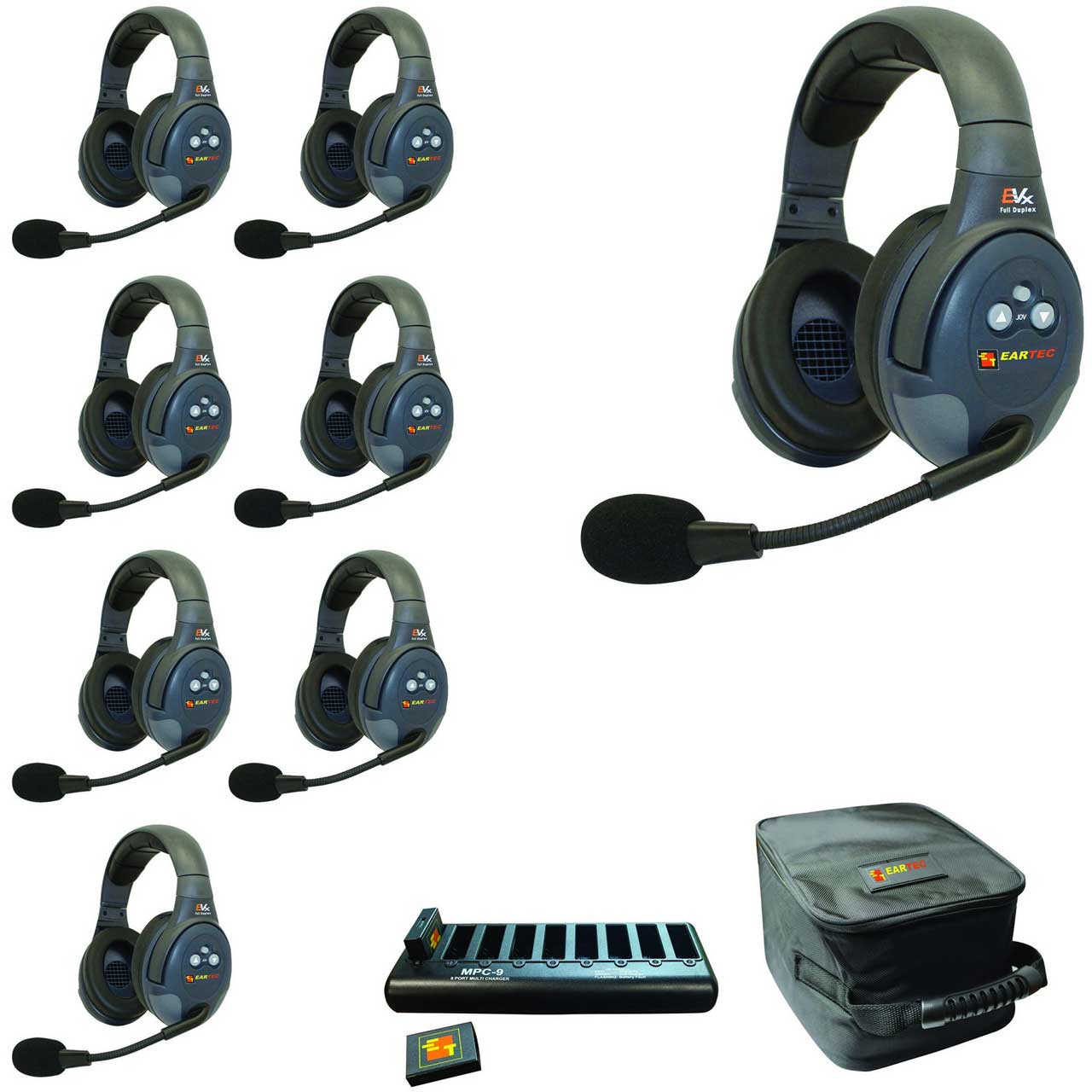

    • 1x Eartec EVADE EVX8D Full Duplex Wireless Intercom System with 8 Dual Ear Headsets

  • Warranty:

    • 1 Year
