EVXCM - Overview

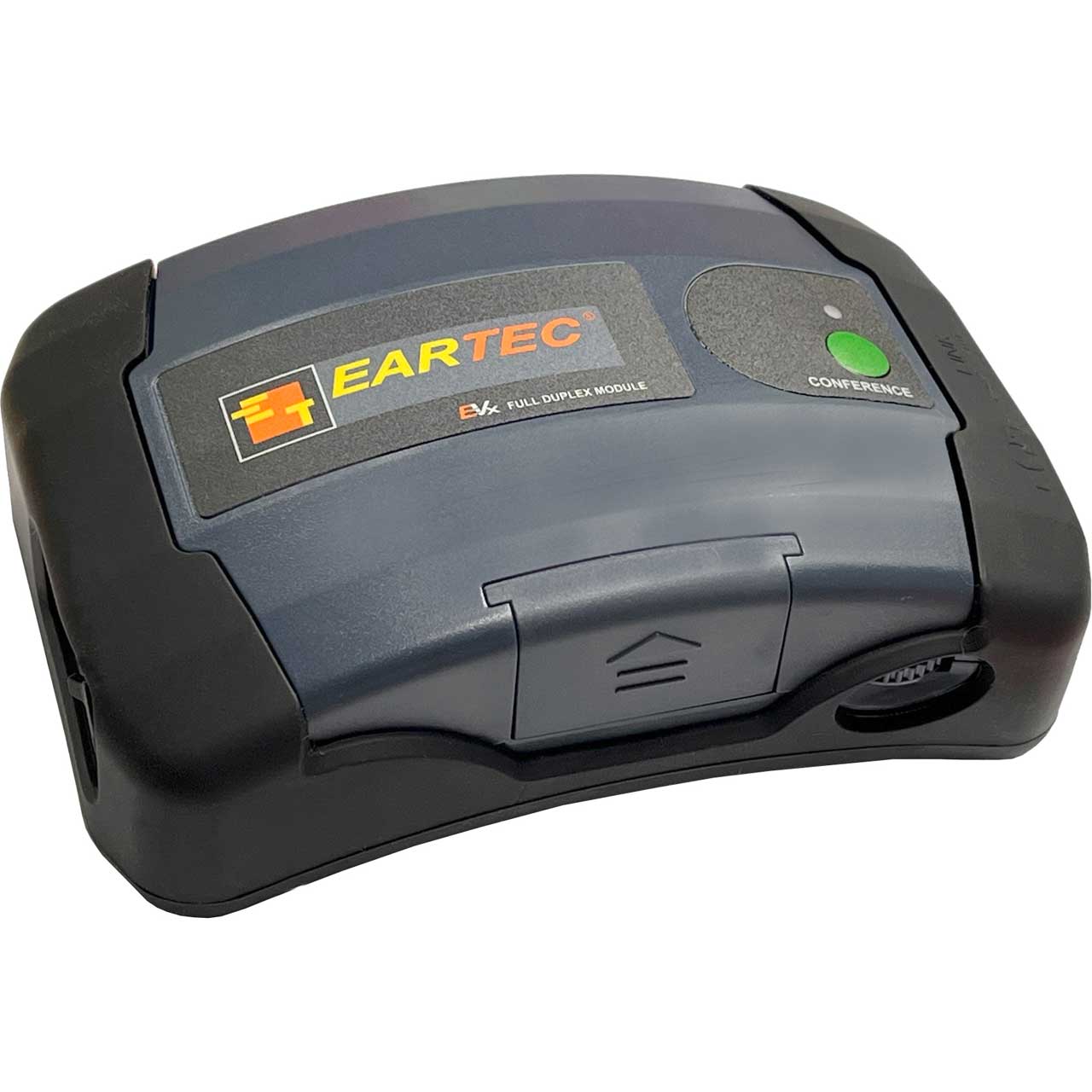

The EVADE CMOD Full Duplex Wireless Intercom System provides wireless communication to larger production staffs that need to stay in constant voice contact while working with their hands. With Eartec's software controlled circuit, 16 roaming wireless units can communicate just as if they were plugged in by a floor cable. Two Conference Modules can be interlinked doubling system capacity to 32 users all connected in full duplex mode.This versatile Mini Base weighs only 9 oz. and can either be placed strategically "on location" or belt worn. When clipped comfortably to the user's waist this digital repeater moves seamlessly with your group allowing crews to talk simultaneously within a 1/2 mile range.

  • Features:

    • Excellent performance - Range up to 1/2 mile Radio installed inside earcup, no wires or beltpacks
    • Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable
    • Auto Mute Boom - Mute when in UP position
    • Volume Control - Simple up / down push button adjustment Sealed for use outdoors in inclement conditions
    • Light Industrial Design - Wear comfortably for an 8 hour work shift
    • Field Programmable - Start small and add to your system as needed

  • Specifications:

    • Frequency Range: 2407MHz-2475MHz
    • Data Rate: 1MBPS
    • Bandwidth: 150KHz
    • Channel Spacing: 1MHz
    • Modulation Type: GFSK
    • Gain of Antenna: 0db
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM/16kbit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Power Supply: Rechargeable Li-polymer Battery @ 3.7v/1000mAH
    • RF Output Power: 80mw
    • Operating Temperature: 0 - +50° C
    • Operating Relative Humidity Range: 30% - 90%
    • Operation Current: 110mA
    • Operation Time: 8h
    • Range: 1/2 mile (open field)

  • Item Includes:

    • 1x EVADE C-MOD Base Station 1x Lithium-Polymer Battery 1x 9-Port Charger w/ Adapter

  • Warranty:

    • 1 Year
