Eartec HUB633 HUB w/UltraLITE - Full Duplex Wireless Headset Intercom System for Larger Crews - 1 HUB/3 Single/3 Double

ITEM #: EAR-HUB6-33 MFG #: HUB633

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,650.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HUB633 - Overview

Eartec HUB633 HUB withUltraLITE - Full Duplex Wireless Headset Intercom System for Larger Crews - 1 HUB/3 Single/3 Double.

HUB withUltraLITE - Full Duplex Wireless Headset Intercom Systems for Larger Crews

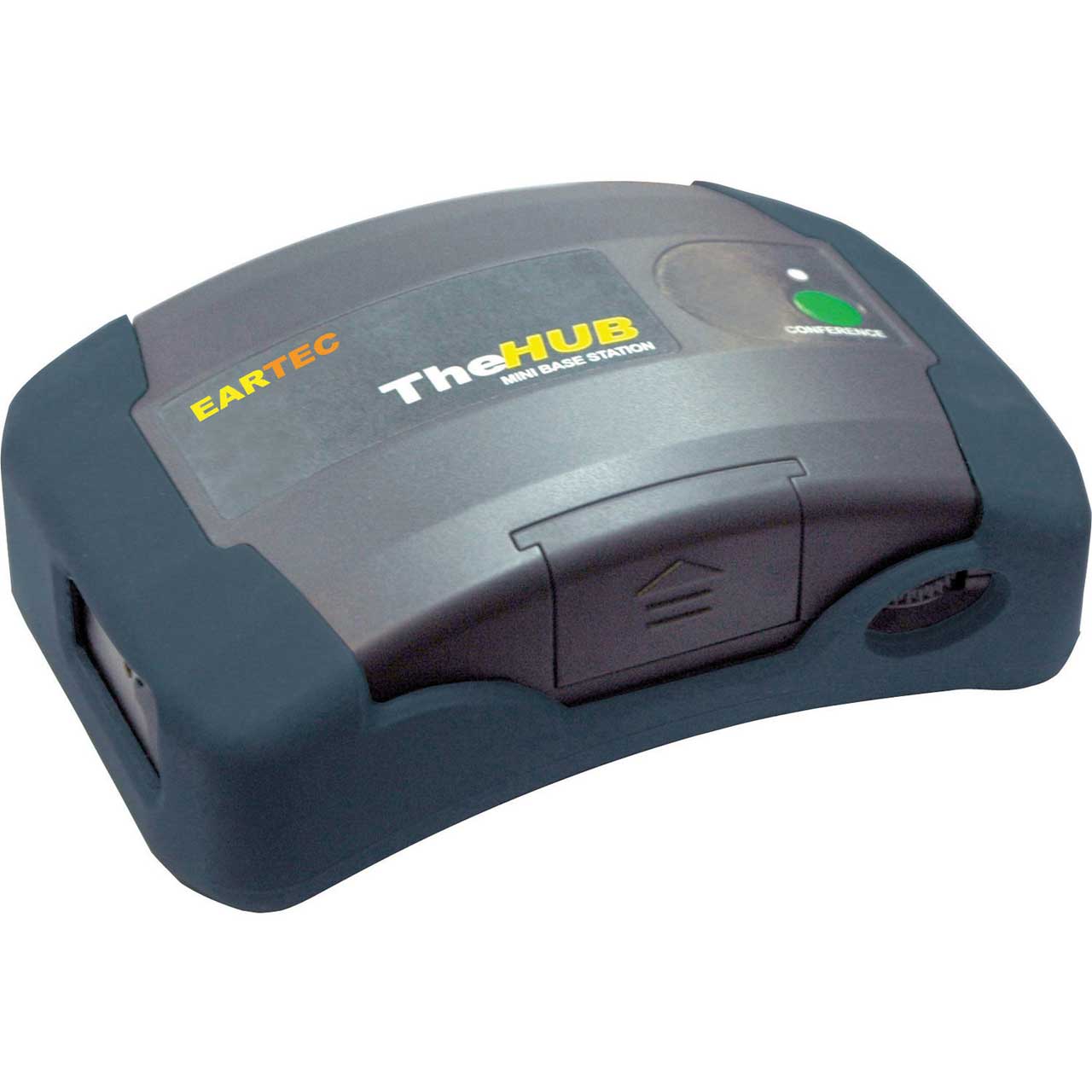

The HUB is a portable full duplex base station that connects up to 8 UltraLITE wireless headsets allowing larger production crews to communicate hands free. Weighing only 9 oz. the HUB can either be placed strategically "on location" or belt worn. When clipped comfortably to the user's waist the HUB moves with your staff seamlessly preserving continuous voice contact within a 400-yard range. UltraLITE self-contained single or double speaker wireless headsets are linked via the HUB providing simultaneous talk communication right "Out of The Box". To operate the UltraLITE simply turn the headsets "ON" and talk it's that simple. All electronics, including transceiver, antenna and battery, are installed inside the headset ear cup, there are no wires or radios to wear.

The Eartec HUB provides full duplex wireless communication to larger production staffs that need to stay in constant voice contact while working with their hands. This versatile Mini Base weighs only 9 oz. and can either be placed strategically "on location" or belt worn. When clipped comfortably to the user's waist this digital repeater moves seamlessly with your group allowing crews to talk simultaneously within a 400-yard range.

Two operating channels are built-into the HUB circuitry so that separate groups of four can talk privately, and pressing the CH button creates an eight-person conference. A dual pin jack allows addition of a wired headset extending the talk net to nine users.

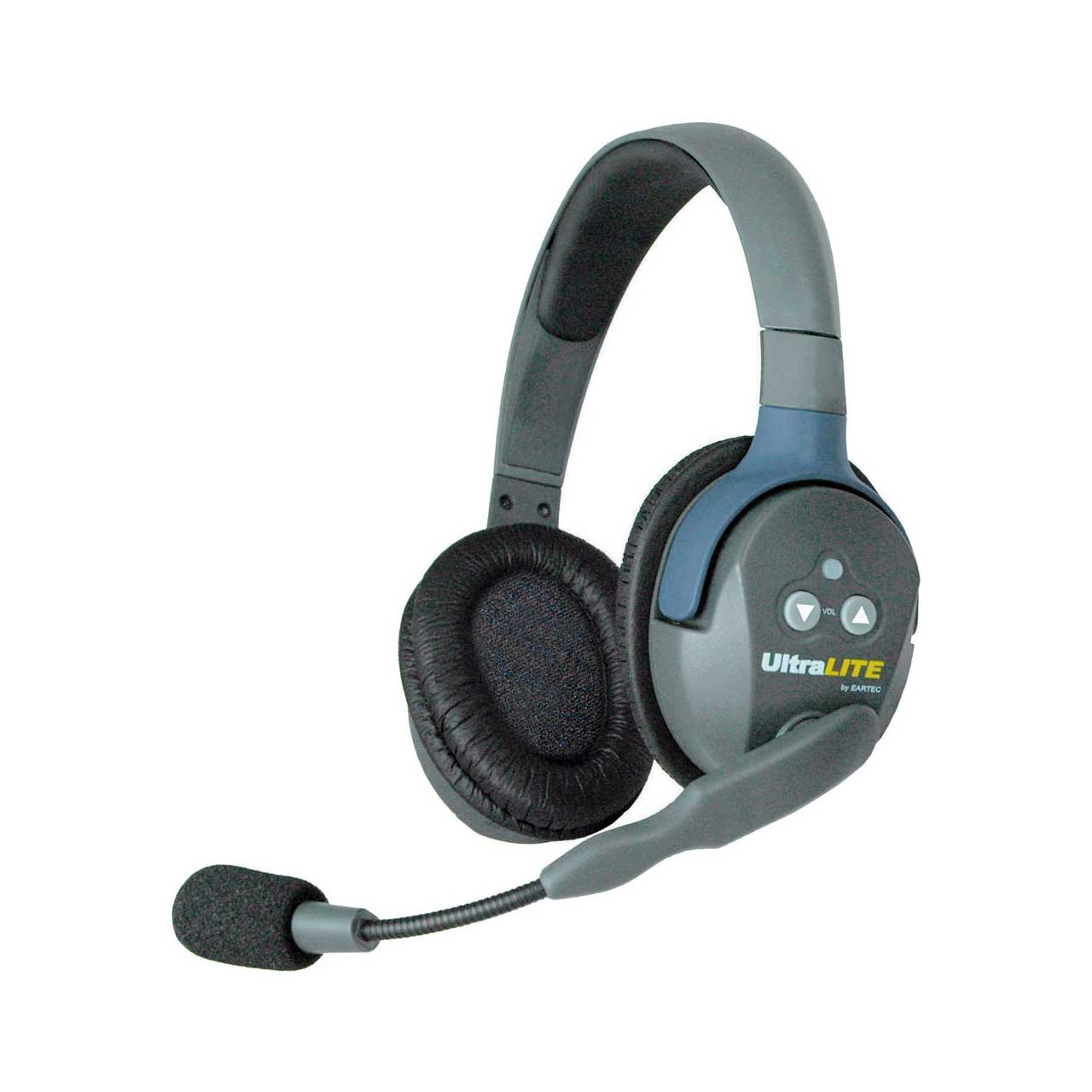

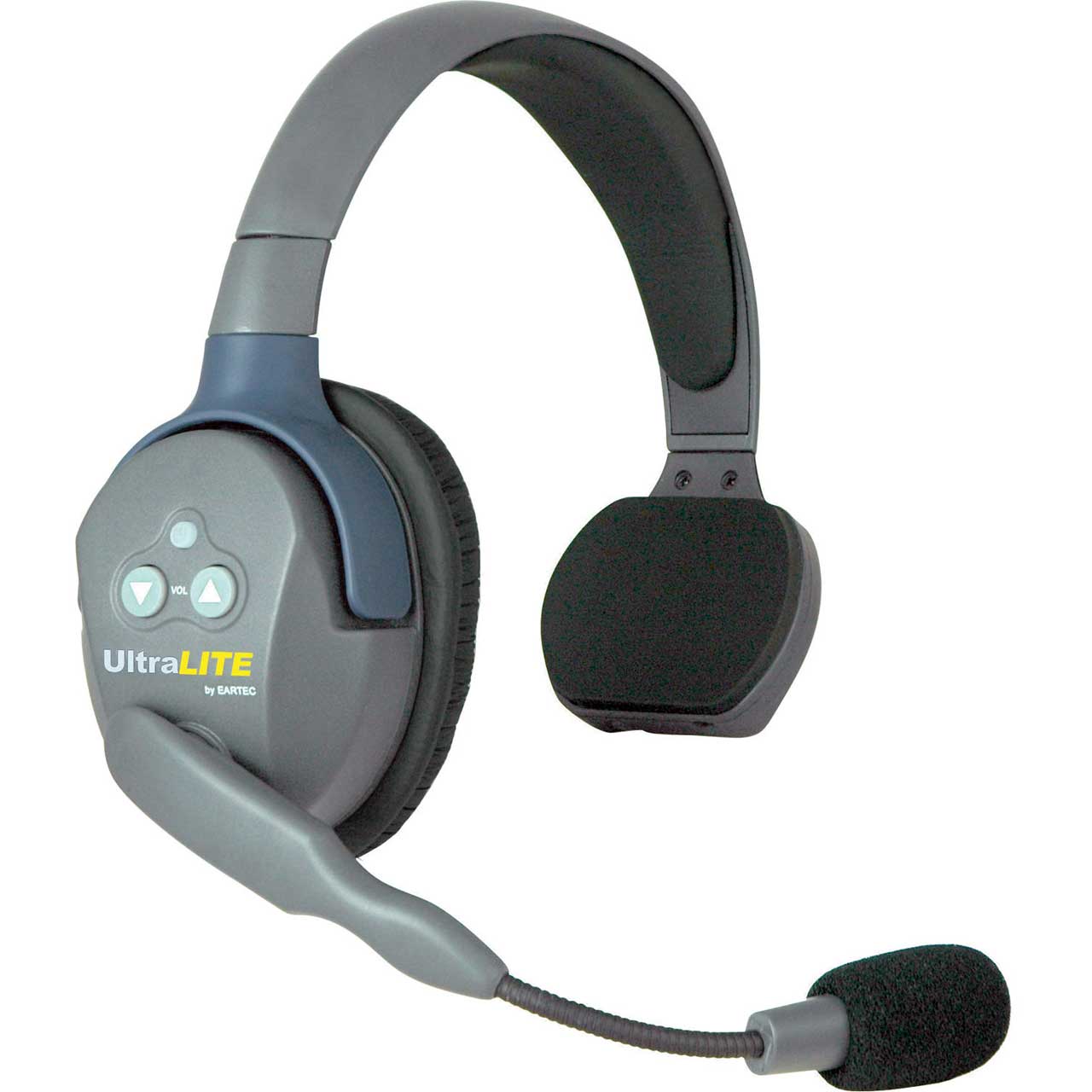

UltraLITE are revolutionary headsets that eclipse all other full duplex systems for performance and convenience because the transceiver is built right inside the ear cup. This self-contained, "All in One" design eliminates wires and belt worn radios. And since UltraLITE do not require complicated base stations users can remain in constant full duplex voice contact even while on the move.

UltraPAK are compact, powerful full duplex transceivers designed specifically for crews that need hands free, voice communication and also require discreet, lightweight headsets. This traditional beltpack / headset configuration affords the flexibility of selecting between midweight and lightweight headsets and provides outstanding full duplex performance within a 300 yard range.

PLEASE NOTE Since they do not have frequency hopping capability UltraLITE wireless headsets are not recommended for coaching communication as they are susceptible to interference in football stadiums.

  • Features:

    • The HUB
    • Portable mini duplex repeater
    • Clip to waist for total mobility
    • Protective neoprene shell
    • Two channels or conference
    • Expandable to 16 users
    • DECT / digital 1900 MHz band
    • Range up to 1/4 mile
    • Dual power option - Rechargeable Li-Poly battery and AC adapter
    • Integrated volume control
    • Dual pin headset jack

      UltraLITE
    • Full Duplex wireless communication without a base station or beltpack
    • Excellent Performance - Range up to 1/4 mile
    • DECT Frequency - Digital 1900 MHz band is interference free
    • Li-Poly Batteries - Provide continuous 6 hr operation and are field replaceable
    • Adjustable Mic Boom - Rotates 270 degrees, worn on left or right
    • Auto Mute - Mute microphone simply by moving the boom to up position
    • Volume Control - Simple Up / Down push button adjustment
    • Water Resistant - Silicone sealed for use outdoors in inclement conditions
    • Deluxe Padding - Headsets fit firmly yet comfortably for an 8 hour work shift
    • Field Programmable - Start small and add to your system as needed
    • Multi-port Charger - Individual battery bays, green LED indicates charge
    • Softside case - Waterproof nylon with padded compartments

      UltraPAK
    • Excellent performance - Range up to 1/4 mile
    • DECT Frequency - Digital 1900 MHz band is interference free
    • Li-Poly Batteries - Provide continuous 6 hr operation and are field replaceable
    • Lightweight Headset Option - Full line of lightweight headsets available
    • Mic Mute Button - Mutes microphone simply by pressing the microphone mute button
    • Volume Control - Simple up / down push button adjustment
    • Water Resistant - Silicone sealed for use outdoors in inclement conditions
    • Ergonomic Shape - Curved to comfortably fit the body
    • Field Programmable - Start small and add to your system as needed

  • Specifications:

    • The HUB
    • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
    • Frequency: 1920 - 1930MHz (USA)
    • Euro Frequency: 1880 - 1900MHz (EURO)
    • Weight: 4 oz
    • Connector: 2.5mm 3.5mm plug-in
    • Dimensions (WxDxH): 5.5 x 1.5 x 3.75"
    • Channel Bandwidth: 1.728 GHz
    • Modulation Type: GFSK
    • Transmission Speed: 1.152 Mbps (Baud Rate)
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM / 32bit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Range: 400m in open space
    • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
    • Charger Power Supply: AC / adapter: INPUT 110-40Vac OUTPUT 5.0V - 1000mA
    • Charge Time: 3 Hours
    • Operation Time: 3 Hours
    • Normal Conditions of Use: 32° to 104°F (0° to 40°C)
    • Storage Temperature: 14° to 122°F (-10° to 50°C)
    • No FCC License Required

      UltraLITE/UltraPAK
    • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
    • Frequency: 1920 - 1930MHz
    • Euro Frequency: 1880 - 1900MHz
    • Preferred Frequency: TX/RX: 1921.536 ~1928.448MHz
    • Tuning Range Receive: 1921.536 to 1928.448MHz
    • Maximum Transmit Power: 100mW
    • Usage Type: TDMA
    • Channel Tuning Step: 1.728MHz
    • Weight: UltraLITE: 4oz UltraPAK: 2oz
    • Channel Bandwidth: 1.728 GHz
    • Modulation Type: GFSK
    • Transmission Speed: 1.152 Mbps (Baud Rate)
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM / 32bit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Range: 400m in open space
    • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
    • Charger Power Supply: AC / adapter: INPUT 110-40Vac
    • Charge Time: 3 Hours
    • Operation Time: 5 Hours
    • Normal Conditions of Use: 32° to 104°F (0° to 40°C)
    • Storage Temperature: 14° to 122°F (-10° to 50°C)
    • No FCC License Required

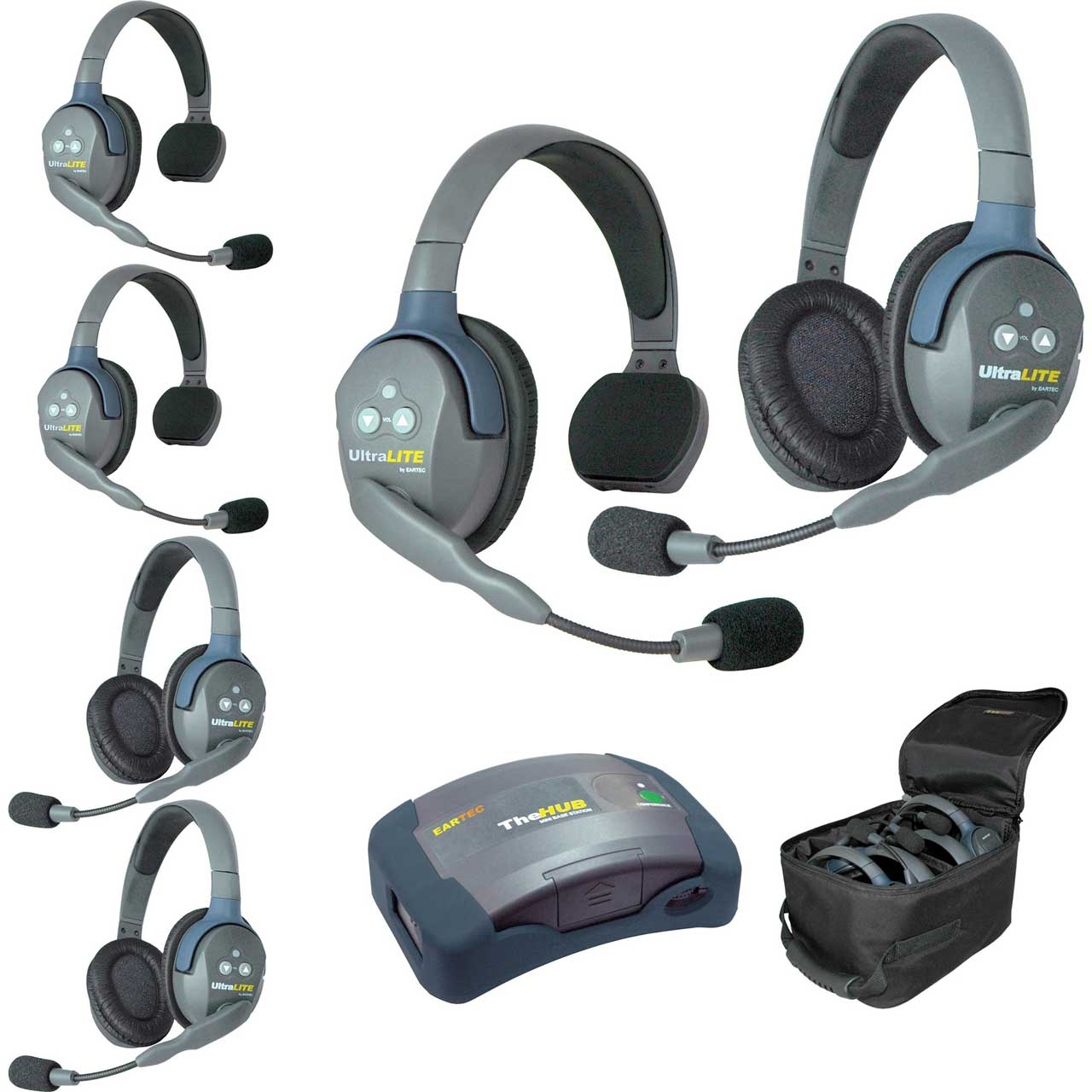

  • Item Includes:

    • 1x HUB Mini Base w/ Adapter
    • 3x UltraLite Single-Ear Remote Headsets
    • 3x UltraLite Double-Ear Remote Headsets
    • 1x 10-Port Charger w/ Adapter

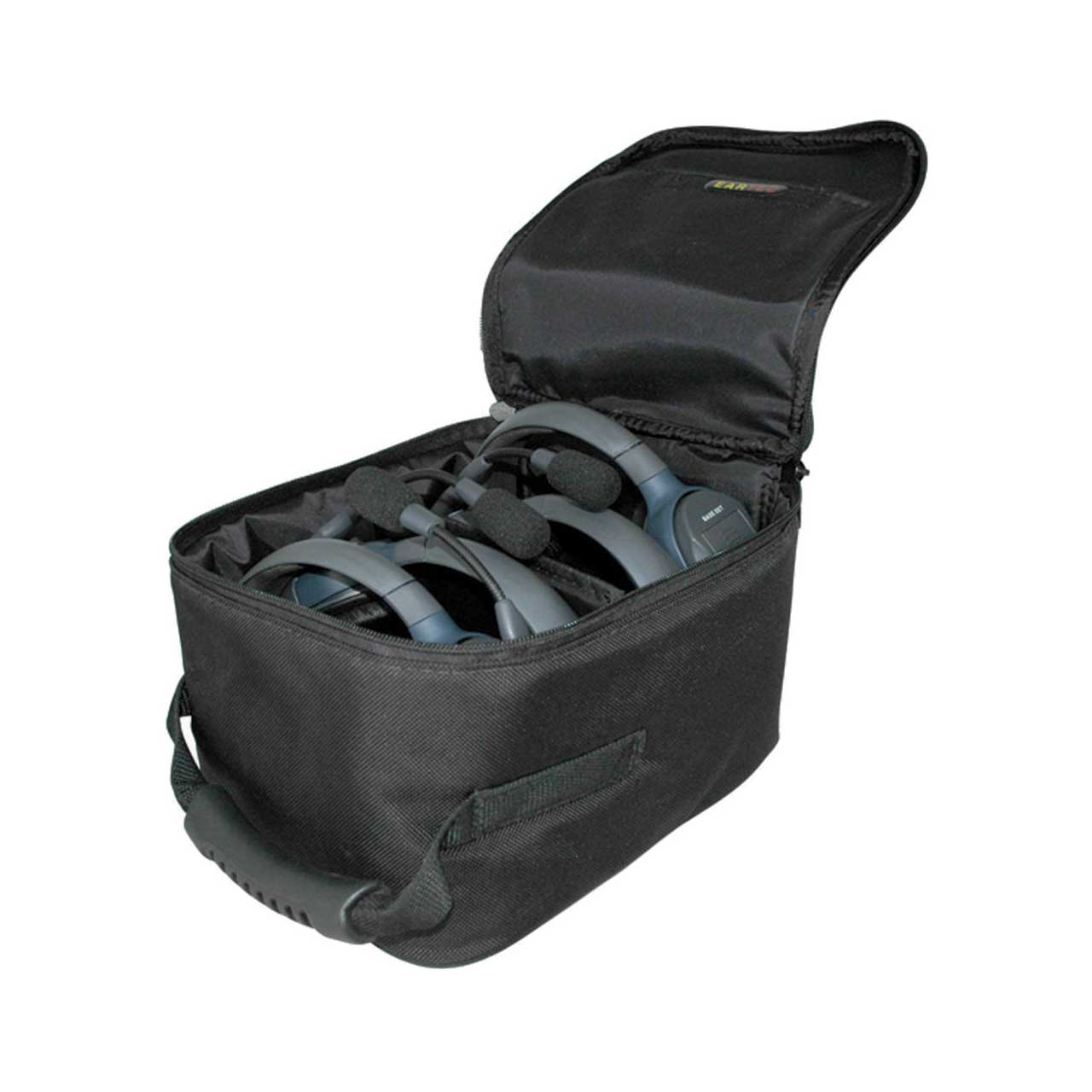

    • 1x Large Soft Padded Case
    • 7x Lithium-Polymer Batteries

  • Warranty:

    • 1 Year
