Eartec HUB6S HUB w/UltraLITE - Full Duplex Wireless Headset Intercom System for Large Crews - 1 HUB/6 UltraLITE Single

ITEM #: EAR-HUB6S MFG #: HUB 6S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,590.00

Availability: In Stock
iAvailability Description Popup


HUB 6S - Overview

HUB w/UltraLITE - Full Duplex Wireless Headset Intercom Systems for Larger Crews
The HUB is a portable full duplex base station that connects up to 8 UltraLITE wireless headsets allowing larger production crews to communicate hands free. Weighing only 9 oz. the HUB can either be placed strategically "on location" or belt worn. When clipped comfortably to the user's waist the HUB moves with your staff seamlessly preserving continuous voice contact within a 400-yard range. UltraLITE self-contained single or double speaker wireless headsets are linked via the HUB providing simultaneous talk communication right "Out of The Box". To operate the UltraLITE simply turn the headsets "ON" and talk it's that simple. All electronics, including transceiver, antenna and battery, are installed inside the headset ear cup, there are no wires or radios to wear.

HUB intercoms provide two separate operating channels, and pressing the Conference button links all UltraLITE headsets on the system. Each HUB also includes an accessory jack that allows addition of a plug-in headset expanding capacity to a crew of nine communicating in full duplex. Two HUBs can also be interlinked expanding the talking pattern to 16 users. The HUB also features a dual power option, rechargeable Lithium battery and AC adapter (included). All system batteries charge externally and are field replaceable.

HUB w/ UltraLITE intercoms are field expandable therefore upgrading the talking pattern is as simple as adding the radios and headsets you need then programming them to your existing system.

  • Features:

    • Portable mini duplex repeater
    • Clip to waist for total mobility
    • Protective neoprene shell
    • Two channels or conference
    • Expandable to 16 users
    • DECT / digital 1900 MHz band
    • Range up to 1/4 mile
    • Dual power option - Reghargeable Li-Poly battery and AC adapter
    • Integrated volume control
    • Dual pin headset jack

  • Specifications:

    • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
    • Frequency: 1920 - 1930MHz (USA), Euro Frequency 1880 - 1900MHz (EURO)
    • Weight: 4 oz
    • Connector: 2.5mm 3.5mm plug-in
    • Dimensions: 5.5"w x 1.5"d x 3.75"h
    • Channel Bandwidth: 1.728 GHz
    • Modulation Type: GFSK
    • Transmission Speed: 1.152 Mbps (Baud Rate)
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM / 32bit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Range: 400m in open space
    • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
    • Charger Power Supply: AC / adapter INPUT 110-40Vac OUTPUT 5.0V - 1000mA
    • Charge Time: 3 Hours
    • Operation Time: 3 Hours
    • Normal Conditions of Use: 0 C to 40 C
    • Storage Temperature: -10 C to 50 C

  • Item Includes:

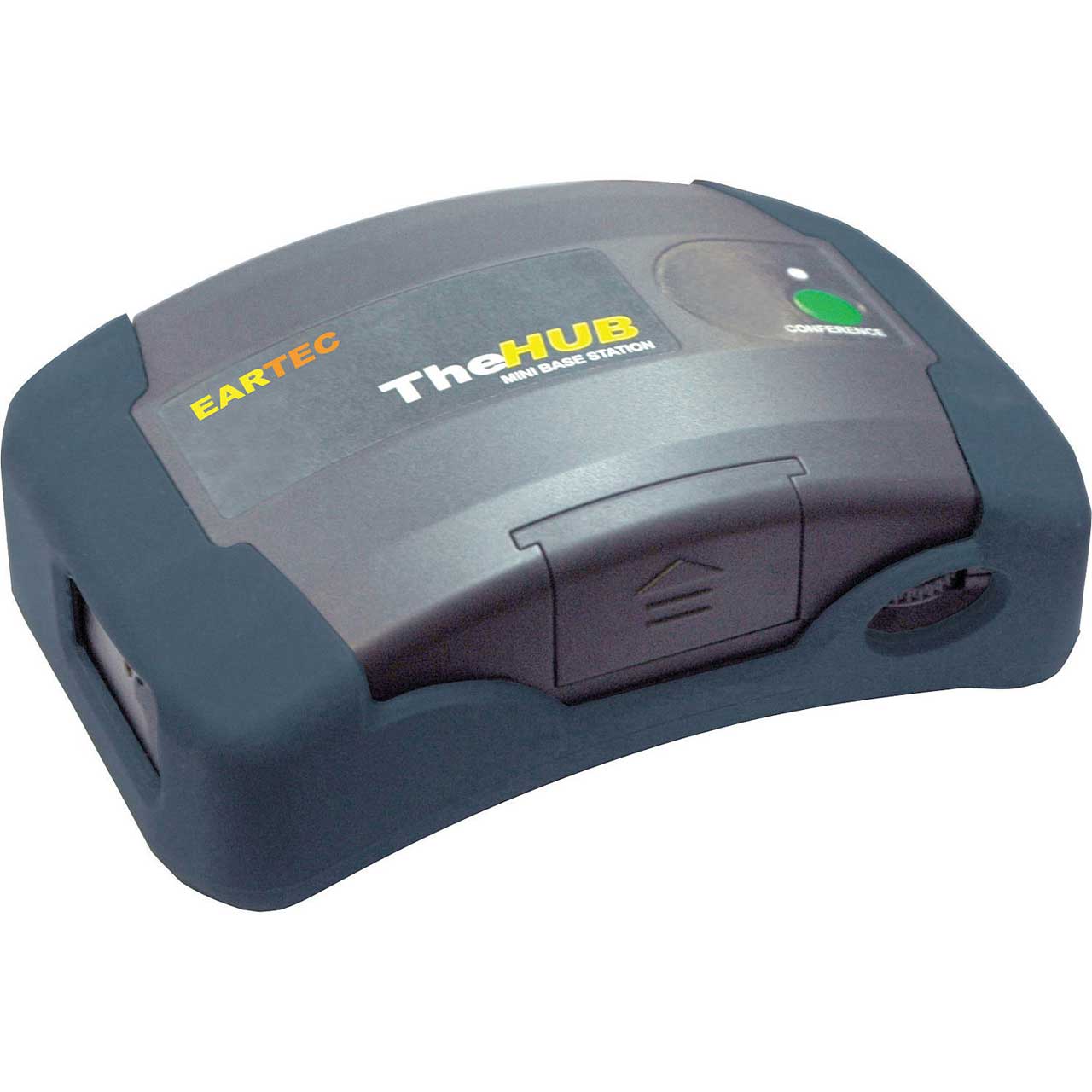

    • 1x HUB Mini Base w/ Adapter

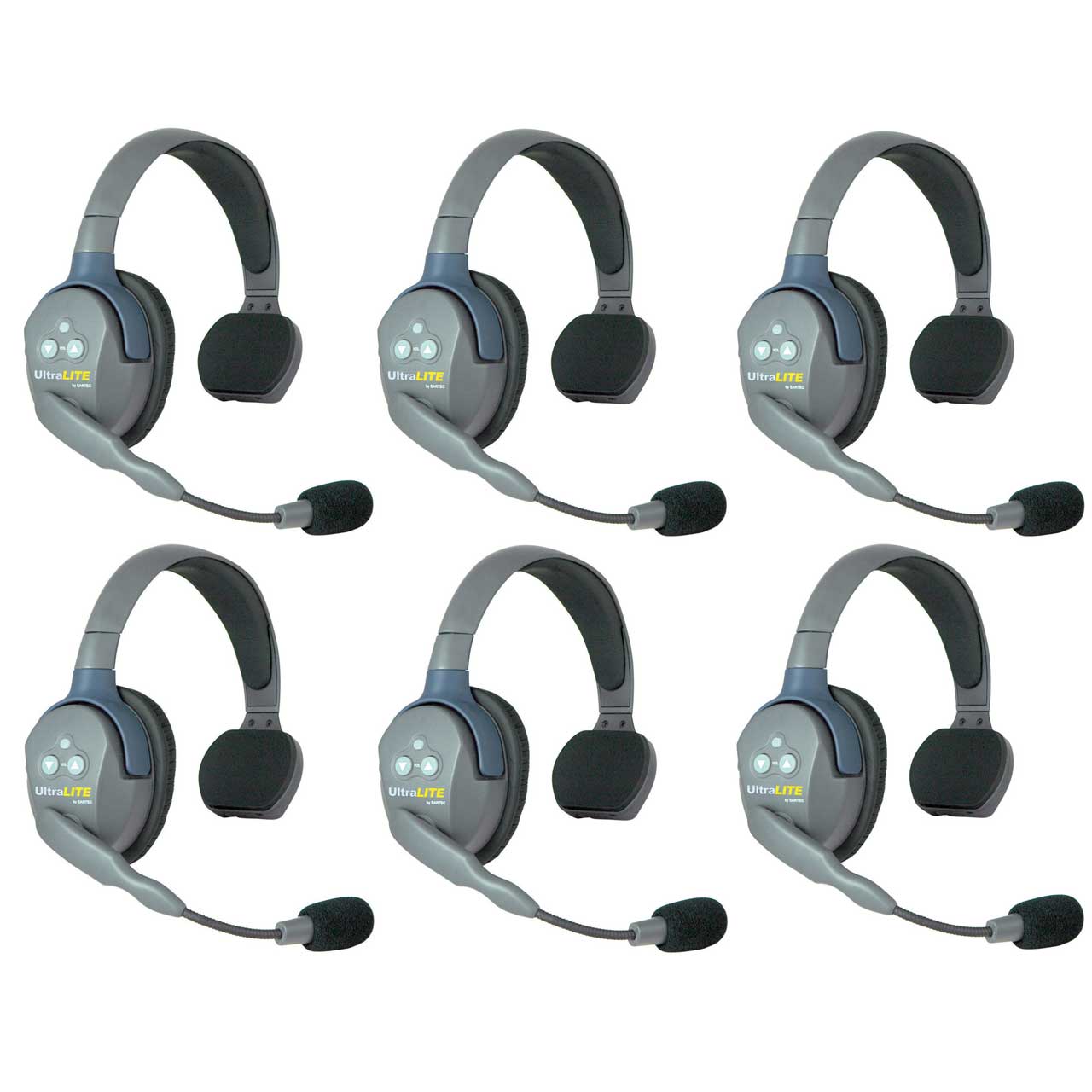

    • 6x UltraLite Single-Ear Remote Headsets

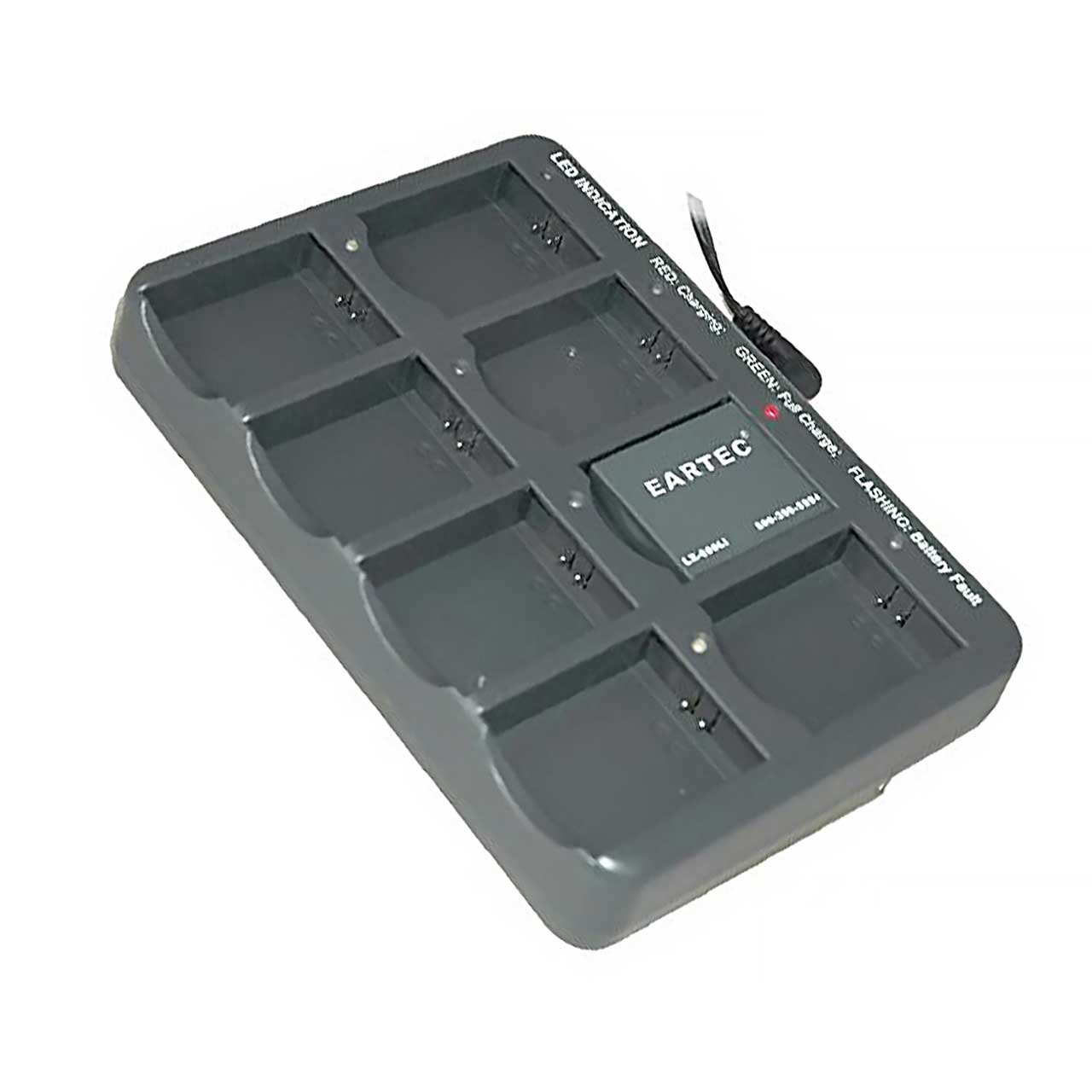

    • 1x 10-Port Charger w/ Adapter

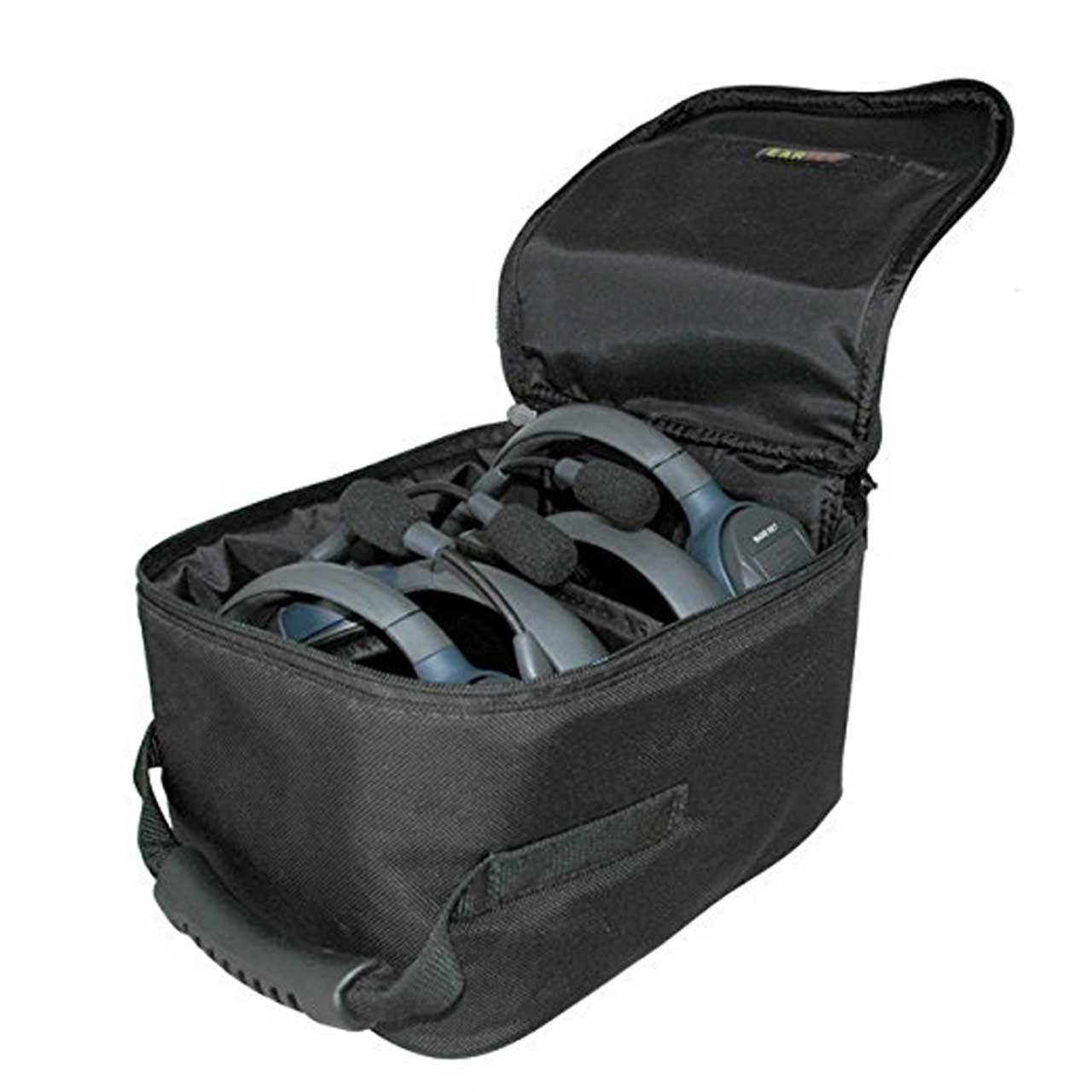

    • 1x Large Soft Padded Case

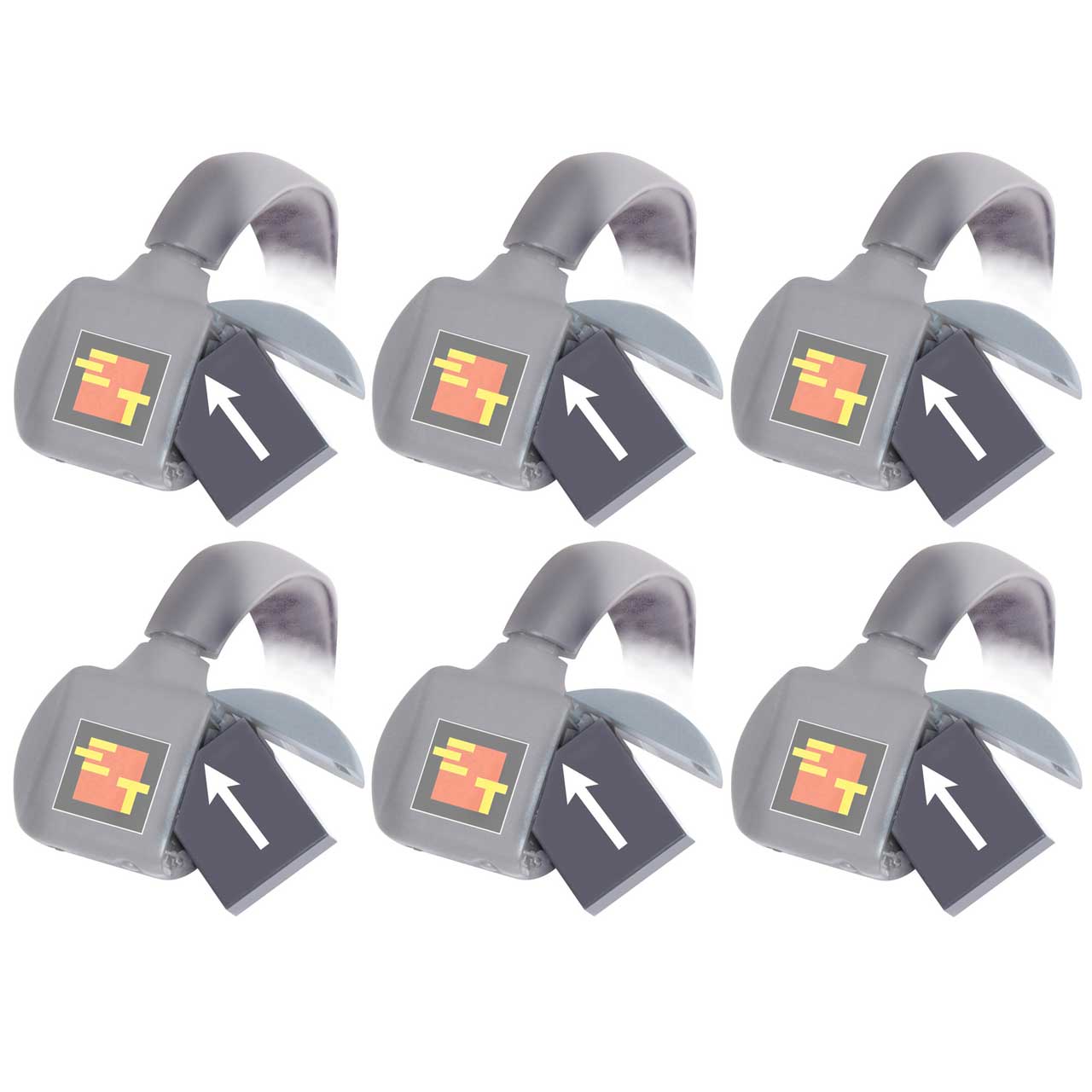

    • 7x Lithium-Polymer Batteries

  • Warranty:

    • 1 Year
