Eartec UL3D UltraLITE - Full Duplex Wireless Headset Intercom System with 3 Dual-Ear Headsets 1.9 GHz.

ITEM #: EAR-UL3D MFG #: ULTRALITE 3-D

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$620.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ULTRALITE 3-D - Overview

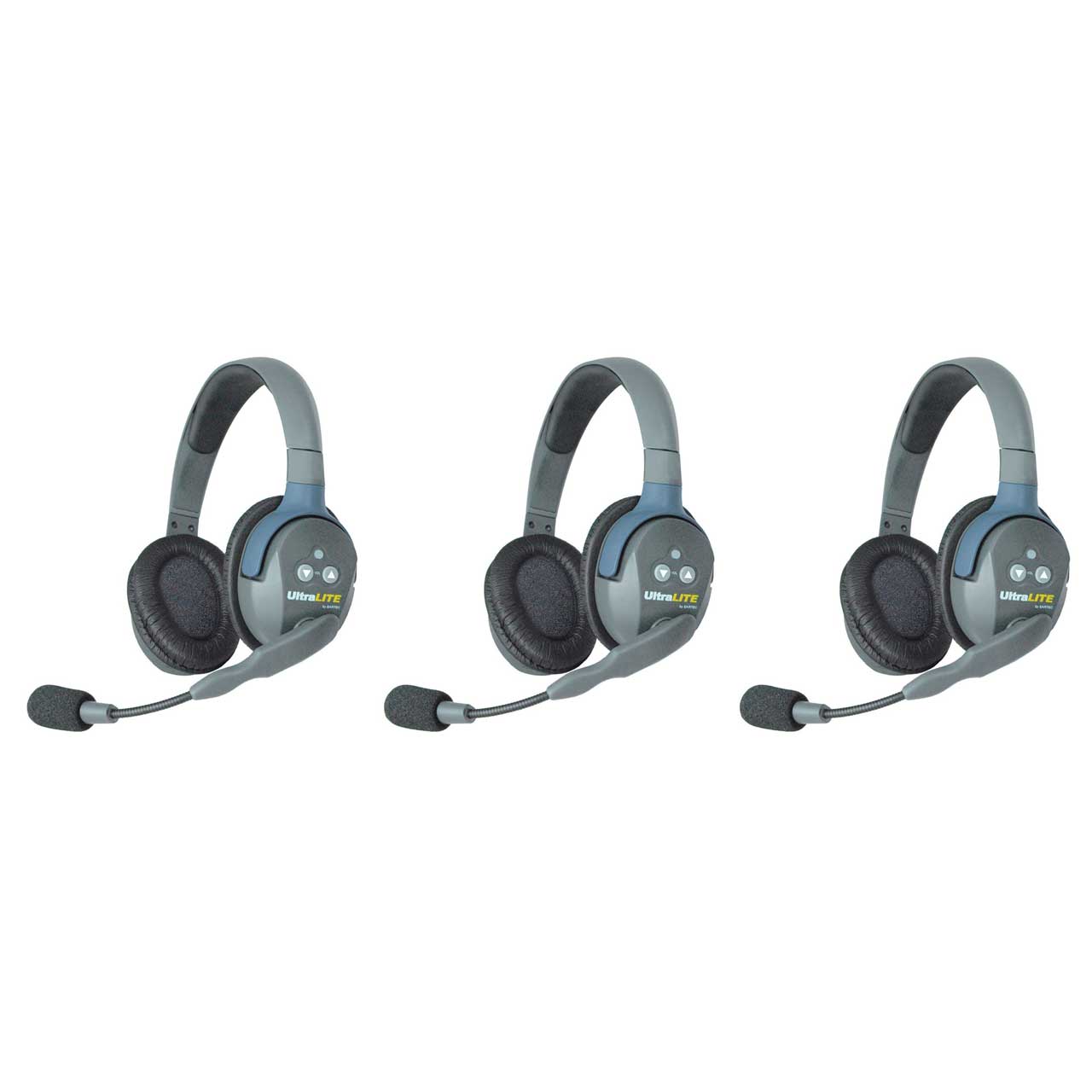

UltraLITE - Full Duplex Intercom Systems w/ Dual Ear Headsets
UltraLITE Full Duplex Intercoms with double ear headsets are affordable pro audio team communication systems. These self-contained wireless feature all electronics including a compact radio built inside the ear cups eliminating wires and belt packs. Since they operate without complicated base stations UltraLITE Double provide and open line of full duplex voice contact to demanding production crews even while on the move. They are built rugged, are super easy to operate, and reliable.

Complete UltraLITE intercoms include one base or "MAIN" headset that relays the digital signals generated by up to four "Remote" units. The resulting open line talking pattern allows up to 5 people to talk simultaneously and hands-free within 1/4 mile range. All UltraLITE headsets include Eartec's Auto Mute Mic boom. These specialty microphone assemblies automatically mute the transmit signal when set to the UP position. The flexible gooseneck mic also swivels 270 degrees to be worn on either left or right. UltraLITE Lithium Polymer batteries (included) charge externally and are field replaceable. This allows purchase of spare batteries that can be kept on hand extending the run time of your system indefinitely. Operating in the non-licensed DECT band (Digital Enhanced Cordless Technology), UltraLITE do not interfere with other RF equipment. They are field programmable and expandable. A padded carry case is included for safe storage and convenient transport.

  • Features:

    • Full Duplex wireless communication without a base station or beltpack.
    • Excellent Performance - Range up to 1/4 mile.
    • DECT Frequency - Digital 1900 MHz band is interference free.
    • Li-Poly Batteries - Provide continuous 6 hr operation and are field replaceable.
    • Adjustable Mic Boom - Rotates 270 degrees, worn on left or right.
    • Auto Mute - Mute microphone simply by moving the boom to up position.
    • Volume Control - Simple Up / Down push button adjustment.
    • Water Resistant - Silicone sealed for use outdoors in inclement conditions.
    • Deluxe Padding - Headsets fit firmly yet comfortably for an 8 hour work shift.
    • Field Programmable - Start small and add to your system as needed.

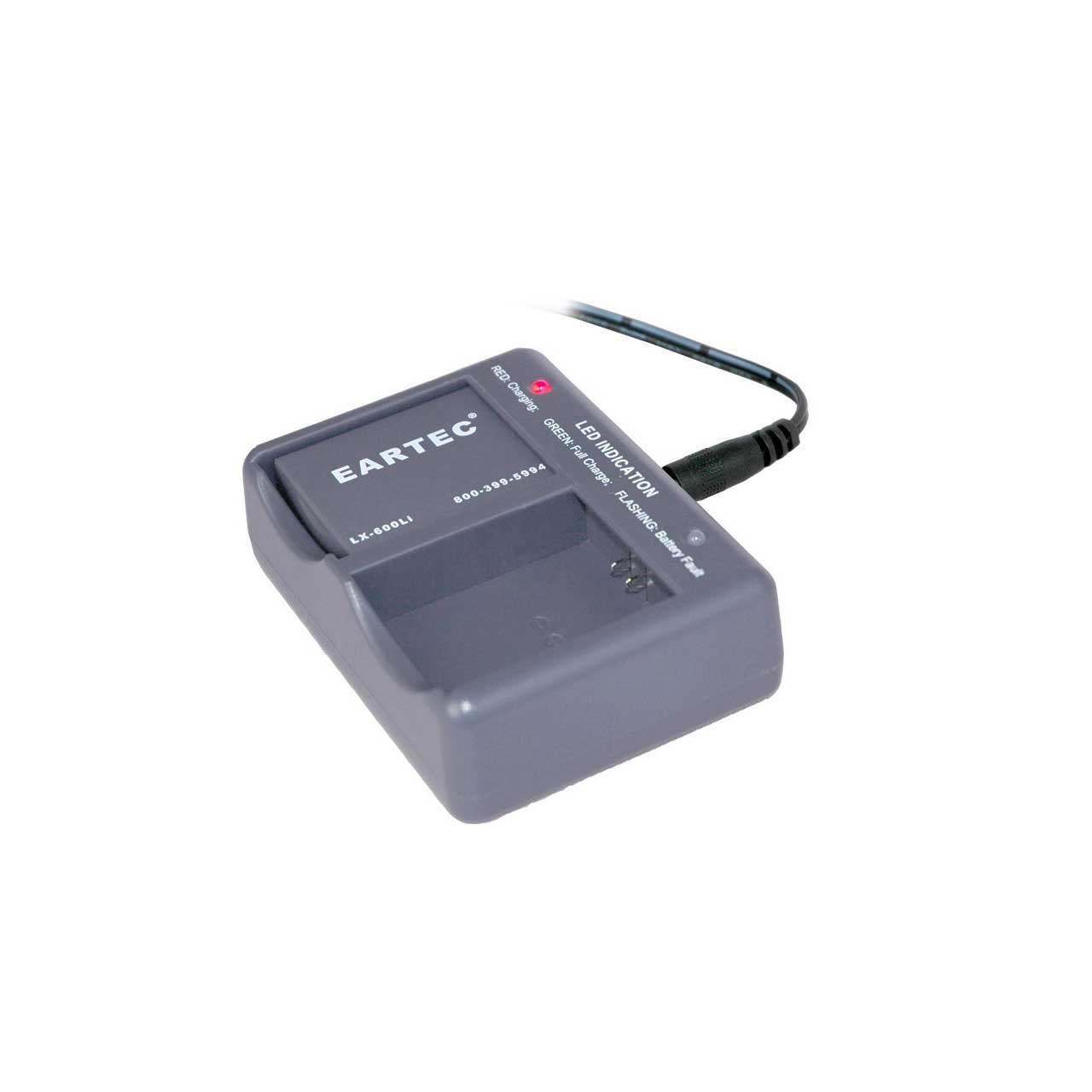

    • Multi-port Charger - Individual battery bays, green LED indicates charge.

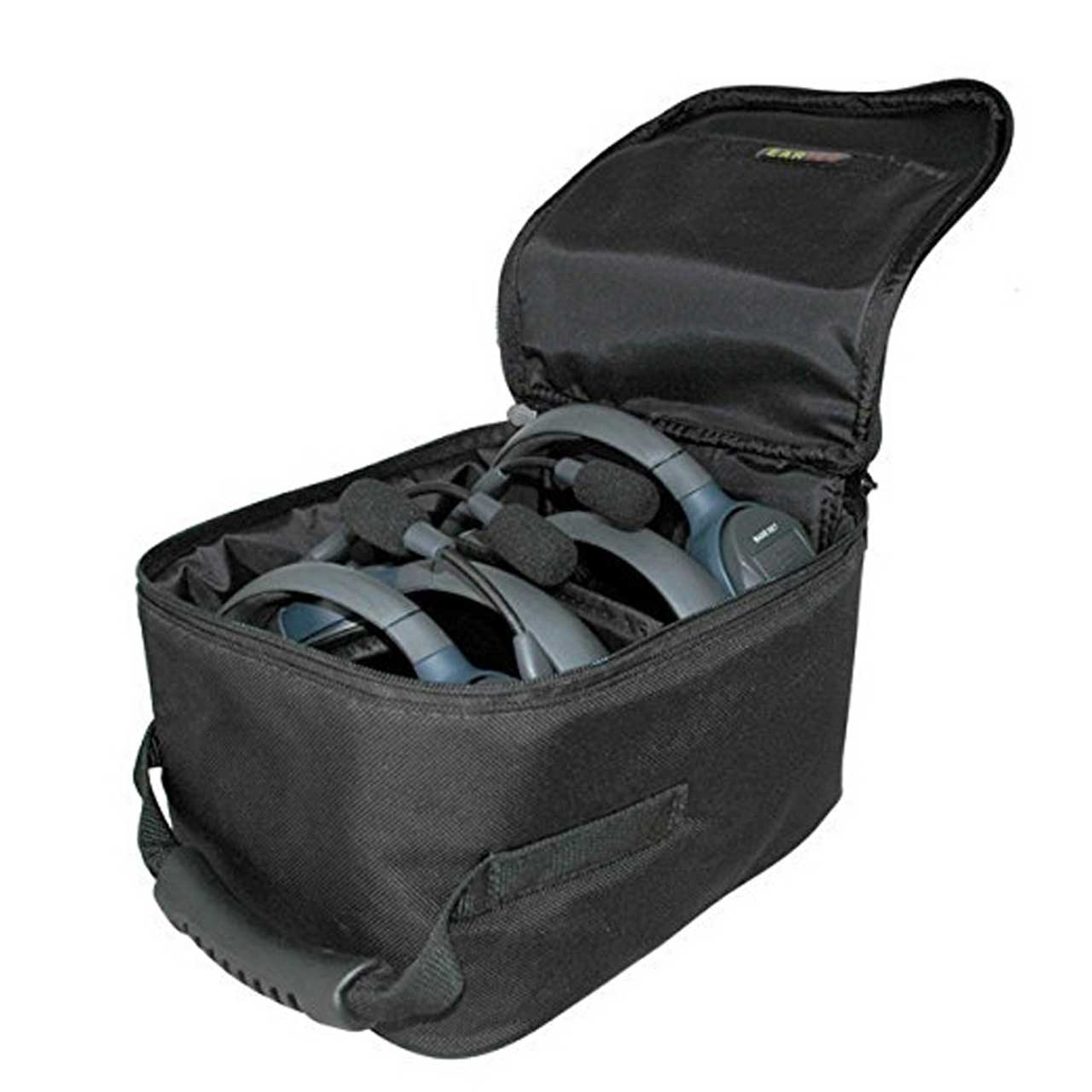

    • Softside case - Waterproof nylon with padded compartments.

  • Specifications:

    • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
    • Frequency: 1920 - 1930MHz (USA), Euro Frequency 1880 - 1900MHz (EURO)
    • Preferred Frequency (MHz): TX/RX 1921.536 ~1928.448MHz
    • Tuning Range Receive (MHz): 1921.536 to 1928.448MHz
    • Maximum Transmit Power: 100mW
    • Usage Type: TDMA
    • Channel Tuning Step: 1.728MHz
    • Weight: 4 oz
    • Channel Bandwidth: 1.728 GHz
    • Modulation Type: GFSK
    • Transmission Speed: 1.152 Mbps (Baud Rate)
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM / 32bit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Range: 400m in open space
    • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
    • Charger Power Supply: AC / adapter INPUT 110-40Vac
    • Charge Time: 3 Hours
    • Operation Time: 5 Hours
    • Normal Condition of Use: 0 C to 40 C
    • Storage Temperature: -10 C to 50 C

  • Item Includes:

    • 1x UltraLite Double-Ear MAIN Headset
    • 2x UltraLite Double-Ear Remote Headset
    • 1x 10-Port Charger w/ Adapter
    • 1x Small Soft Padded Case

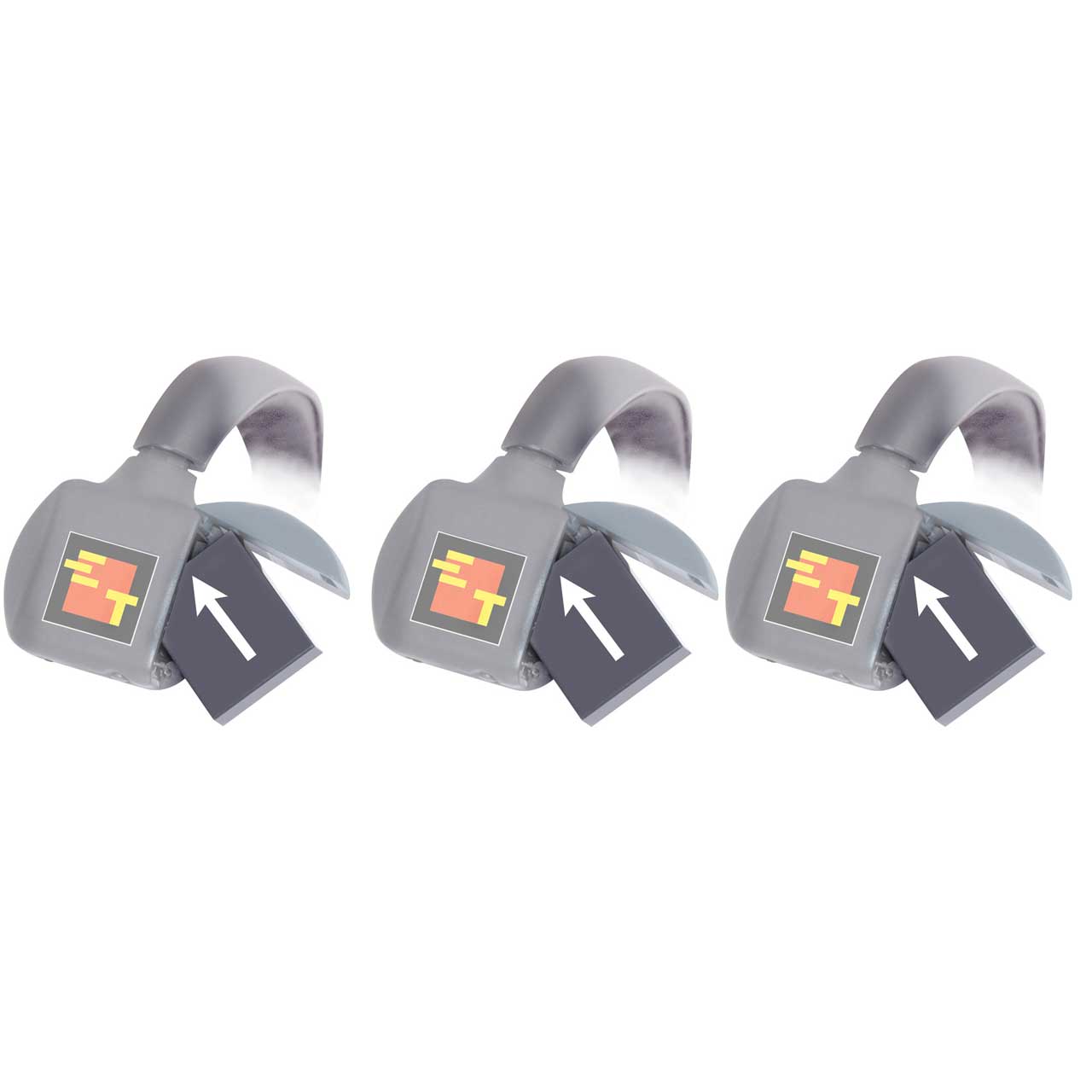

    • 3x Lithium-Polymer Batteries ded Case 3 x Lithium-Polymer Batteries

  • Warranty:

    • 1 Year

  • GTIN:

    0642892764549
