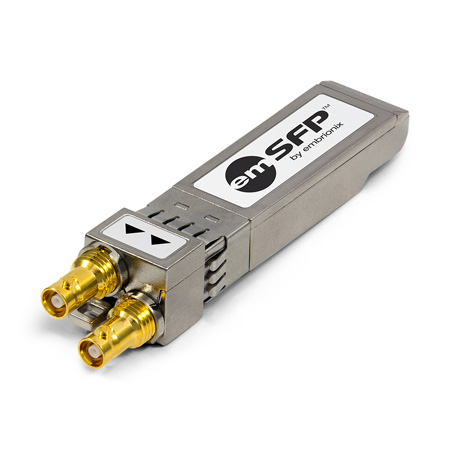

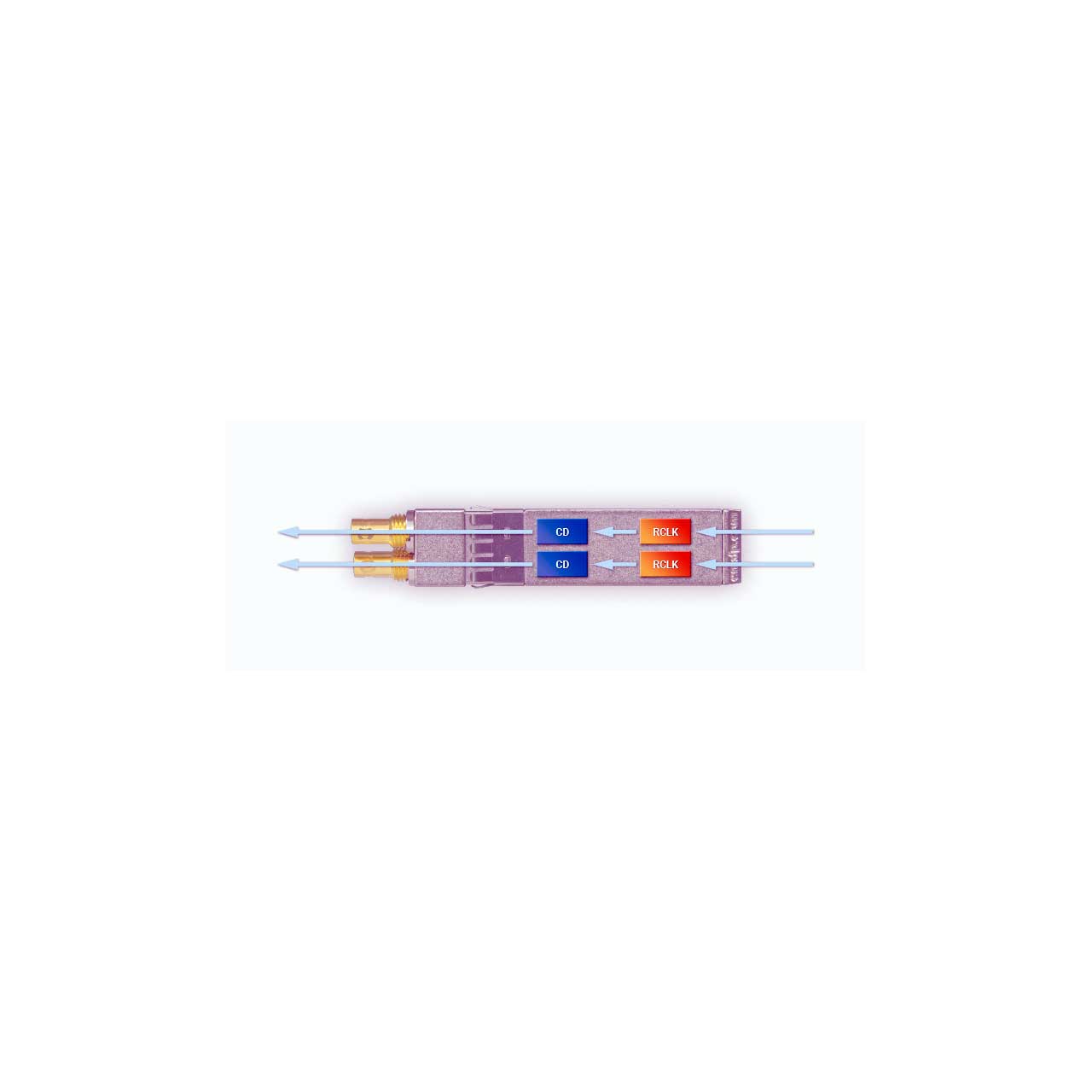

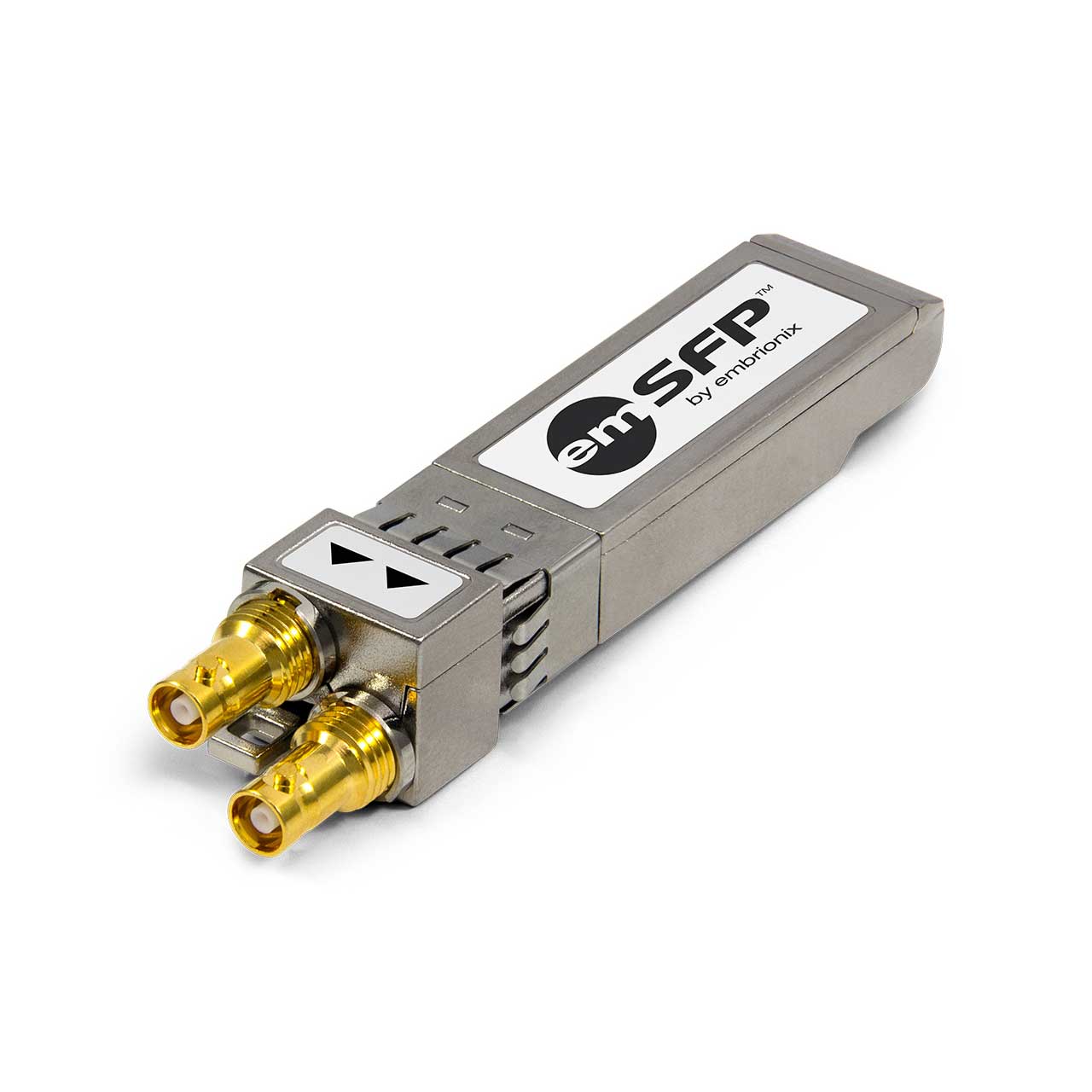

The Riedel video SFP (emSFP) EB12HD2T-MNR is a medium reach coaxial video SFP (emSFP) with built-in reclocker. This SFP (emSFP) is specifically designed to support pathological test patterns. This SFP (emSFP) is designed to transmit two SDI signals (12G/6G/3G/HD/SD-SDI) over 75ohms coaxial cables via HD-BNC connectors. The cable drivers inside are SMPTE compliant video SFP (emSFP) automatically selects the slew rates in order to achieve compliance to SMPTE formats. Inside the SFP, one reclocker per channel suppress the accumulated jitter coming from the source. Each reclocker procures optimal jitter performance.

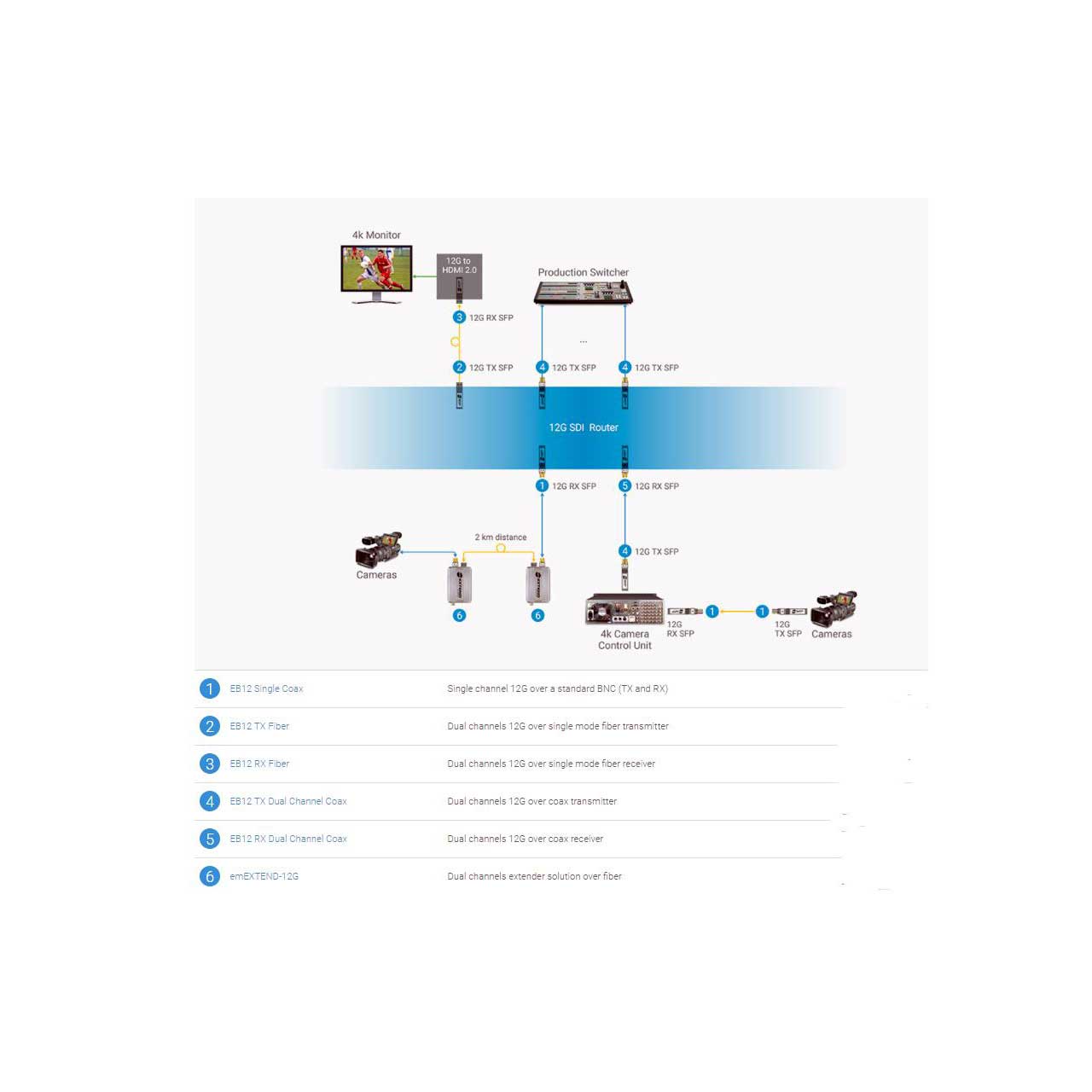

The most feature-rich HD-BNC coaxial video SFP EB30HD and (Embrionix) EB12HD family leverages a wide variety of Embrionix's coaxial video SFP (emSFP) modules with HD-BNC connectors. The solution is designed around an inputs/outputs interchangeable SFP form factor. Installed inside an SFP cage hosted by other equipment manufacturers, the modules can be interchanged to provide a different mix of input and output connectivity. The supported format are : 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (ST2082, ST2081, ST424, ST292, ST259,ST297)
