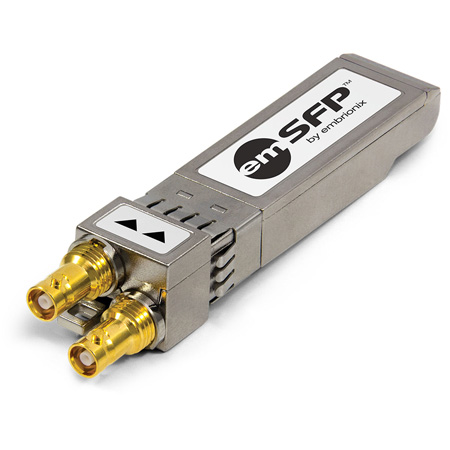

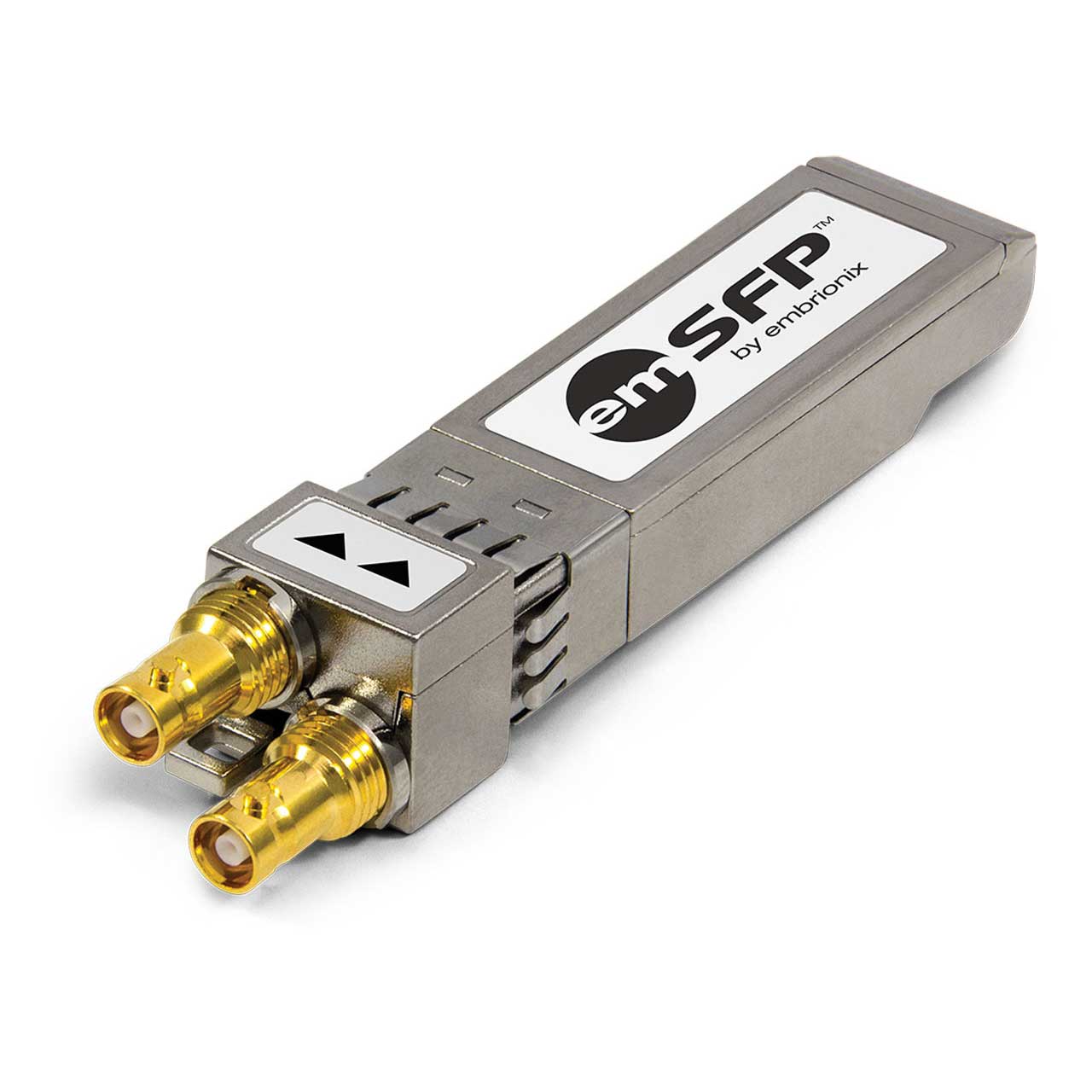

The Riedel video SFP (emSFP) EB30HD2R-MN is a medium reach coaxial video SFP (emSFP). This SFP (emSFP) is specifically designed to support pathological test patterns.
This SFP (emSFP) is designed to receive two SDI signals(3G/HD/SD-SDI/ASI) over 75ohms coaxial cables via HD-BNC connectors. The equalizer inside this SMPTE compliant video SFP (emSFP) features the DC restoration to compensate for the DC content of the SMPTE pathological test patterns.
The most feature-rich HD-BNC coaxial video SFP EB30HD and EB12HD family leverages a wide variety of Embrionix's coaxial video SFP (emSFP) modules with HD-BNC connectors. The solution is designed around an inputs/outputs interchangeable SFP form factor. Installed inside an SFP cage hosted by other equipment manufacturers, the modules can be interchanged to provide a different mix of input and output connectivity.
