Obsidian Control Systems DMX 10-53 10-Port Rackmount DMX Splitter with Dual Inputs - 5 and 3-Pin XLR DMX Outputs

ITEM #: ELAT-DMX10-53 MFG #: DMX153

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$495.00

Our Price:

$396.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DMX153 - Overview

    The Obsidian Control Systems Lighting DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs. Utilizing long life toggle switches, every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin, 5/3pin combo XLR configurations.

    • Features:

      • 5pin (A) and 3pin (B) XLR DMX Input
      • 10 isolated 5 and 3pin XLR DMX Outputs
      • A/B routing per output port
      • LED feedback for In/Out/A/B/Power
      • Industrial strength powder-coated finish
      • Lightweight and rugged rackmount housing

    • Specifications:

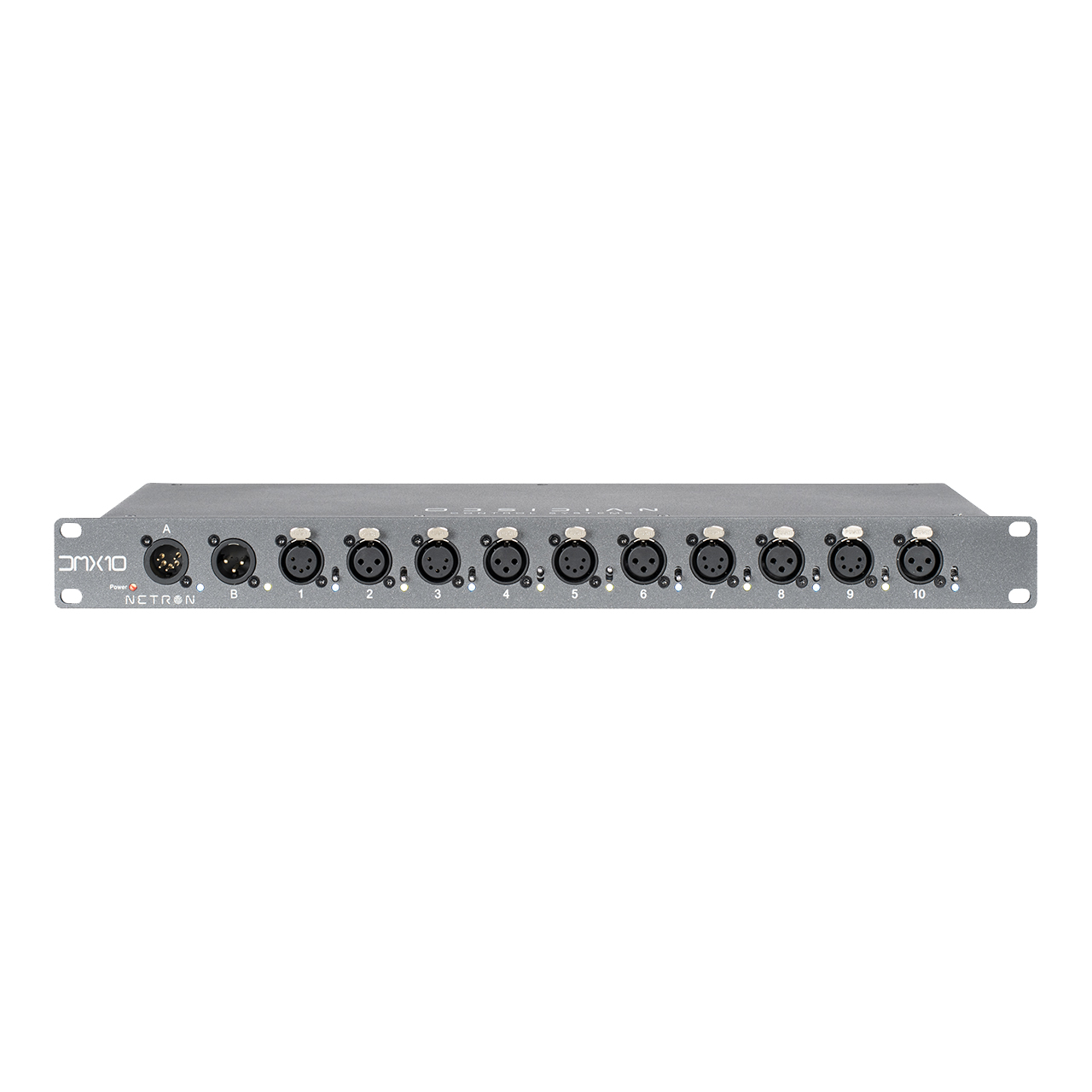

      • Front Connections:
        - 5 pin DMX Input (A)
        - 3 pin DMX Input (B)
        - (5) 5pin Opto-Isolated DMX Outputs
        - (5) 3pin Opto-Isolated DMX Outputs

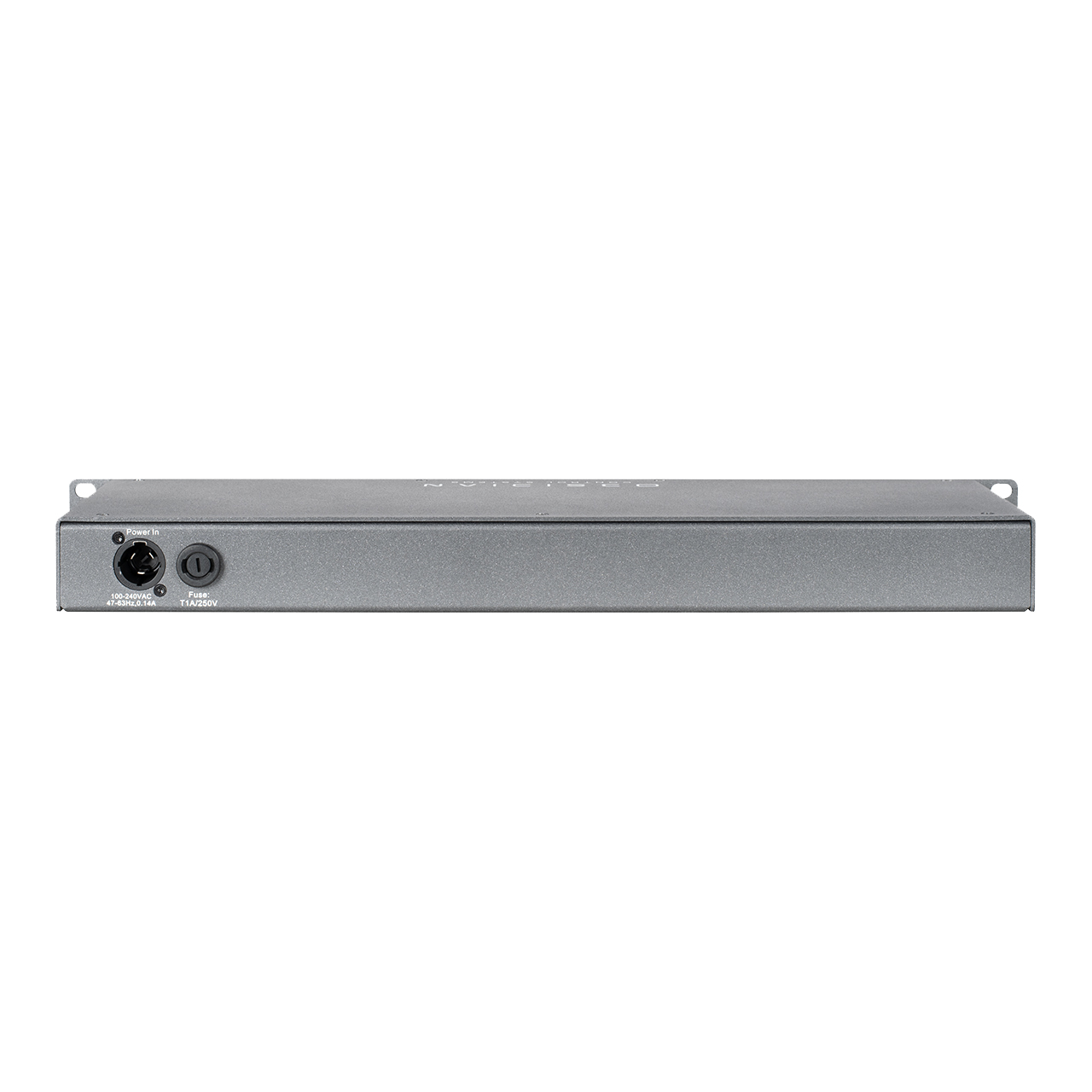

      • Back Connection: Locking Power In
      • Dimensions(LxWxH): 6.1 x 19 x 1.7 In (154.9 x 482 x 44 mm)
      • Weight: 3.31 lbs (1.5kg)
      • Electrical: 100-240 V Nominal, 50/60 Hz
      • Approval Ratings: cETLus / CE / UKCA / IP20

    • Item Includes:

      • 1x Power Cable

    • Warranty:

      • 2 Year Warranty

    • GTIN:

      0810008263914
