Elation Professional KL PROFILE FC 305W Full Spectrum RGBMA LED Zooming Ellipsoidal Fixture

ITEM #: ELAT-KLPROFLEFC MFG #: KLP412

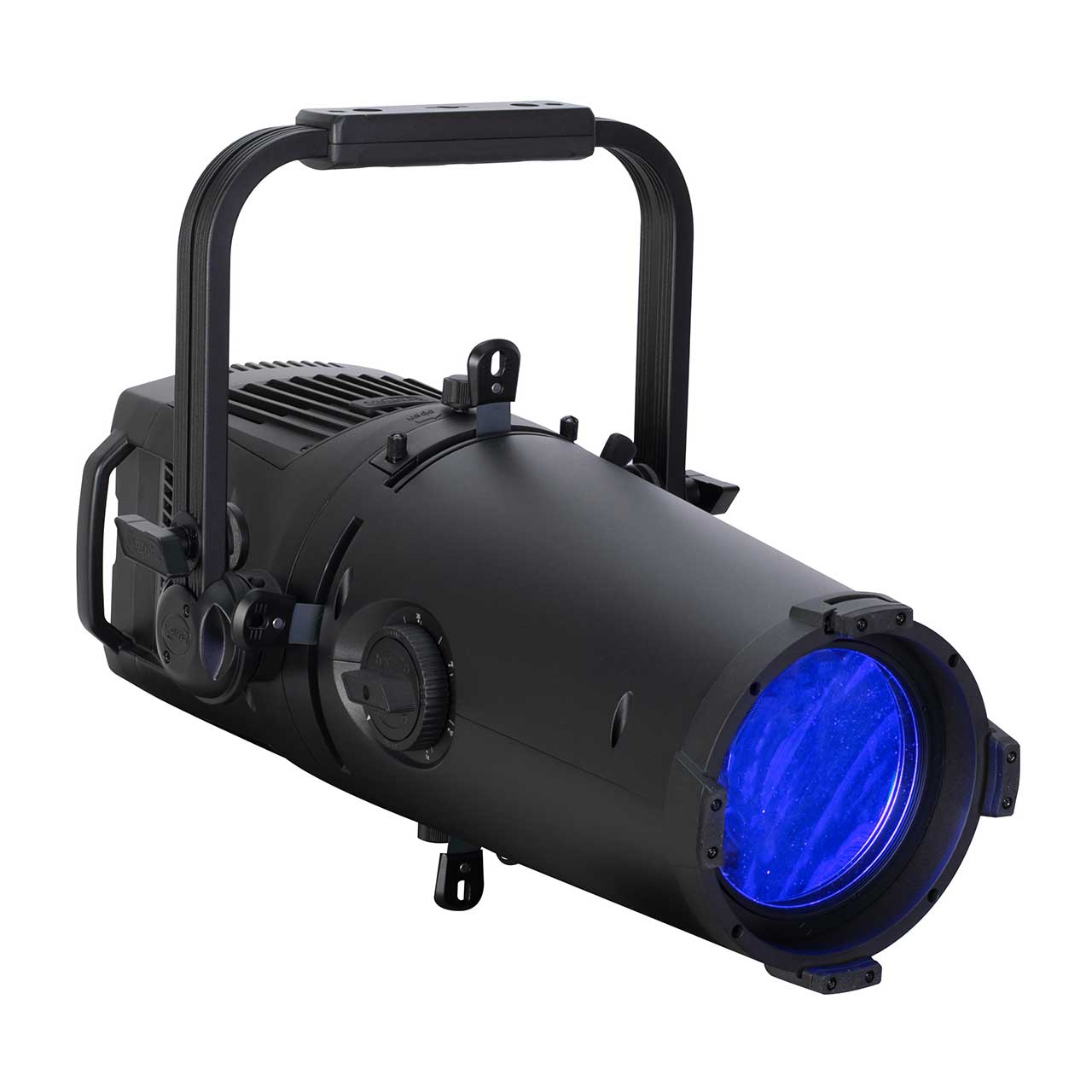

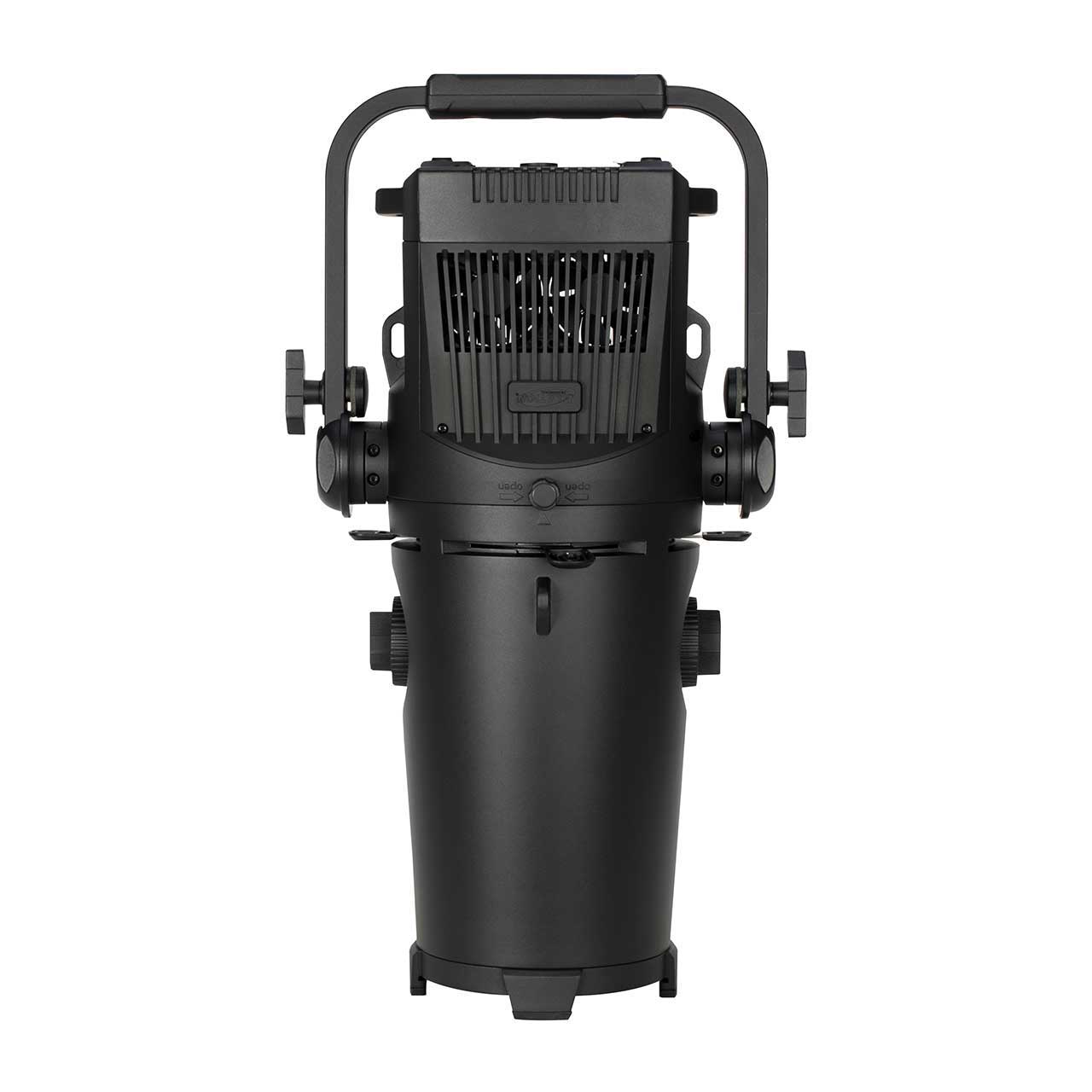

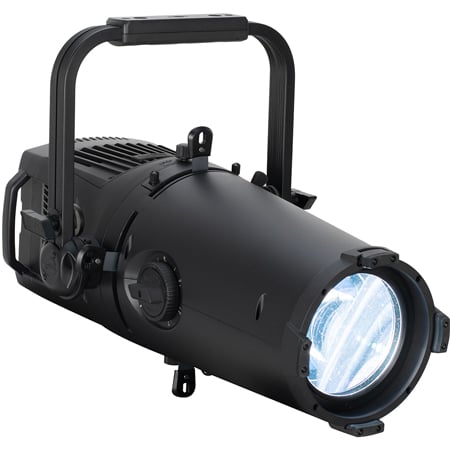

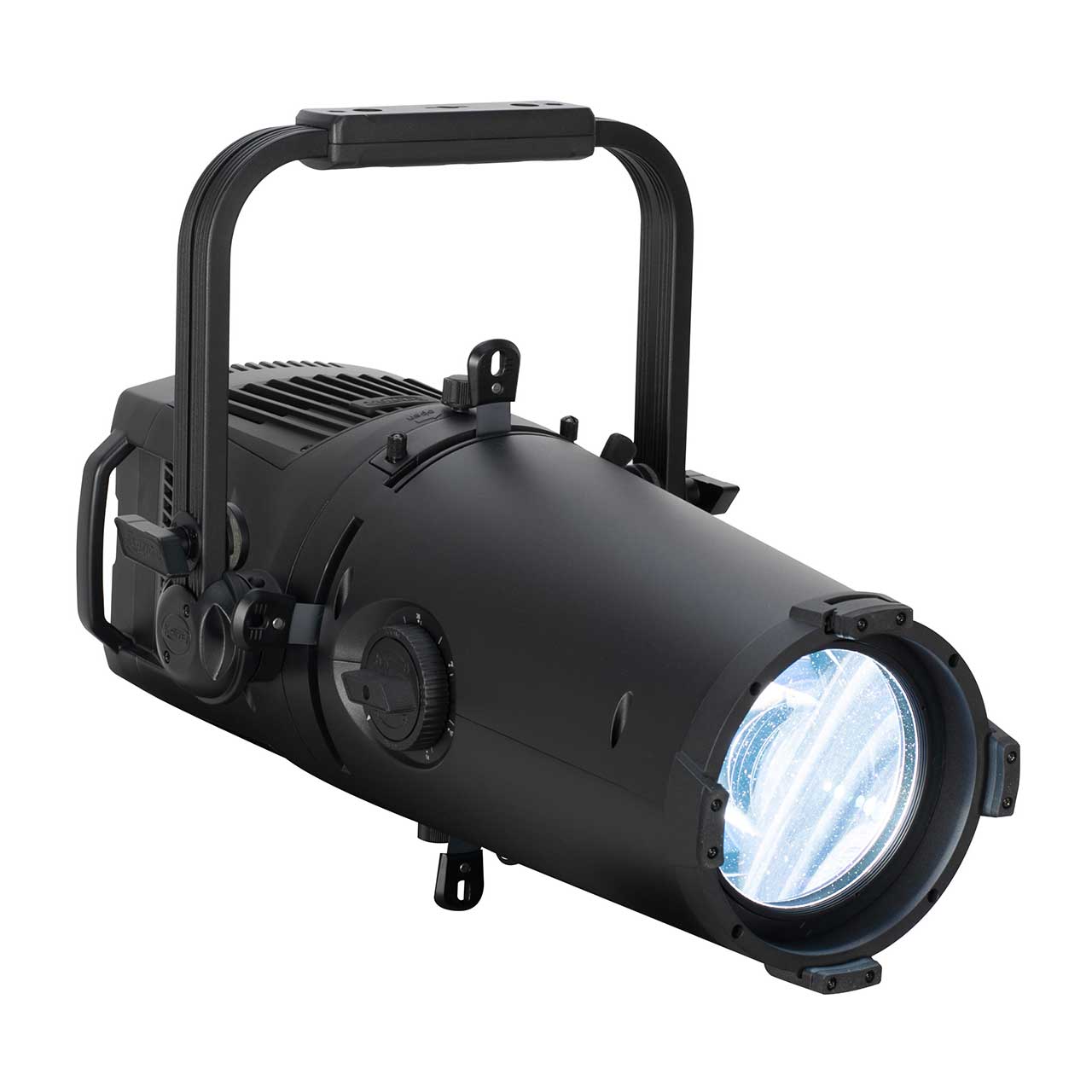

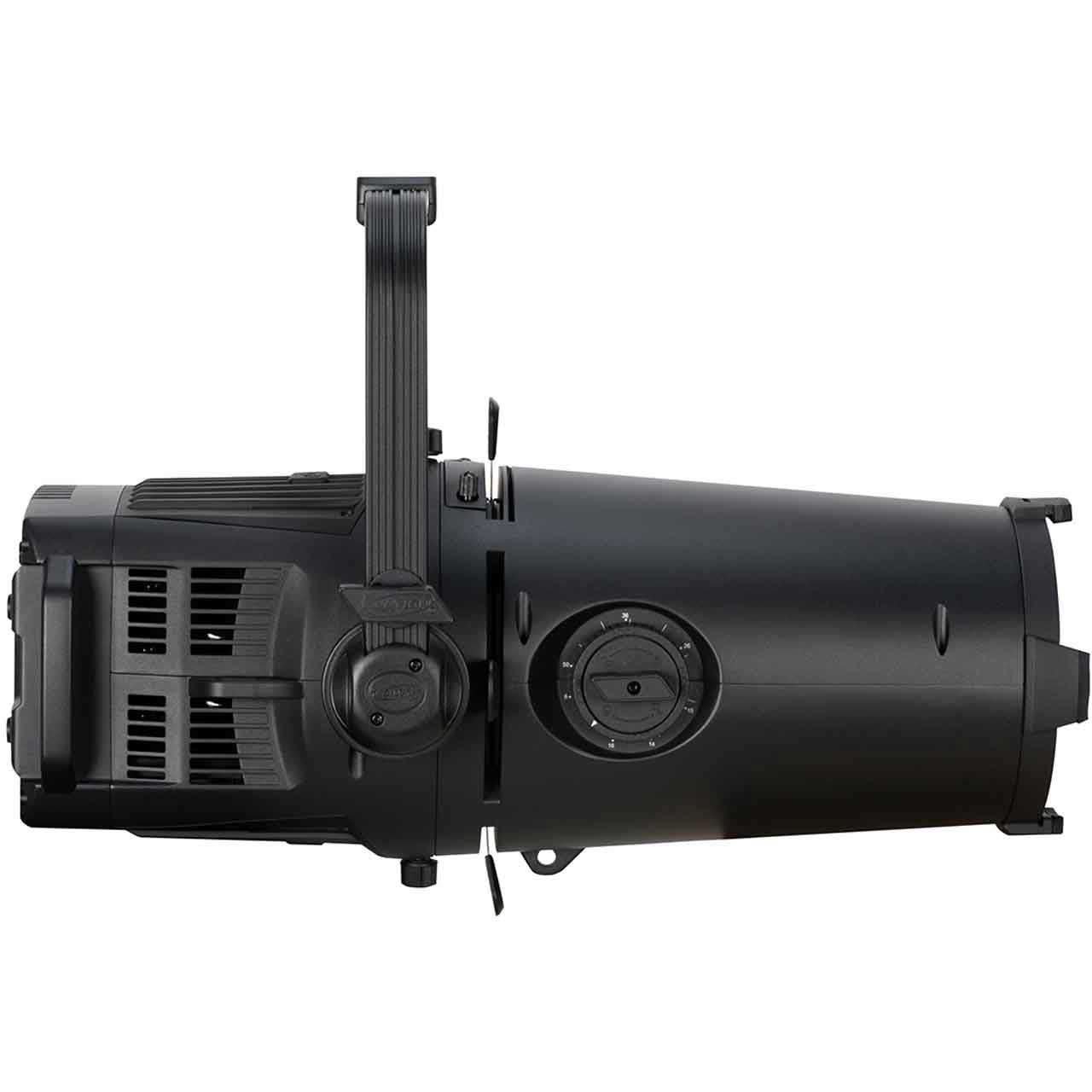

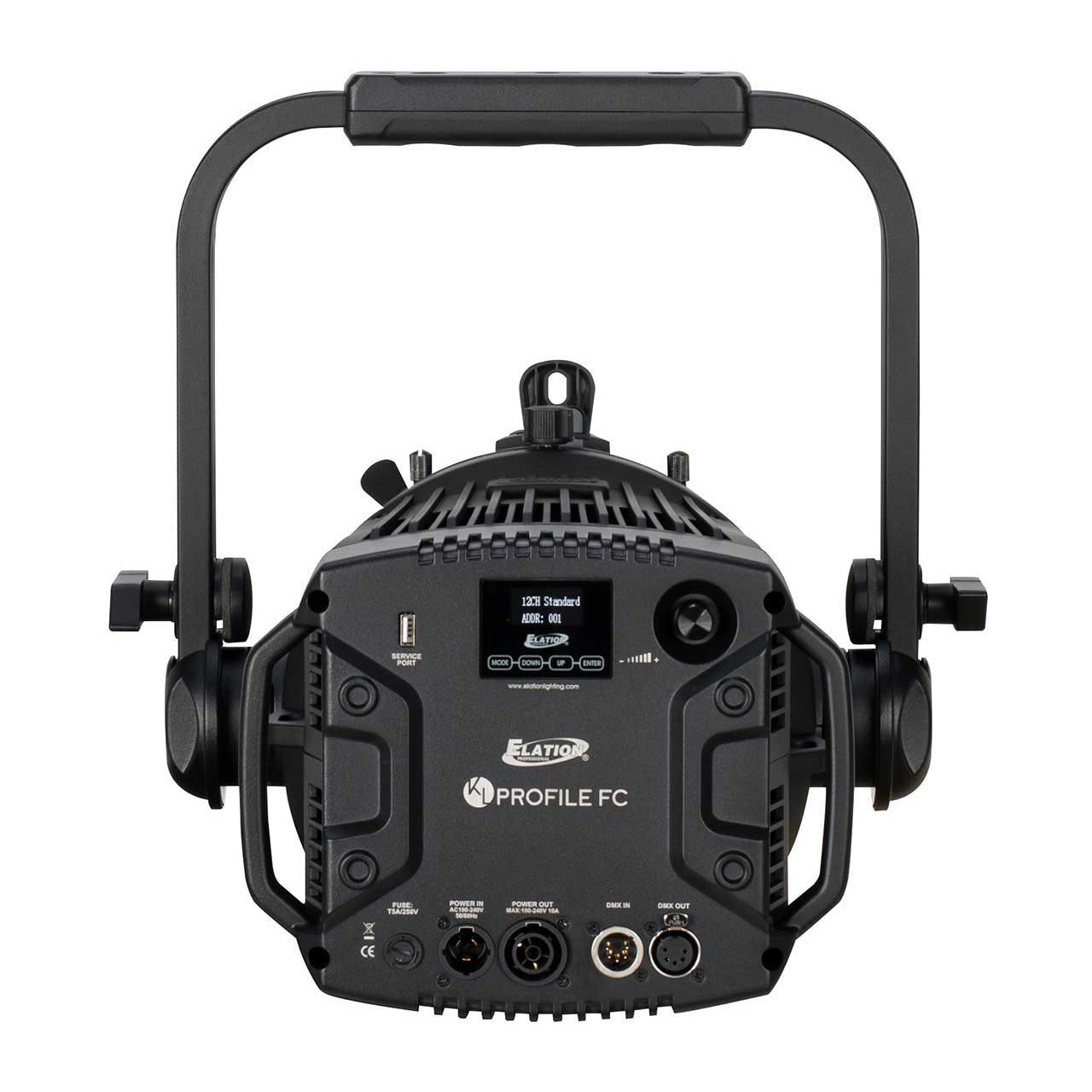

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,000.00

Our Price:

$2,695.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


KLP412 - Overview

The Elation Professional KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 6 to 50 degrees, the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue, or show. The integrated manual Iris allows further beam control.

The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provides the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan.

For ease of use, the fixture contains a 16-bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high-resolution glass gobos. The gobo slot is easily accessible from the top of the fixture. The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing a uniform appearance and fixture spacing.

The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with an outstanding and impactful color range and quality and a flexible zoom range is required.

The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

  • Features:

    • Compact Zooming Ellipsoidal
    • Extended Color RGBMA LED Engine, 92 CRI
    • Exceeding 10.000 lumens
    • Integrated Rotating Gobo Slot
    • Full Blackout Manual Framing System
    • Wide Zoom Range from 6° to 50°
    • 7.5” Front Accessory Holder
    • Includes 7.5" Gel Frame
    • Designer Gobo set with 10 high-resolution glass gobos
    • Optional Fresnel Wash Lens Conversion Kit

  • Specifications:

    • Control / Connections
    • 8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
    • DMX Adjustable LED Frequency
    • DMX, RDM Protocol Support
    • 4 Button Touch Control Panel
    • Encoder Control for Standalone Operation
    • Full Color 180° Reversible LCD Menu Display
    • 5pin DMX In/Out
    • IP65 Locking Power In/Out
    • Elation’s E-FLY™ Internal Wireless DMX Transceiver

      Physical
    • Dimensions (LxWxH): 25.11 x 15.35 x 10.98" (638 x 390 x 279mm)
    • Height (Fixture Body): 10.98" (279mm)
    • Height (Yoke 90°): 18.35" (466mm)
    • Weight: 35.2lbs (15.9kg)
    • 7.5" Front Accessory Slot

      Electrical / Thermal
    • AC 100-240V - 50/60Hz
    • 358W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
    • BTU/hr (+/- 10%) 1124.1

  • Item Includes:

    • 1x KL Profile FC Manual LED Framing Fixture
    • 1x Locking Power Cable
    • 10x Designer Gobos
    • 1x Rotating Gobo Holder (installed)
    • 1x 7.5" Gel Frame

  • Warranty:

    • 2 Year

  • GTIN:

    0837874006940
