Elation LSF30-24 Light Shaping Filter - 30 Degree - 24 x 20 Inch LSF Sheet

ITEM #: ELAT-LSF30-24 MFG #: LSF536

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$139.95

Our Price:

$99.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


LSF536 - Overview

Easy-To-Use Poly Carbonate Sheets from Elation Professional LSF Series.

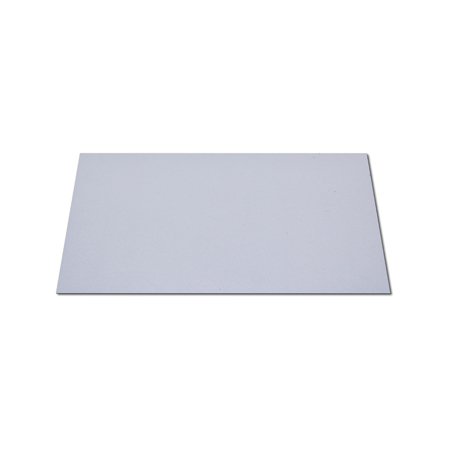

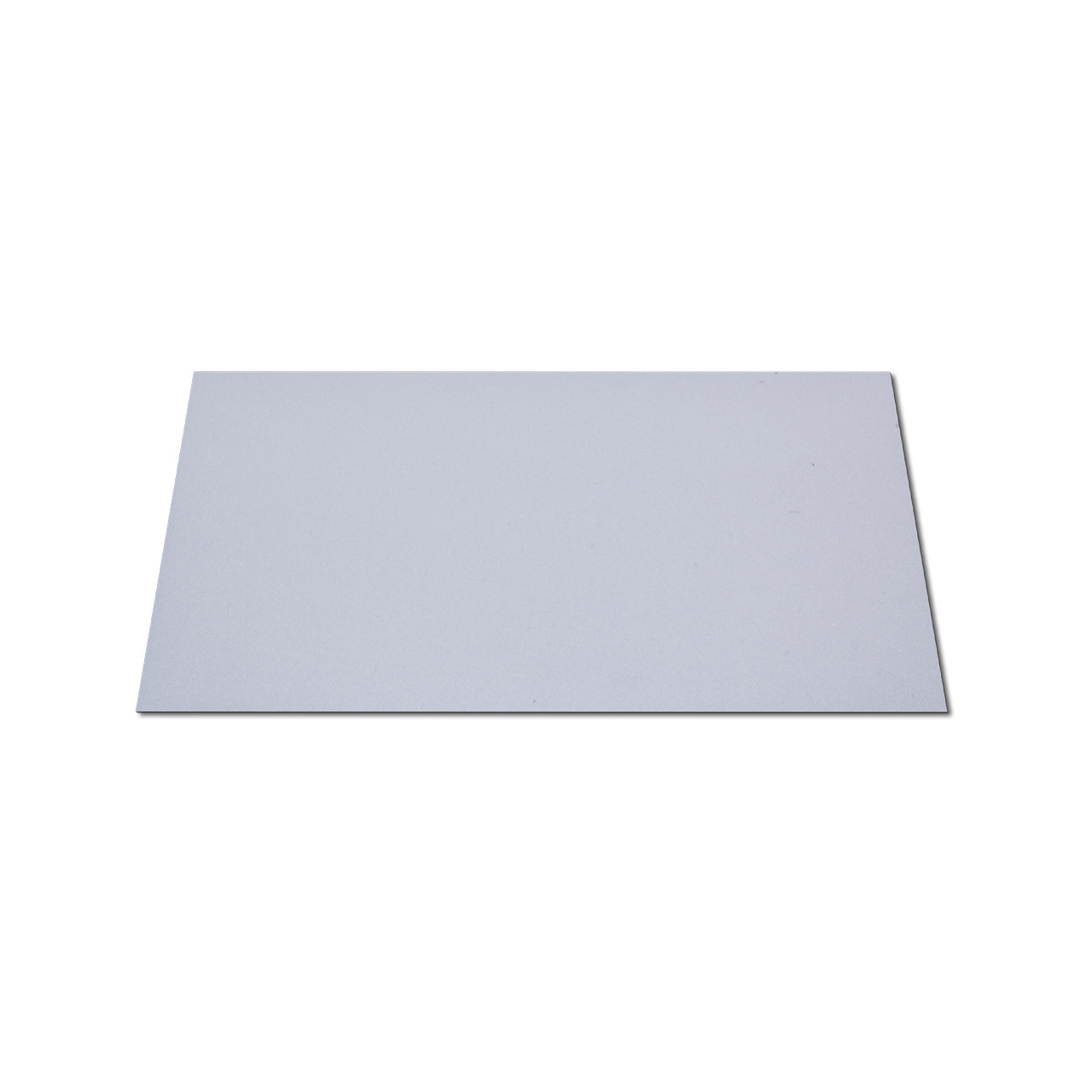

The Elation Lighting LSF30-24 Light Shaping Filters from Elation are easy-to-use poly carbonate sheets which can be cut to size to fit over any LED fixture and transmit up to 92% of the light, shaping it to the desired effect you want. You can smooth or widen out any LED Panel or Par while also improving the field of color or turn you LED Par can into a wall washer. Each sheet measures 20 x 23.98" (508 x 609 mm). If outfitting a 3.94" (10cm) LED par can, for example, 30 filters could be cut from a 20 x 23.98" (508 x 609 mm) sheet, making the cost per fixture even more affordable.

Please Note This product cannot be used with regular PAR cans, it will melt! LED Lights ONLY!

  • Specifications:

    • Effective Angular Output: (light source angle) + (LSF angle)
    • Temperature Range: 86°F to 212°F (30°C to 100°C) @ 240 hrs or -40°F to 932°F (-40°C to 500°C)
    • Humidity: >95% ± 5% RH @ 24 hrs
    • Transmission Efficiency Circular: 0.2° to 20° = 90% 20° to 80° = 85% / Elliptical: = 85%
    • Transmission: 400nm - 1600nm
    • Spectral Range: 200nm - 1500nm
    • Brightness Uniformity: =85%
    • Size: 20" x 23.98" (508mm x 609mm)

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0837874012804
