Obsidian Control Systems Netron NS8 IP IP65 Rated Gigabit Network Switch with PoE+ Support - 8 Ports

ITEM #: ELAT-NS8-IP MFG #: NIP008

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,150.00

Our Price:

$890.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NIP008 - Overview

    The Obsidian Control Systems NETRON NS8 IP is an IP66 rated rugged outdoor network switch featuring 8 Gigabit ports and PoE+ support. With a total power budget of 100W the NS8 IP is ideally suited to distribute data and power to NETRON nodes or any other PoE compatible network appliance. Highly optimized for processing the high data volume found in today's ever-growing lighting systems, the NETRON NS8 IP distributes a variety of entertainment protocols without delay, ensuring instant reaction times and flawless execution. Designed for live production and installations with a fully sealed rugged exterior housing it offers truss and wall mounting options to cover a variety of installation locations.

    • Features:

      • Rugged IP65 chassis
      • Artnet and sACN support
      • X-Net, HogNet, MA-Net and various other protocols
      • Factory and user presets for plug and play setups
      • POE+ support
      • POE power switch
      • Remote configuration via internal webpage
      • Convection cooled design
      • Powder-coated aluminum exterior housing

    • Specifications:

      • Mounting
      • Standalone

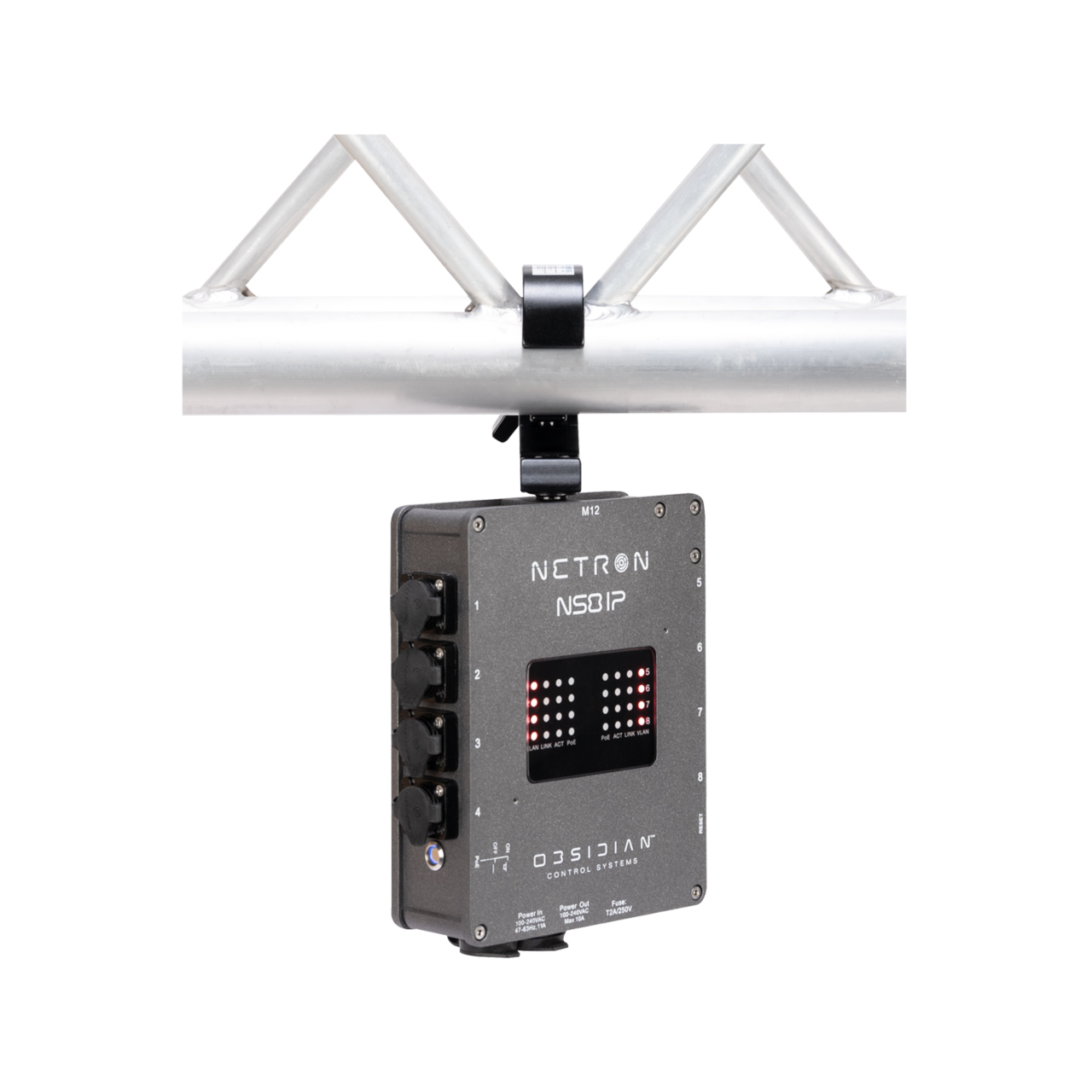

      • Truss-mount (M12 mounting hole)
      • Wall-mount horizontal or vertical (included)

        Connections

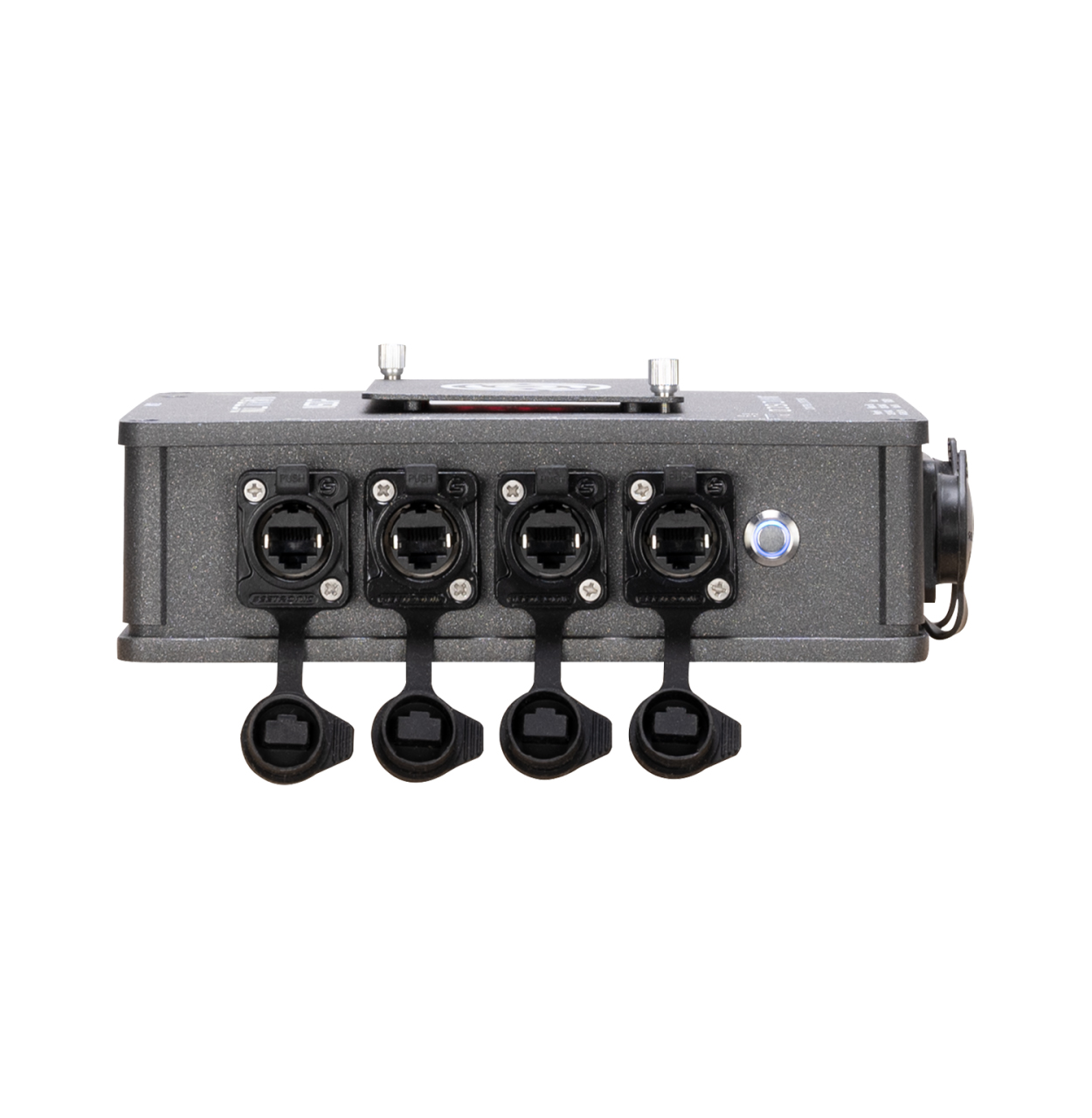

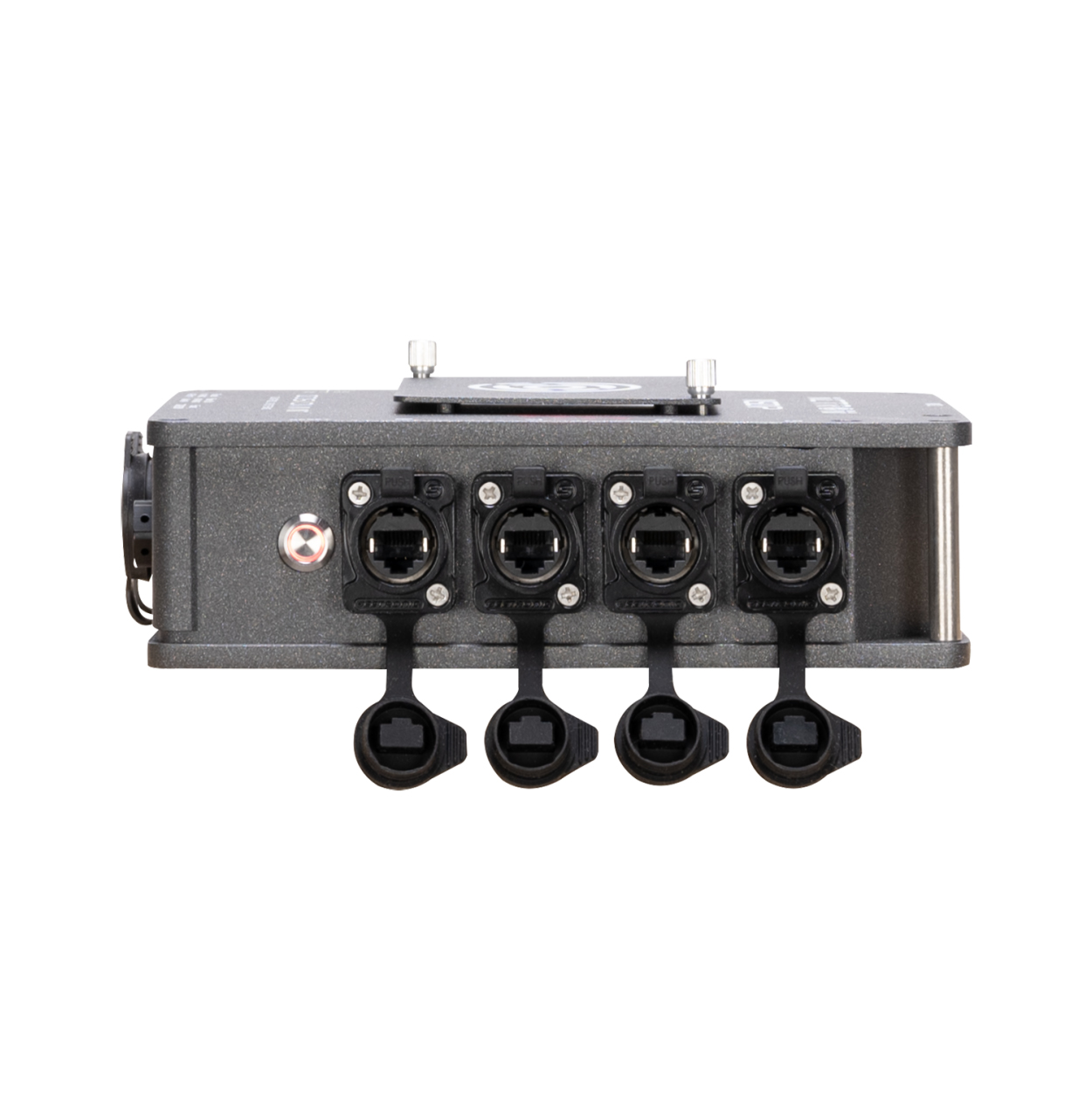

      • 8x Locking RJ45 Ethernet network connections

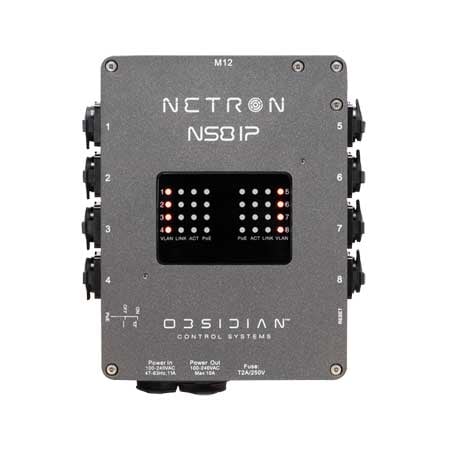

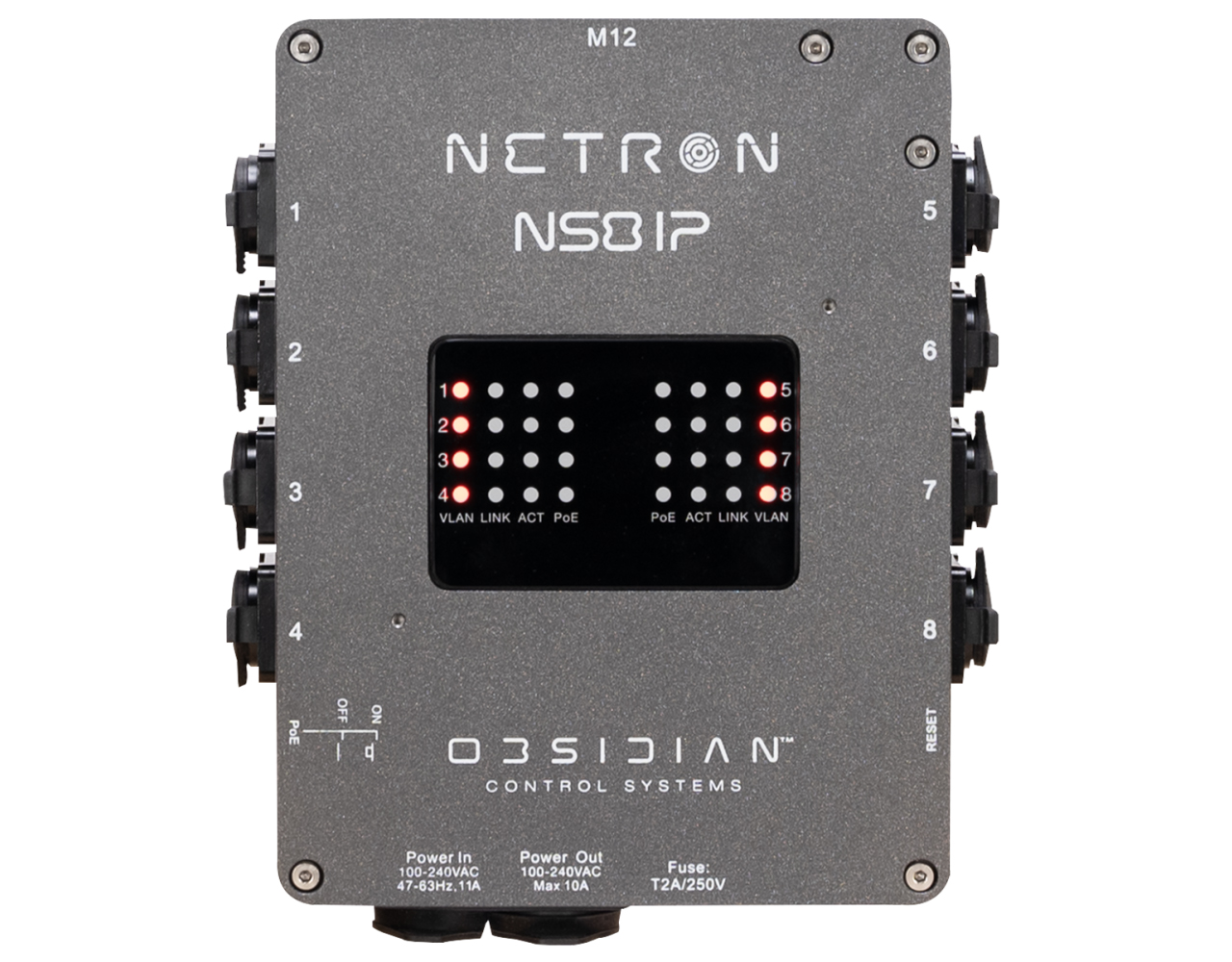

      • LED Feedback for Activity and Link

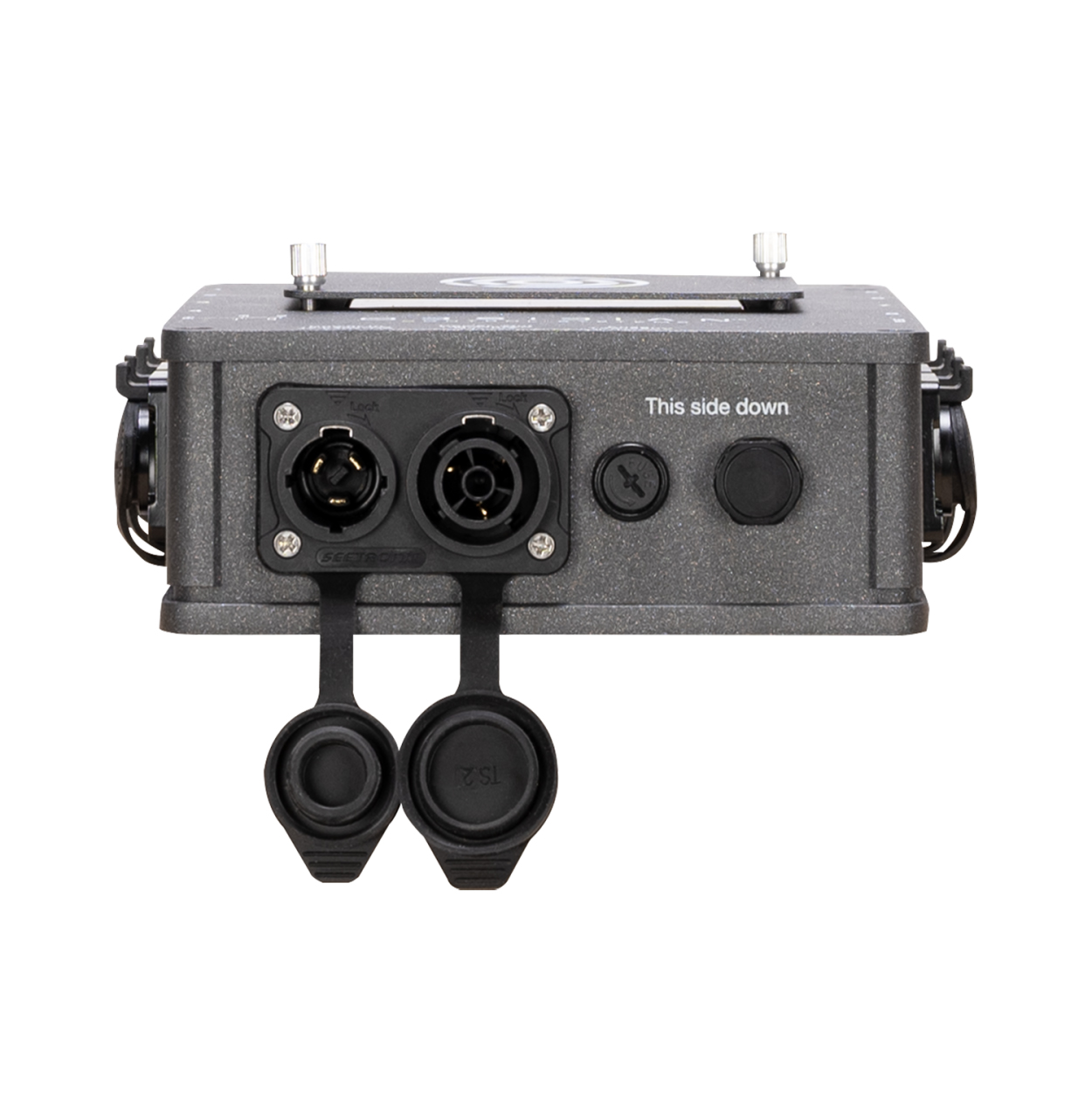

      • IP65 Locking Power In/Thru
      • POE Power Switch)

        Physical
      • Length: 177mm (6.9 in.)
      • Width: 213 mm (8.4 in.)
      • Height: 69 mm (2.7 in.)
      • Weight: 2.72 kg (6 lbs)

        Electrical
      • 100-240 V nominal, 50/60 Hz, 130W
      • POE 802.3at
      • 100W Total POE Budget

        Approvals/Ratings
      • cETLus / CE / IP65

    • Item Includes:

      • 1x 1.5m locking IP65 power cable (EU or US version)
      • 2x wall brackets

    • Warranty:

      • 2 Year Warranty

    • GTIN:

      0810008264256
