Elite Core Audio SOCO-BO-F-5 Hand-Built SOCO Lighting Power Breakout Cable - Edison Female - Indoor/Outdoor - 5 Feet

ITEM #: ELI-SOCO-BO-F-5 MFG #: SOCO-BO-F-5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$511.99

Our Price:

$383.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SOCO-BO-F-5 - Overview

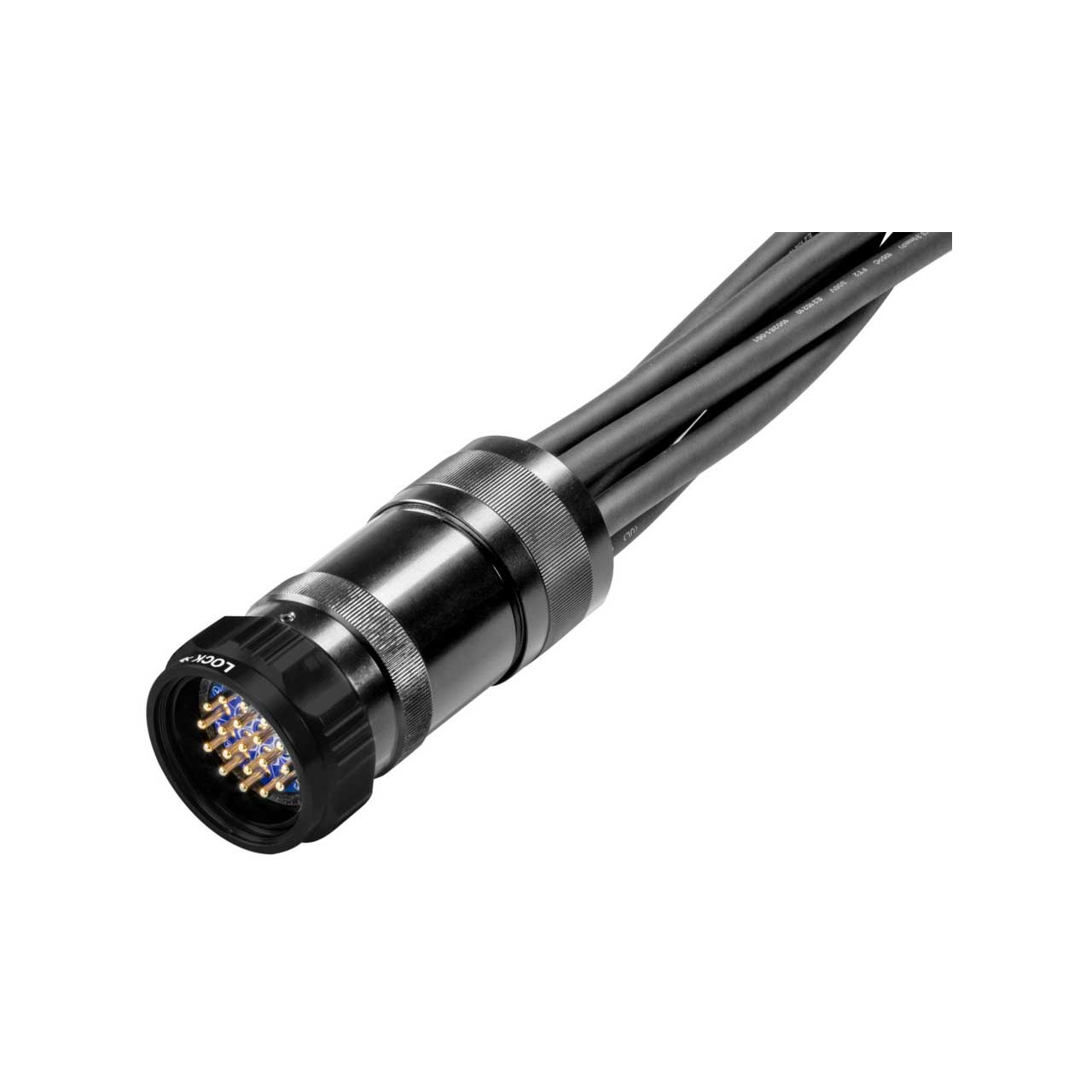

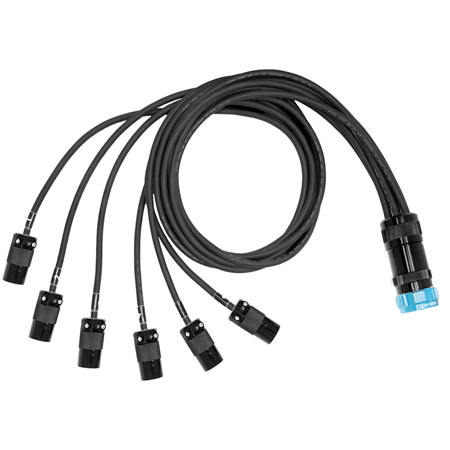

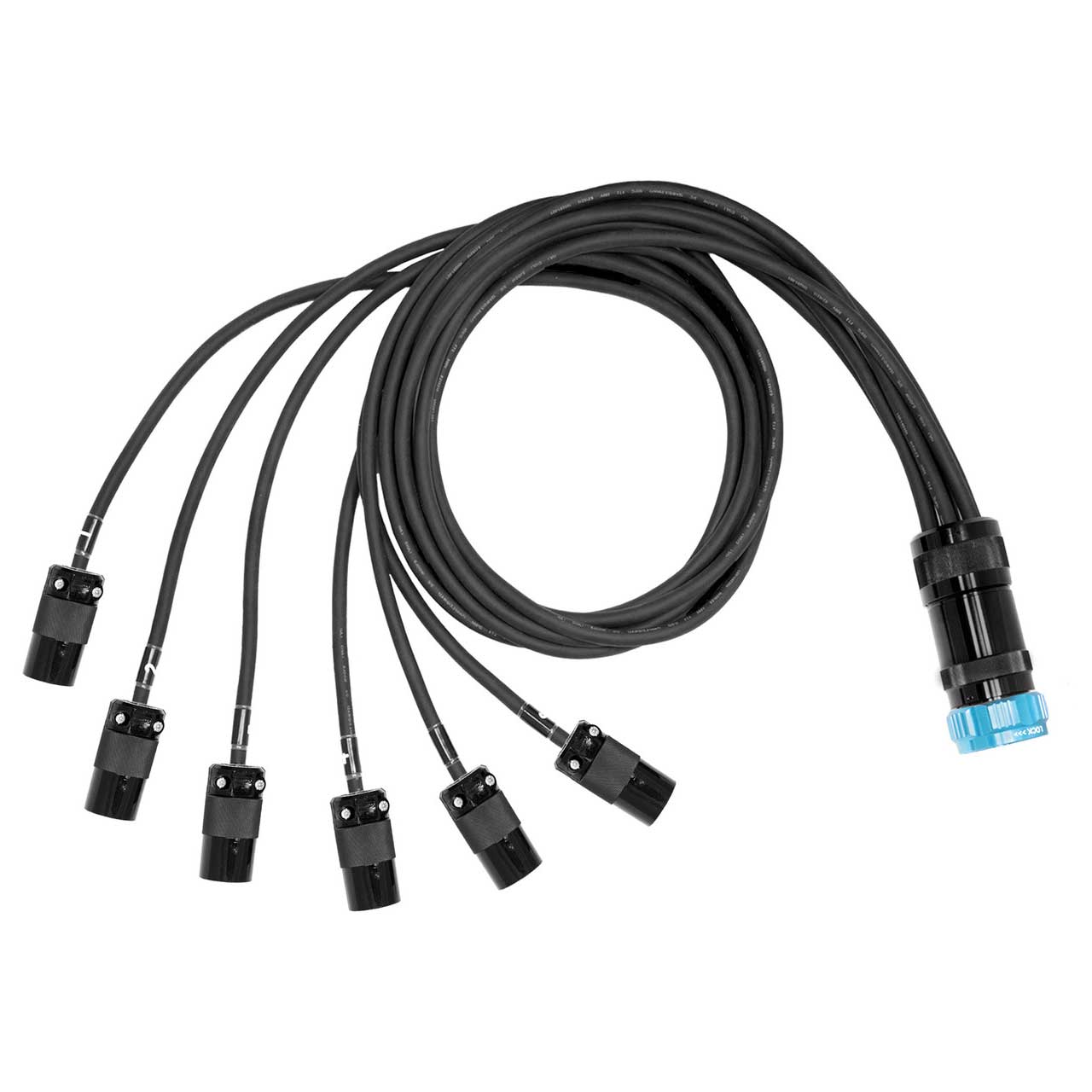

The SOCO-BO-F-5 is an Elite Core Audio Lighting Power SOCAPEX Male Breakout Cable terminated with 6 Edison Female plugs, 5 Feet in length. It's rated for Indoor and outdoor use and resists oil, solvents, water, flame, ozone and abrasion.

Elite Core's SOCO Lighting Power Break-in Cables are hand-built by skilled technicians in thier facility in Greenbrier, Arkansas, USA. A good power cable is an ABSOLUTE MUST HAVE ITEM on any stage across the world. This SOCO cable comes with an Edison male breakout and the Elite Core FOREVER WARRANTY*.

Every detail - the cable construction, the connector choice, the shrink tube, the testing, and the packaging, are each carefully chosen to create the finest stage and touring power cable available.

  • Features:

    • 12/3 300-Volt CU Black Flexible Portable Power SJEOOW Cord
    • TPE (Thermoplastic Elastomer) Insulation
    • Indoor and outdoor use
    • Resists oil, solvents, water, flame, ozone and abrasion
    • Highly flexible with good tensile strength, elongation and aging characteristics
    • UL listed and CSA certified

  • Specifications:

    • UL Approved to UL1977 Standard
    • Amphenol Socapex SL419 Compatible
    • 9 Pin connectors are all rated 25A
    • Multi-point Gold Plated Contacts
    • Integral Insulation Sleeves
    • M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm)
    • Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
    • IP67 ingress protection when mated
    • Temperature Rating -55°C to +125°C
    • Voltage Rating 600 VAC, 700 VDC max
    • FMLB Earth contacts
    • ROHS Compliant

  • Item Includes:

    • 1x Elite Core Audio SOCO-BO-F-5 SOCO Male Flexible Lighting Power Breakout Cable - Edison Female - 5 Feet

  • Warranty:

    • The Elite Core FOREVER WARRANTY for Hand-Built cables covers all defects in material and workmanship of products manufactured by Elite Core.
    • *Forever Warranty excludes:
    • Damage caused by accident, misuse, abuse, or neglect.
    • Damage occuring during shipment.
    • Damage resulting from failure to follow instructions contained in your instruction manual.
    • Damage resulting from the performance of repairs by someone not authorized by Elite Core

  • GTIN:

    0759681066309
