Riedel EMOPT-2E-2022-6 Dual Channel 2022-6 to IP Encapsulator Option for Software Defined EmSFPs

ITEM #: EMOPT-2E-2022-6 MFG #: EMOPT-2E-2022-6

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Riedel Communications Inc.
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EMOPT-2E-2022-6 - Overview

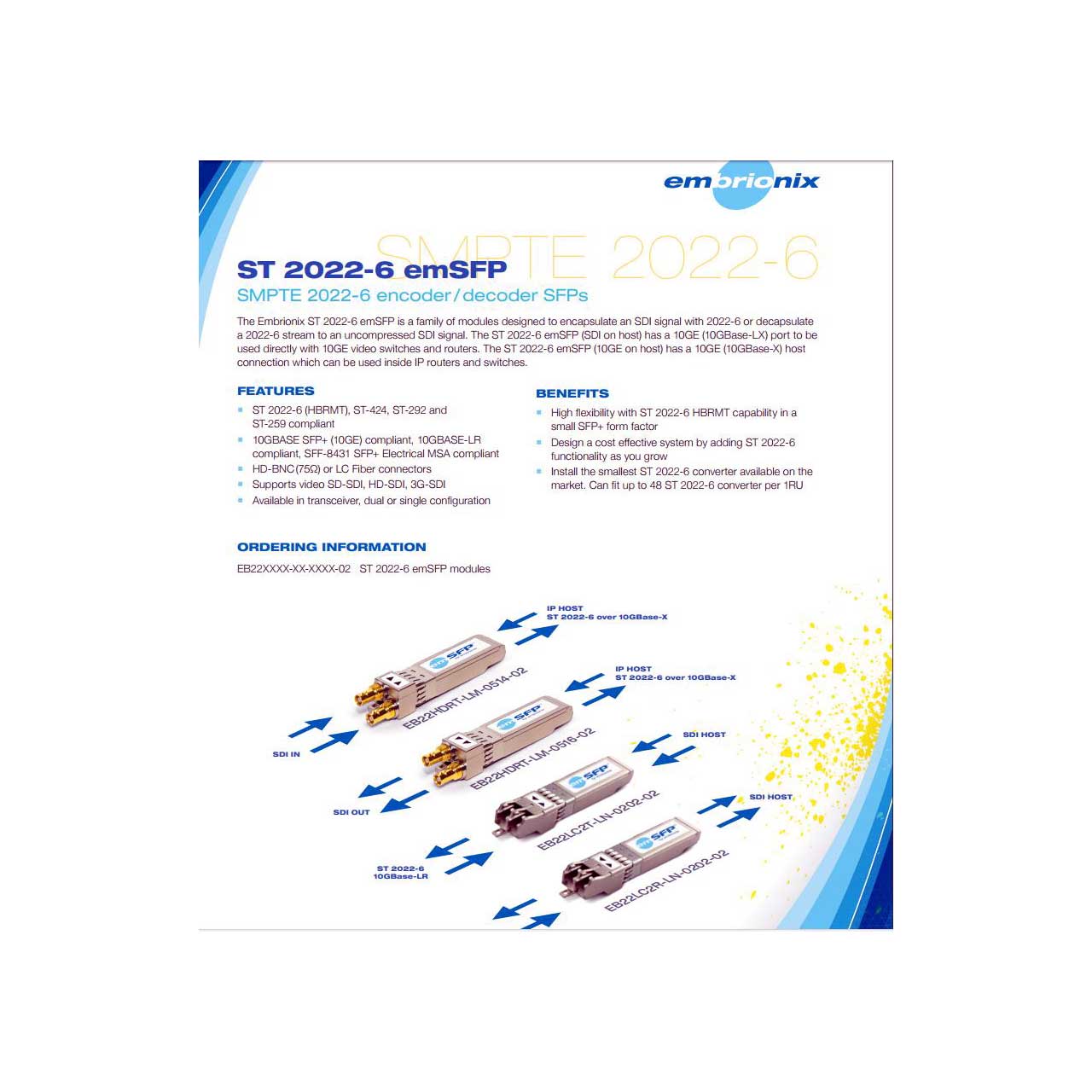

The Riedel EMOPT-2E-2022-6 is a software option installed on software defined EmSFPs when you need dual channel 2022-6 to IP encapsulation. It is designed to convert SDI to 2022-6 streams. The input can be 3G-SDI, HD-SDI or SD-SDI. The 2022-6 stream is present on the host connector at 10GE (compliant with 10GBASE-X). The ST2022-6 dual encapsulator emSFP (10GBASE-X on host) could be used directly with 10GE switches and routers.

Please Note: This is software only - SFP module required and sold separately.

  • Features:

    • High-density and future-proof architecture
    • Small form factor direct utilization in COTS
    • Pathological signal support
    • Monitoring and diagnostics at the edge of your product via API
    • In field updatable
    • Discovery mechanism (NMOS)
    • Automatic assignments of IP addresses (DHCP)
    • High flexibility with ST 2022-6 HBRMT capability in a small SFP+ form factor
    • Design your cost effective system by adding ST 2022-6 functionality as you grow
    • The smallest ST 2022-6 converter available - fit up to 48 ST 2022-6 converters in 1RU
    • Available in transceiver, dual or single configuration


  • Specifications:

    • Zero additional footprint
    • Modularity by one channel
    • Future-proof format flexible agility
    • Low power consumption
    • Interoperability made easy
    • Resolves interoperability between multiple formats/standards
    • Supports of ST-2022, AIMS TR-03, AES67 and ASPEN
    • Encoding & Decoding of compressed signals such as JPEG-2000, VC-2* and Tico*.
    • Simplified setup and control
    • Zero setup via standardized auto-discovery mechanism
    • Simple Restful API for third party control system
    • ST 2022-6 (HBRMT), ST-424, ST-292 and ST-259 compliant
    • 10GBASE SFP+ (10GE) compliant, 10GBASE-LR compliant, SFF-8431 SFP+ Electrical MSA compliant
    • SDI via HD-BNC (75-Ohm) Connectors
    • Fiber via LC connectors
    • Supports video SD-SDI, HD-SDI, 3G-SDI
