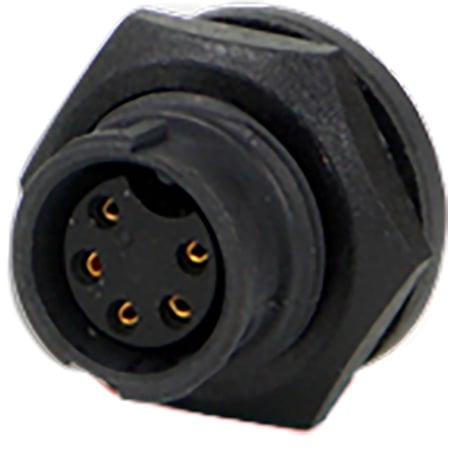

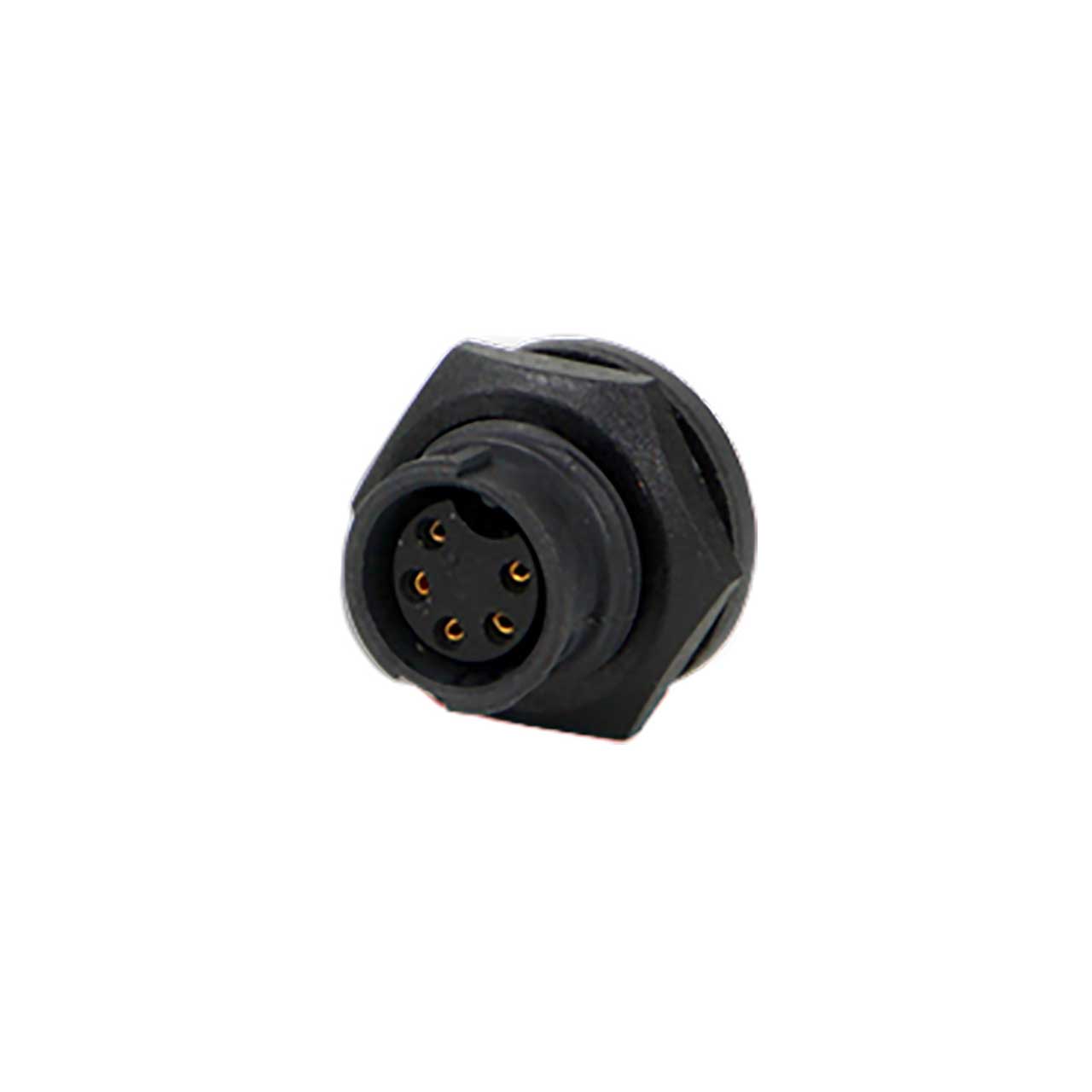

Switchcraft 5-pin Female Panel Mount EN3 Connector

Name: Switchcraft 5-pin Female Panel Mount EN3 Connector
Brand: Switchcraft
SKU: EN3P5FX
Price: 18.09 USD
Availability: PreSale

ITEM #: EN3P5FX MFG #: EN3P5FX

Switchcraft

List Price:

$19.00

Our Price:

$18.09

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EN3P5FX - Overview

Utilizing an integral O-Ring/gasket, EN3 connectors are available in 2 thru18 pins/sockets in the same housing size, bayonet locking, cable end, cable-to-cable, panel mount,right angle panel mount, solder, pc, crimp contacts, caps. Meets enclosure rating IP66/IP68 and NEMA 250 when mated or covered. Some of the many applications include:

Any sealed data transmission
Military or industrial GPS location devices
Instrumentation
Medical data carts
Marine Applications
Transportation
General industrial electronic applications

Specifications:
- Materials
- Panel connector shells and contact locking disk: Thermoplastic polymer glass fiber, flame retardant
- Connector shell interior: Thermoplastic rubber
- Contacts: Copper base alloy gold-plated over nickel underplate

  Mechanical
- Shock: Mil-Std 202 Method 213B, condition K
- Vibration: Mil-Std 202 Method 201
- Life: 600 insertion/withdrawal cycles (minimum)

  Electrical
- Voltage Rating (sea level): Tested at 600 VRMS (2-8 contacts), 250VRMS (9-18 contacts)
- Insulation Resistance: 100 megohms (minimum) at 77° F
- Contact Resistance: 20 milliohms (maximum)
- Current Rating-
- 13.0A (#16 contact)
- 7.5A (#20 contact, 2-6 contacts)
- 6.5A (#20 contact, 7 or 8 contacts)
- 3.0 Amps (#26 contact)

  Environmental
- Temperature Limits: -40°C to +65°C
- Moisture Resistance: Mil-Std 202 Method 106F
- Insulation Resistance: Mil-Std 202 Method 302 condition B
- Thermal Shock: Mil-Std 202 Method 107G
- Salt Spray: Mil-Std 202 Method 101D condition B

  Ratings
- IP16/IP18
- IP66/IP68
- NEMA 250 (6P)
- CFR 46 Part 110.20

EN3P5FX - Recommended Accessories

Switchcraft EN3C5FX ENE Series 5 pin Female Cable End Connector
EN3C5FX
Our Price: $15.10
Switchcraft EN3C5MX ENE Series 5 pin Male Cable End Connector
EN3C5MX
Our Price: $9.75

EN3P5FX - Reviews

EN3P5FX - Attachments

See Switchcraft EN3P5FX Specifications (PDF)

Overview

EN3P5FX - Overview

Any sealed data transmission
Military or industrial GPS location devices
Instrumentation
Medical data carts
Marine Applications
Transportation
General industrial electronic applications

Specifications:
- Materials
- Panel connector shells and contact locking disk: Thermoplastic polymer glass fiber, flame retardant
- Connector shell interior: Thermoplastic rubber
- Contacts: Copper base alloy gold-plated over nickel underplate

  Mechanical
- Shock: Mil-Std 202 Method 213B, condition K
- Vibration: Mil-Std 202 Method 201
- Life: 600 insertion/withdrawal cycles (minimum)

  Electrical
- Voltage Rating (sea level): Tested at 600 VRMS (2-8 contacts), 250VRMS (9-18 contacts)
- Insulation Resistance: 100 megohms (minimum) at 77° F
- Contact Resistance: 20 milliohms (maximum)
- Current Rating-
- 13.0A (#16 contact)
- 7.5A (#20 contact, 2-6 contacts)
- 6.5A (#20 contact, 7 or 8 contacts)
- 3.0 Amps (#26 contact)

  Environmental
- Temperature Limits: -40°C to +65°C
- Moisture Resistance: Mil-Std 202 Method 106F
- Insulation Resistance: Mil-Std 202 Method 302 condition B
- Thermal Shock: Mil-Std 202 Method 107G
- Salt Spray: Mil-Std 202 Method 101D condition B

  Ratings
- IP16/IP18
- IP66/IP68
- NEMA 250 (6P)
- CFR 46 Part 110.20
