ETS PA921 iPro Audio Balun Cable for iPads & Smartphones - 18 Inch

ITEM #: ETS-PA921 MFG #: PA921

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ETS-PA921

PA921 - Overview

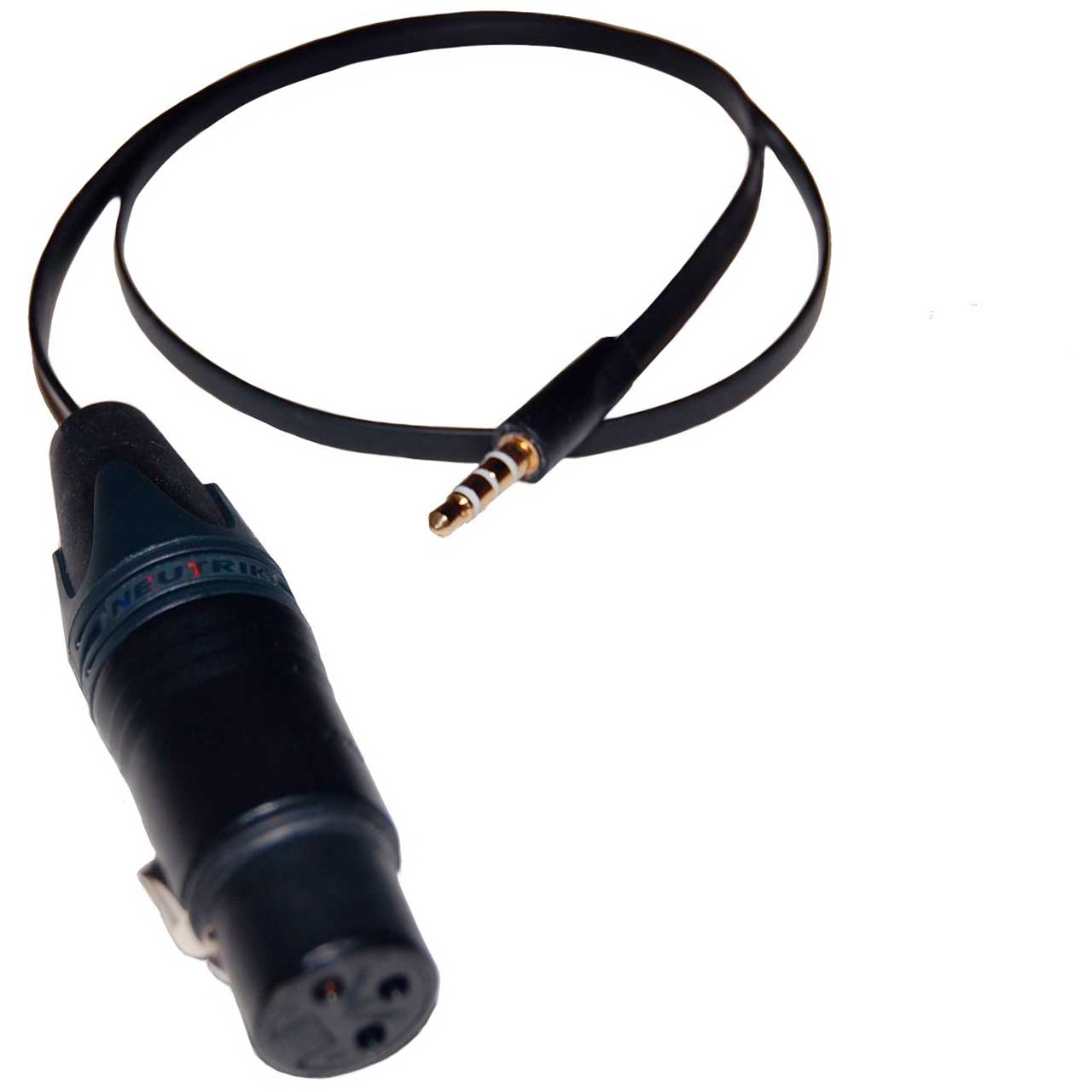

The ETS PA921 Smartphone Audio Balun Cable for iPhone mates professional XLR microphones with the 3.5mm TRRS jack of a smartphone's audio input jack, allowing software on the iPhone to record professional quality audio. Cables feature built-in ETS Balanced Line technology. The PA921 with an 18-inch flat pigtail is a record only iPhone adapter cable. To monitor your audio, use the ETS-PA922.

  • Features:

    • Connects the XLR-style microphone to the TRRS plug on a smartphone to allow for professional quality digital audio recording
    • Useful for field (ENG) recording and listening. Software required (supplied with PA922) to use the `listen-in' feature, only available for the Apple iPhone smartphones
    • Recording events such as interviews, parties, concerts and other spontaneous events
    • The PA921 may be used with other smartphones, but, sound quality will vary
    • Passive devices (no power required)
    • Small form factor
    • Low profile TRRS plug fits with most smartphone cases in place
    • 18-inch tangle-free flat cord with 6-inch audio cord
    • Made in USA


  • Specifications:

    • Bandwidth: 10 Hz to 20 KHz
    • Connectors: 3.5mm TRRS mini-plug to 3-Pin Female XLR
    • 3.5mm Mini Plug Impedance: 600 ohm
    • XLR Impedance: 100 ohm
    • Common Mode: 60dB min. @ 1KHz
    • Rejection: 40dB min. over the frequency range
    • Dimensions: 22mm dia. x 533mm (including pigtail)
    • Net Weight 0.06 Kg
